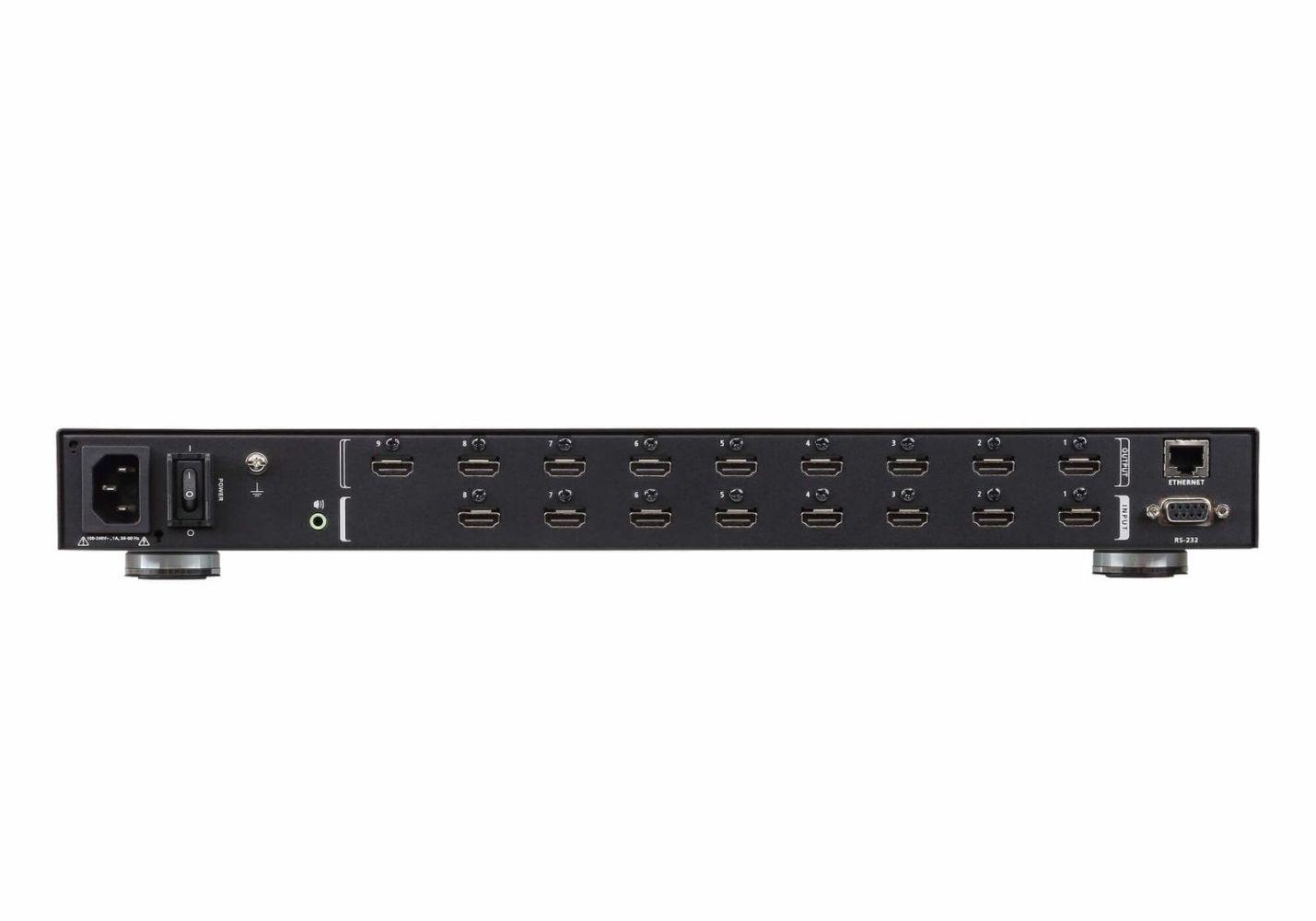

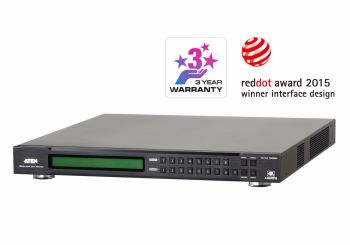

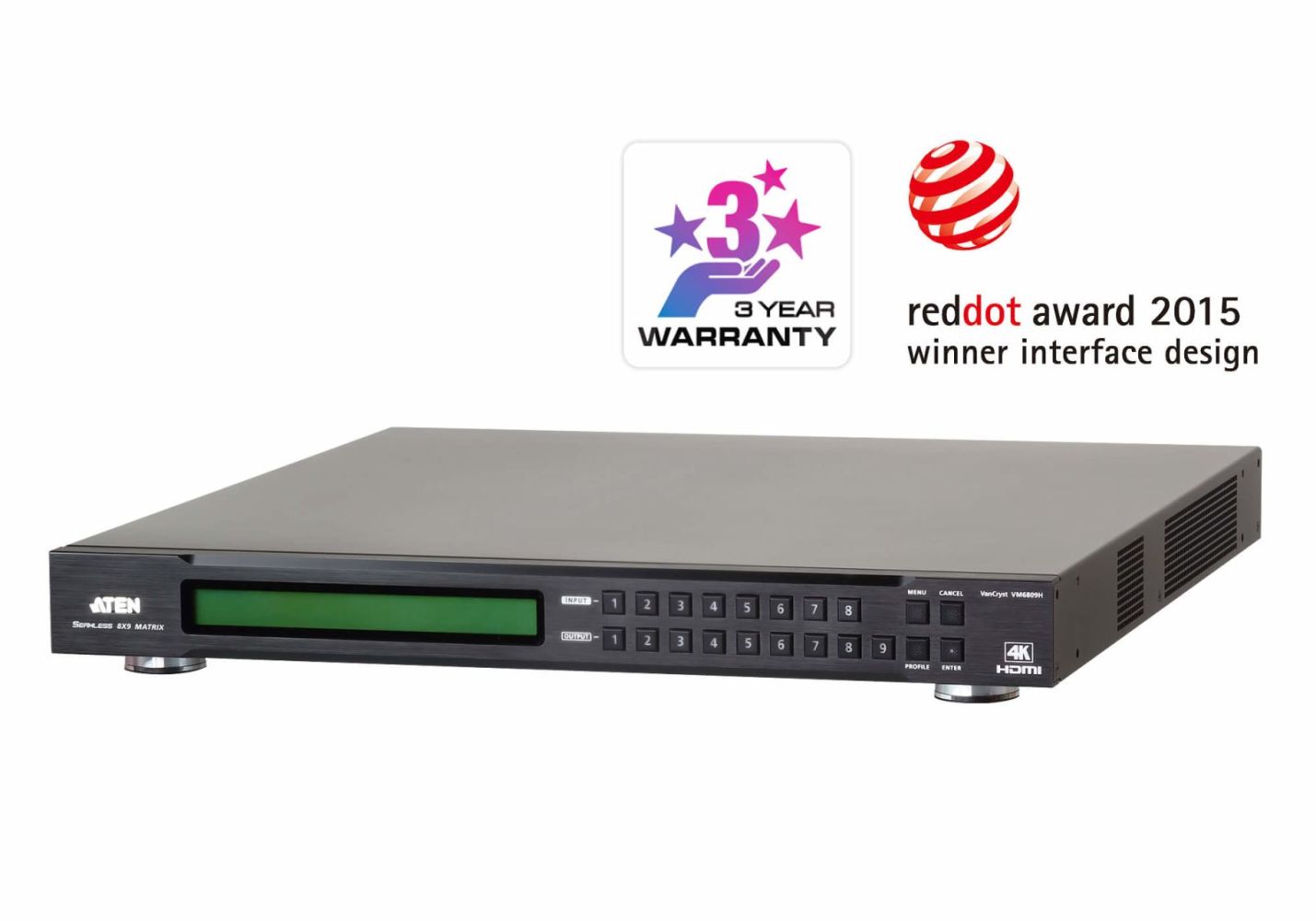

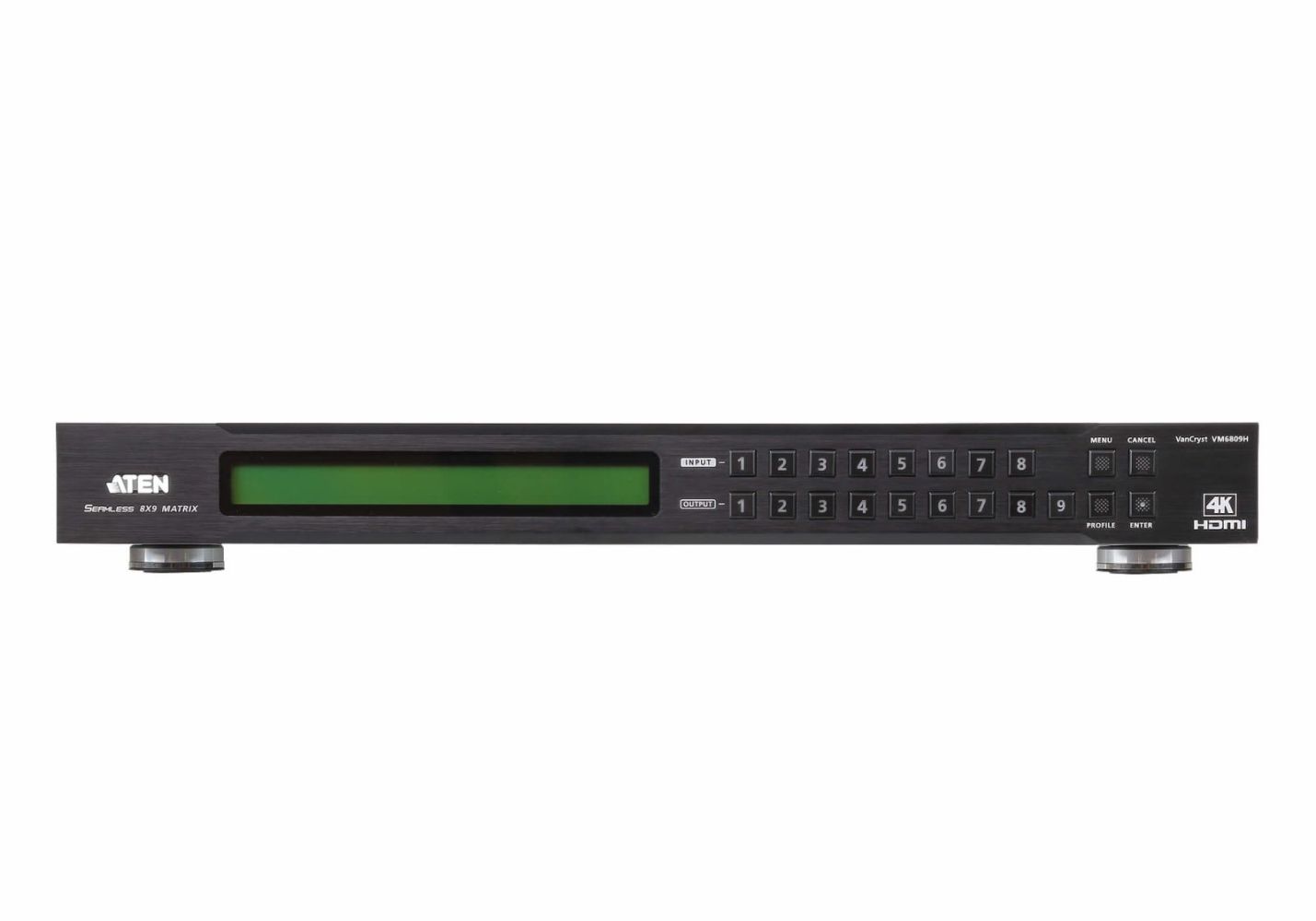

ATEN VM6809H 8x9 4K HDMI Matrix Switch with Scaling Function
|
5.370,34 EUR |
|
|
( 6.390,70 EUR incl. VAT ) ≈ £4,521.83 | ≈ $6,030.89 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1249407 |
| Mfg Part No: | ATEN VM6809H |
| UPC/EAN: | 4719264646331 |
| Weight: | 8.1 kg |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack capacity | 1U |
| LED indicators | |
| Display | |
| Built-in display | |
| Features | |
| Product type | Scaling matrix switcher |
| Data transfer rate | 10.2 Gbit/s |
| Maximum pixel clock | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.2 |
| HDCP | |
| 3D | |
| Extended display identification data (EDID) | |
| EDID management | |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 8.64 kg |
| Master (outer) case length | 575 mm |
| Master (outer) case width | 559 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case net weight | 7.35 kg |
| Harmonized System (HS) code | 85299097 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | AC |
| Ports & interfaces | |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| HDMI version | 2.0 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power | |
| Power consumption (max) | 79.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 450.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 7.35 kg |
| Package width | 559 mm |
| Package depth | 575 mm |
| Package height | 130 mm |
| Package weight | 8.64 kg |
Questions & answers
What is the delivery time of ATEN VM6809H 8x9 4K HDMI Matrix Switch with Scaling Function?
The article ATEN VM6809H 8x9 4K HDMI Matrix Switch with Scaling Function is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten ATEN VM6809H to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VM6809H 8x9 4K HDMI Matrix Switch with Scaling Function always at the best possible price. We can give you a discount of 2% on ATEN VM6809H 8x9 4K HDMI Matrix Switch with Scaling Function if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
