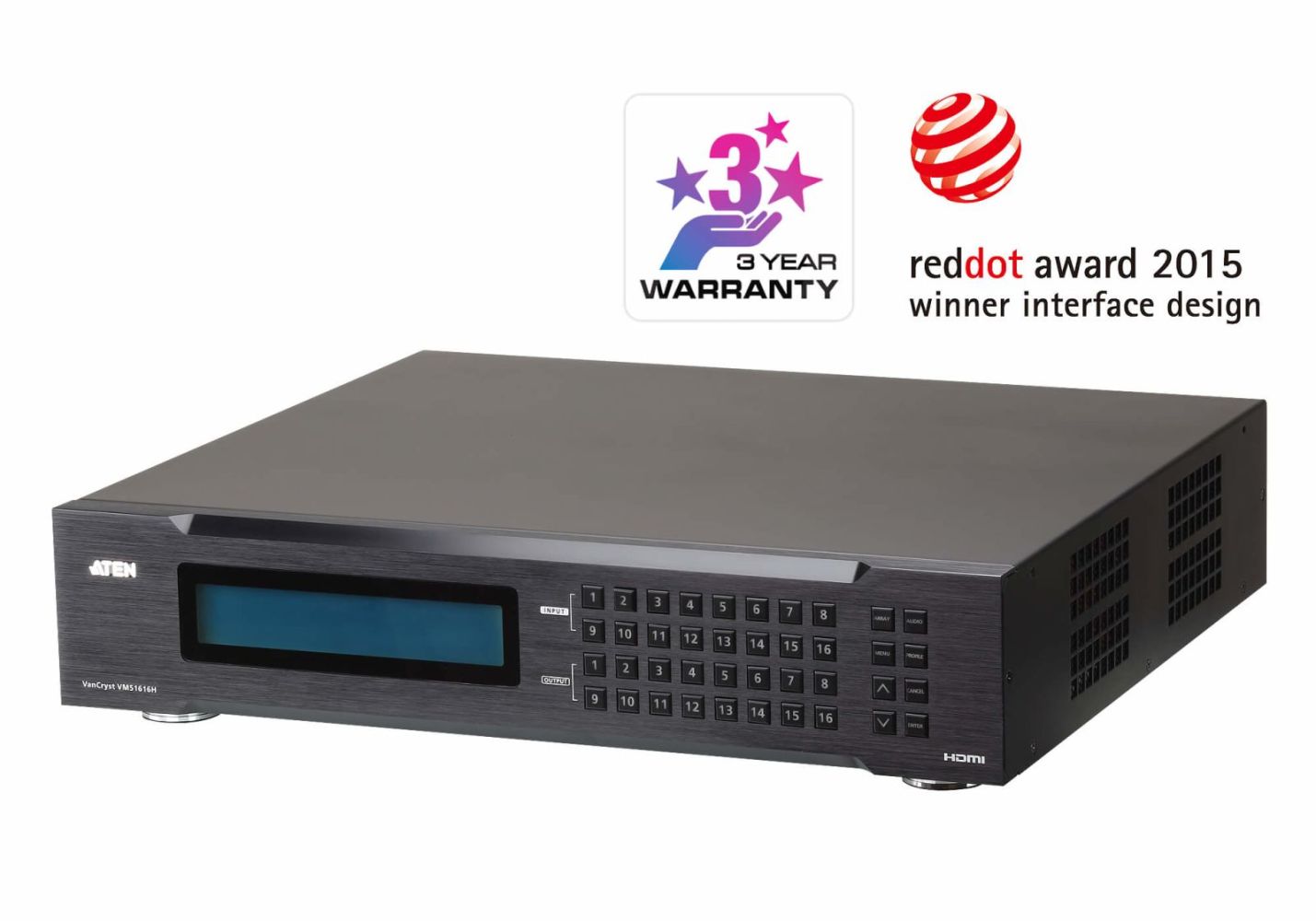

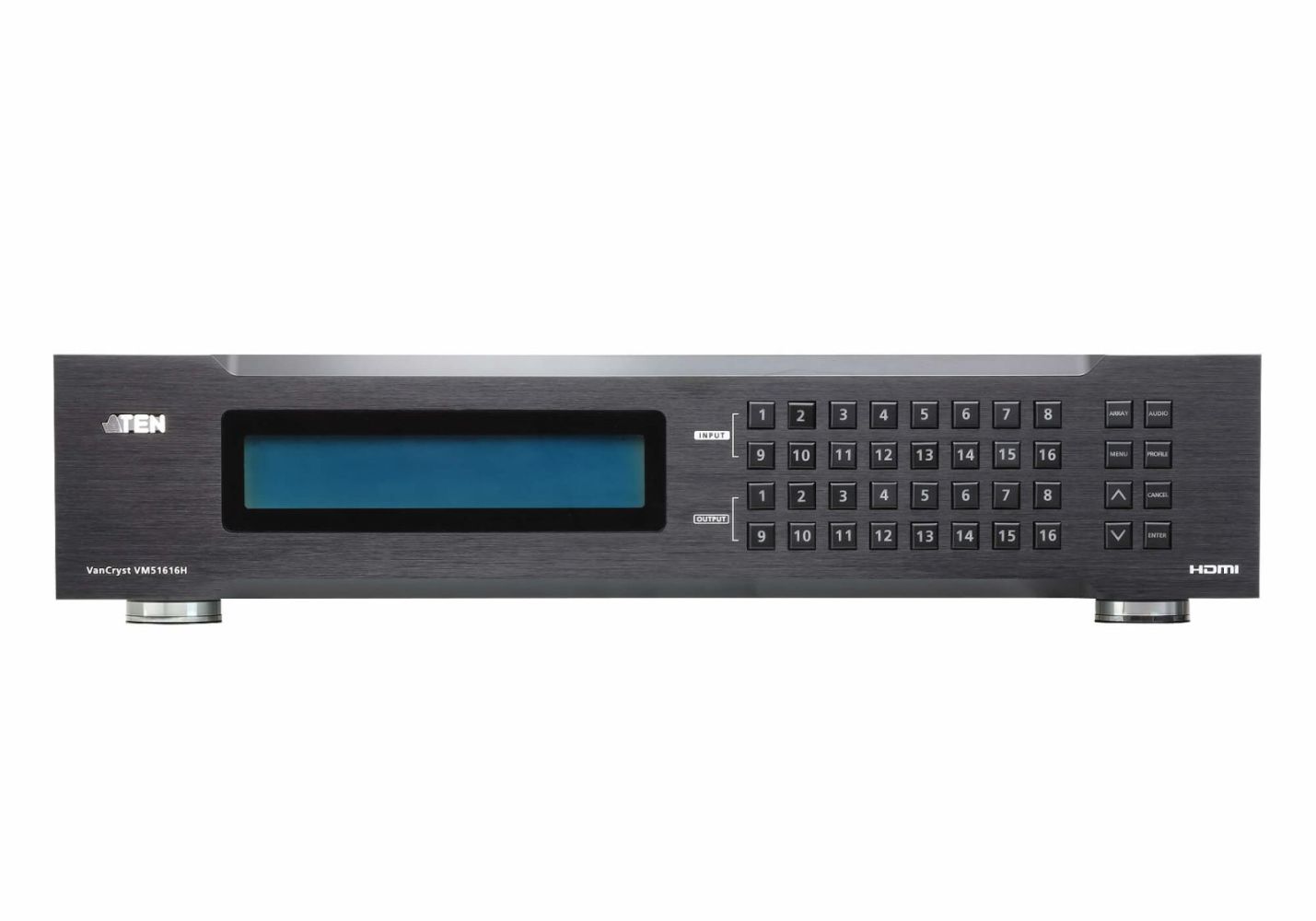

ATEN VM51616H 16x16 HDMI Matrix Switch with Scaling Function and Video Wall
|
-59% 8.125,03 EUR 19.919,23 EUR |
|
|
( 9.668,79 EUR incl. VAT ) ≈ £6,841.28 | ≈ $9,124.41 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1249406 |
| Mfg Part No: | ATEN VM51616H |
| UPC/EAN: | 4719264646072 |
| Weight: | 10 kg |
Product information for Aten ATEN VM51616H:
The VM51616H is an ideal solution for applications where multiple HDMI displays with multiple HDMI sources need to be sent to multiple locations, e.g. train stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management and much more. Package contents
1x VM51616H 16 x 16 HDMI matrix switch with scaler 1x LIN2-418K-E12G power cable 1x rack mounting kit 1x user manual
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack capacity | 2U |
| Rack mounting | |
| LED indicators | |
| Features | |
| Product type | Scaling matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP version | 1.4 |
| HDCP | |
| 3D | |
| Extended display identification data (EDID) | |
| EDID management | |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 9.79 kg |
| Master (outer) case length | 575 mm |
| Master (outer) case width | 505 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case net weight | 8.09 kg |
| Harmonized System (HS) code | 85299097 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | |

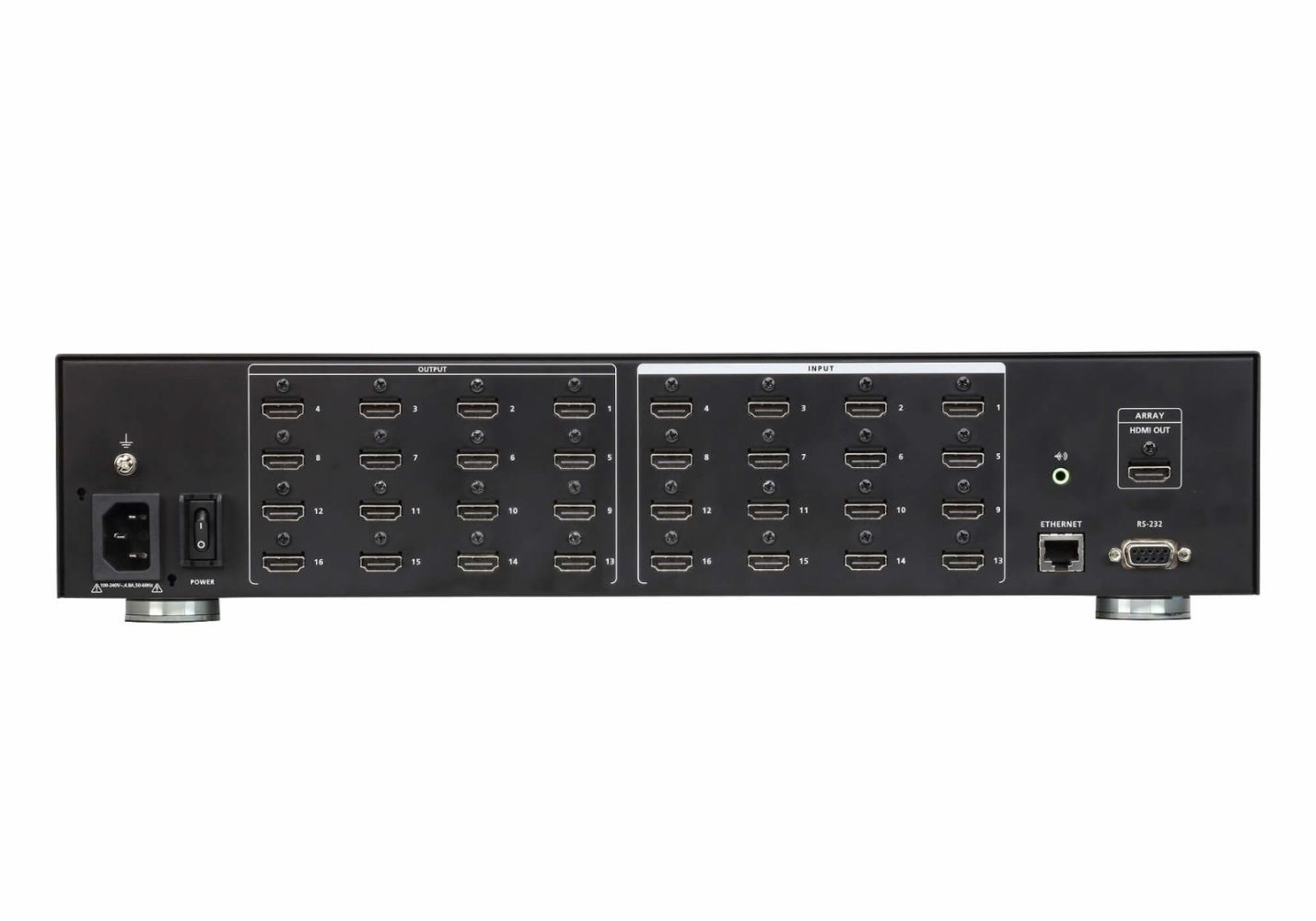

| Ports & interfaces | |
| HDMI input ports quantity | 16 |
| HDMI output ports quantity | 16 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power | |
| Power consumption (max) | 124.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 381.8 mm |
| Depth | 432.4 mm |
| Height | 88 mm |
| Weight | 8.09 kg |
| Package width | 505 mm |
| Package depth | 575 mm |
| Package height | 175 mm |
| Package weight | 9.79 kg |
