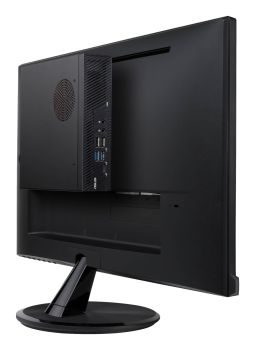

ASUS 90MS02R1-M006E0 PB63-B7205AH i7-14700 16GB DDR5 512GB M.2 black W11P
|
1.372,96 EUR |
|
|
( 1.633,82 EUR incl. VAT ) ≈ £1,149.17 | ≈ $1,530.85 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 14.12.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 478904 |
| Mfg Part No: | 90MS02R1-M006E0 |
| UPC/EAN: | 4711636076449 |
| Weight: | 2.383 kg |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Design | |
| Chassis type | Mini PC |
| Colour name | Black |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction year | 2023 |
| Cable lock slot | |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
| Package weight | 2.61 kg |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Number of rear USB ports | 3 |
| Number of front USB ports | 5 |
| Microphone in | |
| DC-in jack | |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | |
| NVMe | |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 175 mm |
| Height | 44.2 mm |
| Weight | 1.18 kg |
Questions & answers
What is the delivery time of ASUS 90MS02R1-M006E0 PB63-B7205AH i7-14700 16GB DDR5 512GB M.2 black W11P?
The article ASUS 90MS02R1-M006E0 PB63-B7205AH i7-14700 16GB DDR5 512GB M.2 black W11P is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MS02R1-M006E0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS 90MS02R1-M006E0 PB63-B7205AH i7-14700 16GB DDR5 512GB M.2 black W11P always at the best possible price. We can give you a discount of 2% on ASUS 90MS02R1-M006E0 PB63-B7205AH i7-14700 16GB DDR5 512GB M.2 black W11P if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
