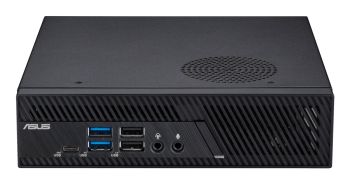

ASUS 90MS02R1-M006B0
PB63-B7202MH i7-14700 16GB DDR5 512GB M.2 black ohne OS
|
1.214,98 EUR |
|
|
( 1.445,83 EUR incl. VAT ) ≈ £1,016.94 | ≈ $1,354.70 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 478903 |
| Mfg Part No: | 90MS02R1-M006B0 |
| UPC/EAN: | 4711636076432 |
| Weight: | 2.372 kg |
| Certificates | |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Design | |
| Chassis type | Mini PC |
| Colour name | Black |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction year | 2023 |
| Cable lock slot | |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
| Package weight | 2.61 kg |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Number of rear USB ports | 3 |
| Number of front USB ports | 5 |
| Microphone in | |
| DC-in jack | |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700 |
| Processor cores | 20 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Software | |
| Operating system installed | |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Optical drive type | |
| NVMe | |
| Weight & dimensions | |
| Width | 175 mm |
| Depth | 175 mm |
| Height | 44.2 mm |
| Weight | 1.18 kg |
