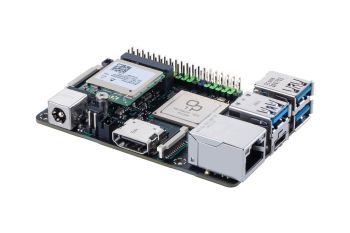

ASUS TINKER BOARD 2S/2G/16G//SBC MOTHERBOARD
|
147,88 EUR |
|
|
( 175,98 EUR incl. VAT ) ≈ £123.78 | ≈ $164.89 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1938481 |
| Mfg Part No: | 90ME01P0-M0EAY0 |
| UPC/EAN: | 4718017952101 |
| Weight: | 0.193 kg |
| Graphics | |
| On-board graphics card model | ARM Mali-T860 MP4 |
| On-board graphics card | |
| Memory | |
| Maximum internal memory | 2 GB |
| Internal memory type | LPDDR4-SDRAM |
| Memory channels | Dual-channel |
| Flash memory type | eMMC |
| eMMC capacity | 16 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Ports & interfaces | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 4 |
| Audio port type | I2S |
| Bluetooth version | 5.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Wi-Fi | |
| Ethernet LAN | |
| Bluetooth | |
| S/PDIF out port | |
| GPIO interface | |
| I2C interface | |
| SPI interface | |
| I2S interface | |
| PCM interface | |
| Power | |
| DC input voltage | 12 - 19 V |
| Processor | |
| Processor manufacturer | Rockchip |
| Processor model | RK3399 |
| Processor frequency | 2000 MHz |
| Processor cores | 6 |
| Weight & dimensions | |
| Height | 85 mm |
| Width | 56 mm |
Questions & answers
What is the delivery time of ASUS TINKER BOARD 2S/2G/16G//SBC MOTHERBOARD?
The article ASUS TINKER BOARD 2S/2G/16G//SBC MOTHERBOARD is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90ME01P0-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS TINKER BOARD 2S/2G/16G//SBC MOTHERBOARD always at the best possible price. We can give you a discount of 2% on ASUS TINKER BOARD 2S/2G/16G//SBC MOTHERBOARD if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
