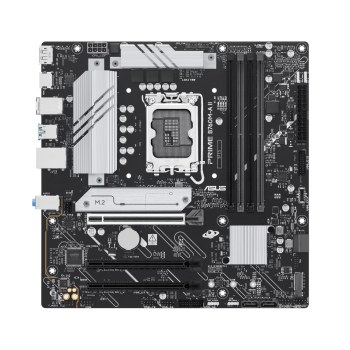

ASUS PRIME B760M-A II-CSM LGA 1700 mATX motherboard DDR5 PCIe 5.0 1xHDMI 1xDP 2xM.2 4xSATA
|
147,42 EUR |
|
|
( 175,43 EUR incl. VAT ) ≈ £123.39 | ≈ $164.37 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 235060 |
|---|---|
| Mfg Part No: | 90MB1NG0-M0EAYC |
| UPC/EAN: | 4711636273619 |
| Weight: | 1.1 kg |
Product information for ASUS 90MB1NG0-M0EAYC:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of COM connectors | 1 |
| Number of RGB LED pin headers | 4 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 52 mm |
| Package weight | 1.14 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 40 mm |
Questions & answers
What is the delivery time of ASUS PRIME B760M-A II-CSM LGA 1700 mATX motherboard DDR5 PCIe 5.0 1xHDMI 1xDP 2xM.2 4xSATA?
The article ASUS PRIME B760M-A II-CSM LGA 1700 mATX motherboard DDR5 PCIe 5.0 1xHDMI 1xDP 2xM.2 4xSATA is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1NG0-M0EAYC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PRIME B760M-A II-CSM LGA 1700 mATX motherboard DDR5 PCIe 5.0 1xHDMI 1xDP 2xM.2 4xSATA always at the best possible price. We can give you a discount of 2% on ASUS PRIME B760M-A II-CSM LGA 1700 mATX motherboard DDR5 PCIe 5.0 1xHDMI 1xDP 2xM.2 4xSATA if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
