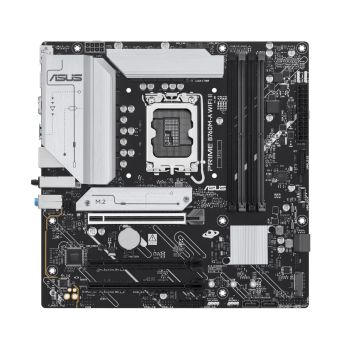

ASUS PRIME B760M-A WIFI II LGA 1700 mATX motherboard DDR5 1xHDMI 1xDP 2xM.2 4xSATA
|
147,28 EUR |
|
|
( 175,26 EUR incl. VAT ) ≈ £123.27 | ≈ $164.22 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 859232 |
|---|---|
| Mfg Part No: | 90MB1NF0-M0EAY0 |
| UPC/EAN: | 4711636275439 |
| Weight: | 1.419 kg |
Product information for ASUS 90MB1NF0-M0EAY0:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging content | |
| Cables included | SATA |
| Antenna included | |
| Screws included | |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.4 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| WiFi-AP antenna jack | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
