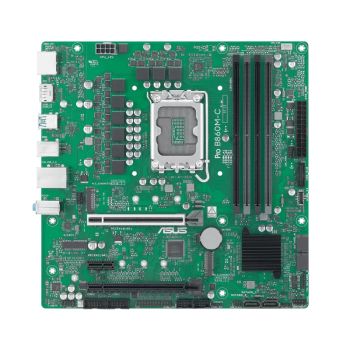

ASUS PRO B860M-C-CSM S1851/DDR5/2xDP-HDMI/2xM.2/24-7/µATX
|
152,13 EUR |
|
|
( 181,03 EUR incl. VAT ) ≈ £127.33 | ≈ $169.62 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2207825 |
| Mfg Part No: | 90MB1MCP-M0EAYC |
| UPC/EAN: | 4711636114684 |
| Weight: | 1 kg |
Product information for ASUS 90MB1MCP-M0EAYC:
Socket LGA1851 for Intel Core ULTRA CPU,
24/7 reliability
Intel B860 Chipset, 4x DDR5 Unbuffered DIMM, non-ECC, max. 256GB (4x 64GB)
2x M.2 Socket 3 Key-M (Type 2260/2280), (1x 5.0 x4 mode / 1x 4.0 x4 mode)
4x SATA 6Gb/s with RAID 0/1/5/10 support, PCIe/NVMe RAID NOT supported
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot (supports x4 Mode), 1x PCIe 4.0 x1 slot
1x Intel 1Gb Ethernet 219V (WOL, PXE), Realtek 7.1 Audio
2x DisplayPort 1.4* (4K@60Hz), 1x HDMI 2.1** (4K@60Hz)
Supports up to 3 Displays simultaneously
M.2 slot only (Key E, CNVi & PCIe) for WiFi/ Bluetooth module
1x USB Type-C, 1x USB 3.1 Gen2*, 2x USB 2.0*, 1x RJ-45 LAN, 3x Audio jacks, 2x PS/2, (*Type-A)
Option: 2x COM, 1x LPT, 1x TPM module
24/7 reliability
Intel B860 Chipset, 4x DDR5 Unbuffered DIMM, non-ECC, max. 256GB (4x 64GB)
2x M.2 Socket 3 Key-M (Type 2260/2280), (1x 5.0 x4 mode / 1x 4.0 x4 mode)
4x SATA 6Gb/s with RAID 0/1/5/10 support, PCIe/NVMe RAID NOT supported
1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot (supports x4 Mode), 1x PCIe 4.0 x1 slot
1x Intel 1Gb Ethernet 219V (WOL, PXE), Realtek 7.1 Audio
2x DisplayPort 1.4* (4K@60Hz), 1x HDMI 2.1** (4K@60Hz)
Supports up to 3 Displays simultaneously
M.2 slot only (Key E, CNVi & PCIe) for WiFi/ Bluetooth module
1x USB Type-C, 1x USB 3.1 Gen2*, 2x USB 2.0*, 1x RJ-45 LAN, 3x Audio jacks, 2x PS/2, (*Type-A)
Option: 2x COM, 1x LPT, 1x TPM module
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Product colour | Green |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of COM connectors | 2 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8666 MHz |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Screws included | |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
