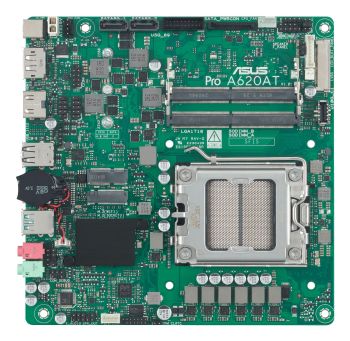

ASUS A620A LGA 1851 mini-ITX Thin motherboard 1xHDMI 1xDP
|
114,91 EUR |
|
|
( 136,74 EUR incl. VAT ) ≈ £96.18 | ≈ $128.12 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1616698 |
| Mfg Part No: | 90MB1L5M-M0EAYC |
| UPC/EAN: | 4711636116053 |
| Weight: | 0.668 kg |
Product information for ASUS 90MB1L5M-M0EAYC:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | AMD A620A |
| Audio output channels | 7.1 channels |
| Product colour | Green |
| Component for | PC |
| Motherboard form factor | Thin Mini ITX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | DC |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| Front panel connector | |
| CPU fan connector | |
| Chassis intrusion connector | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Number of Ultra M.2 (M) slots | 1 |
| Packaging content | |
| Cables included | SATA |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 3 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
