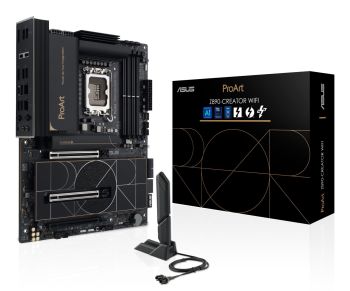

ASUS PROART Z890-CREATOR WIFI S1851/DDR5/DP-HDMI/4xM.2/ATX
|
452,56 EUR |
|
|
( 538,55 EUR incl. VAT ) ≈ £378.79 | ≈ $504.60 plus delivery charges: 55,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1611072 |
|---|---|
| Mfg Part No: | 90MB1JD0-M0EAY0 |
| UPC/EAN: | 4711387766163 |
| Weight: | 2.763 kg |
Product information for ASUS 90MB1JD0-M0EAY0:
4x DIMM slots, max. 256GB, DDR5, up to 9066+MT/s (OC), Non-ECC
Intel Core™ Ultra Processors (Series 2), LGA1851, Chipset Z890
1x HDMI™ port4, 2x Thunderbolt 5 ports (USB Type-C), supports
DisplayPort and Thunderbolt™ video outputs5, 1x Thunderbolt 4 port
(USB Type-C) support DisplayPort and Thunderbolt video outputs
2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
1x PCIe 4.0 x16 slot (supports x4 mode)
M.2_1 slot type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)2
4 x SATA 6Gb/s ports
IntelRapid Storage Techn. supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10,
(!) M.2 slot from CPU only supports RAID 0/1/5.
1x Marvell AQtion 10Gb Ethernet RJ45, 1x Intel® 2.5Gb Ethernet RJ45
WoL by PME, PXE
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
WiFi 7, Bluetooth 5.4
Backpanel IO Ports:
2x Thunderbolt™ 5 USB Type-C, 1x USB4 / Thunderbolt Type-C,
6x USB 10Gbps ports (6 x Type-A), 1x USB 2.0 port (1 x Type-A),
1x DisplayPort (Input only), 1x HDMI™ port, 1x Wi-Fi module,
1x Marvell 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet port,
2x Gold-plated audio jacks, 1x BIOS FlashBack™ button,
Option: 1x COM. 1x SPI TPM 14-1 pin
Intel Core™ Ultra Processors (Series 2), LGA1851, Chipset Z890
1x HDMI™ port4, 2x Thunderbolt 5 ports (USB Type-C), supports
DisplayPort and Thunderbolt™ video outputs5, 1x Thunderbolt 4 port
(USB Type-C) support DisplayPort and Thunderbolt video outputs
2x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
1x PCIe 4.0 x16 slot (supports x4 mode)
M.2_1 slot type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)2
4 x SATA 6Gb/s ports
IntelRapid Storage Techn. supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10,
(!) M.2 slot from CPU only supports RAID 0/1/5.
1x Marvell AQtion 10Gb Ethernet RJ45, 1x Intel® 2.5Gb Ethernet RJ45
WoL by PME, PXE
Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
WiFi 7, Bluetooth 5.4
Backpanel IO Ports:
2x Thunderbolt™ 5 USB Type-C, 1x USB4 / Thunderbolt Type-C,
6x USB 10Gbps ports (6 x Type-A), 1x USB 2.0 port (1 x Type-A),
1x DisplayPort (Input only), 1x HDMI™ port, 1x Wi-Fi module,
1x Marvell 10Gb Ethernet port, 1x Intel® 2.5Gb Ethernet port,
2x Gold-plated audio jacks, 1x BIOS FlashBack™ button,
Option: 1x COM. 1x SPI TPM 14-1 pin
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 5 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 5 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of COM connectors | 1 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 3 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 9066 MHz |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 1.97 kg |
| Packaging content | |
| Cables included | SATA |
| Antenna included | |
| Packaging data | |
| Package width | 356 mm |
| Package depth | 281 mm |
| Package height | 244 mm |
| Package weight | 2.35 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Thunderbolt ports quantity | 3 |
| WiFi-AP antenna jack | 2 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
