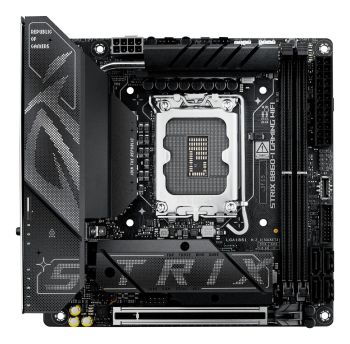

ASUS ROG STRIX B860-I GAMING WIFI LGA1851 DDR5 ATX MB
|
216,37 EUR |
|
|
( 257,48 EUR incl. VAT ) ≈ £181.10 | ≈ $241.25 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 855953 |
|---|---|
| Mfg Part No: | 90MB1JB0-M0EAY0 |
| UPC/EAN: | 4711387815991 |
| Weight: | 1.31 kg |
Product information for ASUS 90MB1JB0-M0EAY0:
mini-ITX, Mainboard, B860, LGA1851, 2x DDR5 DIMM-Slots, Dual Channel, max. 128GB UDIMM Non-ECC, DDR5-5600 UDIMM/DDR5-6400 CUDIMM (Core Ultra 200S), max. DDR5-9066 OC, 1x PCIe 5.0 x16, 1x M.2/M-Key (PCIe 5.0 x4, 2280/2260), 1x M.2/M-Key (PCIe 4.0 x4, 2280
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9066 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Audio output | <strong>Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*</strong> - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" <strong |
| Special features | <strong>Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*</strong> <strong>Intel<sup>®</sup> Core™ Ultra Processors (Series 2)</strong> M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) <strong>Intel<sup>®</sup> B860 Chipset**</strong> M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel<sup>®</sup> Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Other features | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel<sup>®</sup> Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) *Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM |
| Graphics output | 1 x DisplayPort** 1 x HDMI™ port*** 1 x Intel<sup>®</sup> Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support pl |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt ports quantity | 1 |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
