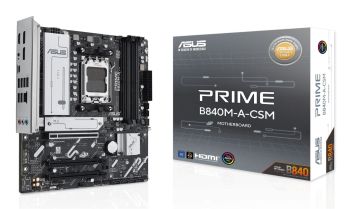

ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX
|
158,18 EUR 159,22 EUR |
|
|
( 188,23 EUR incl. VAT ) ≈ £132.40 | ≈ $176.37 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1235442 |
|---|---|
| Mfg Part No: | 90MB1J10-M0EAYC |
| UPC/EAN: | 4711387797204 |
| Weight: | 1.362 kg |
Product information for ASUS 90MB1J10-M0EAYC:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series
AMD B840 Chipset
4x DIMM slots, max. 256GB, DDR5
2x DisplayPort (max. 8K@30Hz), 1x HDMI (Supports 4K@60Hz)
1x PCIe 4.0 x16 slot (support x16 mode)*
1x PCIe 4.0 x16 slot (support x8/x4 mode*
2x PCIe 3.0 x16 slots (support x1 mode)
M.2_1 slot (type 2280 (supports PCIe 4.0 x4 mode)*
M.2_2 slot (type 2242/2260/2280 (PCIe 4.0 x4 mode)*
M.2_3 slot, (type 2280 (PCIe 3.0 x4) * Specifications vary by CPU types.
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology:
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
1x Realtek 2.5Gb Ethernet RJ45 (WOL by PME, PXE)
2x USB 10Gbps ports (2 x Type-A), 1x USB 5Gbps port (1 x USB Type-C),
4x USB 2.0 ports (4 x Type-A), option: 1x COM, 1x TPM Header
AMD B840 Chipset
4x DIMM slots, max. 256GB, DDR5
2x DisplayPort (max. 8K@30Hz), 1x HDMI (Supports 4K@60Hz)
1x PCIe 4.0 x16 slot (support x16 mode)*
1x PCIe 4.0 x16 slot (support x8/x4 mode*
2x PCIe 3.0 x16 slots (support x1 mode)
M.2_1 slot (type 2280 (supports PCIe 4.0 x4 mode)*
M.2_2 slot (type 2242/2260/2280 (PCIe 4.0 x4 mode)*
M.2_3 slot, (type 2280 (PCIe 3.0 x4) * Specifications vary by CPU types.
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology:
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
1x Realtek 2.5Gb Ethernet RJ45 (WOL by PME, PXE)
2x USB 10Gbps ports (2 x Type-A), 1x USB 5Gbps port (1 x USB Type-C),
4x USB 2.0 ports (4 x Type-A), option: 1x COM, 1x TPM Header
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| Features | |
| Motherboard chipset | AMD B840 |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of COM connectors | 1 |
| Number of RGB LED pin headers | 3 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 910 g |
| Quick installation guide | |
| Packaging content | |
| Cables included | SATA |
| Screws included | |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.45 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX?
The article ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1J10-M0EAYC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX always at the best possible price. We can give you a discount of 2% on ASUS PRIME B840M-A-CSM AM5 B840/2xDP-HDMI/3xM.2/µATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
