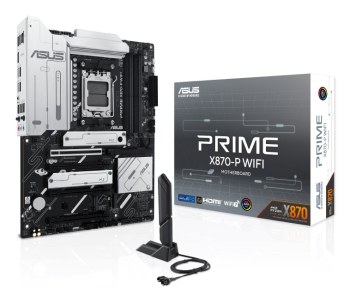

ASUS PRIME X870-P WIFI X870/AM5/HDMI-USB4-C/4xM.2/ATX content_copy

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series
AMX X870 Chipset
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series
ECC and Non-ECC, Un-buffered DIMM* , Dual channel memory architecture
1x HDMI™ port, Supports 4K@60Hz as specified in HDMI 2.1.
2x USB4 (40Gbps) ports support USB Type-C display outputs,
supports max. 4K@60Hz as specified in DisplayPort 1.4a.
1x PCIe 5.0 x16 slot supports x16 mode (Ryzen 9000 & 7000 Series)
Supports x8/x4 PCIe 4.0 mode with Ryzen 8000 Series Processor
2x PCIe 4.0 x16 slots (support max. x1 mode)**
3x PCIe 4.0 x1 slot (x16 physical)
4x M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
2x SATA 6Gb/s ports
1x Realtek 2.5Gb Ethernet RJ45
Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band
Realtek 7.1 Surround Sound High Definition Audio CODEC
2x USB4 (40Gbps) ports (2 x USB Type-C)
1x USB Type-A: 10Gbps port, 3 x USB 5Gbps ports , 4x USB 2.0
3x Audio jacks, optional: 1x COM port, 1x TPM Header

BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Expansion slots
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	4
Features
Motherboard chipset	AMD X870
Audio output channels	7.1 channels
Product colour	Black
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	AMD
Cooling type	Passive
Power source type	ATX
Windows operating systems supported	Windows 10, Windows 11
Graphics
Parallel processing technology support	Not supported
On-board graphics card
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	2
Number of chassis fan connectors	4
Number of COM connectors	1
Front panel audio connector
ATX Power connector (24-pin)
CPU fan connector
EPS power connector (8-pin)
TPM connector
12V power connector
RGB LED pin header
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speed (max)	8000 MHz
Maximum internal memory	192 GB
Unbuffered memory
Network
Ethernet interface type	2.5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Ethernet LAN
Wi-Fi
Bluetooth
Other features
Weight	1.56 kg
Back-to-BIOS button
Packaging content
Cables included	SATA
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	1.56 kg
Processor
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Rear panel I/O ports
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB4 Gen 2x2 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
DisplayPort version	1.4a
Line-in
Microphone in
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	2
Number of storage drives supported	6
RAID levels	0, 1, 5, 10
RAID support
Weight & dimensions
Width	305 mm
Depth	244 mm
Height	48 mm

---
