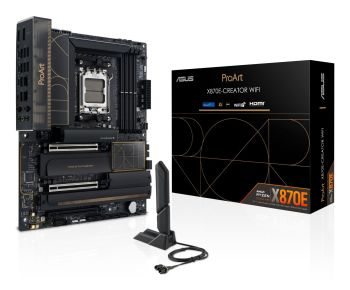

ASUS PROART X870E-CREATOR WIFI X870E/AM5/2xLAN/ATX
|
440,96 EUR 454,76 EUR |
|
|
( 524,74 EUR incl. VAT ) ≈ £369.08 | ≈ $491.67 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 161085 |
|---|---|
| Mfg Part No: | 90MB1IG0-M0EAY0 |
| UPC/EAN: | 4711387730775 |
| Weight: | 2.6 kg |
Product information for ASUS 90MB1IG0-M0EAY0:
Chipset AMD X870E
4 x DIMM slots, max. 192GB, DDR5
ECC and Non-ECC, Un-buffered Memory1
Graphics:
1x HDMI port
2x USB4 (40Gbps) ports support USB Type-C display output
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
RAID 5 Function is only supported by Ryzen 9000 series CPU
1x Marvell AQtion 10Gb LAN & 1x Intel® 2.5Gb LAN RJ45
Wi-Fi 74 > 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band5,
Bluetooth v5.46
Rear USB (Total 11 ports):
2x USB4® (40Gbps) ports (2 x USB Type-C)
1x USB 20Gbps port (1 x USB Type-C)
7x USB 10Gbps ports (7 x Type-A), 1x USB 2.0 port (1 x Type-A)
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| Features | |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging content | |
| Cables included | DisplayPort, SATA |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| WiFi-AP antenna jack | 1 |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 10, 5 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of ASUS PROART X870E-CREATOR WIFI X870E/AM5/2xLAN/ATX?
The article ASUS PROART X870E-CREATOR WIFI X870E/AM5/2xLAN/ATX is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1IG0-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PROART X870E-CREATOR WIFI X870E/AM5/2xLAN/ATX always at the best possible price. We can give you a discount of 2% on ASUS PROART X870E-CREATOR WIFI X870E/AM5/2xLAN/ATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
