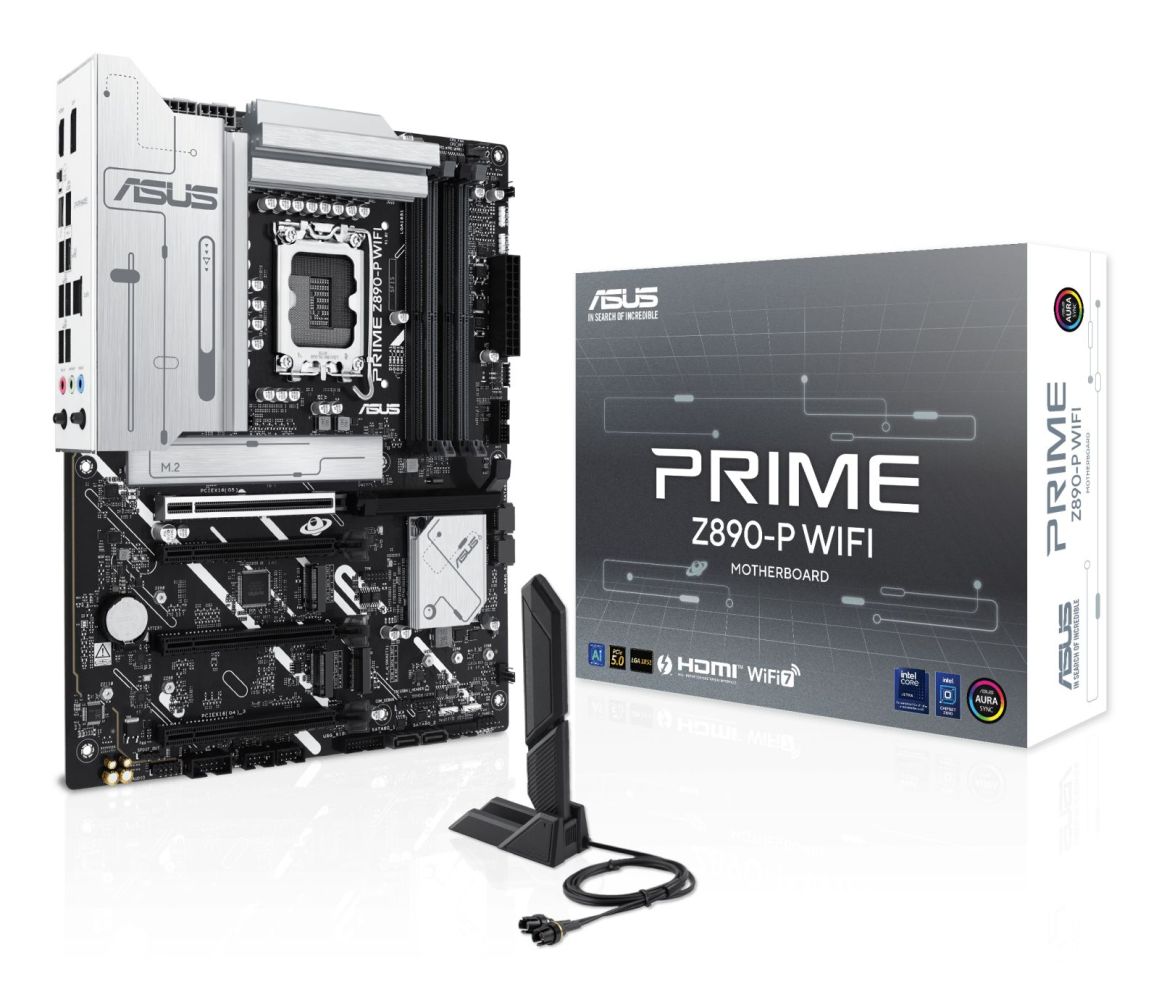

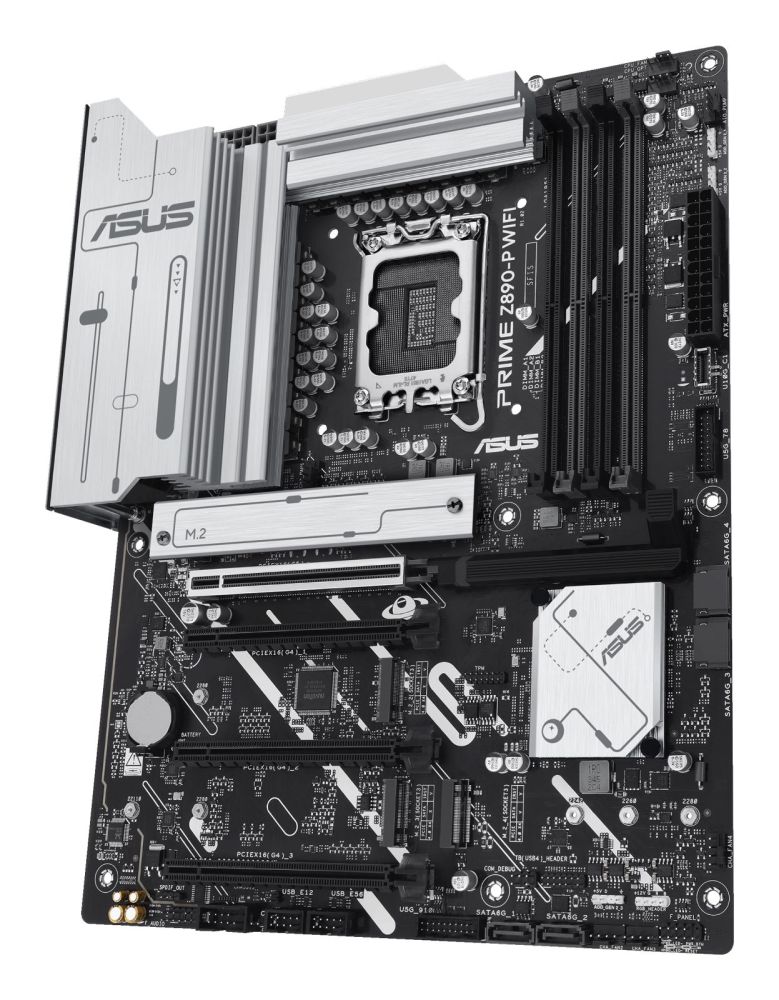

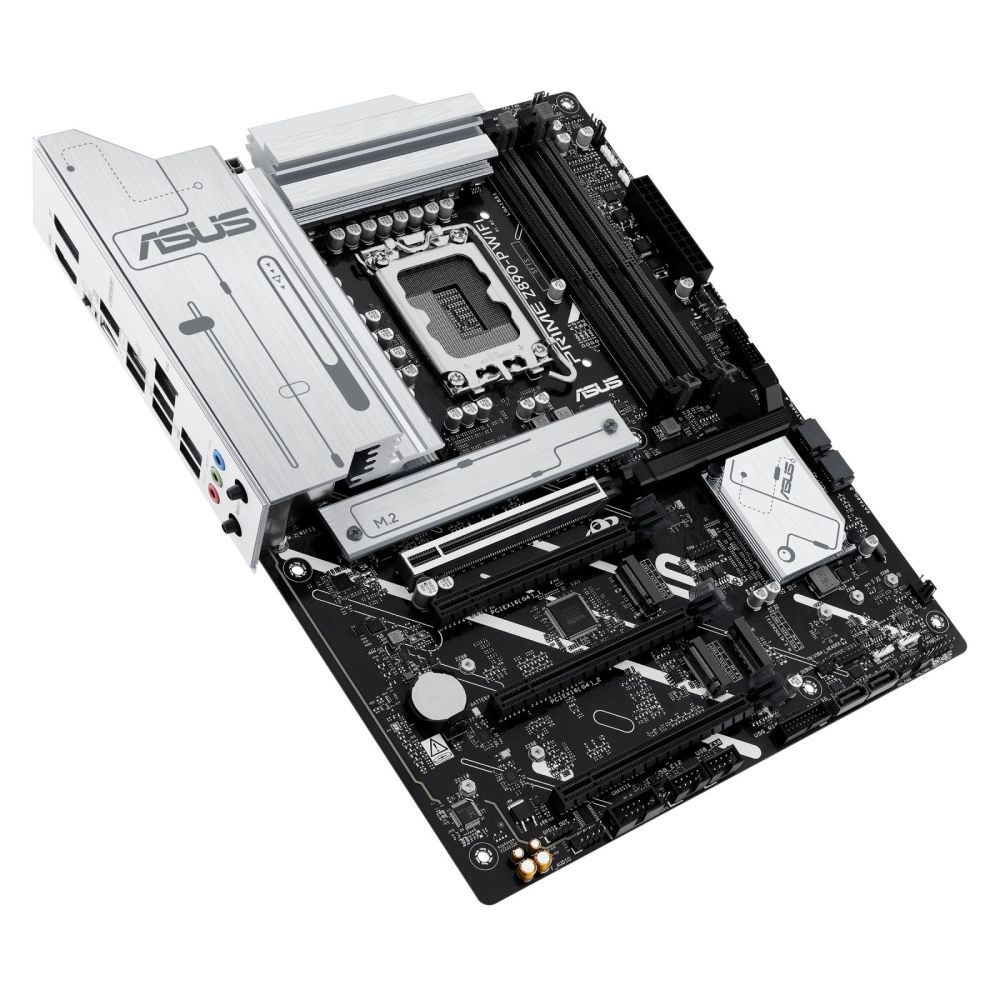

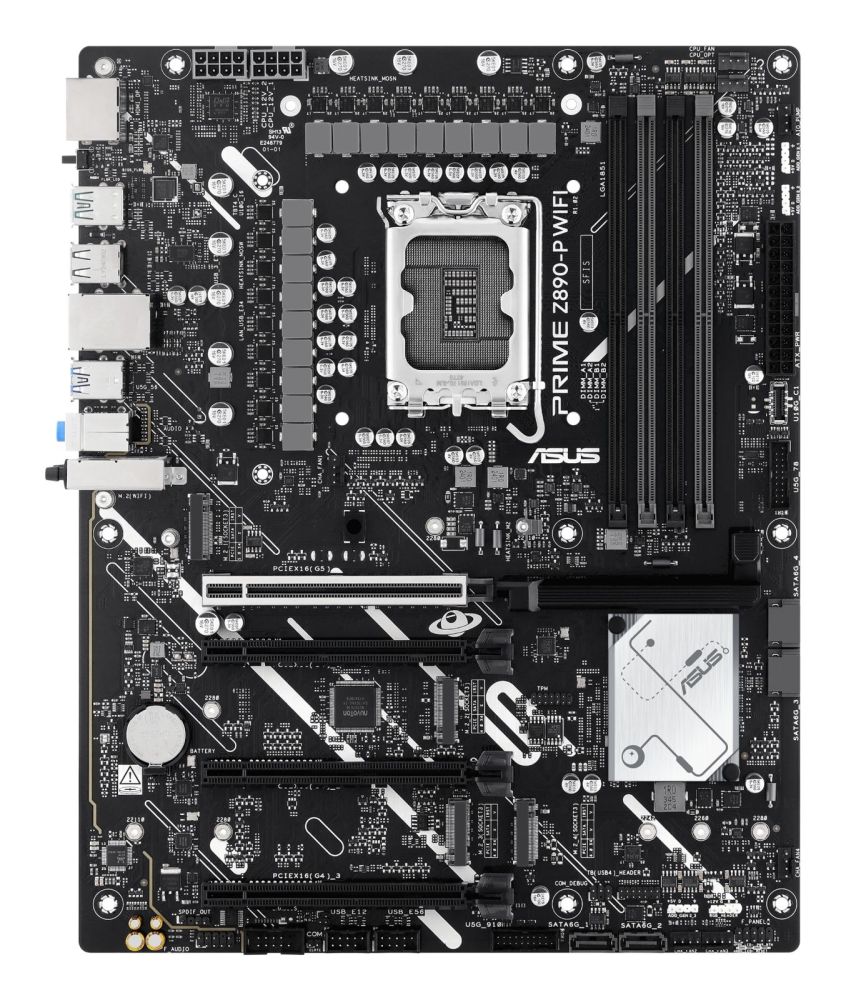

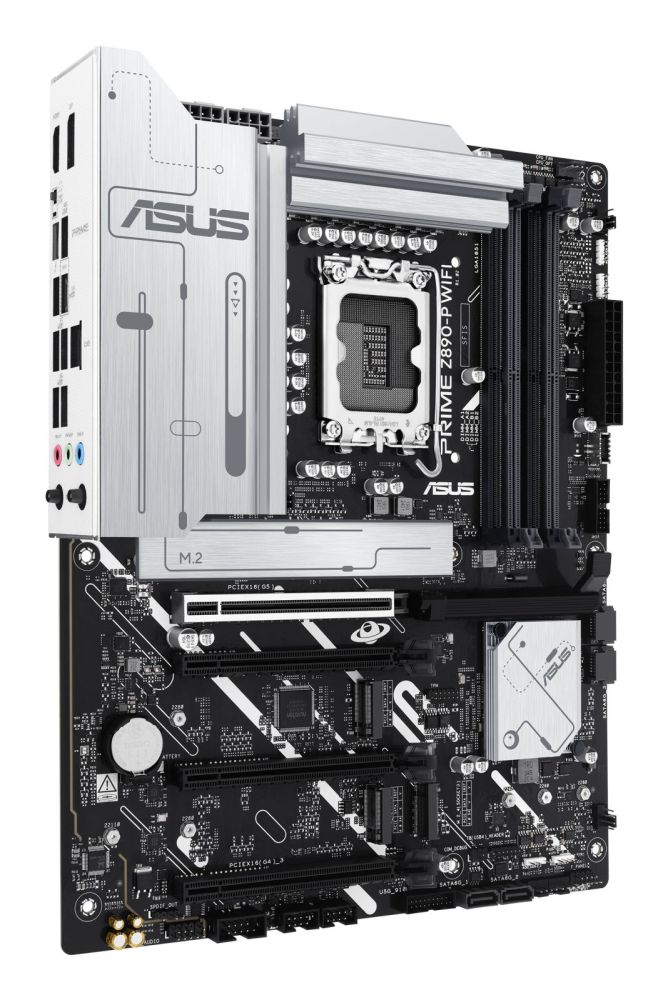

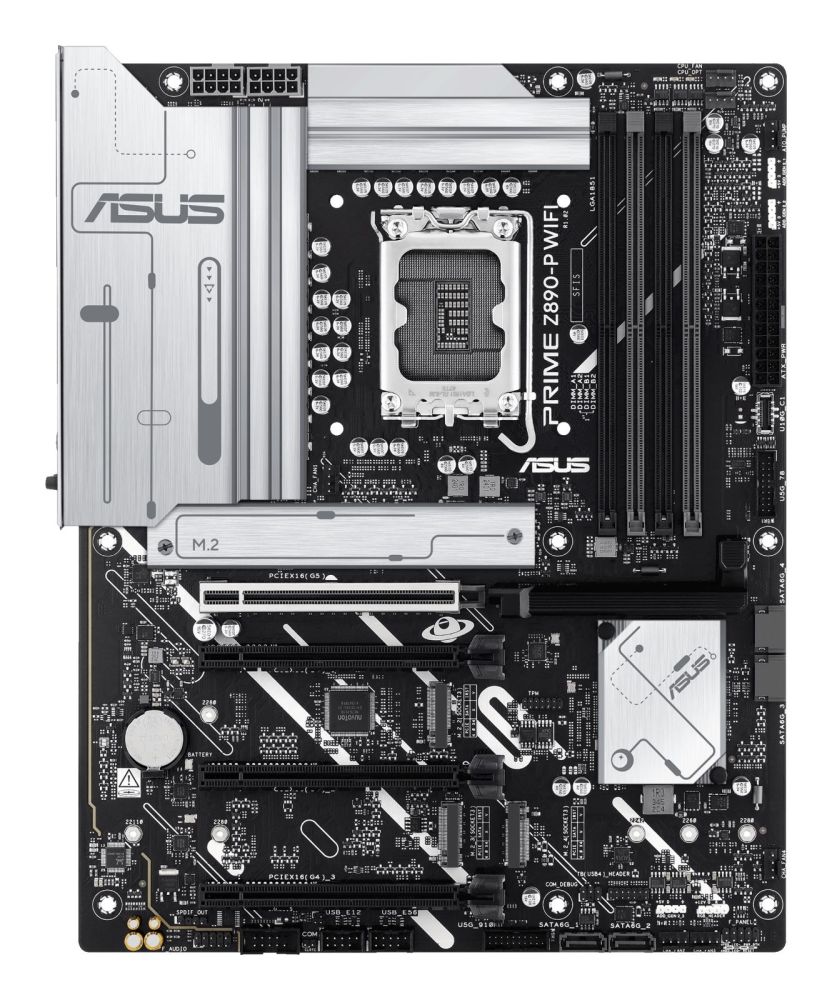

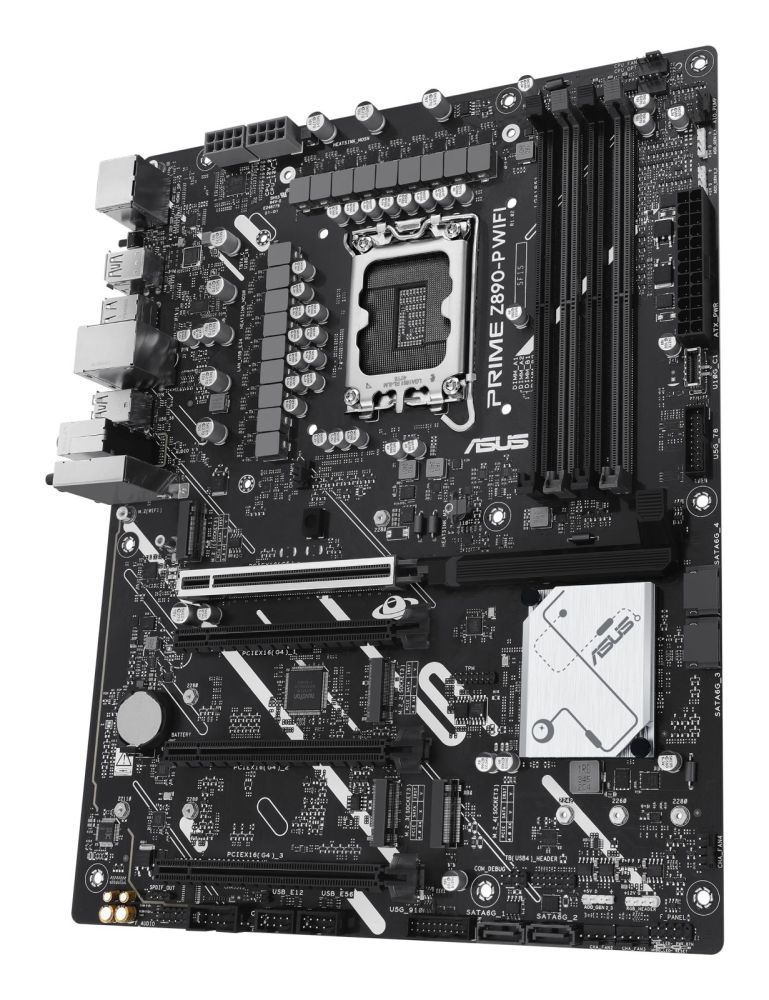

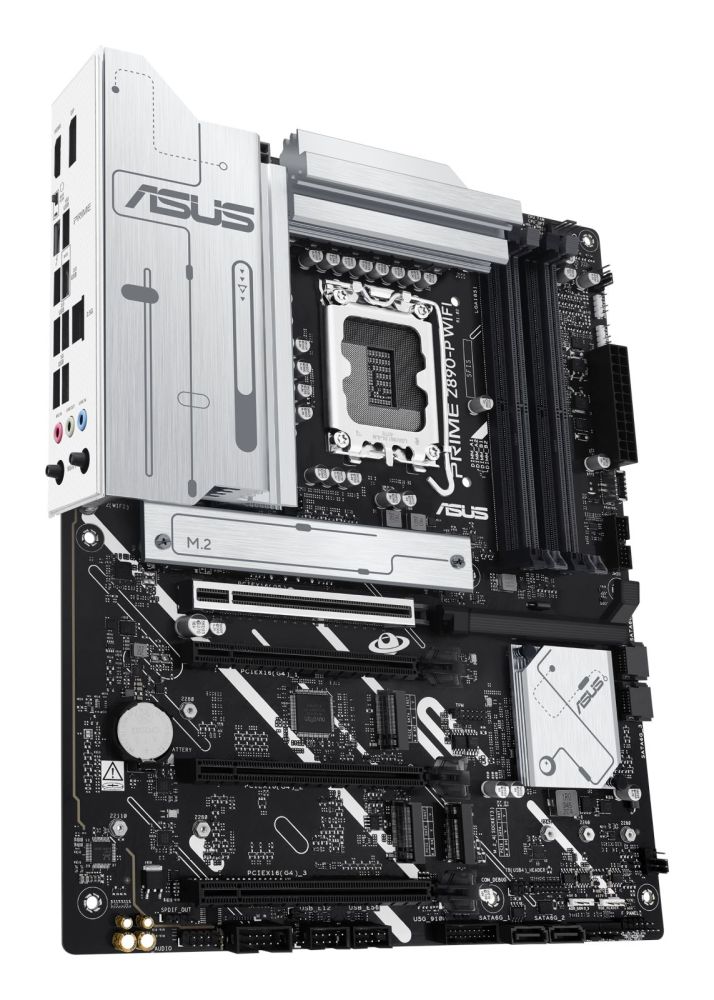

ASUS PRIME Z890-P WIFI S1851/DDR5/DP-HDMI/4xM.2/ATX
|
-13% 197,22 EUR 225,94 EUR |
|
|
( 234,69 EUR incl. VAT ) ≈ £165.07 | ≈ $219.90 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1195048 |
|---|---|
| Mfg Part No: | 90MB1I70-M0EAY0 |
| UPC/EAN: | 4711387754818 |
| Weight: | 1.862 kg |
Product information for ASUS 90MB1I70-M0EAY0:
Prozessorsockel: Intel LGA 1851 (Socket V1)
Kompatible Prozessoren: Intel Core Ultra 5/7/9 (Serie 2)
Anzahl der Speichersteckplätze: 4
1x PCIe 5.0 x16 slot
2x PCIe 4.0 x16 slots (supports x4 mode)
1x PCIe 4.0 x16 slot (supports x1 mode)
Anzahl der M.2 (M)-Steckplätze: 4
4x SATA 6Gb/s ports
WIFI: Yes
Bluetooth: Yes
Anzahl USB 2.0 Anschlüsse: 4
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 1
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 1.4
Kopfhörerausgänge: 1
1x DisplayPort / 1x HDMI / 1x Thunderbolt 4 port (USB Type-C) supports DisplayPort
and Thunderbolt video outputs
Supports PCIe & SATA RAID 0/1/5/10
Kompatible Prozessoren: Intel Core Ultra 5/7/9 (Serie 2)
Anzahl der Speichersteckplätze: 4
1x PCIe 5.0 x16 slot
2x PCIe 4.0 x16 slots (supports x4 mode)
1x PCIe 4.0 x16 slot (supports x1 mode)
Anzahl der M.2 (M)-Steckplätze: 4
4x SATA 6Gb/s ports
WIFI: Yes
Bluetooth: Yes
Anzahl USB 2.0 Anschlüsse: 4
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A: 2
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A: 1
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C: 1
Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1
Anzahl HDMI-Anschlüsse: 1
HDMI-Version: 2.1
Anzahl DisplayPort Anschlüsse: 1
DisplayPorts-Version: 1.4
Kopfhörerausgänge: 1
1x DisplayPort / 1x HDMI / 1x Thunderbolt 4 port (USB Type-C) supports DisplayPort
and Thunderbolt video outputs
Supports PCIe & SATA RAID 0/1/5/10
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| Features | |
| Motherboard chipset | Intel Z890 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Quick installation guide | |
| Back-to-BIOS button | |
| Packaging content | |
| Cables included | SATA |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.89 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of ASUS PRIME Z890-P WIFI S1851/DDR5/DP-HDMI/4xM.2/ATX?
The article ASUS PRIME Z890-P WIFI S1851/DDR5/DP-HDMI/4xM.2/ATX is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1I70-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PRIME Z890-P WIFI S1851/DDR5/DP-HDMI/4xM.2/ATX always at the best possible price. We can give you a discount of 2% on ASUS PRIME Z890-P WIFI S1851/DDR5/DP-HDMI/4xM.2/ATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
