ASUS PRO WS TRX50-SAGE WIFI sTR5/3xM.2/Wifi7/E-ATX WiFi 7 included
|
763,84 EUR |
|
|
( 908,97 EUR incl. VAT ) ≈ £646.21 | ≈ $853.97 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 2120052 |
|---|---|
| Mfg Part No: | 90MB1FZ0-M0EAY0 |
| UPC/EAN: | 4711387402726 |
| Weight: | 4 kg |

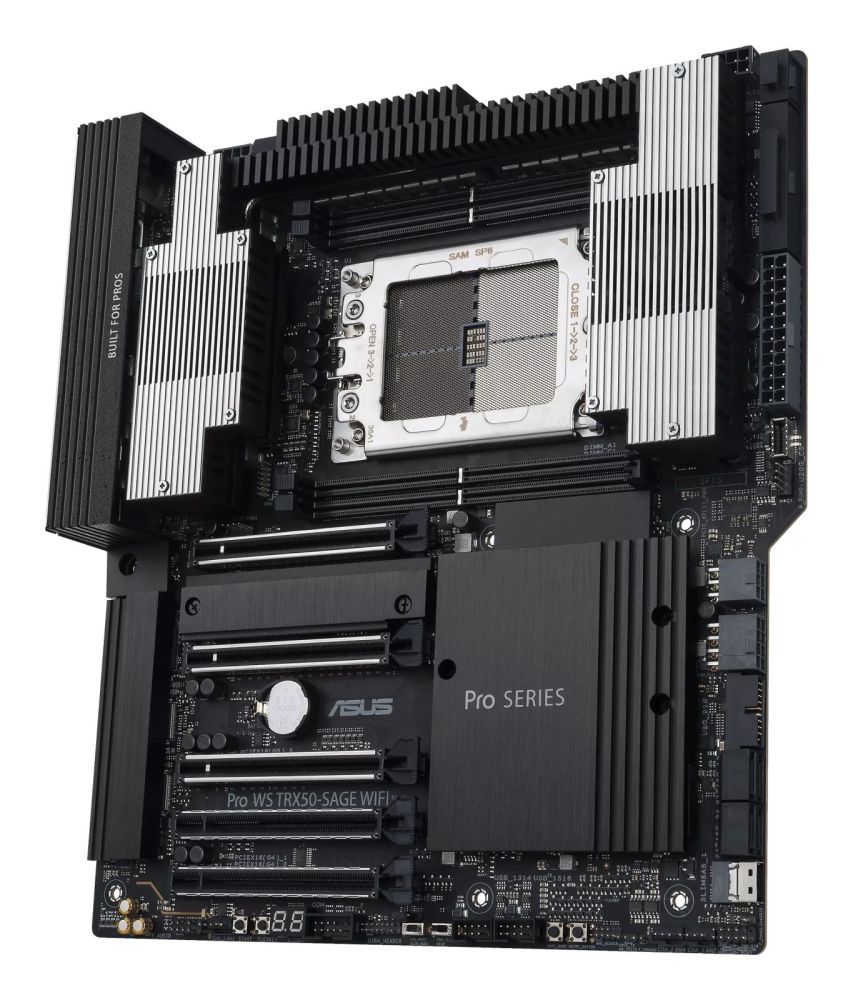

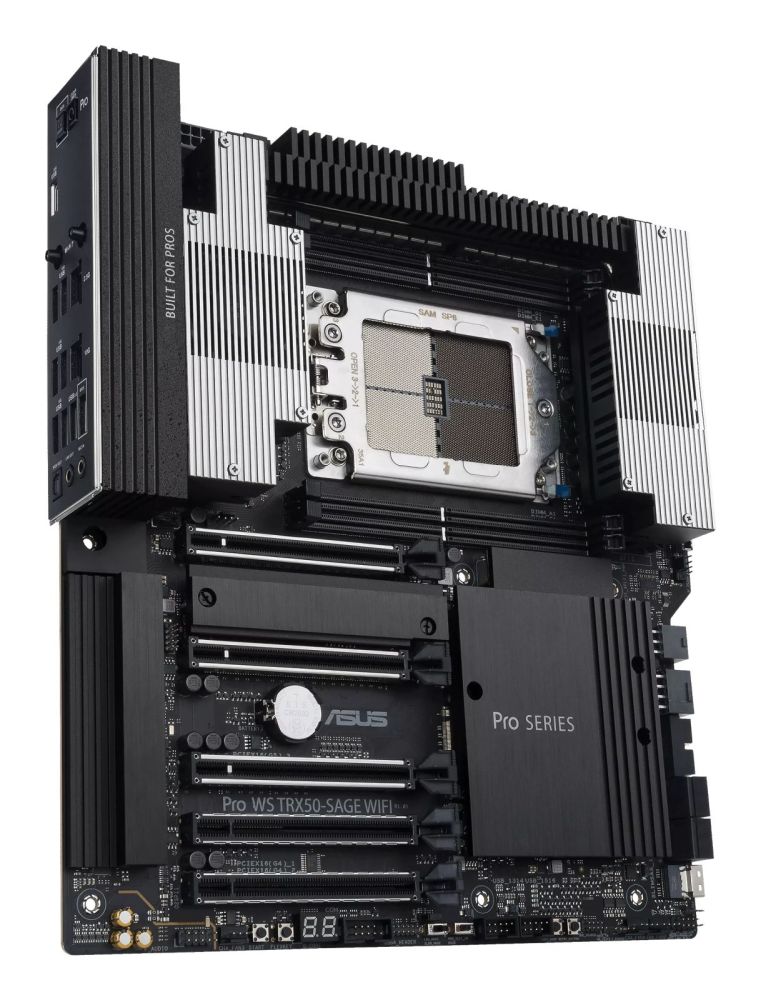

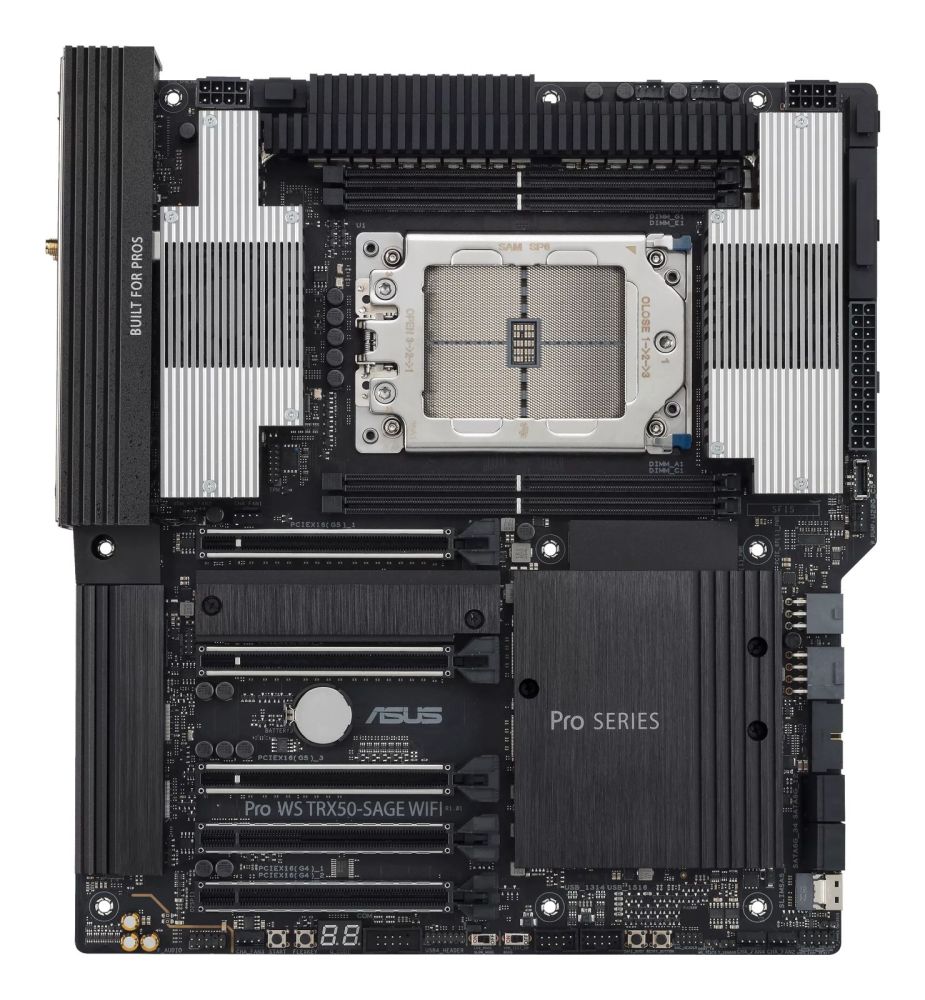

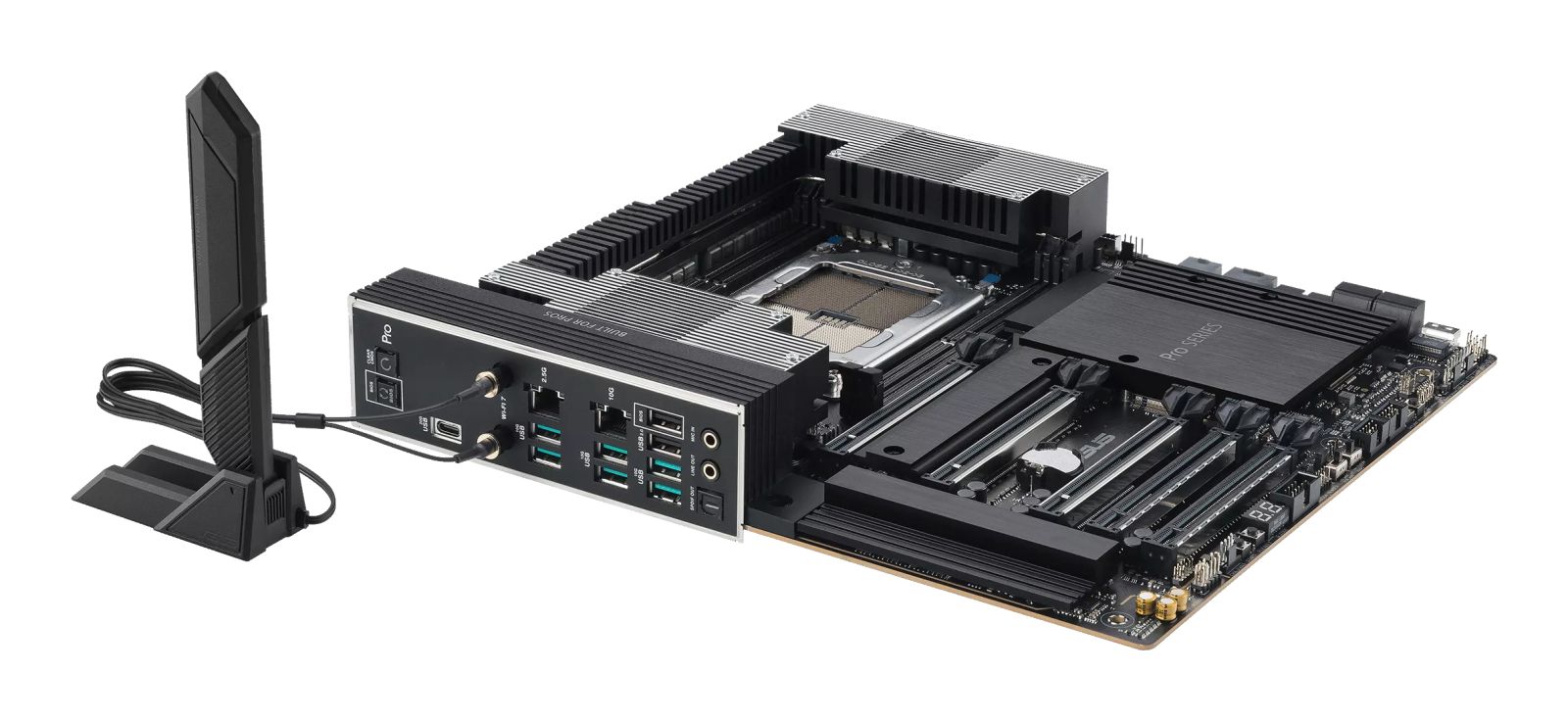

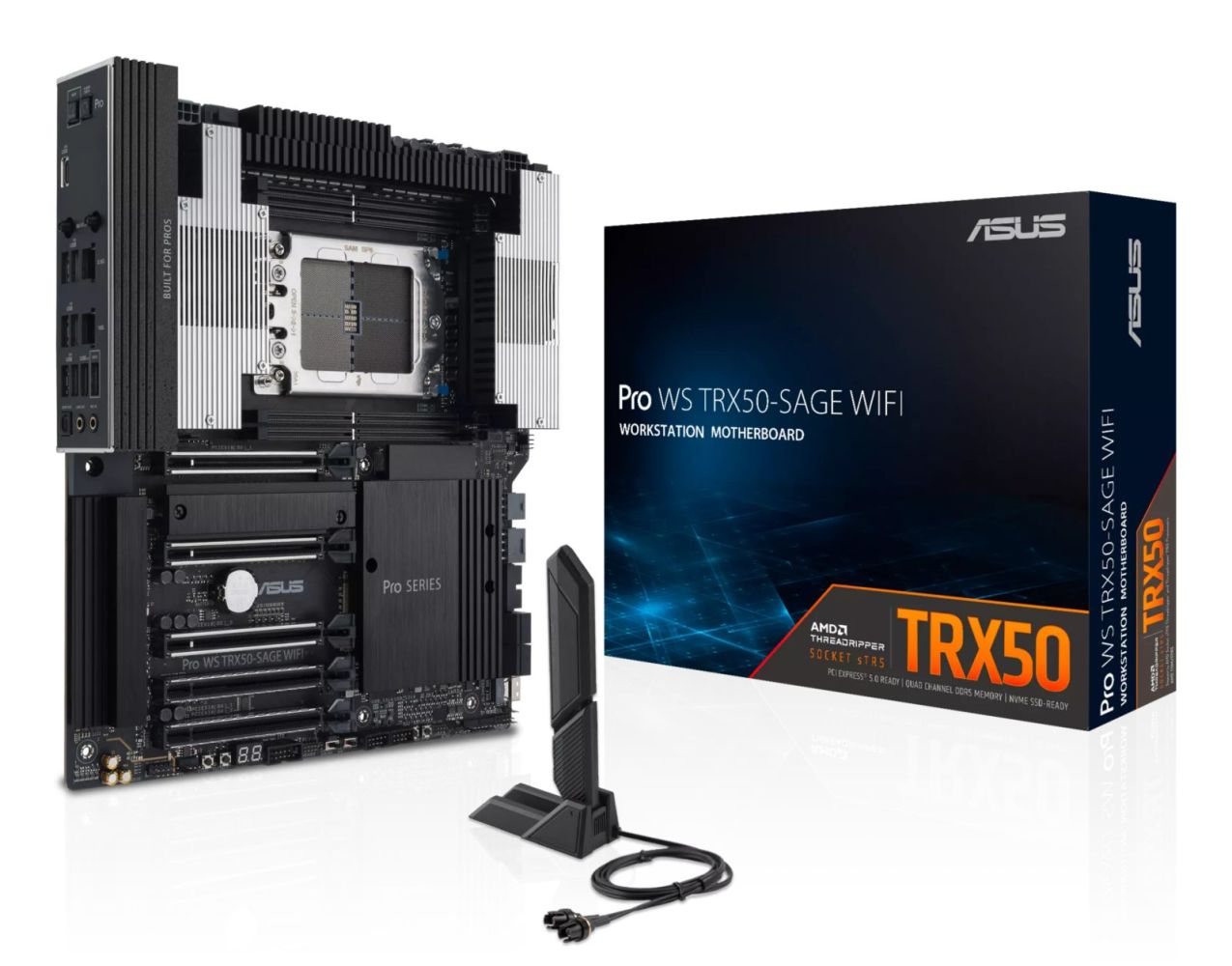

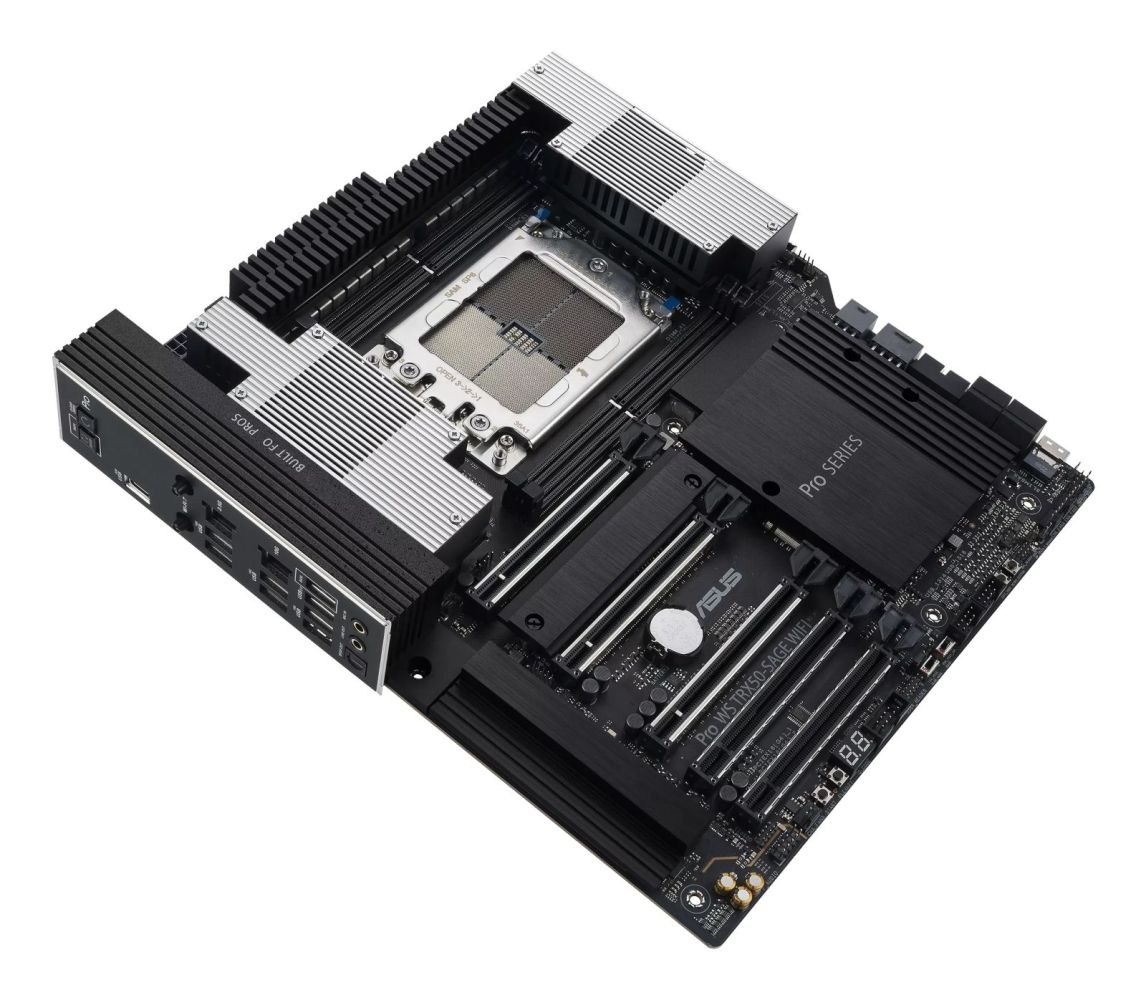

Product information for ASUS 90MB1FZ0-M0EAY0:
AMD TRX50 Chipset
4 x DIMM slots, DDR5, ECC Registered, max. 1 TB RAM
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
1x Marvell AQtion 10Gb LAN, 1x Intel® I226-LM 2.5Gb, Wi-Fi 7, Bluetooth 5.4
9x Rear USB (1x 3.2 Gen2 Type-C, 6x USB 3.2 Gen1 Type-A, 2x 2.0 Type-A)
Manageability WOL by PME, PXE (UEFI mode)
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 3 |
| Number of M.2 (M) slots | 3 |
| Features | |
| Motherboard chipset | AMD TRX50 |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Integrated SAS ports | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 1 TB |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| LAN controller | Intel I226-LM |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 2.53 kg |
| Packaging content | |
| Cables included | PCIe, SATA |
| Packaging data | |
| Package width | 320 mm |
| Package depth | 380 mm |
| Package height | 100 mm |
| Package weight | 4.85 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper 1000 Series |

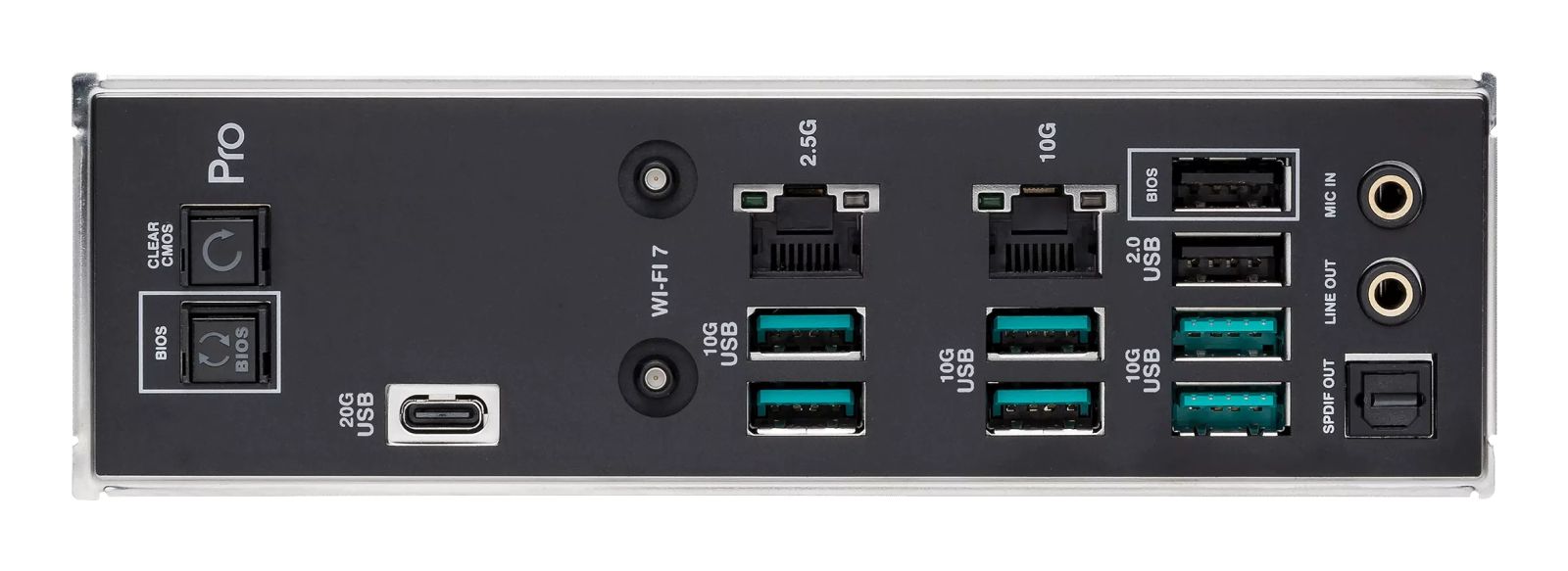

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 280 mm |
Questions & answers
What is the delivery time of ASUS PRO WS TRX50-SAGE WIFI sTR5/3xM.2/Wifi7/E-ATX WiFi 7 included?
The article ASUS PRO WS TRX50-SAGE WIFI sTR5/3xM.2/Wifi7/E-ATX WiFi 7 included is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1FZ0-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS PRO WS TRX50-SAGE WIFI sTR5/3xM.2/Wifi7/E-ATX WiFi 7 included always at the best possible price. We can give you a discount of 2% on ASUS PRO WS TRX50-SAGE WIFI sTR5/3xM.2/Wifi7/E-ATX WiFi 7 included if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
