ASUS PRO WS WRX90E-SAGE SE sTR5/U.2/4xM.2/KVM/E-ATX
|
1.184,17 EUR 1.186,49 EUR |
|
|
( 1.409,16 EUR incl. VAT ) ≈ £1,001.81 | ≈ $1,323.90 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 2124396 |
|---|---|
| Mfg Part No: | 90MB1FW0-M0EAY0 |
| UPC/EAN: | 4711387441145 |
| Weight: | 6 kg |
Product information for ASUS 90MB1FW0-M0EAY0:
AMD sTR5 EEB Workstation-Mainboard
AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series
AMD WRX90 Chipset
8 x DIMM slots, DDR5, ECC Registered Memory
8 Channel Memory Architecture
6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode)
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports
AMD RAIDXpert2 supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
EBB Form Factor
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power
connectors for the CPU, substantial VRM cooling, chipset and
M.2 heatsinks with active fans, and an M.2 thermal pad.
Server-level IPMI remote management and integr. BMC: hardware and software level with
dedicated LAN port connected to an integr. AST2600 BMC controller, as well as ASUS
Control Center Express software for real-time monitoring and management.
Two rear USB4® 40Gbps Type-C® ports and SlimSAS NVMe support.
AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series
AMD WRX90 Chipset
8 x DIMM slots, DDR5, ECC Registered Memory
8 Channel Memory Architecture
6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode)
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports
AMD RAIDXpert2 supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
EBB Form Factor
12 inch x 13 inch ( 30.5 cm x 33 cm)
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power
connectors for the CPU, substantial VRM cooling, chipset and
M.2 heatsinks with active fans, and an M.2 thermal pad.
Server-level IPMI remote management and integr. BMC: hardware and software level with
dedicated LAN port connected to an integr. AST2600 BMC controller, as well as ASUS
Control Center Express software for real-time monitoring and management.
Two rear USB4® 40Gbps Type-C® ports and SlimSAS NVMe support.
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 4 |
| Features | |
| Motherboard chipset | AMD WRX90 |
| Audio chip | Realtek ALC1220P |
| Product colour | Aluminium, Black |
| Component for | Workstation |
| Motherboard form factor | EEB |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Maximum internal memory | 2 TB |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Mini DisplayPorts quantity | 2 |
| Weight | 3.33 kg |
| Packaging data | |
| Package width | 377 mm |
| Package depth | 362 mm |
| Package height | 79 mm |
| Package weight | 3.62 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
| Compatible processor series | AMD Ryzen Threadripper PRO 7000 WX-Series |

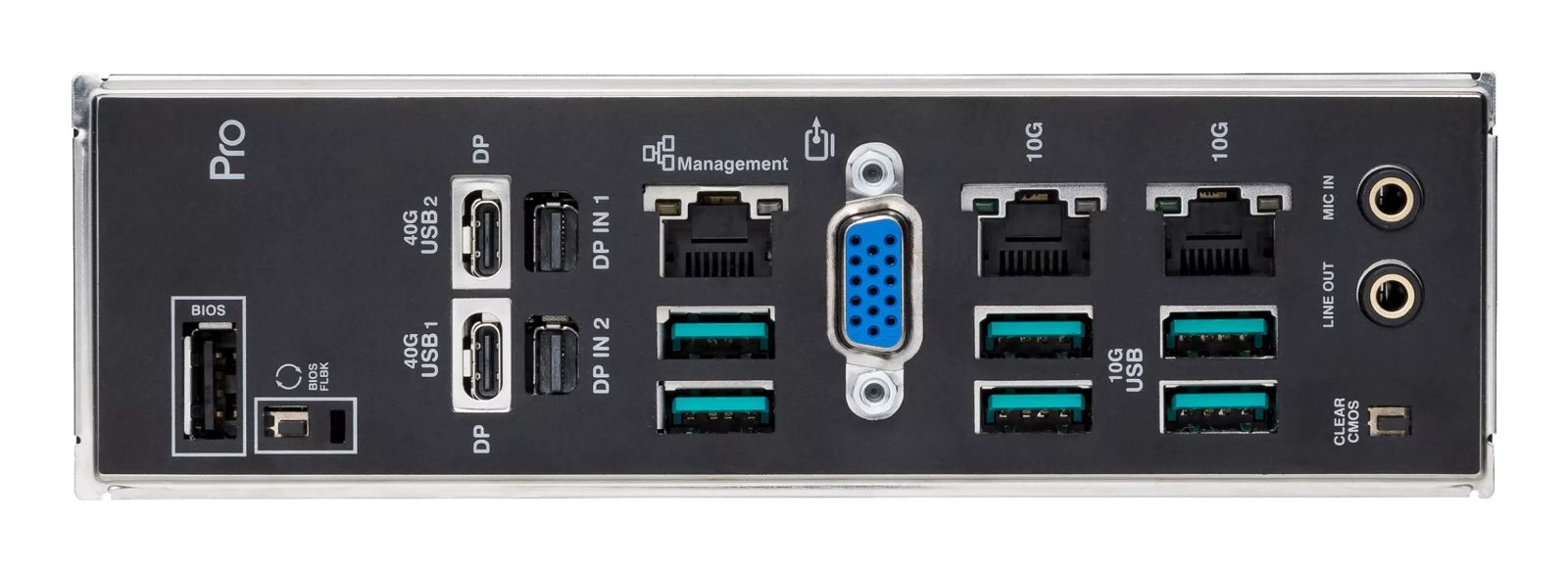

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 330 mm |
| Height | 50 mm |
