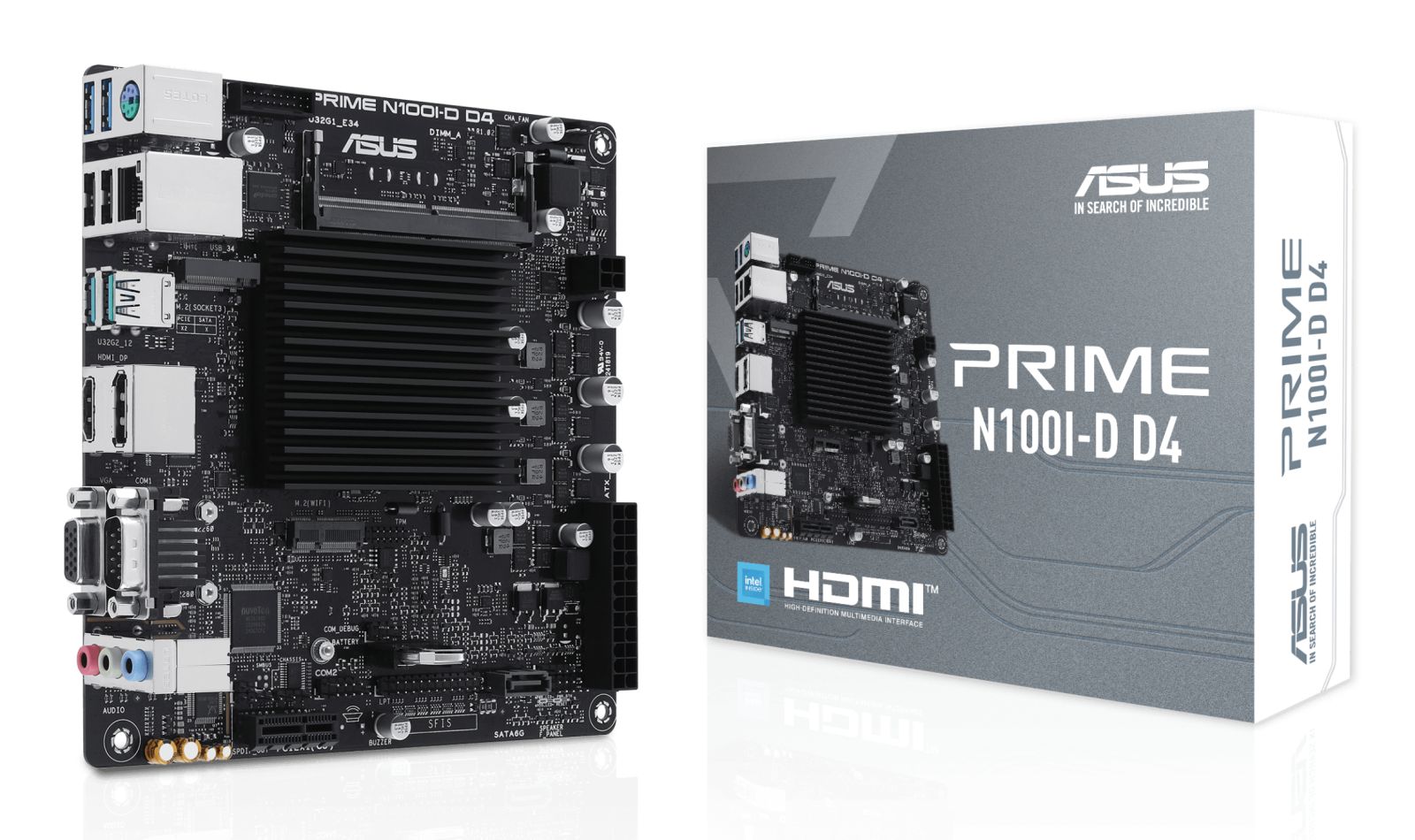

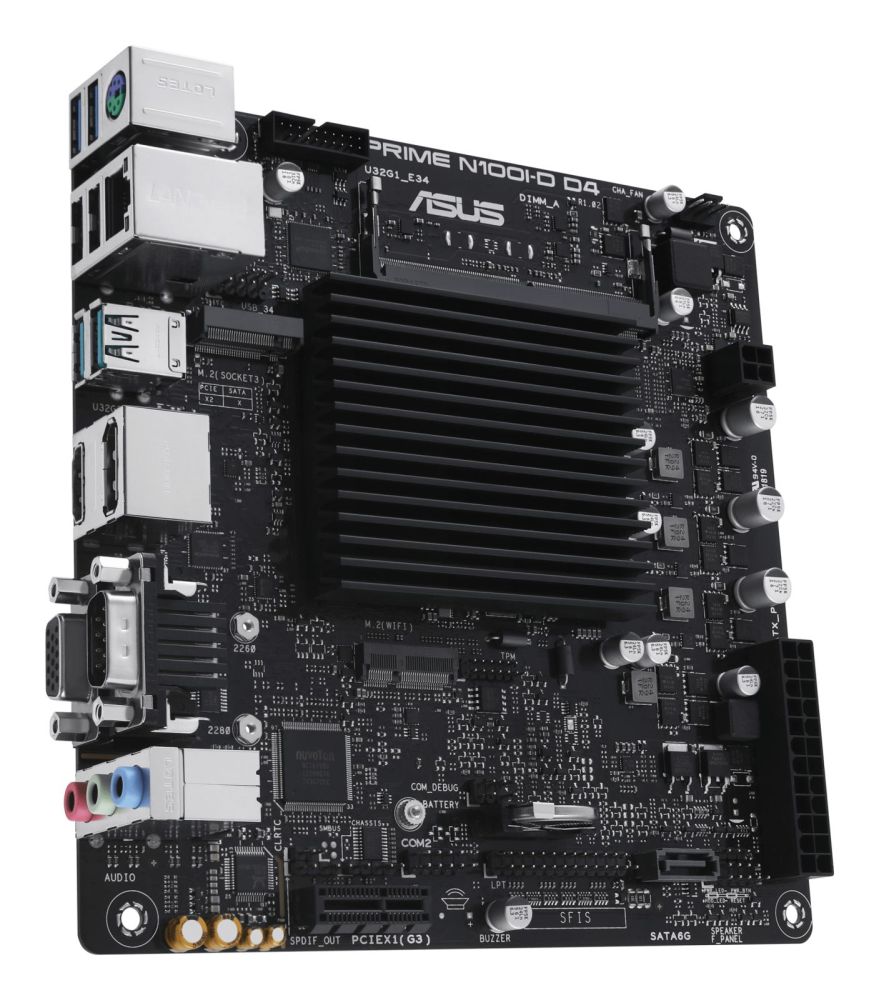

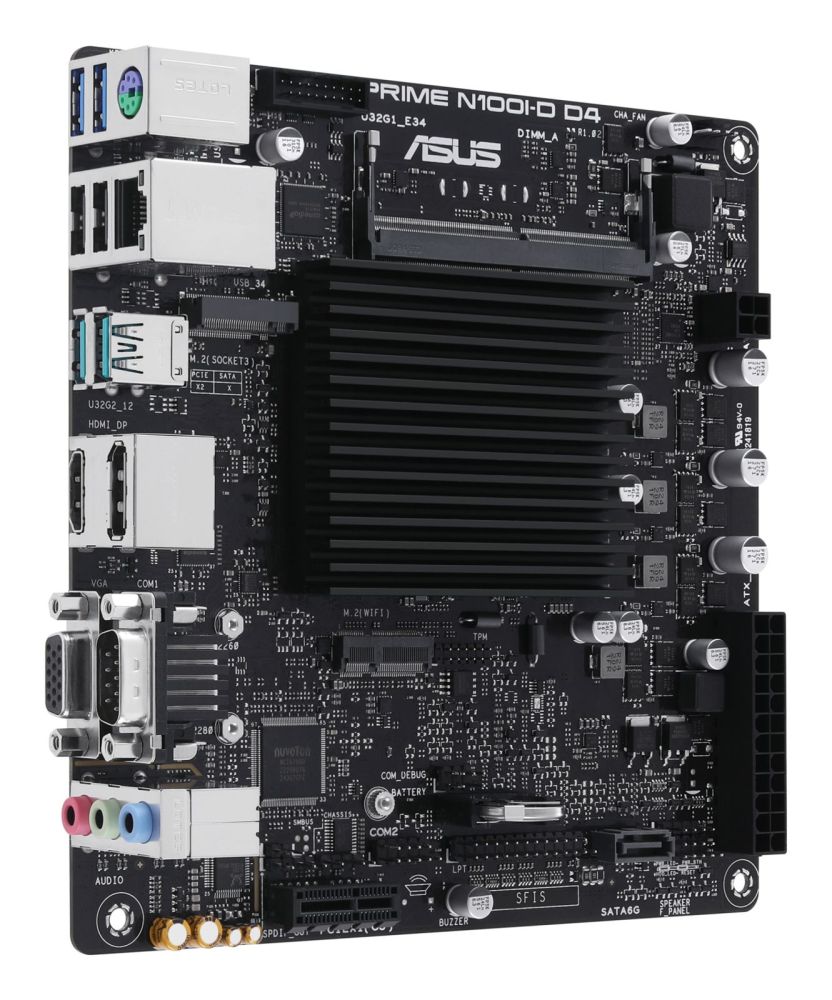

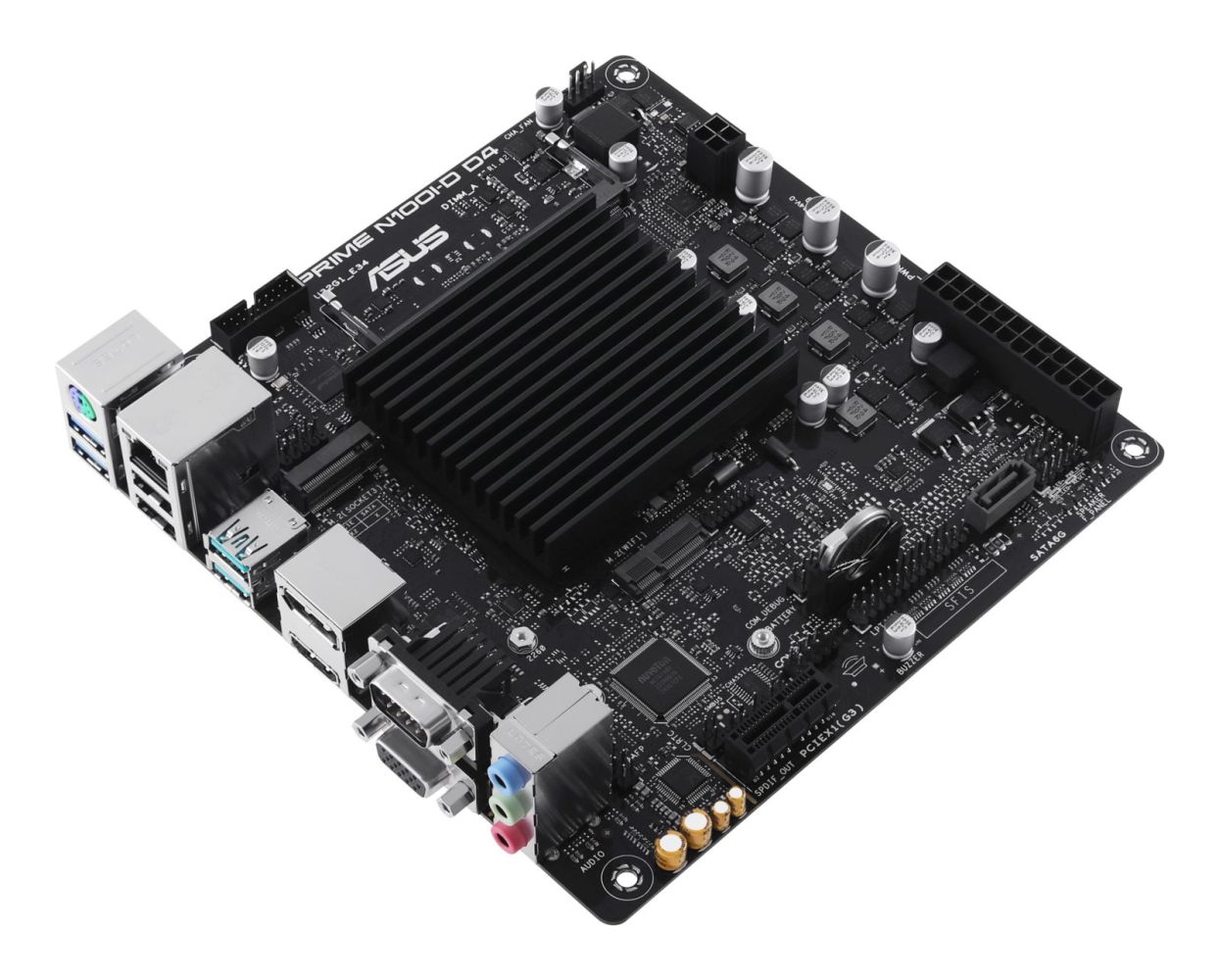

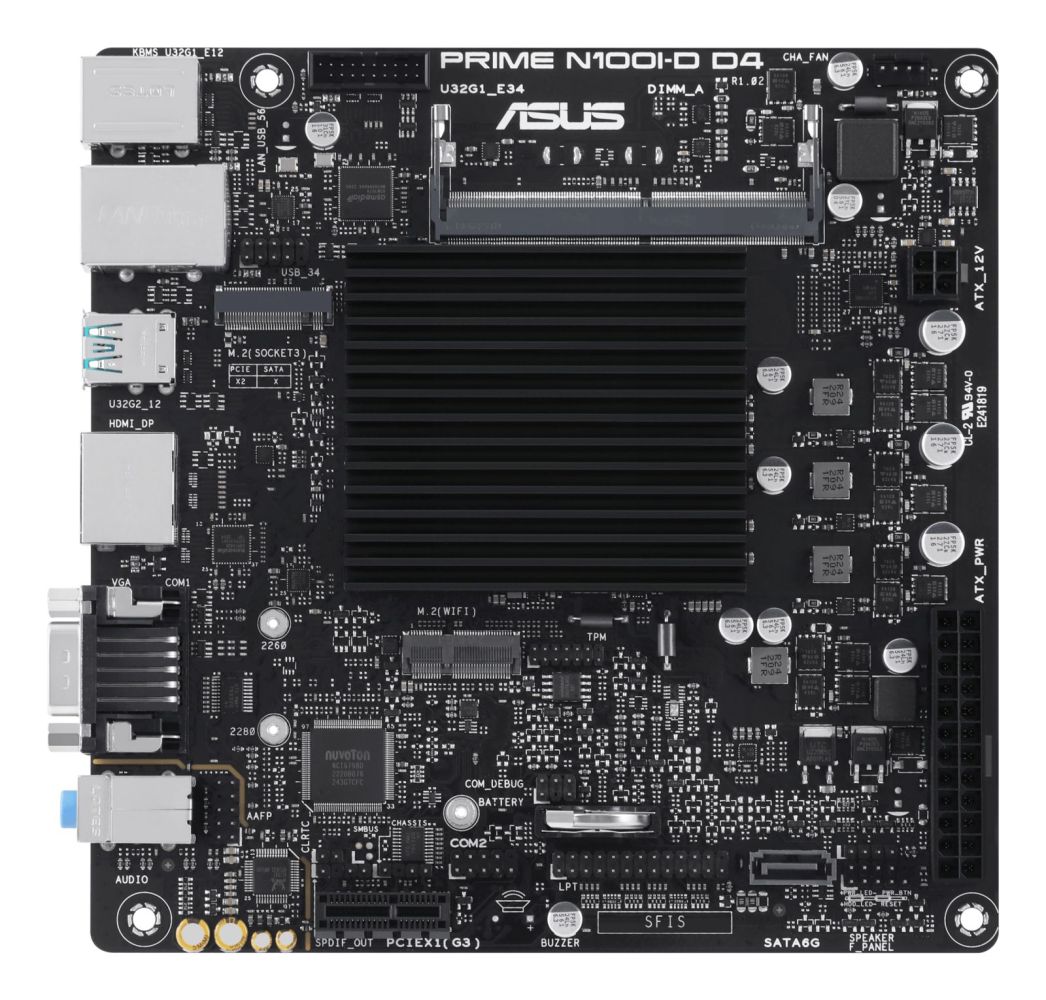

Motherboard ASUS PRIME N100I-D D4-CSM (INTEL,Intel SoC,DDR4,mITX)
|
109,81 EUR |
|
|
( 130,67 EUR incl. VAT ) ≈ £92.90 | ≈ $122.76 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1610305 |
|---|---|
| Mfg Part No: | 90MB1F70-M0EAYC |
| UPC/EAN: | 4711387262320 |
| Weight: | 0.685 kg |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 1 |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| S/PDIF out connector | |
| Audio connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 1 |
| Memory slots type | SO-DIMM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Packaging data | |
| Package width | 227 mm |
| Package depth | 185 mm |
| Package height | 60 mm |
| Package weight | 664 g |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | NA (integrated CPU) |
| Compatible processor series | Intel Processor N |
| Processor model | N100 |
| Processor cores | 4 |
| Maximum internal memory supported by processor | 16 GB |

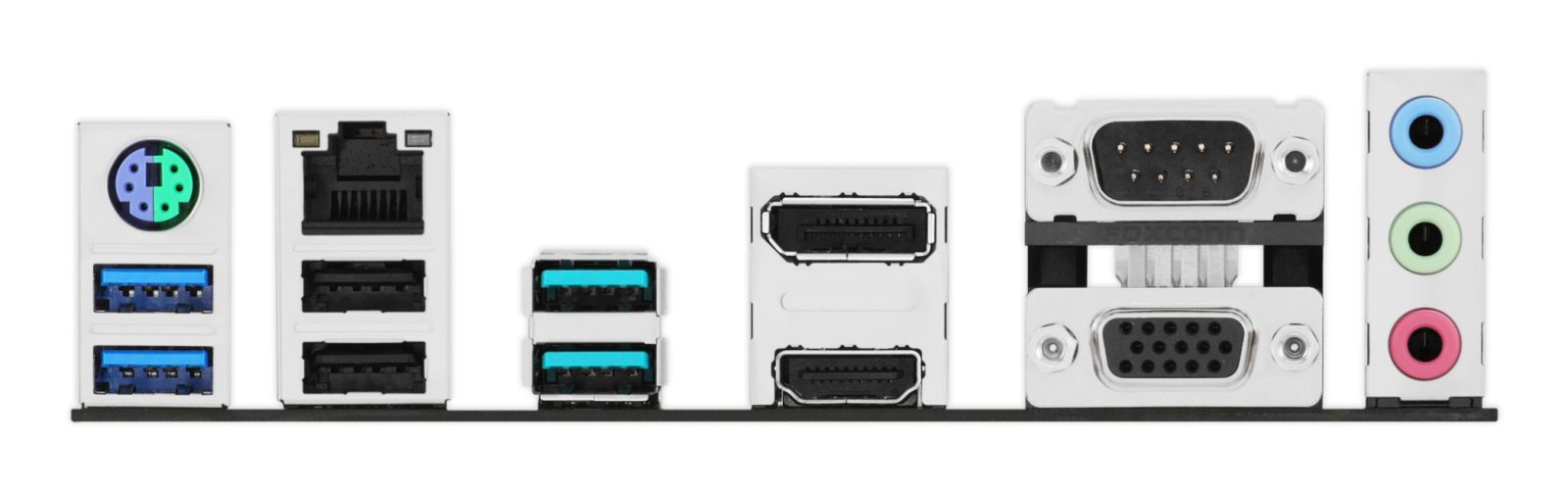

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| COM ports quantity | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 1 |
| Number of storage drives supported | 2 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRIME N100I-D D4-CSM (INTEL,Intel SoC,DDR4,mITX)?
The article Motherboard ASUS PRIME N100I-D D4-CSM (INTEL,Intel SoC,DDR4,mITX) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1F70-M0EAYC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRIME N100I-D D4-CSM (INTEL,Intel SoC,DDR4,mITX) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRIME N100I-D D4-CSM (INTEL,Intel SoC,DDR4,mITX) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
