ASUS PRIME B760M-A WIFI S1700/DDR5/2xHDMI-1xDP/µATX Optional: 1x COM, 1x LPT
|
146,84 EUR 146,96 EUR |
|
|
( 174,74 EUR incl. VAT ) ≈ £124.23 | ≈ $164.17 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 2042868 |
|---|---|
| Mfg Part No: | 90MB1EL0-M1EAY0 |
| UPC/EAN: | 4711387131435 |
| Weight: | 1.485 kg |
Product information for ASUS 90MB1EL0-M1EAY0:
Socket LGA1700 for Intel Core 12th/ 13th/ 14th Gen
Intel B760 Chipset
4x DDR5 Unbuffered DIMM, non-ECC, max. 128GB (4x 32GB)
1x DisplayPort 1.4* (4K@60Hz), 2x HDMI 2.1** (4K@60Hz)
Supports up to 3 Displays simultaneously
4x SATA 6Gb/s ports with RAID 0/1/5/10 support, PCIe/NVMe RAID NOT supported
1x PCIe 4.0 x16, 1x PCIe 4.0 x16@x4, 1x PCIe 4.0 x16@x1
1x Realtek 2.5Gb Ethernet RJ45, UEFI PXE/ WoL
Bluetooth 5.2 / WiFi6 - 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
2x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A
----------------------------------------------------------
Intel B760 Chipset
4x DDR5 Unbuffered DIMM, non-ECC, max. 128GB (4x 32GB)
1x DisplayPort 1.4* (4K@60Hz), 2x HDMI 2.1** (4K@60Hz)
Supports up to 3 Displays simultaneously
4x SATA 6Gb/s ports with RAID 0/1/5/10 support, PCIe/NVMe RAID NOT supported
1x PCIe 4.0 x16, 1x PCIe 4.0 x16@x4, 1x PCIe 4.0 x16@x1
1x Realtek 2.5Gb Ethernet RJ45, UEFI PXE/ WoL
Bluetooth 5.2 / WiFi6 - 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
2x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A
----------------------------------------------------------
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 886 g |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.4 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |

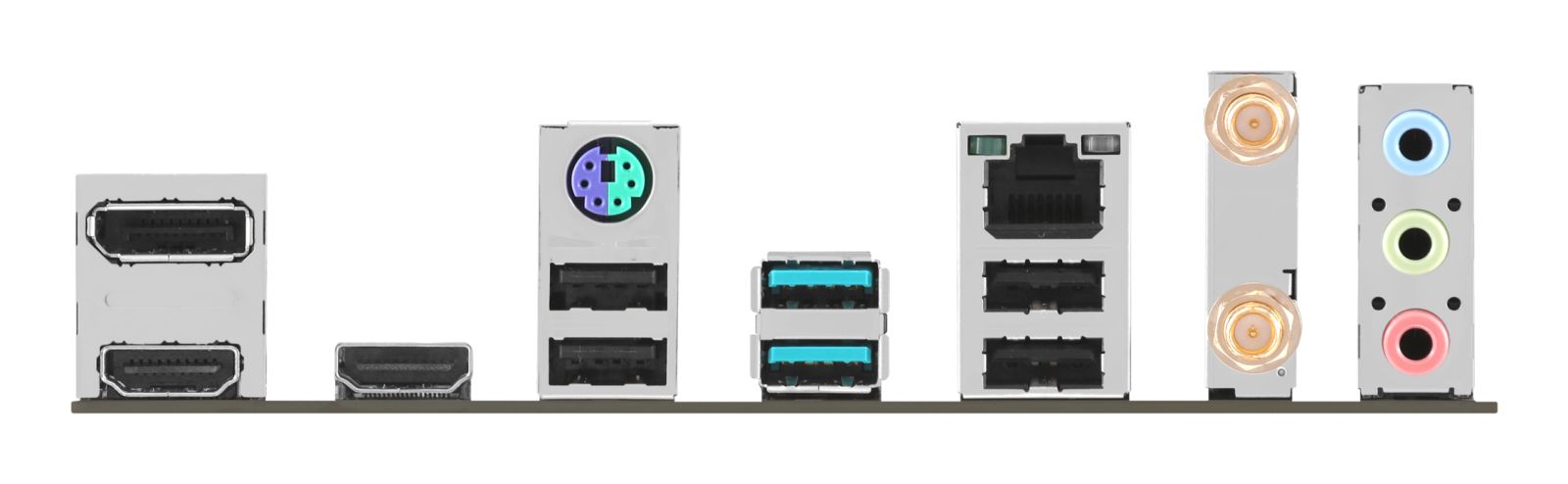

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 50 mm |
