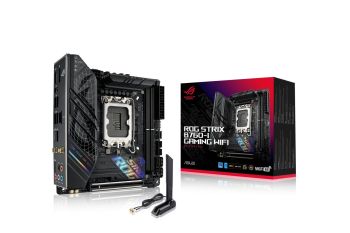

ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 2xDDR5 Mini ITX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 2xM.2
|
189,96 EUR |
|
|
( 226,05 EUR incl. VAT ) ≈ £159.00 | ≈ $211.81 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 854258 |
| Mfg Part No: | 90MB1D90-M1EAY0 |
| UPC/EAN: | 4711081997658 |
| Weight: | 1.19 kg |
Product information for ASUS 90MB1D90-M1EAY0:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio chip | SupremeFX S1220A |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| 12V power connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 644 g |
| Packaging content | |
| Cables included | SATA |
| User guide | |
| Packaging data | |
| Package width | 226 mm |
| Package depth | 94 mm |
| Package height | 185 mm |
| Package weight | 1.28 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Height | 50 mm |
Questions & answers
What is the delivery time of ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 2xDDR5 Mini ITX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 2xM.2?
The article ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 2xDDR5 Mini ITX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 2xM.2 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1D90-M1EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 2xDDR5 Mini ITX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 2xM.2 always at the best possible price. We can give you a discount of 2% on ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 2xDDR5 Mini ITX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 2xM.2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
