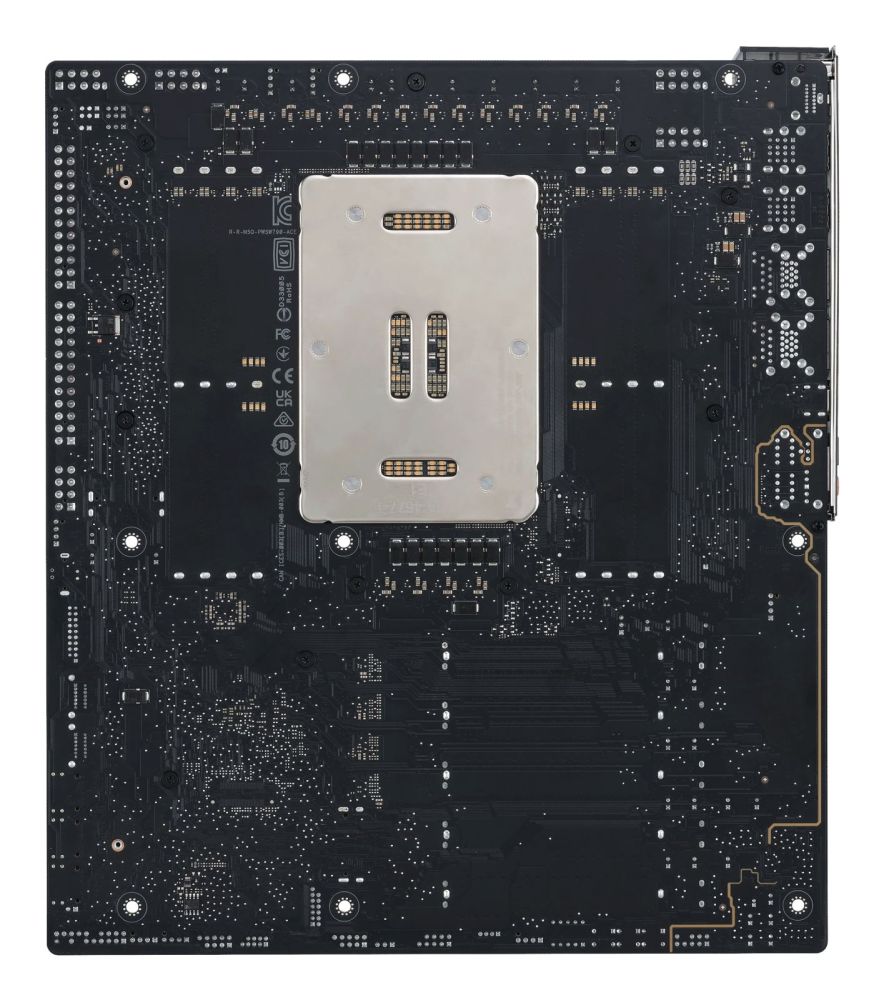

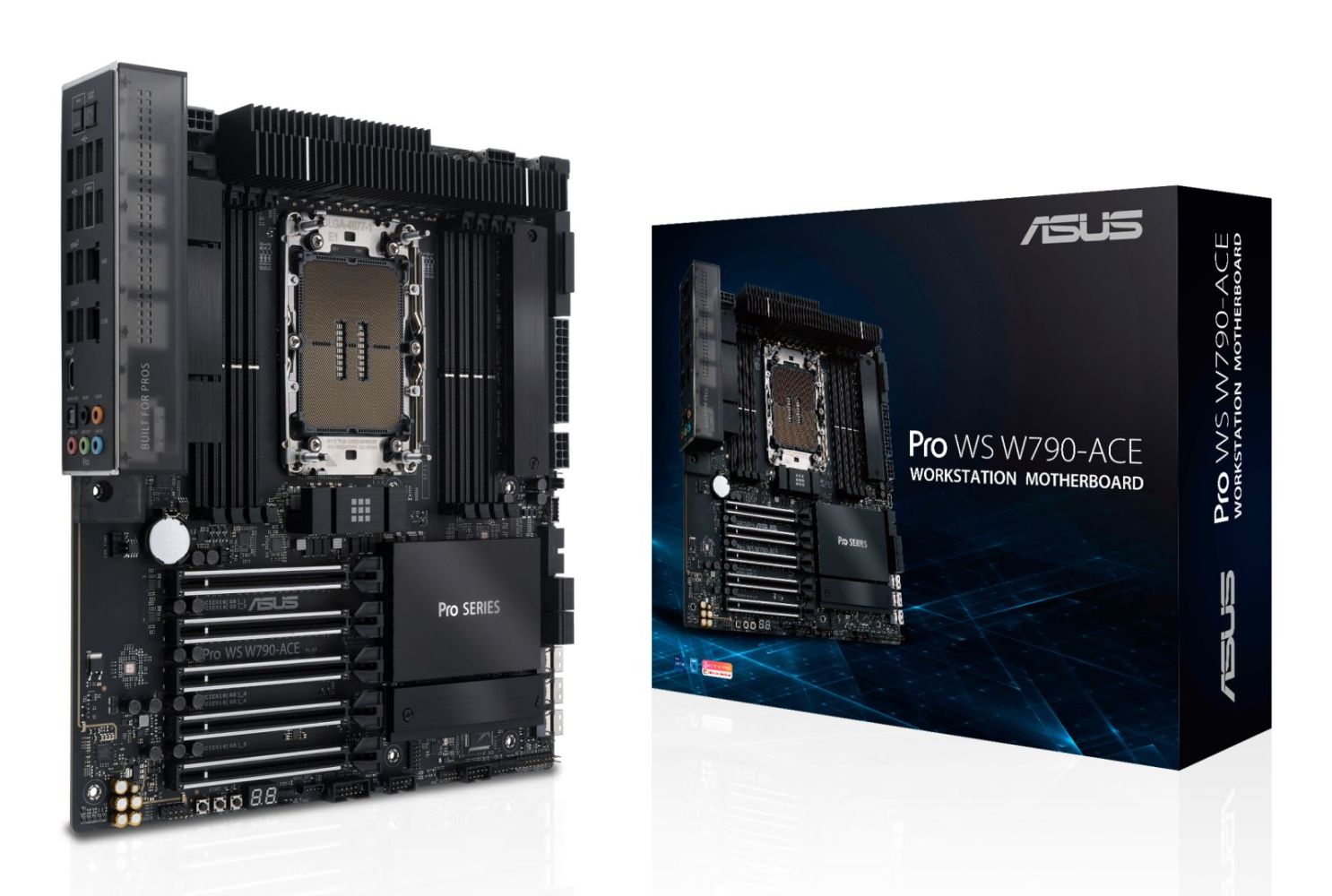

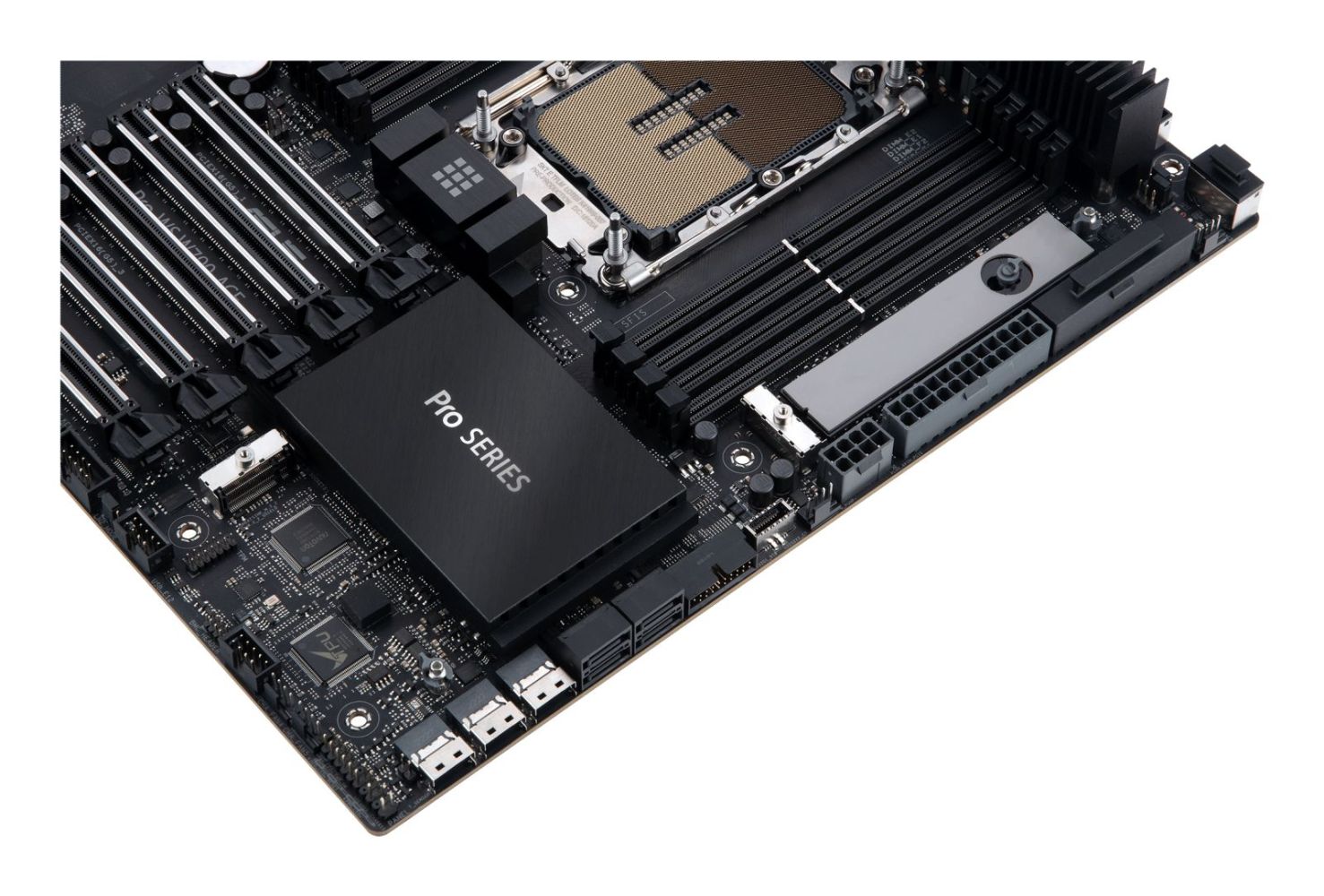

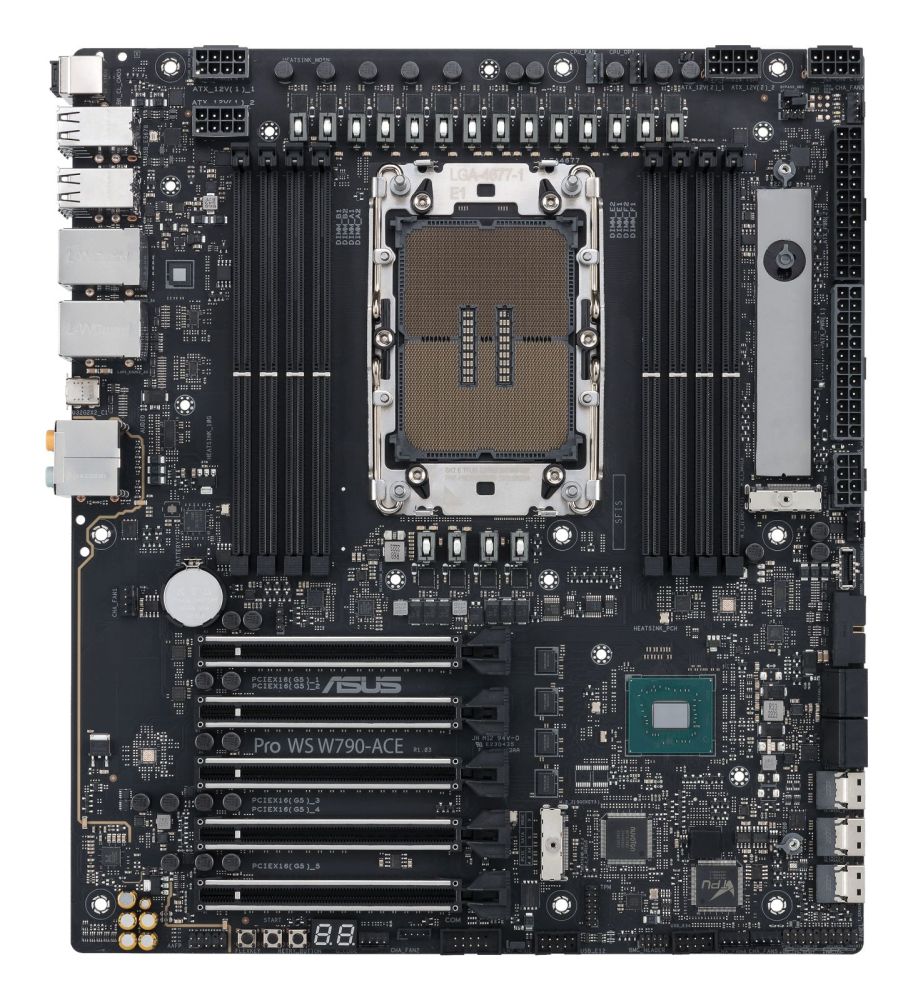

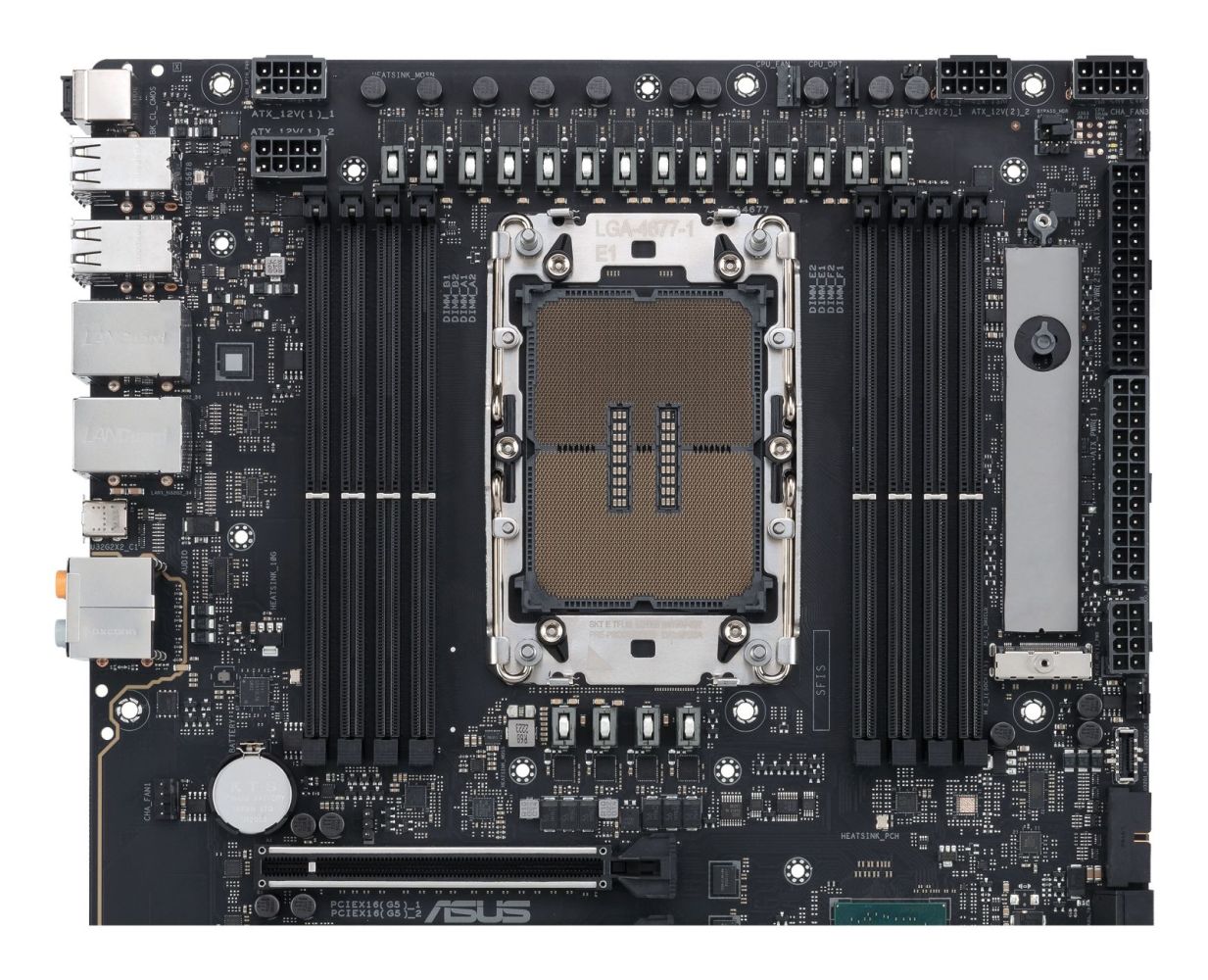

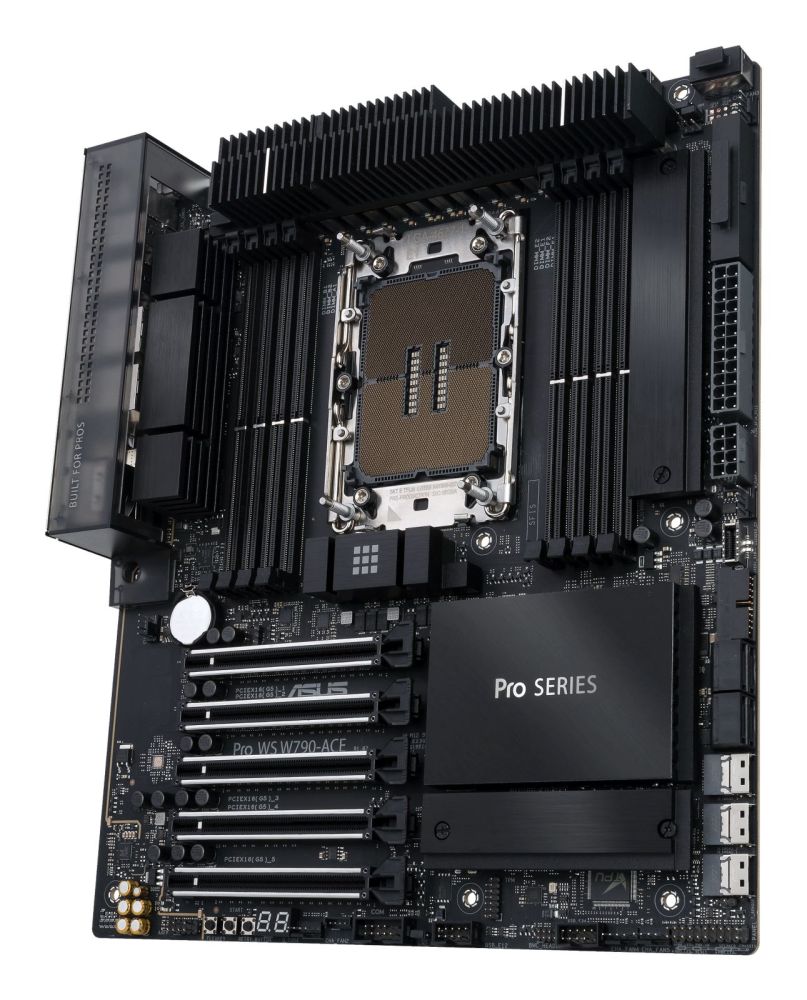

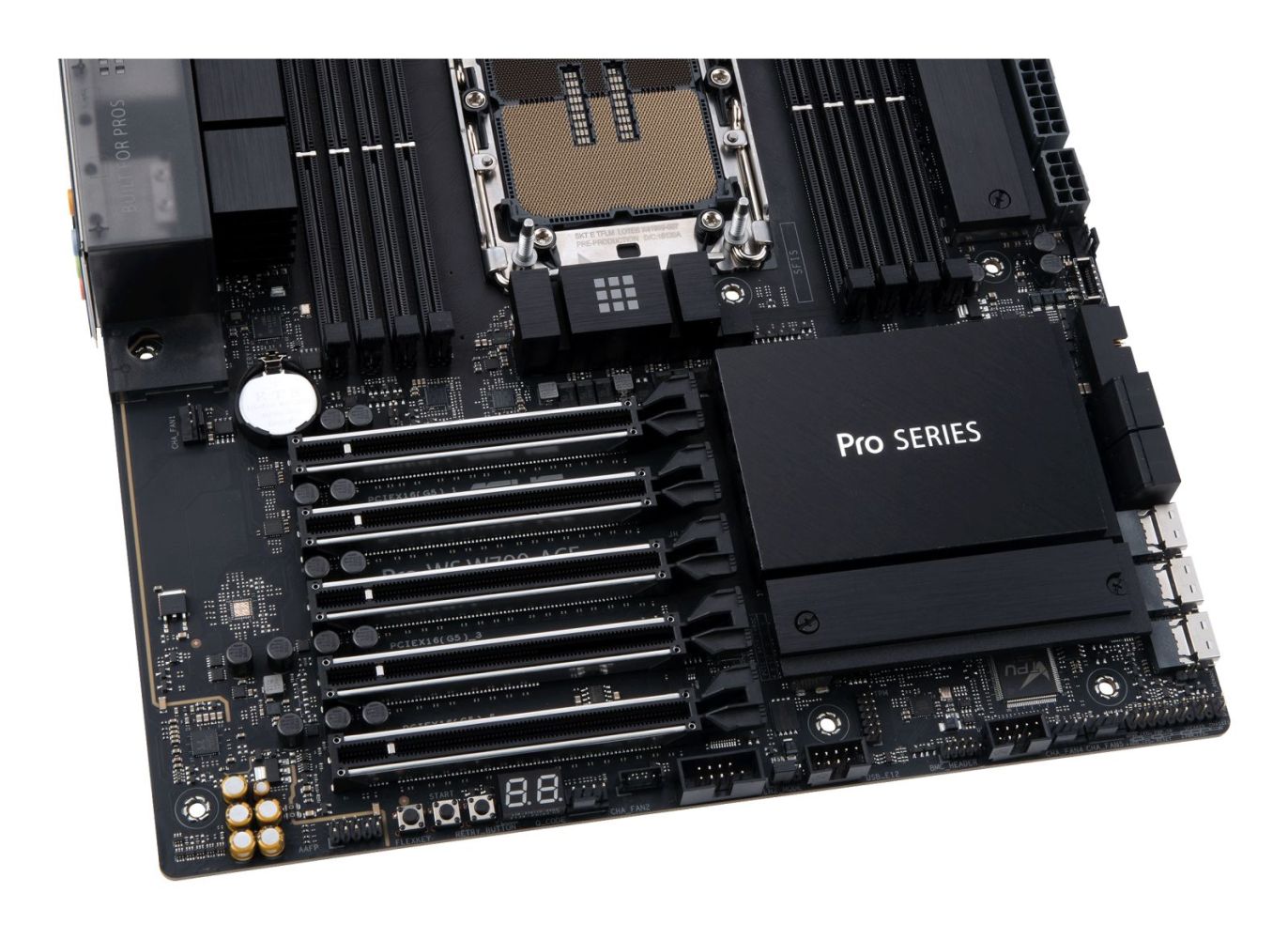

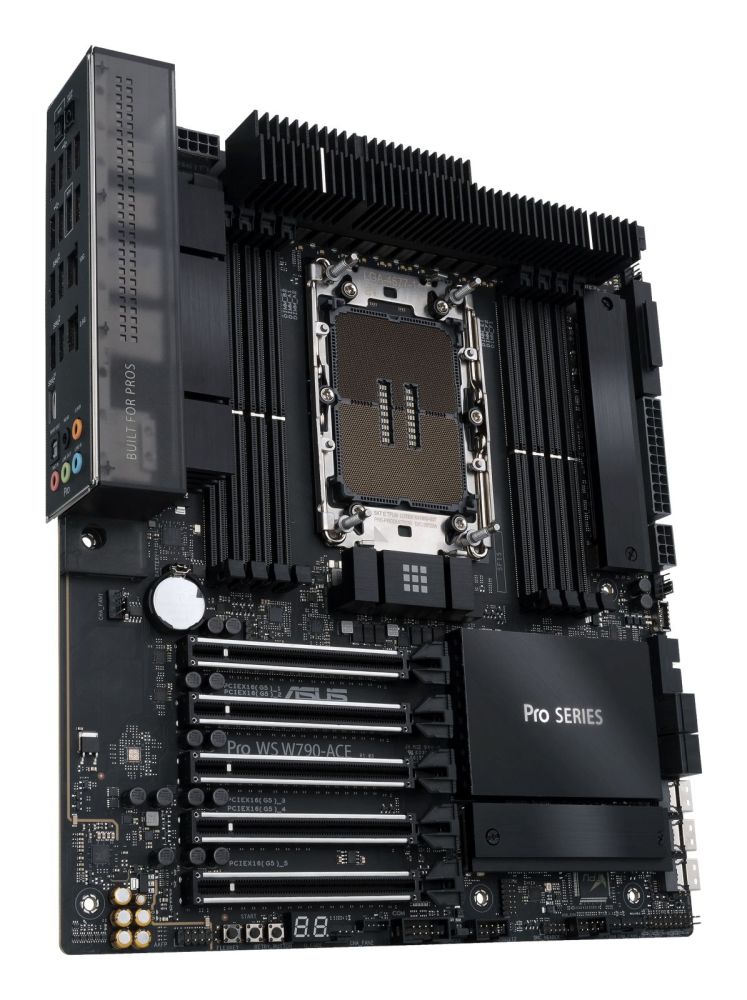

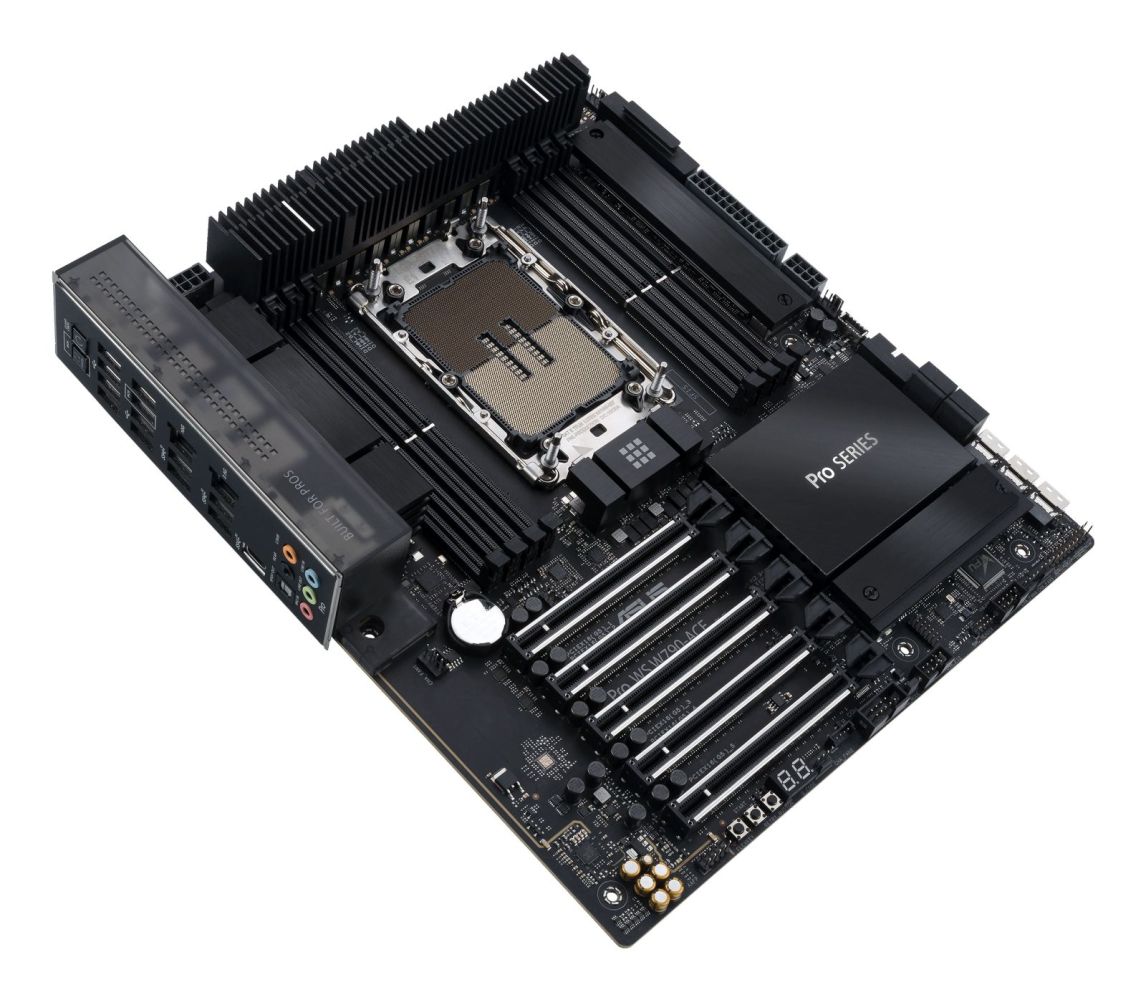

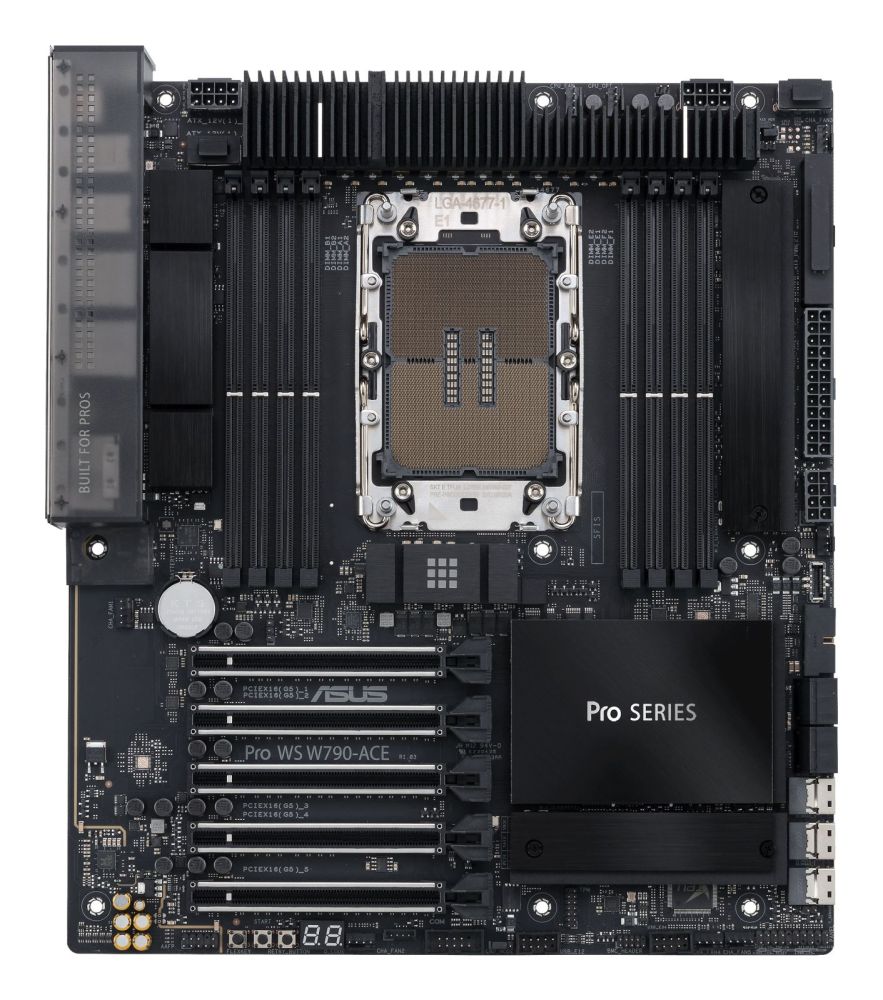

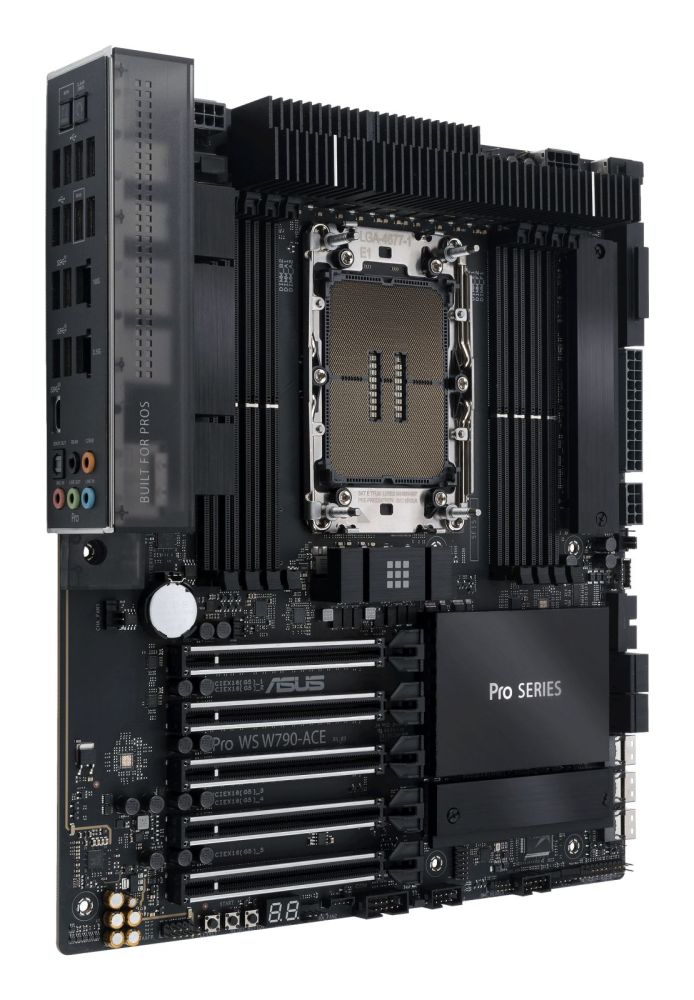

Motherboard ASUS PRO WS W790-ACE (Intel,LGA4677,DDR5,CEB)
|
796,15 EUR |
|
|
( 947,42 EUR incl. VAT ) ≈ £665.58 | ≈ $882.13 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1610282 |
| Mfg Part No: | 90MB1C70-M0EAY0 |
| UPC/EAN: | 4711387078174 |
| Weight: | 3.13 kg |
Product information for ASUS 90MB1C70-M0EAY0:
- Intel W790 Chipset
- 8x DDR5 4800 Registered ECC DIMM, max. 2048GB, supports Quad-Channel
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4x SATA 6Gb/s ports

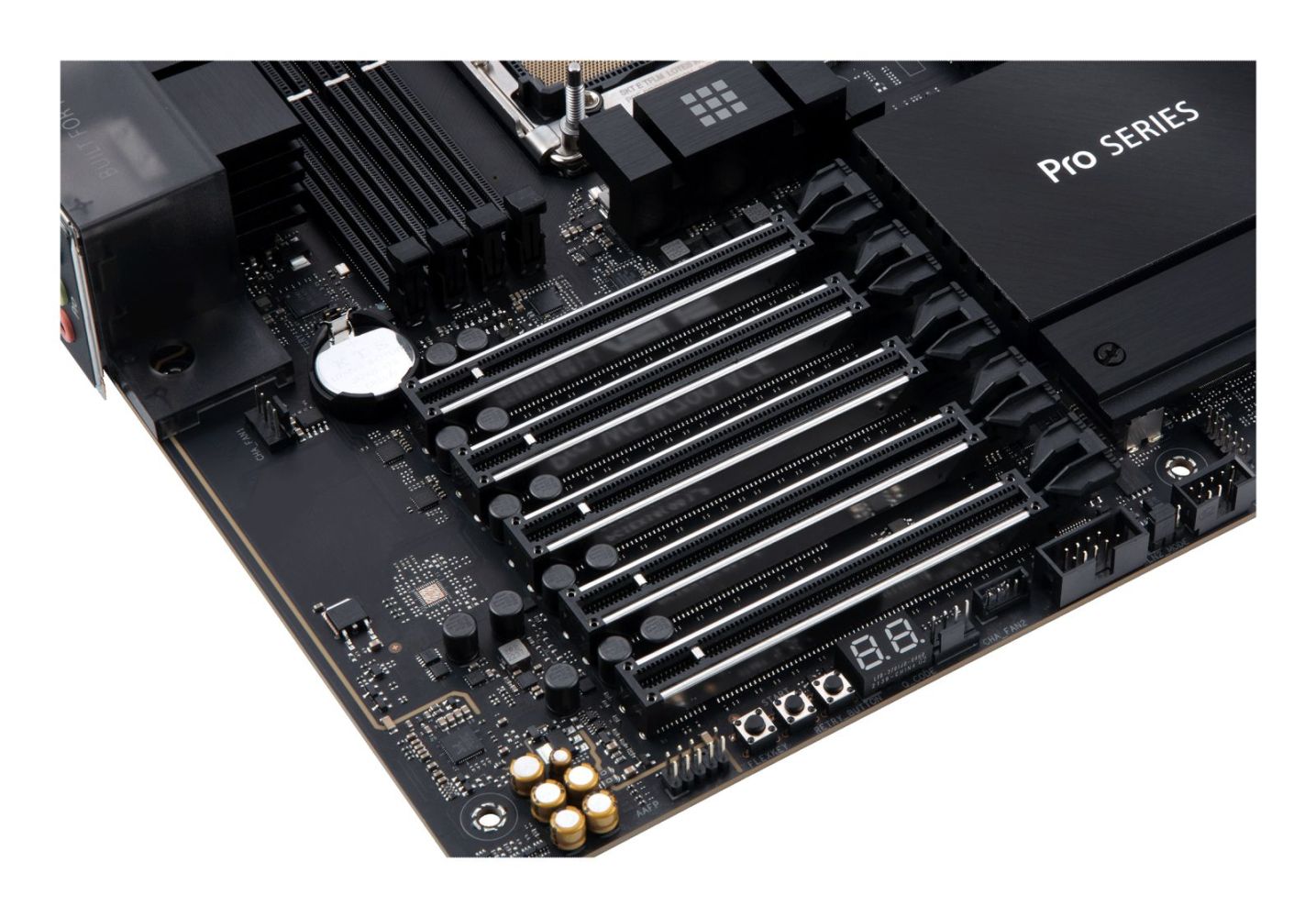

- 5x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)
- Realtek S1220A 7.1 Surround Sound High Definition Audio
- 1x USB 3.2 Gen 2x2 port(s) (1x USB Type-C), 4x USB 3.2 Gen 2 Type-A,
- 8x USB 2.0 Type-A, 1x Marvell AQtion 10Gb Ethernet port, 1x Intel 2.5Gb Ethernet
- 5x Audio jacks, 1x Optical S/PDIF out
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 5 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel W790 |
| Audio chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | Workstation |
| Motherboard form factor | SSI CEB |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Graphics | |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| Number of COM connectors | 1 |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Maximum internal memory | 2 TB |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 1.81 kg |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-3400, W-2400 |

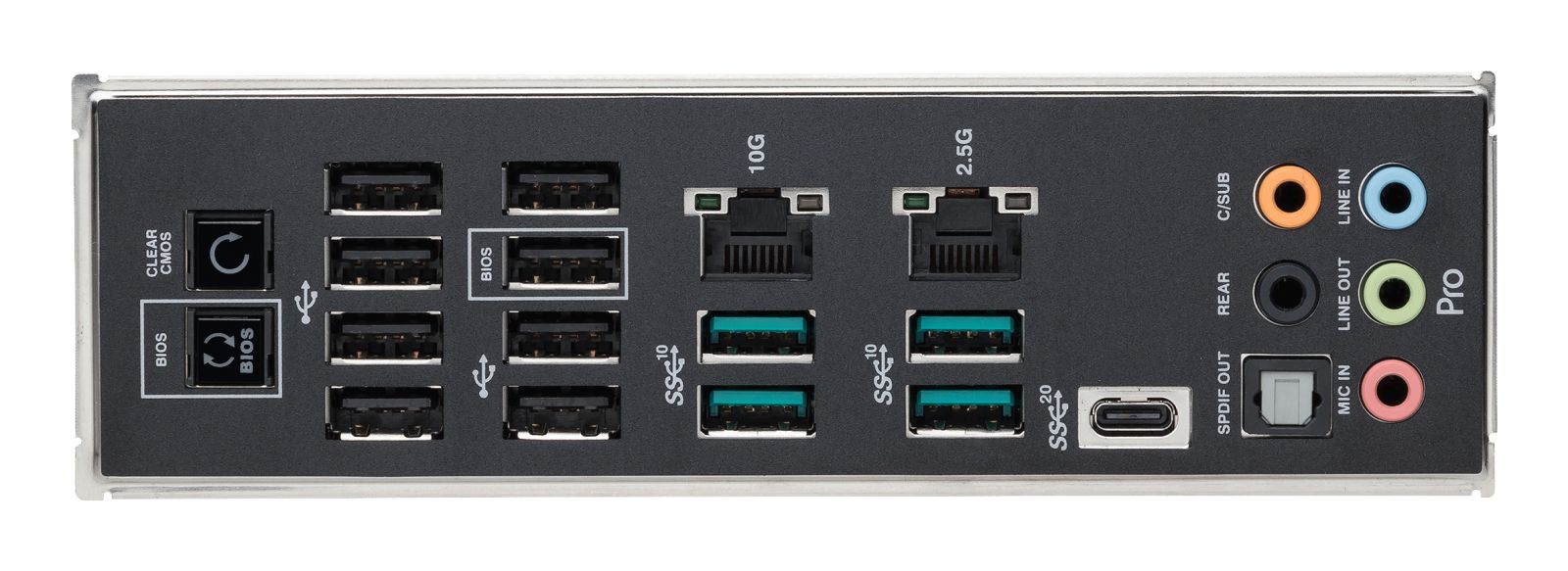

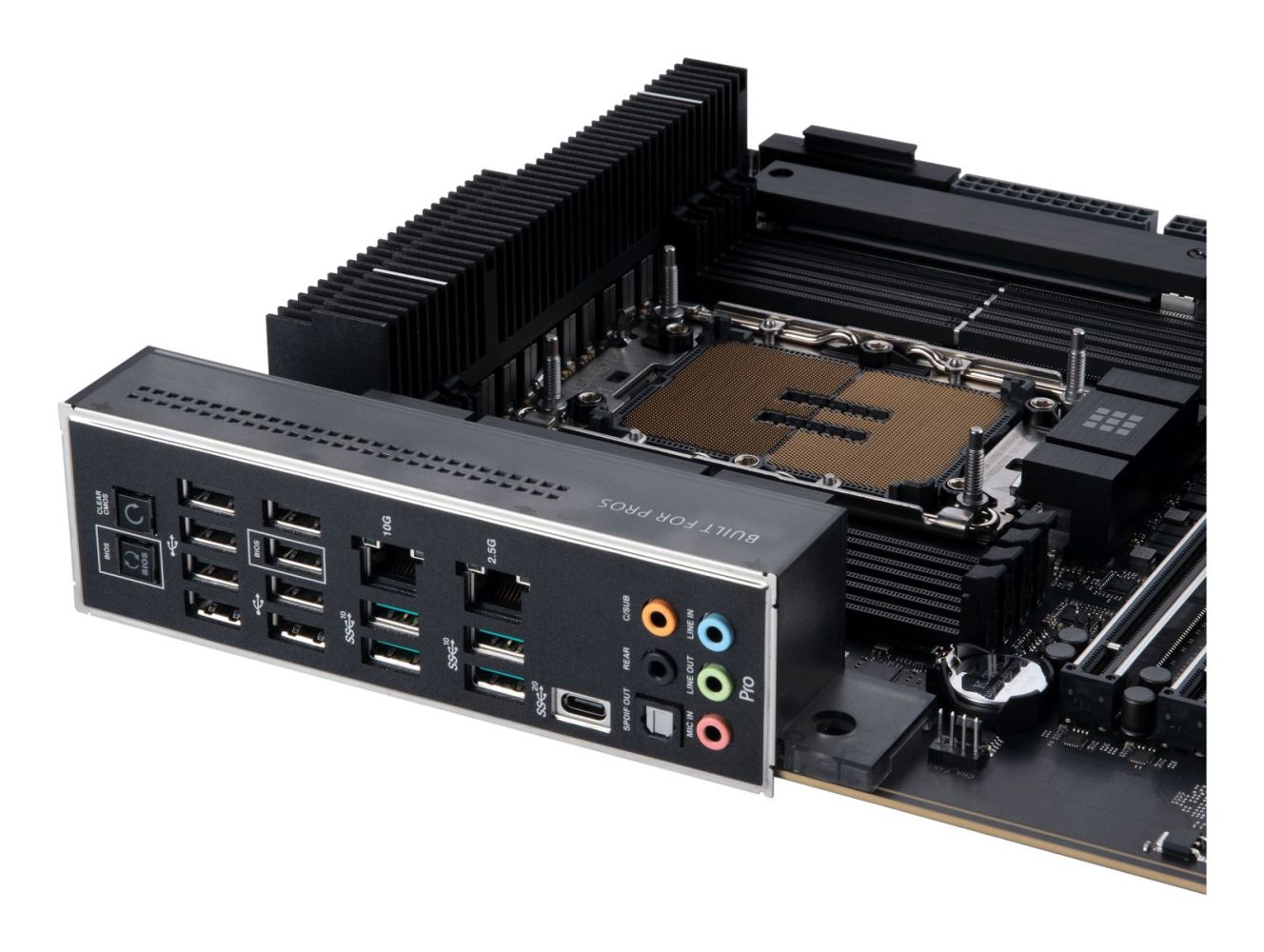

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 277 mm |
| Height | 50 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRO WS W790-ACE (Intel,LGA4677,DDR5,CEB)?
The article Motherboard ASUS PRO WS W790-ACE (Intel,LGA4677,DDR5,CEB) is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1C70-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRO WS W790-ACE (Intel,LGA4677,DDR5,CEB) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRO WS W790-ACE (Intel,LGA4677,DDR5,CEB) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
