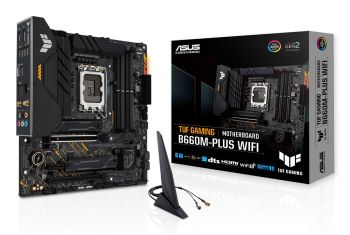

ASUS TUF GAMING B660M-PLUS WIFI D4 LGA1700 4xDIMM DDR4 mATX 4xSATA 2xM.2 1xHDMI 1xDP MB
|
166,21 EUR |
|
|
( 197,79 EUR incl. VAT ) ≈ £139.12 | ≈ $185.32 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| End-Of-Life: | 24. Oct 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 853178 |
| Mfg Part No: | 90MB1AZ0-M1EAY0 |
| UPC/EAN: | 4711081604358 |
| Weight: | 1.564 kg |
Product information for ASUS 90MB1AZ0-M1EAY0:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B660 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 1.35 kg |
| Packaging content | |
| Cables included | SATA |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 5 |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 68 mm |
Questions & answers
What is the delivery time of ASUS TUF GAMING B660M-PLUS WIFI D4 LGA1700 4xDIMM DDR4 mATX 4xSATA 2xM.2 1xHDMI 1xDP MB?
The article ASUS TUF GAMING B660M-PLUS WIFI D4 LGA1700 4xDIMM DDR4 mATX 4xSATA 2xM.2 1xHDMI 1xDP MB is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB1AZ0-M1EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS TUF GAMING B660M-PLUS WIFI D4 LGA1700 4xDIMM DDR4 mATX 4xSATA 2xM.2 1xHDMI 1xDP MB always at the best possible price. We can give you a discount of 2% on ASUS TUF GAMING B660M-PLUS WIFI D4 LGA1700 4xDIMM DDR4 mATX 4xSATA 2xM.2 1xHDMI 1xDP MB if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
