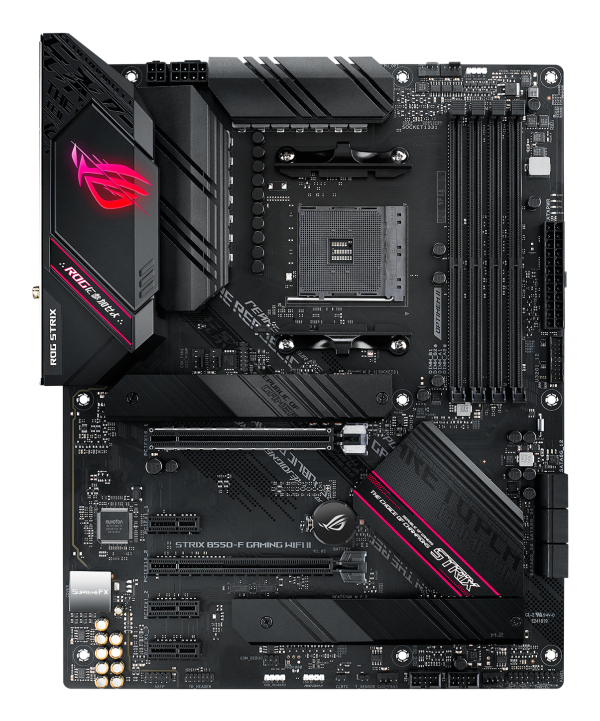

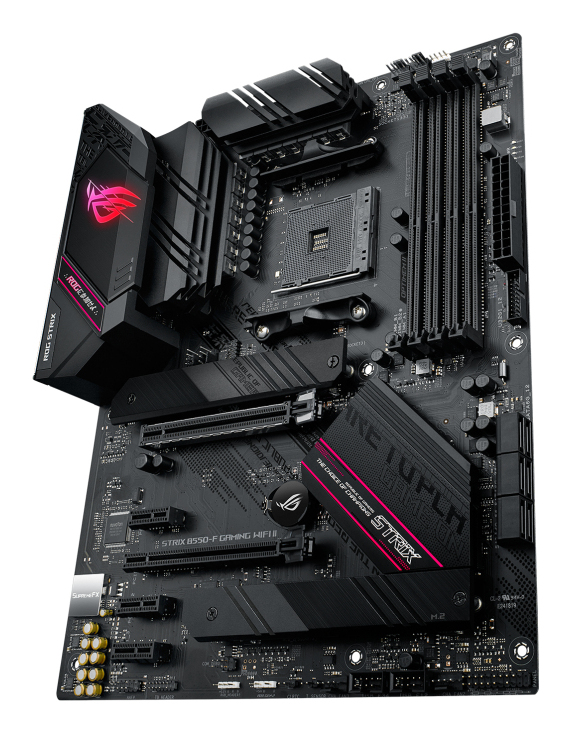

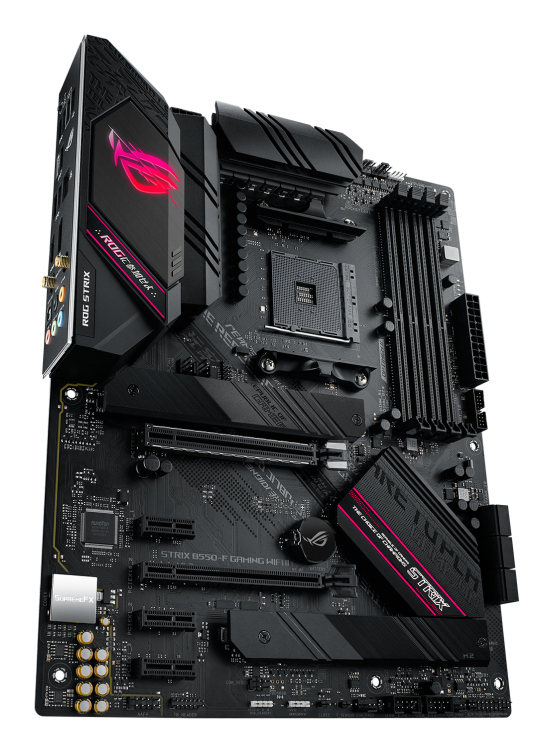

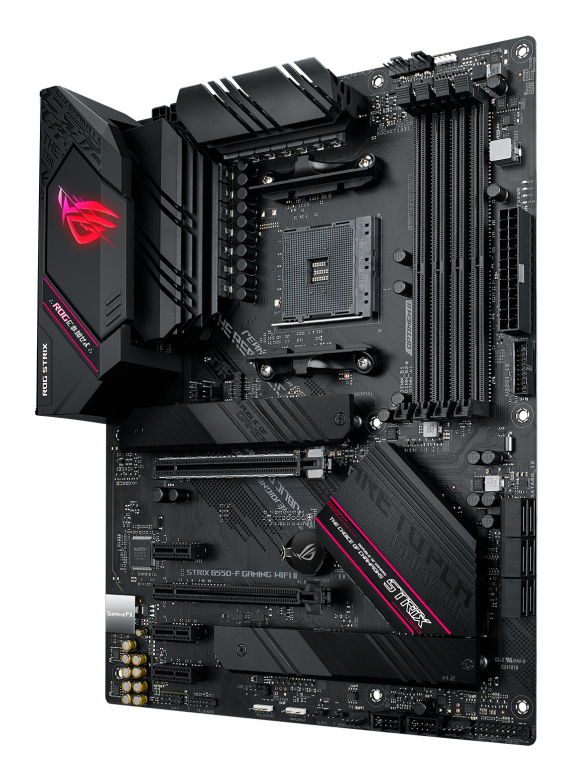

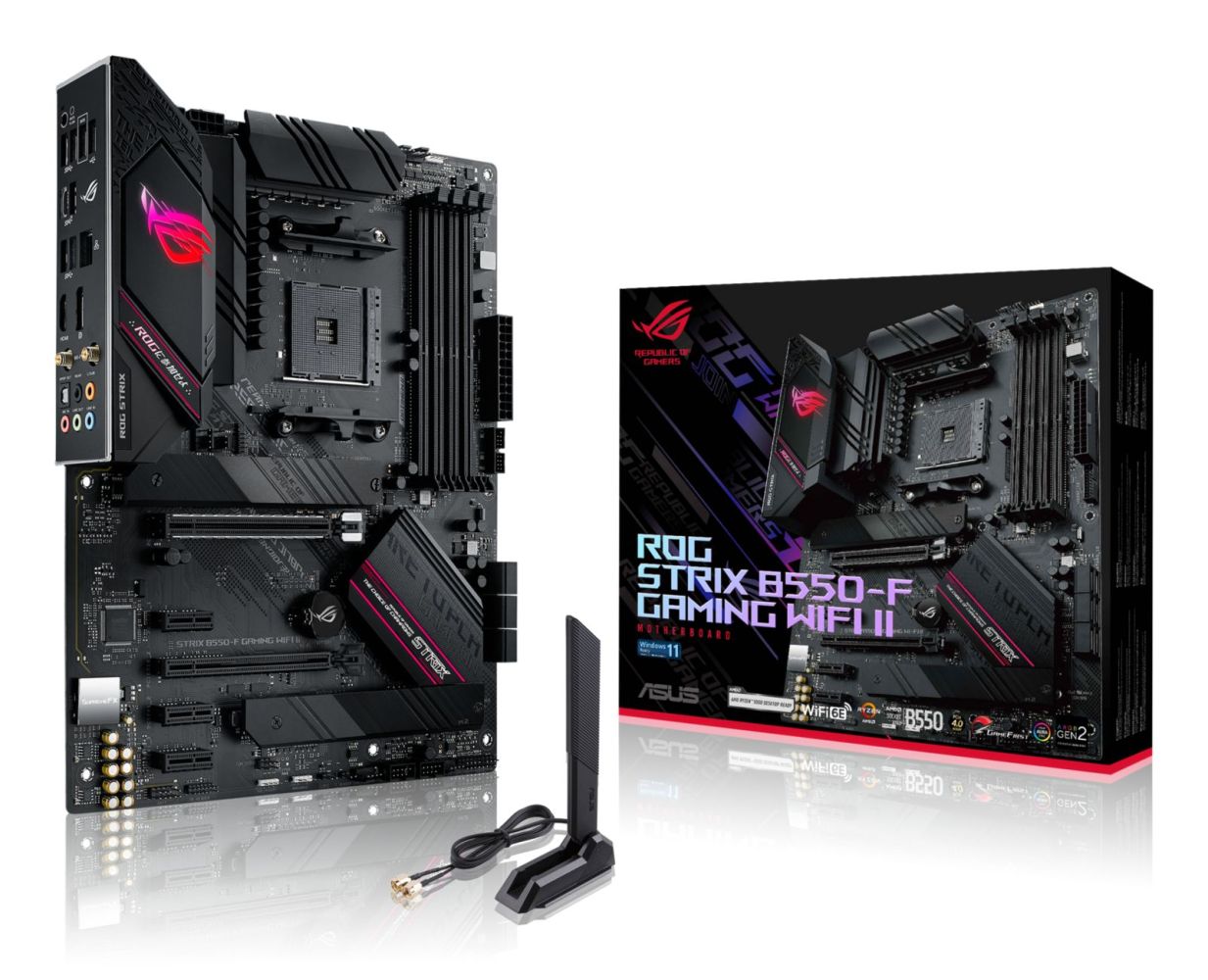

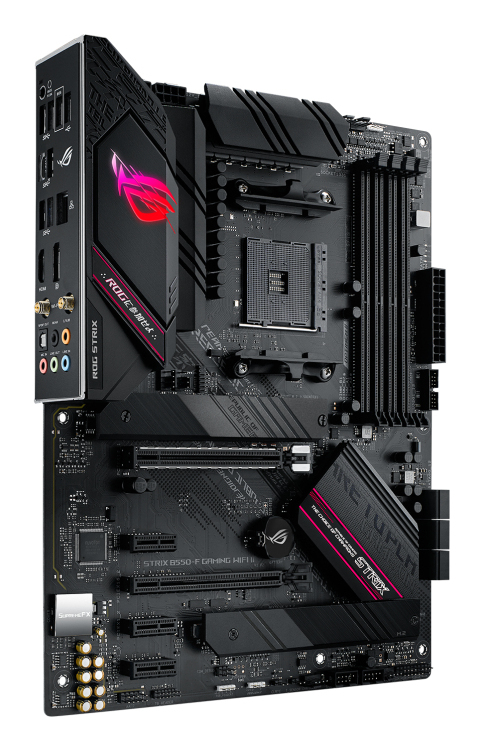

ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2
|
163,92 EUR |
|
|
( 195,06 EUR incl. VAT ) ≈ £137.20 | ≈ $182.77 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 852886 |
|---|---|
| Mfg Part No: | 90MB19V0-M0EAY0 |
| UPC/EAN: | 4711081453314 |
| Weight: | 1.8 kg |
Product information for ASUS 90MB19V0-M0EAY0:
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Thunderbolt headers | 1 |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Intel I225-V |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Ethernet LAN | |
| Wake-on-LAN ready | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 945 g |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
Questions & answers
What is the delivery time of ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2?
The article ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB19V0-M0EAY0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2 always at the best possible price. We can give you a discount of 2% on ASUS ROG STRIX B550-F GAMING WIFI II AM4 Socket 4x4DDR 1xHDMI 1xDP 2xM.2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
