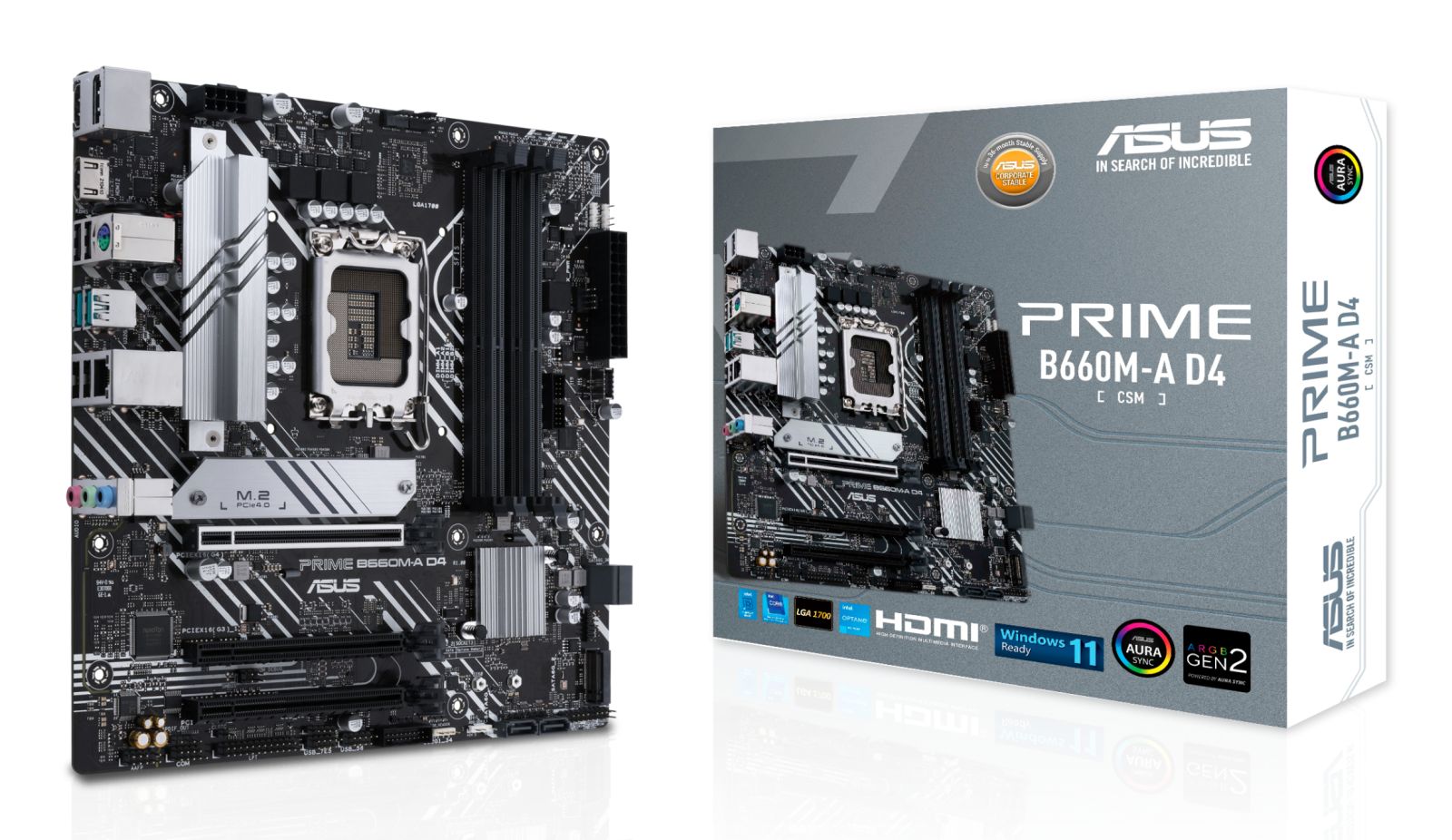

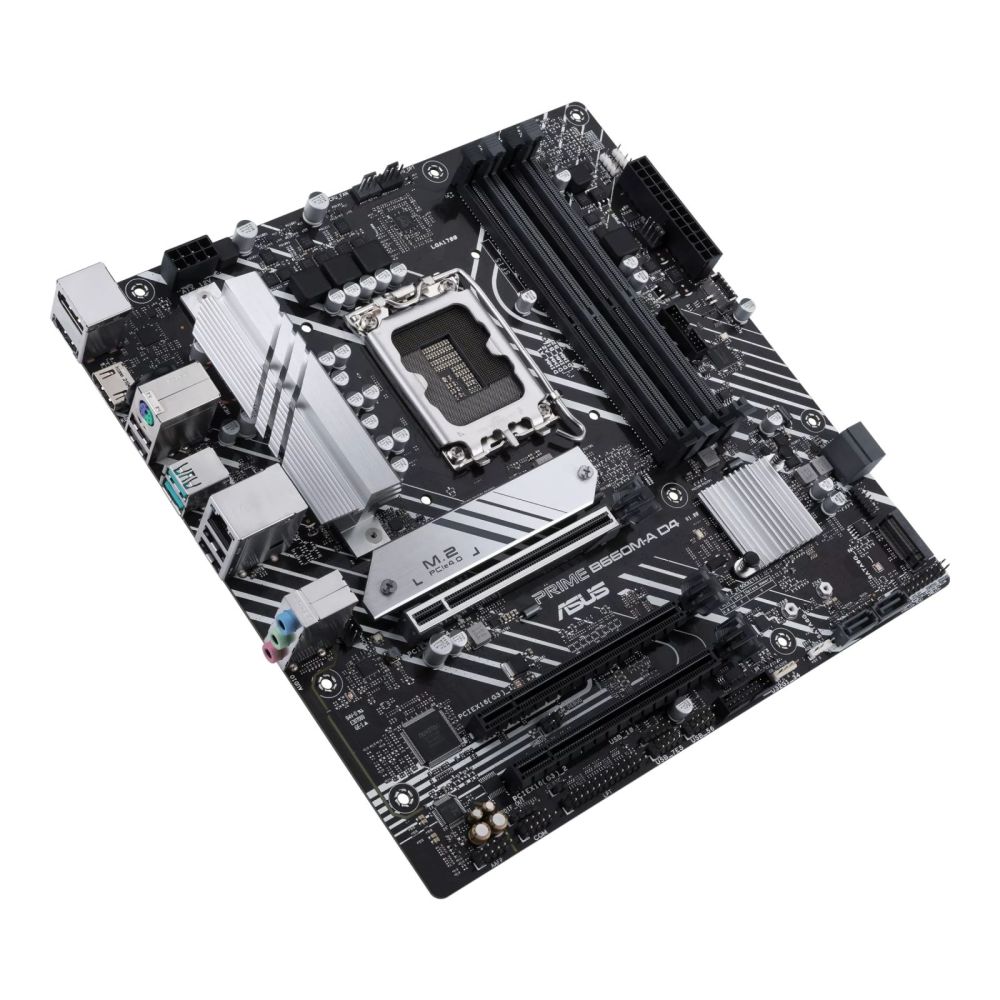

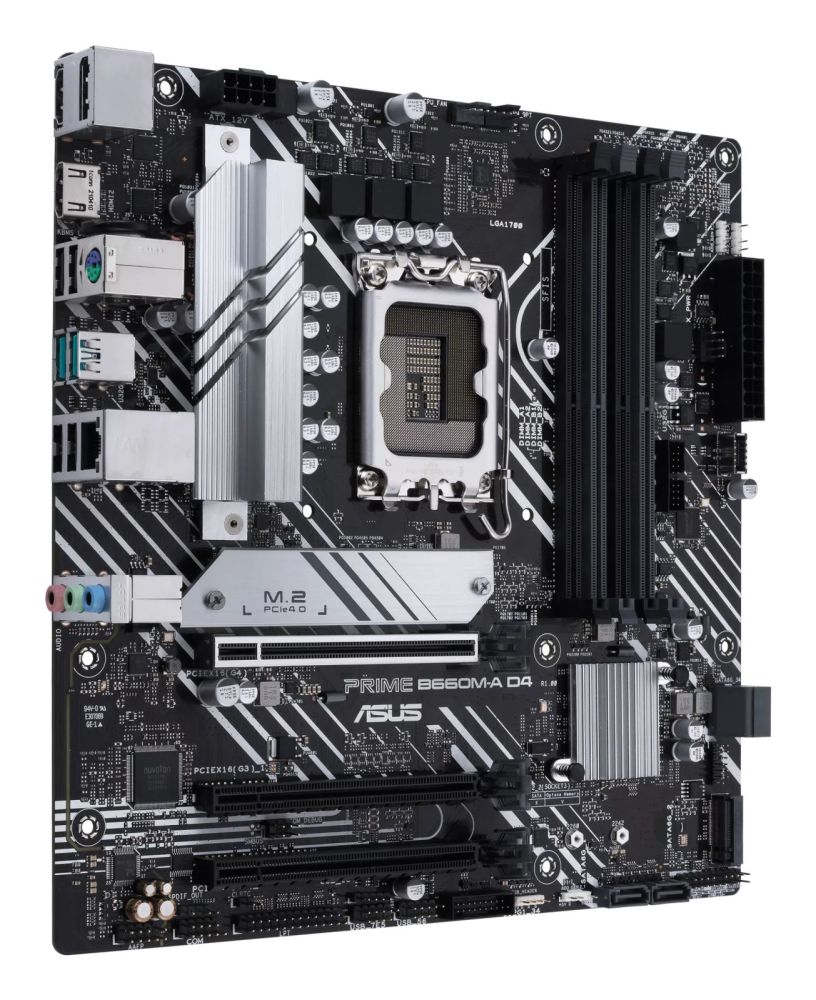

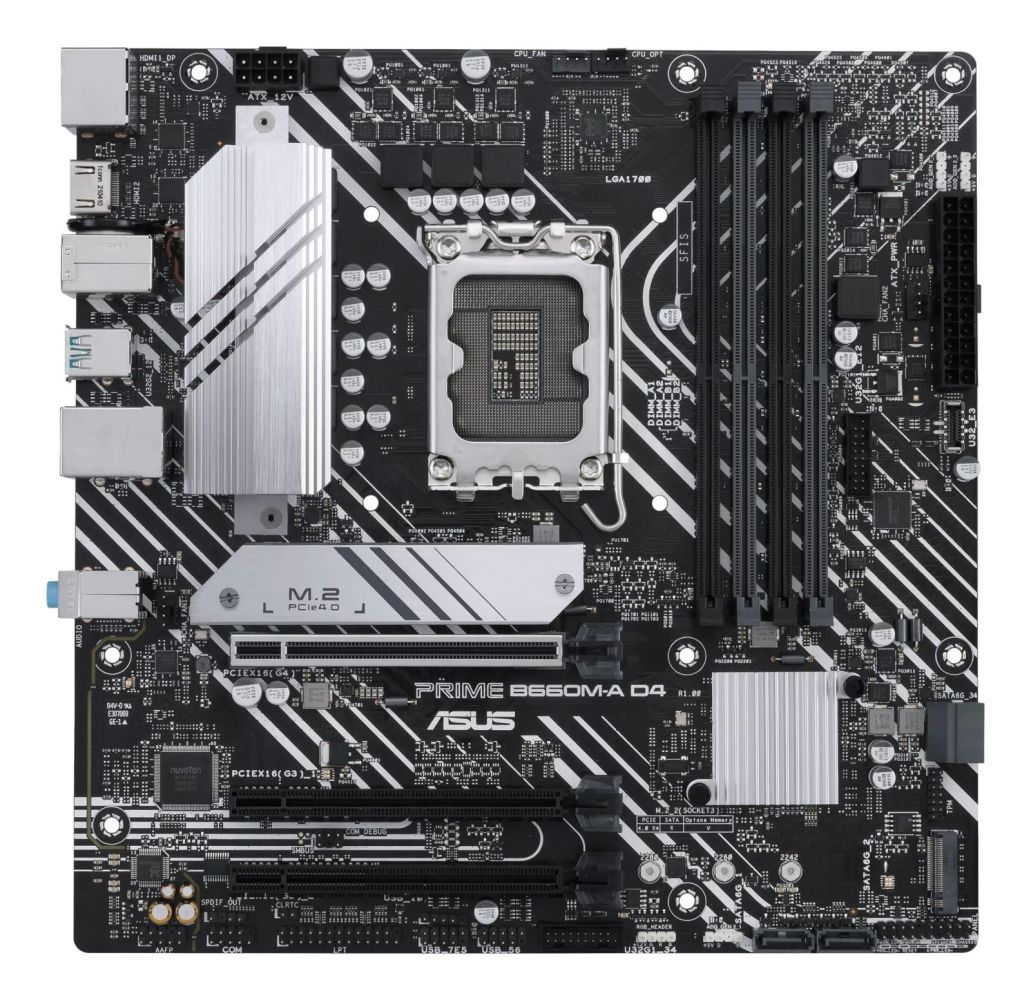

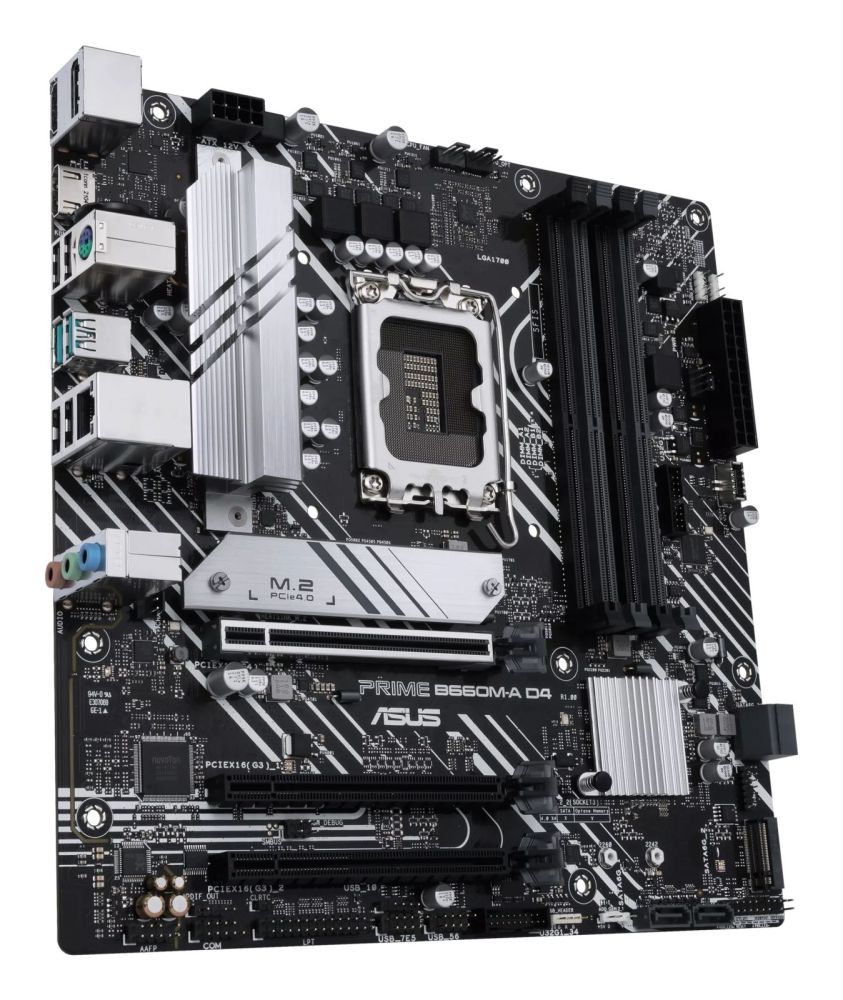

Motherboard ASUS PRIME B660M-A D4-CSM (Intel,1700,DDR4,mATX)
|
139,52 EUR 139,63 EUR |
|
|
( 166,03 EUR incl. VAT ) ≈ £118.04 | ≈ $155.99 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Lieske Part No.: | 2042071 |
|---|---|
| Mfg Part No: | 90MB19K0-M1EAYC |
| UPC/EAN: | 4711081508045 |
| Weight: | 1.455 kg |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B660 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| S/PDIF out connector | |
| Front panel audio connector | |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| RGB LED pin header | |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |

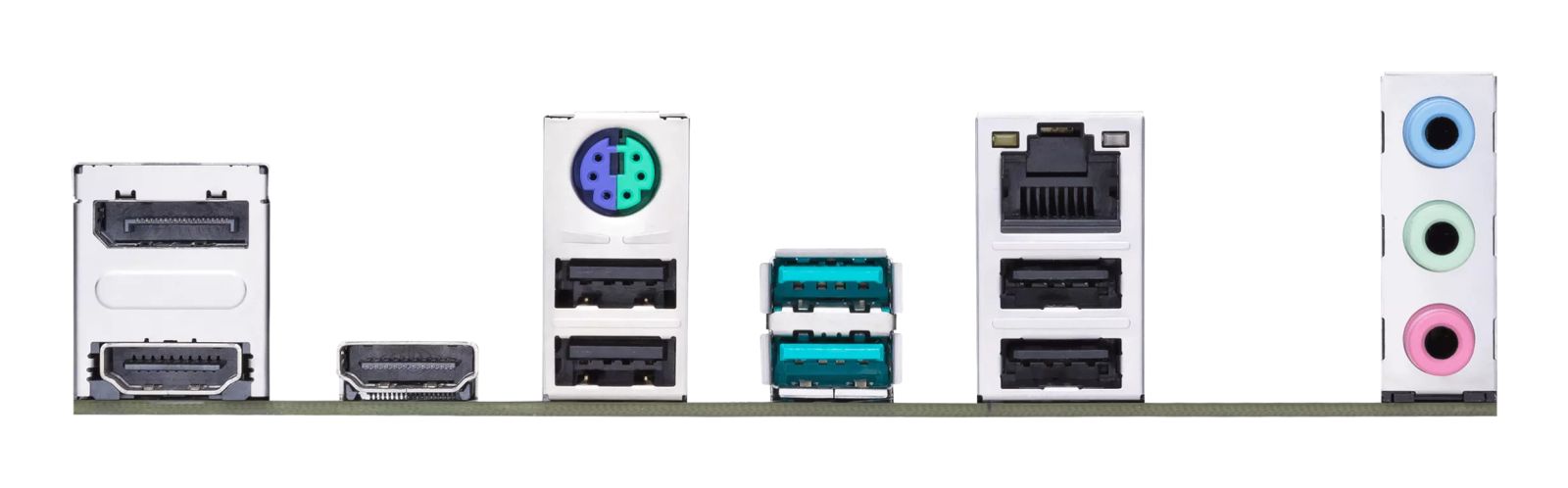

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Questions & answers
What is the delivery time of Motherboard ASUS PRIME B660M-A D4-CSM (Intel,1700,DDR4,mATX)?
The article Motherboard ASUS PRIME B660M-A D4-CSM (Intel,1700,DDR4,mATX) is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90MB19K0-M1EAYC to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Motherboard ASUS PRIME B660M-A D4-CSM (Intel,1700,DDR4,mATX) always at the best possible price. We can give you a discount of 2% on Motherboard ASUS PRIME B660M-A D4-CSM (Intel,1700,DDR4,mATX) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
