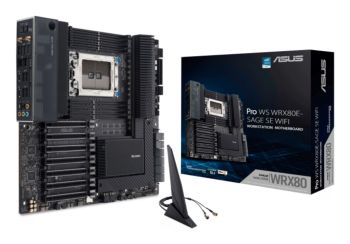

ASUS PRO WS WRX80E-SAGE SE WIFI sWRX8/U.2/3xM.2/KVM/E-ATX WiFi 6 included
|
-9% 850,08 EUR 933,05 EUR |
|
|
( 1.011,60 EUR incl. VAT ) ≈ £711.52 | ≈ $947.84 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Lieske Part No.: | 1654766 |
| Mfg Part No: | 90MB1590-M0EAY0 |
| UPC/EAN: | 4711081066262 |
| Weight: | 6 kg |
Product information for ASUS 90MB1590-M0EAY0:
AMD sWRX8 socket for AMD Ryzen Threadripper PRO 39xxWX and 59xxWX* Series
8x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC,
buffered a and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory
7x PCIe 4.0/ 3.0 x16 slots
Asus ASMB9-iKVM for KVM-over-Internet
3x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
Supports NVMe RAID configurations via M.2 storages
2x U.2 slot supports U.2 NVMe device and up to 4 SATA devices*
4 x SATA 6Gb/s ports
Back Panel I/O Ports: 2x USB 3.2 Gen2 Type-C, 8x USB 3.2 Gen2 Type-A, 5x Audio jacks,
1x Asus WiFi Module, 2x Intel X550-AT2 dual 10Gb LAN ports. 1x optical S/PDIF out
Option: 1x COM, 1x TPM Hardware Chip (14-1pin SPI)
8x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC,
buffered a and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory
7x PCIe 4.0/ 3.0 x16 slots
Asus ASMB9-iKVM for KVM-over-Internet
3x M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
Supports NVMe RAID configurations via M.2 storages
2x U.2 slot supports U.2 NVMe device and up to 4 SATA devices*
4 x SATA 6Gb/s ports
Back Panel I/O Ports: 2x USB 3.2 Gen2 Type-C, 8x USB 3.2 Gen2 Type-A, 5x Audio jacks,
1x Asus WiFi Module, 2x Intel X550-AT2 dual 10Gb LAN ports. 1x optical S/PDIF out
Option: 1x COM, 1x TPM Hardware Chip (14-1pin SPI)
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 7 |
| Number of M.2 (M) slots | 3 |
| Features | |
| Motherboard chipset | AMD WRX80 |
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64 |
| Compatible operating systems | Windows 10 |
| Graphics | |
| Parallel processing technology support | 2-Way SLI, 3-Way SLI, 4-Way SLI |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 8 |
| Number of chassis fan connectors | 6 |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| Chassis intrusion connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 2 TB |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X550-T2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 572 g |
| Number of processors supported | 1 |
| Packaging content | |
| Cables included | SATA, VGA |
| Drivers included | |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket SP3 |
| Compatible processor series | AMD Ryzen Threadripper PRO 3000 WX-Series |
| Maximum number of SMP processors | 1 |
| Processor number of cores supported | 64 |
| Processor cores | 64 |
| Processor special features | |
| Trusted Platform Module (TPM) | |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 9 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Storage controllers | |
| Supported storage drive interfaces | SATA III |
| Number of storage drives supported | 11 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Weight & dimensions | |
| Width | 309.8 mm |
| Depth | 330 mm |
| Height | 108 mm |
