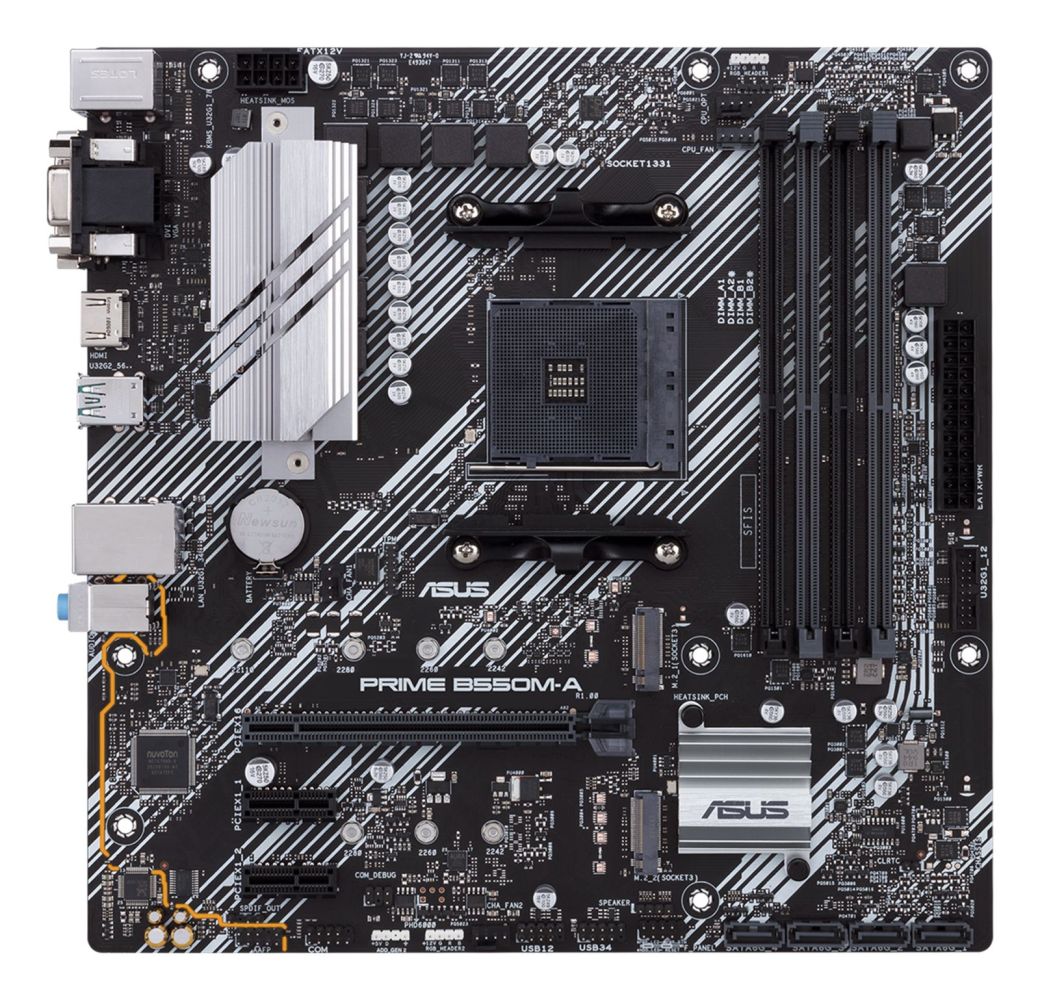

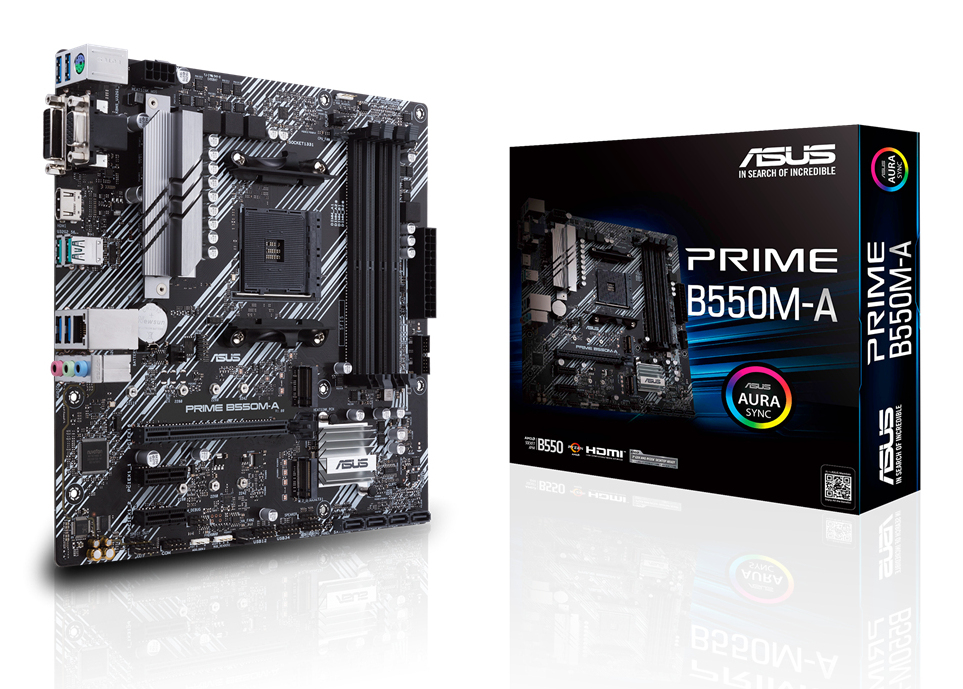

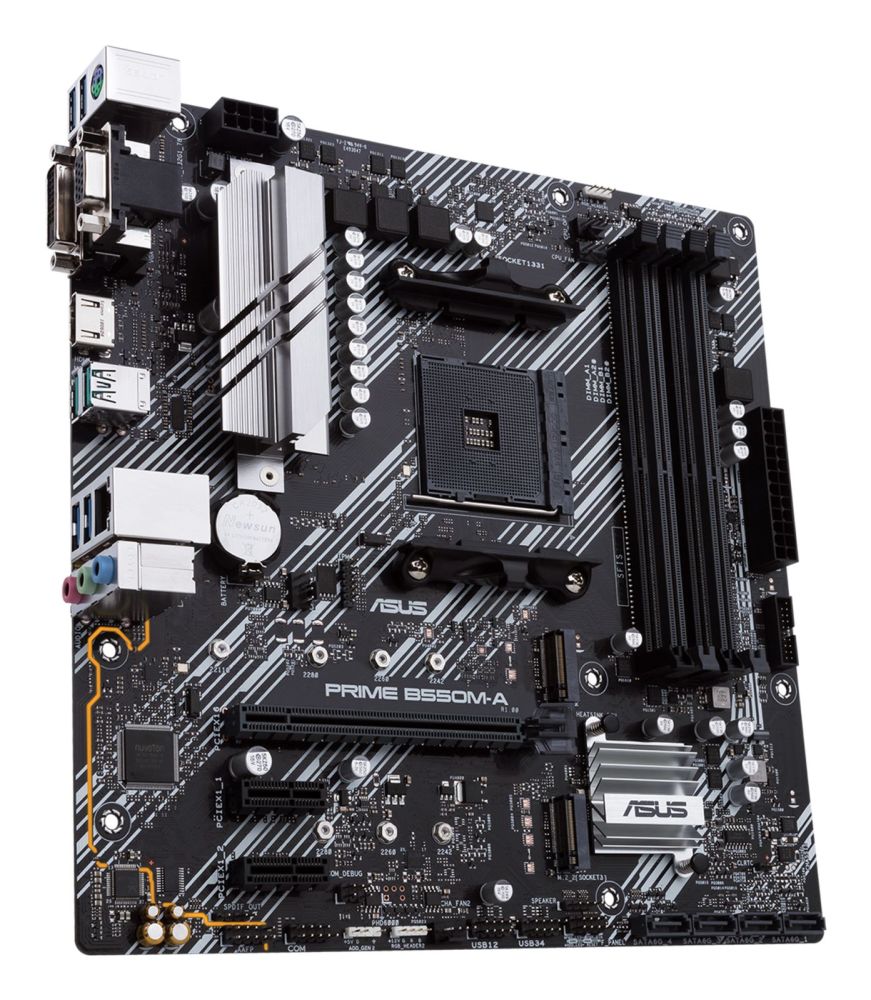

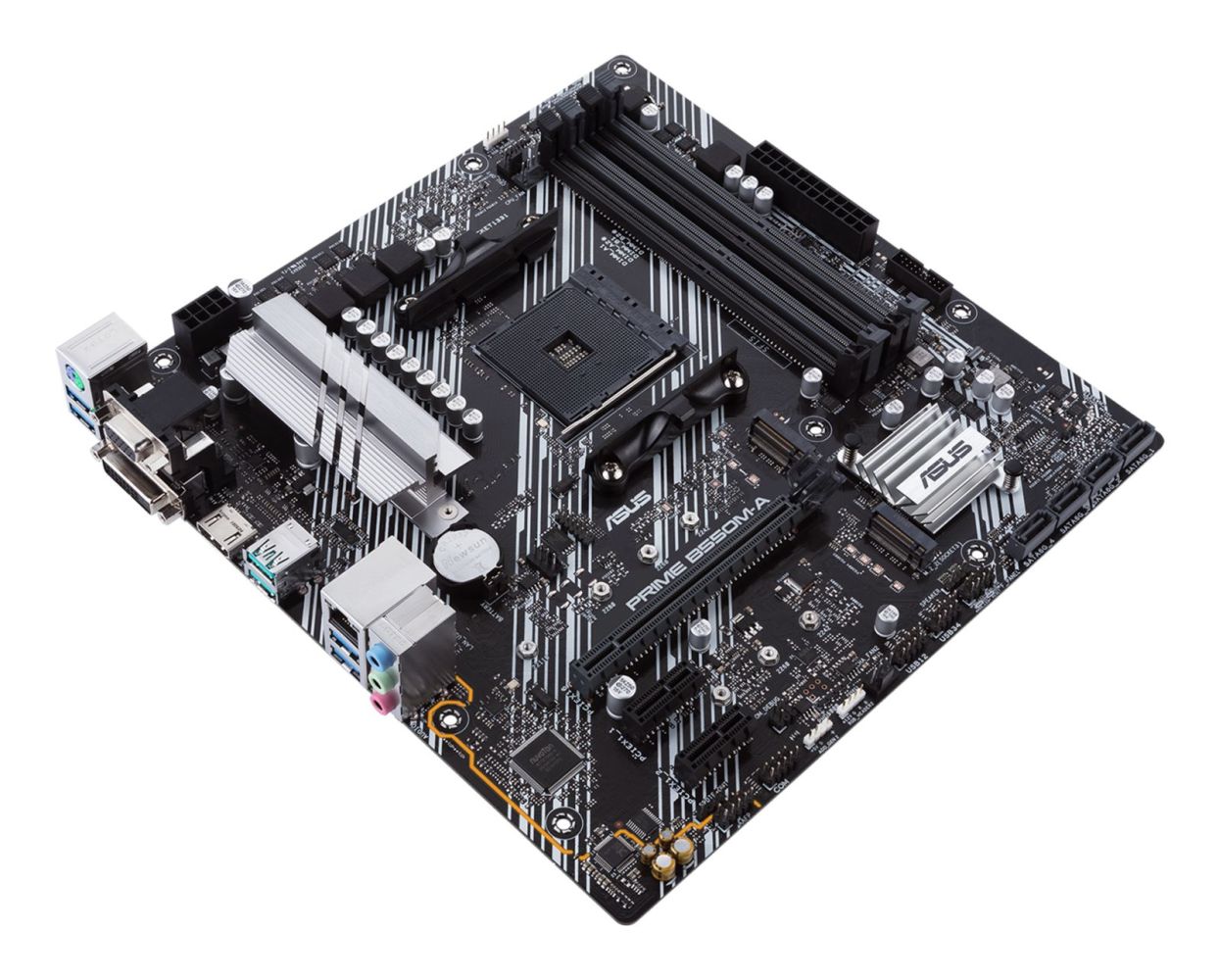

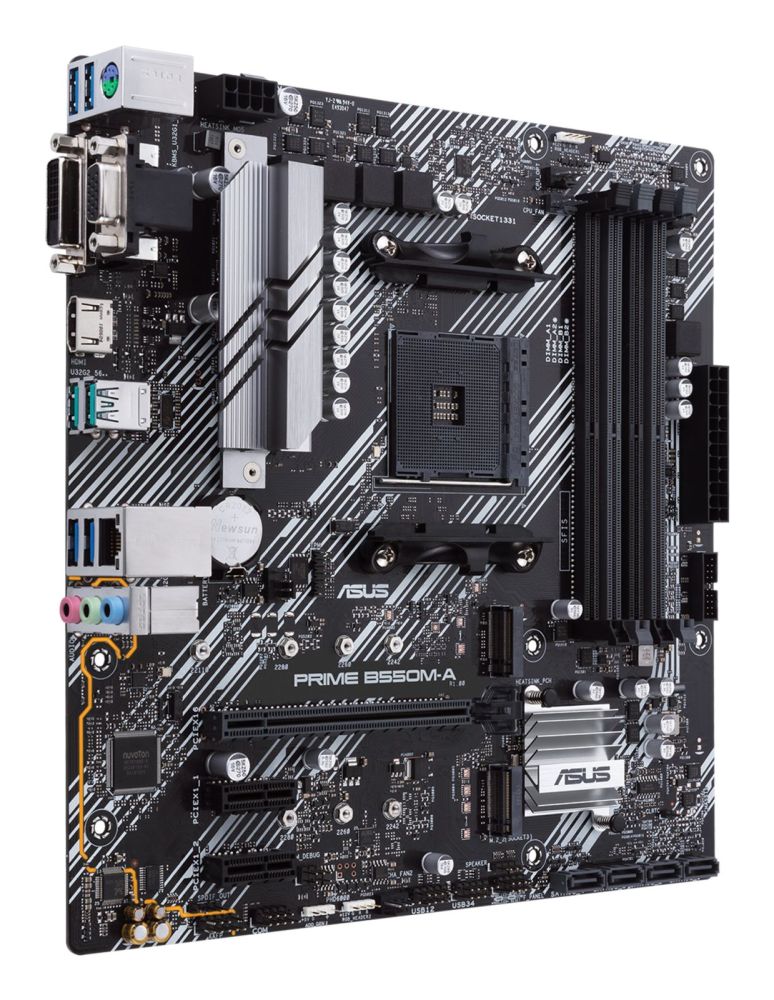

Motherboard ASUS PRIME B550M-A (AMD,AM4,DDR4,mATX)
|
115,99 EUR |
|
|
( 138,03 EUR incl. VAT ) ≈ £97.08 | ≈ $129.33 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Lieske Part No.: | 1560394 |
|---|---|
| Mfg Part No: | 90MB14I0-M0EAY0 |
| UPC/EAN: | 4718017755528 |
| Weight: | 1 kg |
Product information for ASUS 90MB14I0-M0EAY0:
AMD AM4 socket for 3rd Gen AMD Ryzen Processors
AMD B550 Chipset
4x DDR4 DIMM sockets, max. 128 GB
Graphics I/O: 1x D-Sub, 1x DVI-D (Single-Link), 1x HDMI 2.1 (4K@60Hz)
Supports up to 3 Displays simultaneously
1x PCIe 3.0/4.0* x16 (x16 mode), 2x PCIe 3.0 x1
*) PCIe 4.0 requires AMD Ryzen CPU with non-integrated Graphics
2x M.2 (1x 2242/2260/2280/22110 + 1x 2242/2260/2280) PCIe/NVMe or SATA mode
4x SATA 6Gb/s ports
LAN: Realtek RTL8111H 1Gb Ethernet, 1x (RJ45) port WoL and PXE
Realtek ALC887/897 7.1 Surround Sound HD Audio CODEC

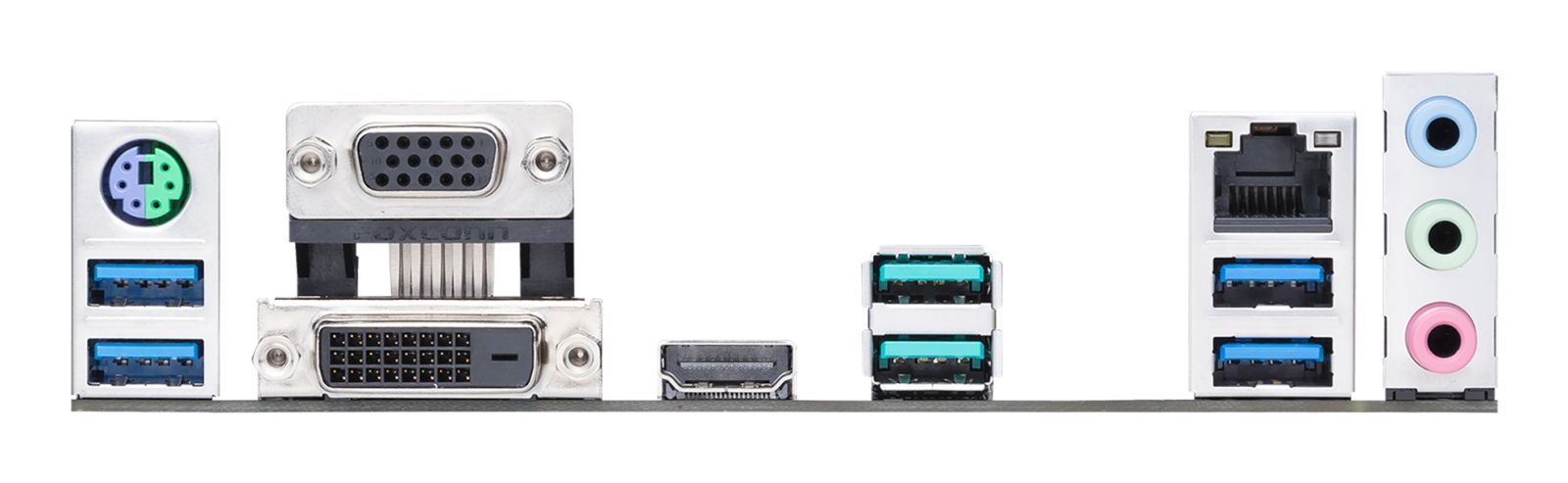

USB-I/O rear: 2x USB 3.2 Gen2 port(s), 4x USB 3.2 Gen1 port(s)
1x PS/2, 3x Audio jack(s), option: 1x COM (serial)
AMD B550 Chipset
4x DDR4 DIMM sockets, max. 128 GB
Graphics I/O: 1x D-Sub, 1x DVI-D (Single-Link), 1x HDMI 2.1 (4K@60Hz)
Supports up to 3 Displays simultaneously
1x PCIe 3.0/4.0* x16 (x16 mode), 2x PCIe 3.0 x1
*) PCIe 4.0 requires AMD Ryzen CPU with non-integrated Graphics
2x M.2 (1x 2242/2260/2280/22110 + 1x 2242/2260/2280) PCIe/NVMe or SATA mode
4x SATA 6Gb/s ports
LAN: Realtek RTL8111H 1Gb Ethernet, 1x (RJ45) port WoL and PXE
Realtek ALC887/897 7.1 Surround Sound HD Audio CODEC
USB-I/O rear: 2x USB 3.2 Gen2 port(s), 4x USB 3.2 Gen1 port(s)
1x PS/2, 3x Audio jack(s), option: 1x COM (serial)
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | AMD B550 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 4 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz |
| Maximum internal memory | 128 GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111H |
| Top Wi-Fi standard | Not available |
| Bluetooth version | 5.1 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA |
| Number of storage drives supported | 6 |
| RAID support | |
