ASUS 90AS00L1-M005L0 RNUC15CRKU5063C2 28W (U5 225H) DDR5 5600 8G*2 512GB W11P
|
849,26 EUR |
|
|
( 1.010,62 EUR incl. VAT ) ≈ £710.83 | ≈ $946.92 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 901617 |
| Mfg Part No: | 90AS00L1-M005L0 |
| UPC/EAN: | 4711636406642 |
| Weight: | 1.34 kg |
Product information for ASUS 90AS00L1-M005L0:

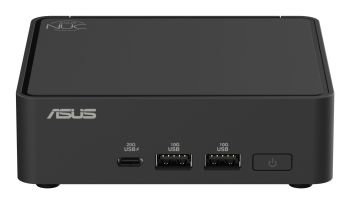

ASUS NUC 15 Pro AI Kit Barebone Mini-PC (90AS00L1-M005L0) – Der kompakte Mini-PC kombiniert moderne Intel® Core™ Ultra Technologie mit leistungsstarker KI-Unterstützung und eignet sich ideal für professionelle Anwendungen, Business-Arbeitsplätze und produktives Arbeiten. Dank flexibler Erweiterungsmöglichkeiten für Arbeitsspeicher und SSD lässt sich das System individuell konfigurieren. Moderne Schnittstellen, schnelle Konnektivität und das platzsparende Gehäuse bieten hohe Leistung bei minimalem Platzbedarf – perfekt für Unternehmen, Homeoffice und anspruchsvolle Anwendungen.
| Design | |
| Chassis type | Mini PC |
| Colour name | Black |
| Placement supported | Horizontal/Vertical |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Cable lock slot | |
| Display | |
| Display included | |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc 130T |
| Discrete graphics card | |
| On-board graphics card | |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 96 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Network | |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE202 |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Neural processor unit (NPU) | |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, DirectML, ONNX RT, WebNN |
| Total processor performance up to | 83 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 63 TOPs |
| Sparsity support | |
| Windows Studio effects support | |
| Performance | |
| Product type | Mini PC |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Intel® Thunderbolt 4 | |
| DC-in jack | |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core (Series 2) |
| Processor model | 225H |
| Processor cores | 14 |
| Processor threads | 14 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.3 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Optical drive type | |
| NVMe | |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 500 g |
Questions & answers
What is the delivery time of ASUS 90AS00L1-M005L0 RNUC15CRKU5063C2 28W (U5 225H) DDR5 5600 8G*2 512GB W11P?
The article ASUS 90AS00L1-M005L0 RNUC15CRKU5063C2 28W (U5 225H) DDR5 5600 8G*2 512GB W11P is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90AS00L1-M005L0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ASUS 90AS00L1-M005L0 RNUC15CRKU5063C2 28W (U5 225H) DDR5 5600 8G*2 512GB W11P always at the best possible price. We can give you a discount of 2% on ASUS 90AS00L1-M005L0 RNUC15CRKU5063C2 28W (U5 225H) DDR5 5600 8G*2 512GB W11P if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
