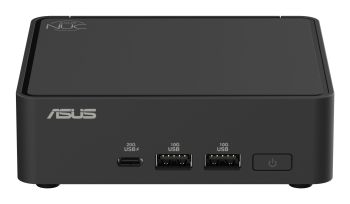

Asus NUC Barebone BNUC15CRKI5 Cyber Canyon Cyber Canyon Core 5 120U NUC Kit Slim NO-Cord
|
454,86 EUR |
|
|
( 541,28 EUR incl. VAT ) ≈ £380.72 | ≈ $507.17 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 813074 |
| Mfg Part No: | 90AR00R2-M002E0 |
| Weight: | 1 kg |
Product information for ASUS 90AR00R2-M002E0:
up to 5.00 GHz, 10 Cores, 12 Threads (Processor Base Power 15 W)
Dual HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port
Dual Thunderbolt 4 ports (incl. DP 2.1 and USB4) via back panel type C connectors
M.2 22x80 key M slot for PCIe x4 Gen4, support 128GB~8TB NVMe SSD
M.2 22x42 key M slot for PCIe x4 Gen4, support 128GB~2TB NVMe SSD
Intel® i226-V 10/100/1000/2500 Mbps RJ45 Ethernet
Intel® Wi-Fi 7 BE202, supporting 802.11be and Bluetooth 5.4
2x DDR5-5600 SO-DIMMs, 1.1V, Dual-Channel, max. 96 GB
1x front USB 3.2 Gen2x2 type C port (20Gbps)
2x front and 1x rear USB 3.2 Gen2 type A ports
1x rear type A and 2x internal USB 2.0 headers
All USB ports with individual USB power control
Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports
Qualified for 24x7 operation
Dimensions: 117 x 112 x 37 mm (533g)
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| On/off switch | |
| Cable lock slot | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card | |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600,6400 MHz |
| Supported memory types | DDR5-SDRAM |
| Internal memory installed | |
| Network | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core 5 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 120U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Built-in processor | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 2 |
| Maximum storage capacity | 8 TB |
| Storage drives installed | |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 37 mm |
| Weight | 500 g |
