Asus NUC Barebone NUC13ANHI7 Arena Canyon Arena Canyon i7NUC Kit Tall incl. EU-Powercord content_copy

13th Generation Intel® Core™ i7-1360P
Intel® Iris® Xe Graphics
12 Processor Cores (4P+8E), 16 threads, 18MB Smart Cache, 35W TDP
Up to Quad Extended Displays:
Dual HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port

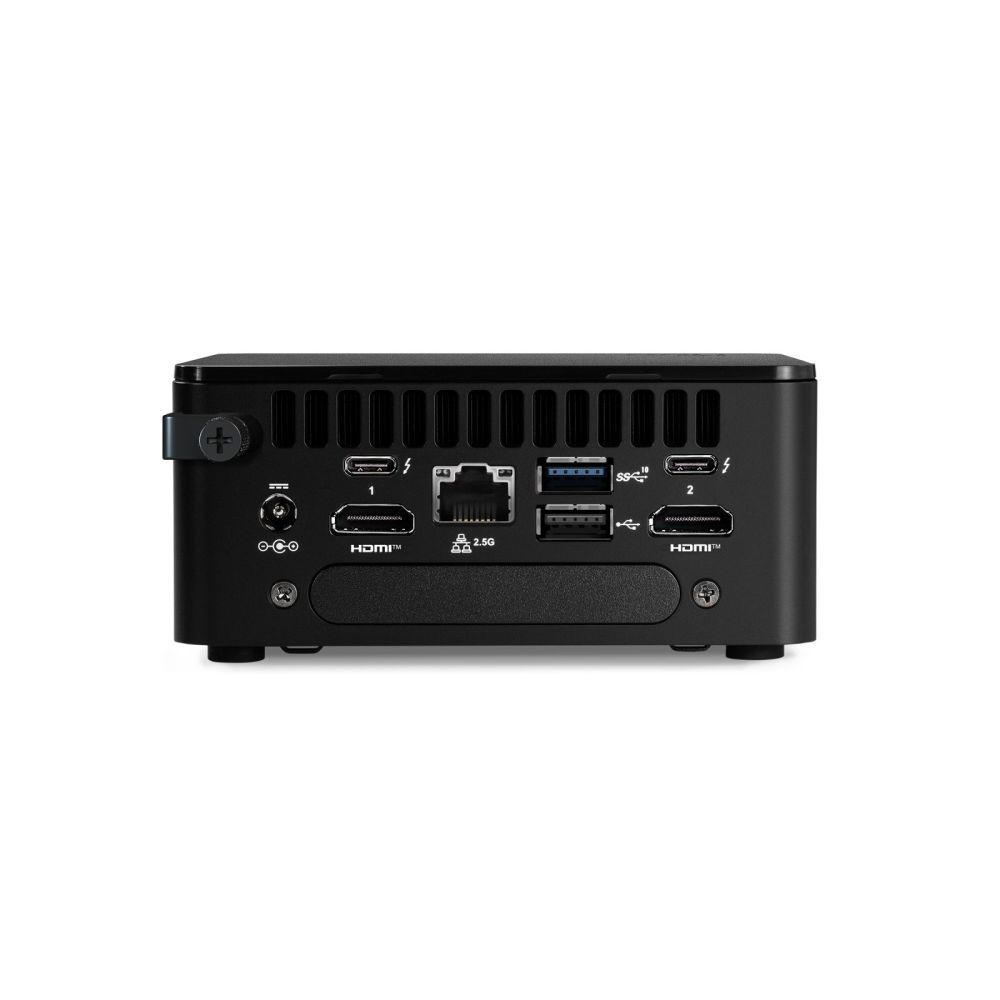

Dual Thunderbolt™ 4 ports (incl. DP 2.1 and USB4) via back panel type C connectors
M.2 22x80 key M slot for PCIe x4 Gen4 NVMe SSD
M.2 22x42 key B slot for PCIe x1 Gen3, USB 3.2 Gen2 and SATA SSD expandability
Intel® i226 10/100/1000/2500 Mbps RJ45 Ethernet (i226-LM on vPro SKUs, i226-V on non-vPro SKUs)
Intel® Wi-Fi 6E (vPro & non-vPro) on M.2 slot, supporting 802.11ax and Bluetooth 5.3
2x DDR4-3200 SO-DIMMs, 1.2V, Dual-Channel, max. 64 GB
Discrete TPM 2.0 (i7 vPro® and i5 vPro® SKUs only)

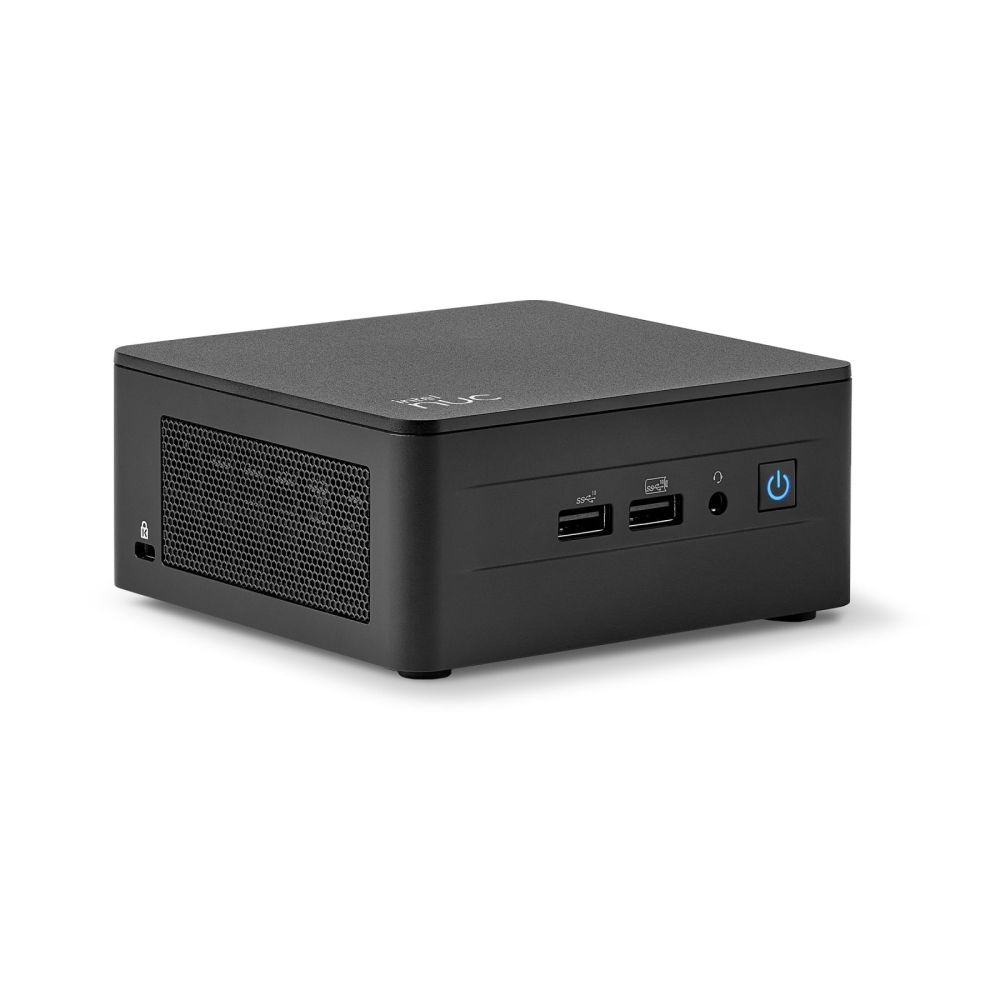

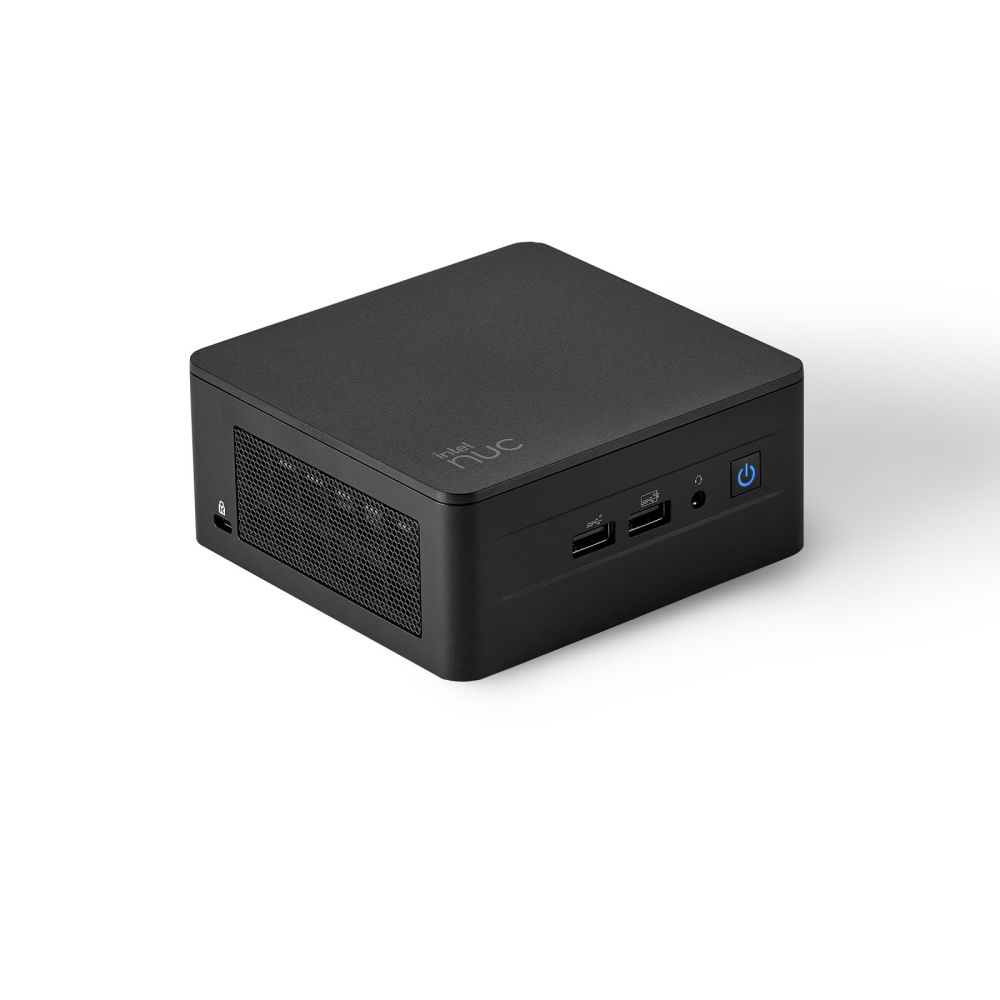

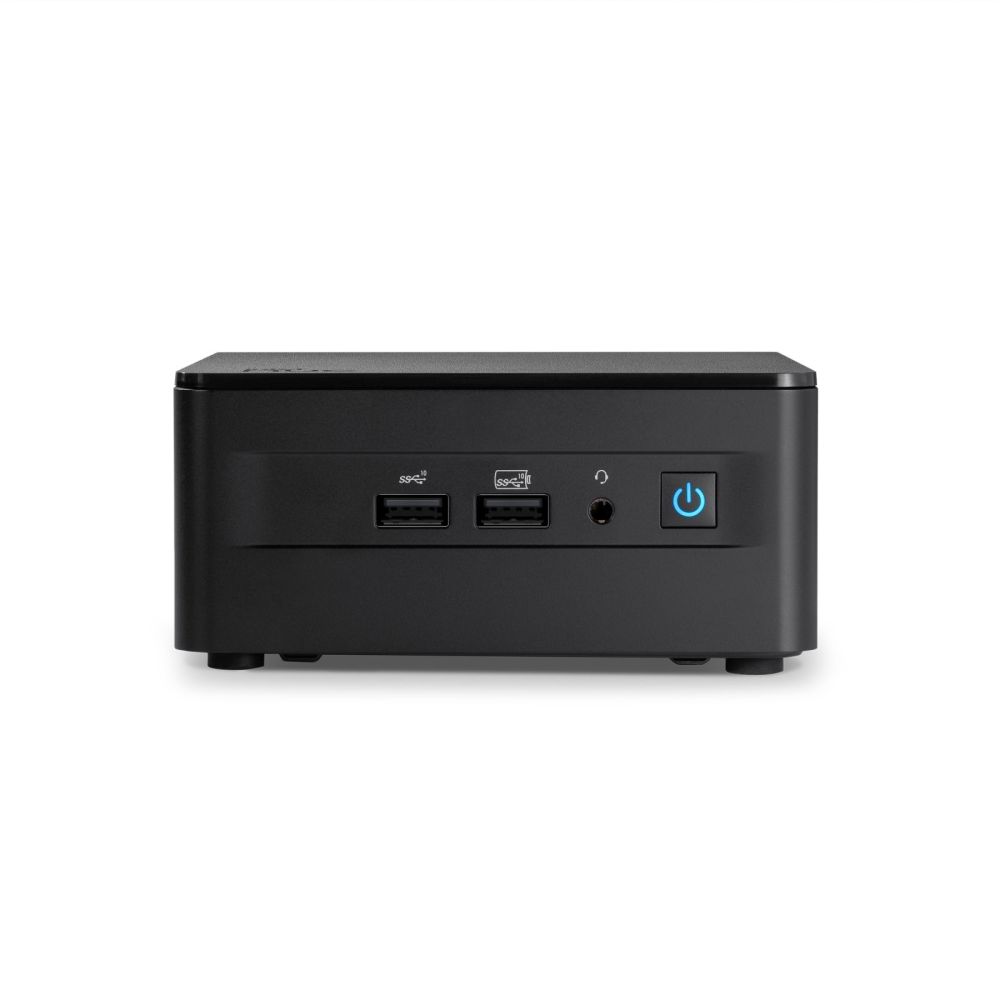

2x front and 1x rear USB 3.2 Gen2 type A ports
1x rear type A and 2x internal USB 2.0 headers
All USB ports with individual USB power control
3.5mm front stereo headset jack
Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports
Front panel header (with Vcc5/1A, 5Vsby2A, 3.3Vsby/1A)
Qualified for 24x7 operation (24-7 qualified SSD strictly required)
Delayed AC start, Auto CMOS reset, DC transient voltage suppression
Display emulation (headless display, virtual display, persistent displays) via HDMI ports
12 – 20VDC ±5% DC input on rear jack, internal 2x2 power connector, with OVP/UVP
TDP settings for Core i5/i7 CPUs down-configurable to 20W

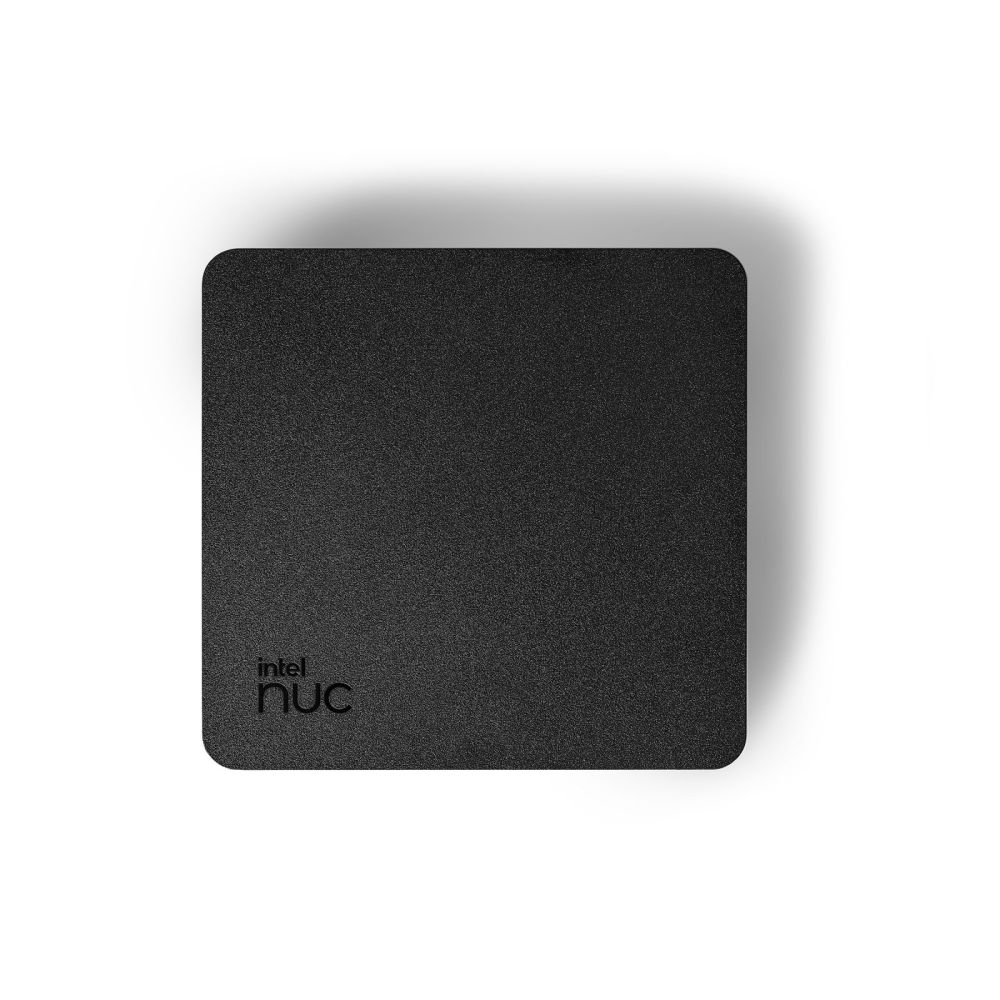

Matte textured chassis, replaceable lid, Kensington* lock with base security, Cable locking arm
Up to 40degC external ambient operating temperature tolerance
Power supply adapter (120W/20VDC for Core i7, i5, 90W/19VDC for Core i3)
with geo-specific AC cord (IEC C5)
VESA mounting plate included
Dimensions chassis: 117 x 112 x 54 mm

Audio
Built-in speaker(s)
Design
Product colour	Black
Cooling type	Active
Cable lock slot type	Kensington
Product type	Mini PC barebone
On/off switch
Cable lock slot
Graphics
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
On-board graphics card
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	64 GB
Supported memory types	DDR4-SDRAM
Internal memory installed
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth version	5.3
Ethernet LAN
Wi-Fi
Bluetooth
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Combo headphone/mic port
DC-in jack
Power
Power supply type	External AC adapter
Power supply	120 W
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model	i7-1360P
Processor cores	12
Processor threads	16
Processor boost frequency	5 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	18 MB
Built-in processor
ECC supported by processor
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drives installed
NVMe
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	54 mm
Weight	750 g

---
