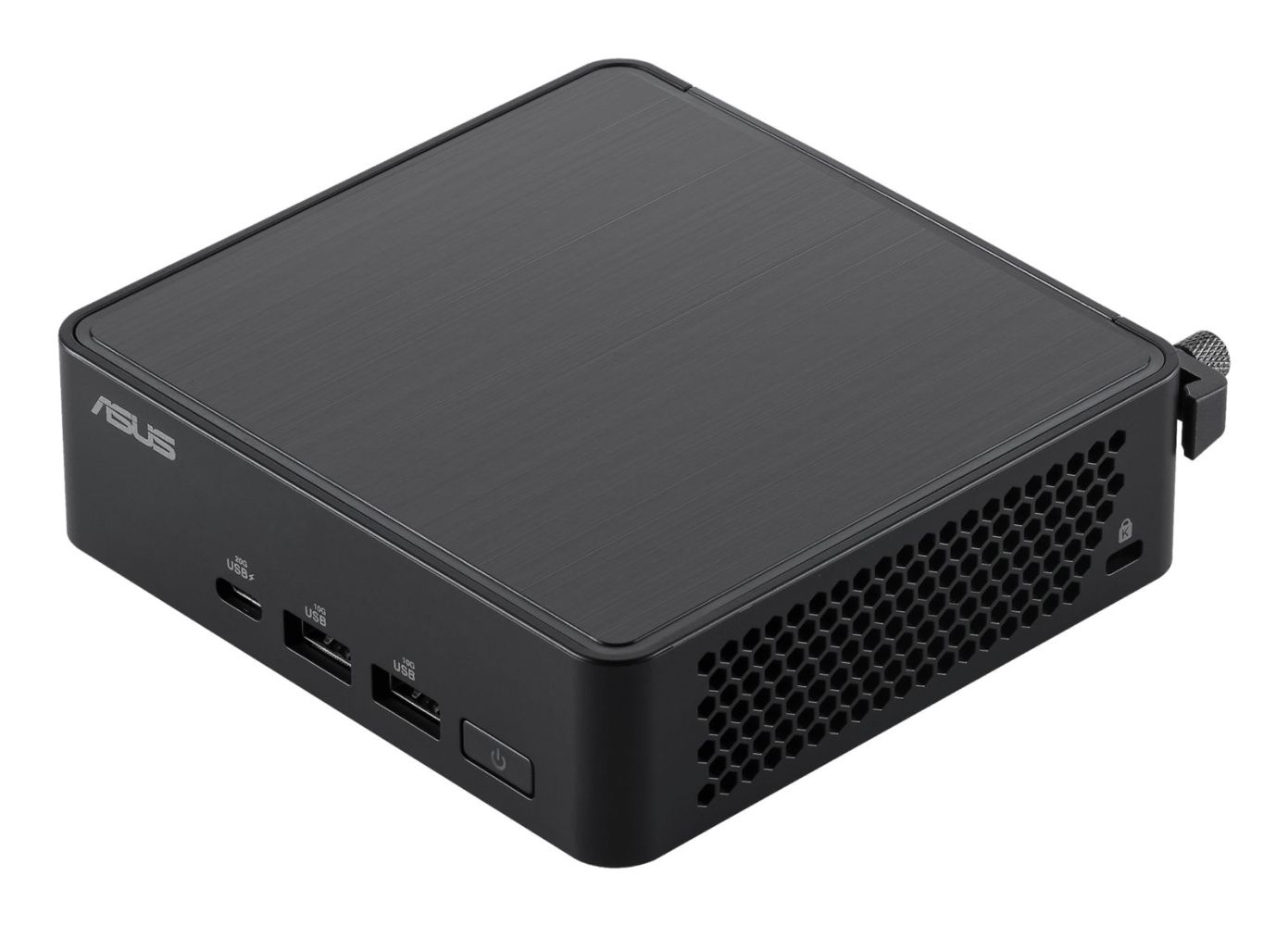

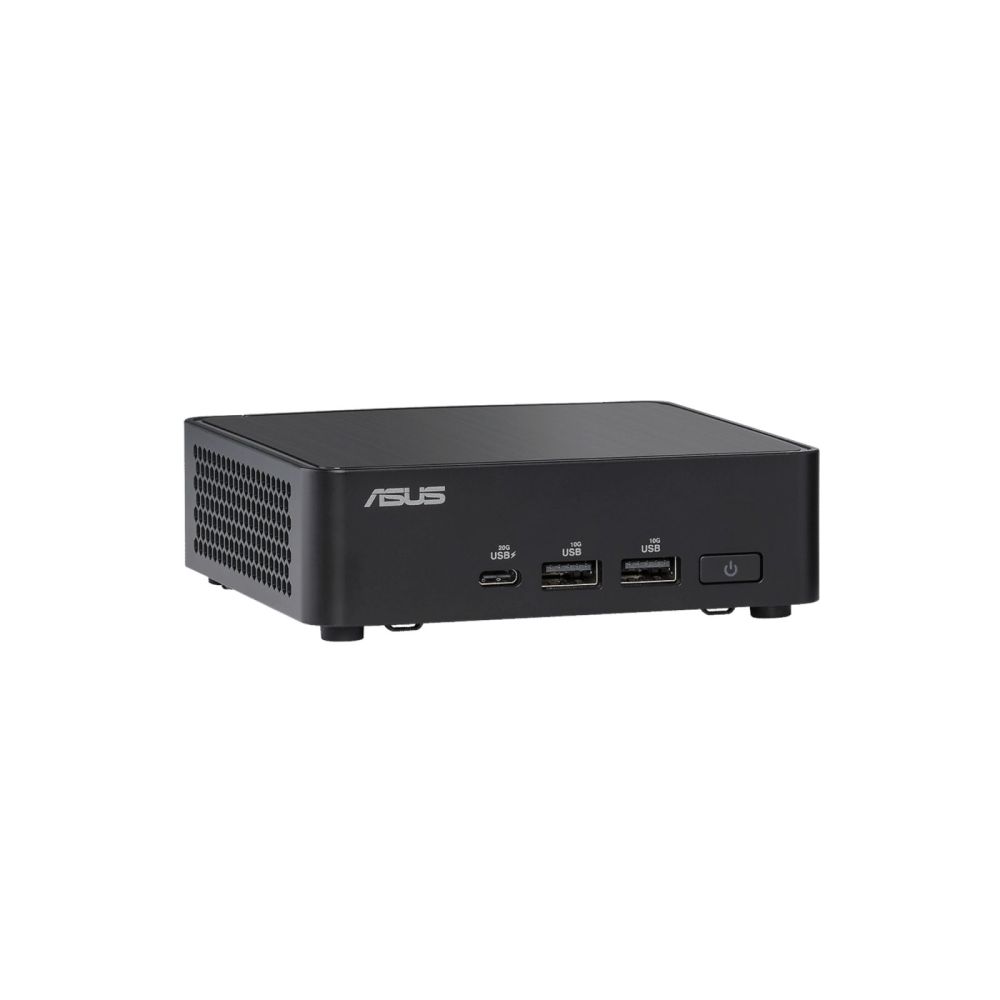

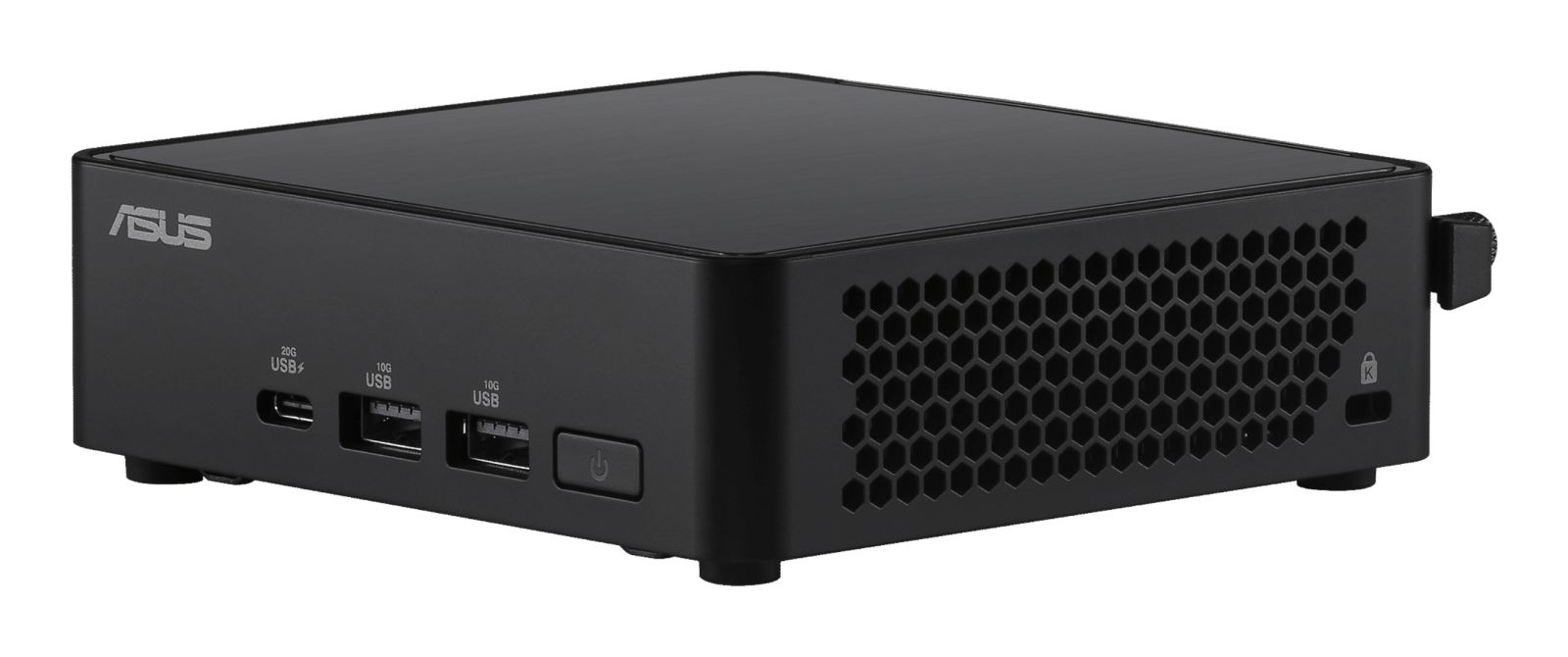

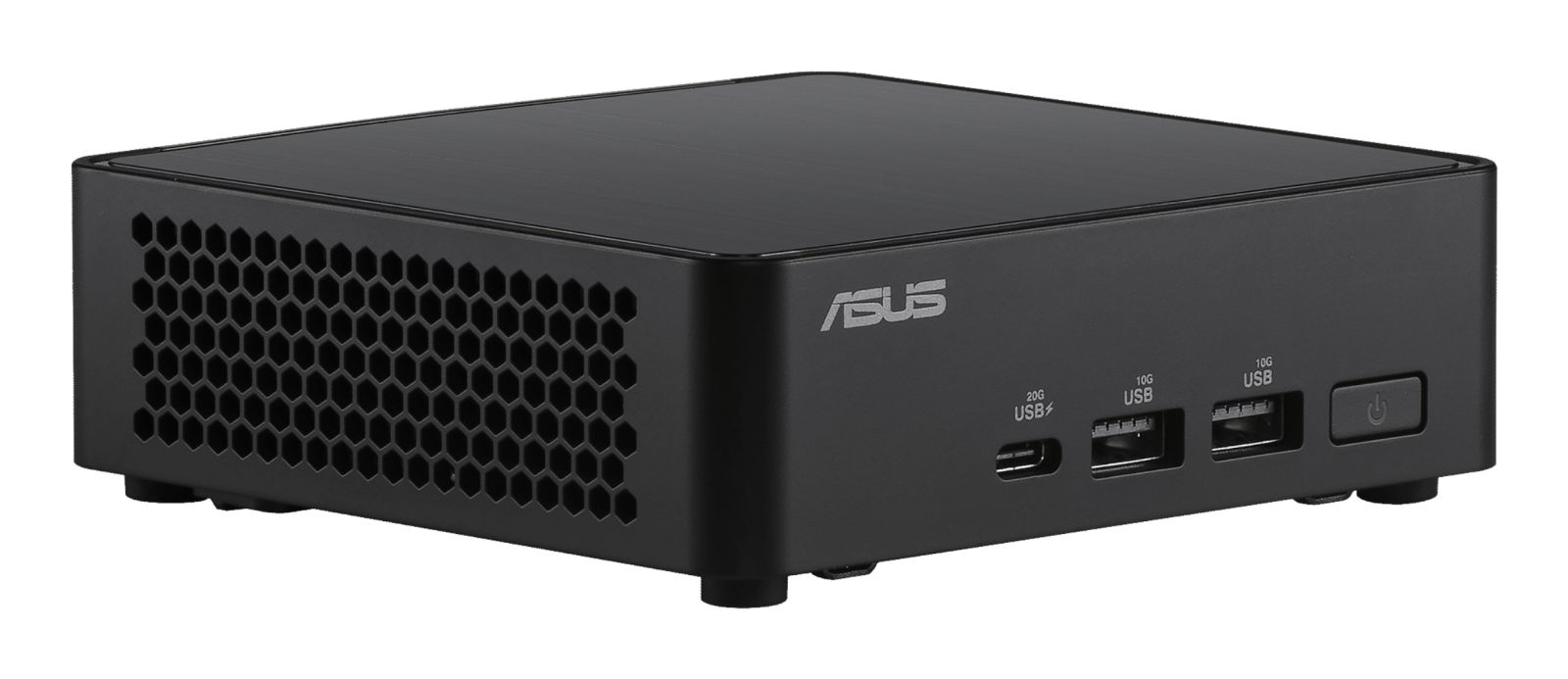

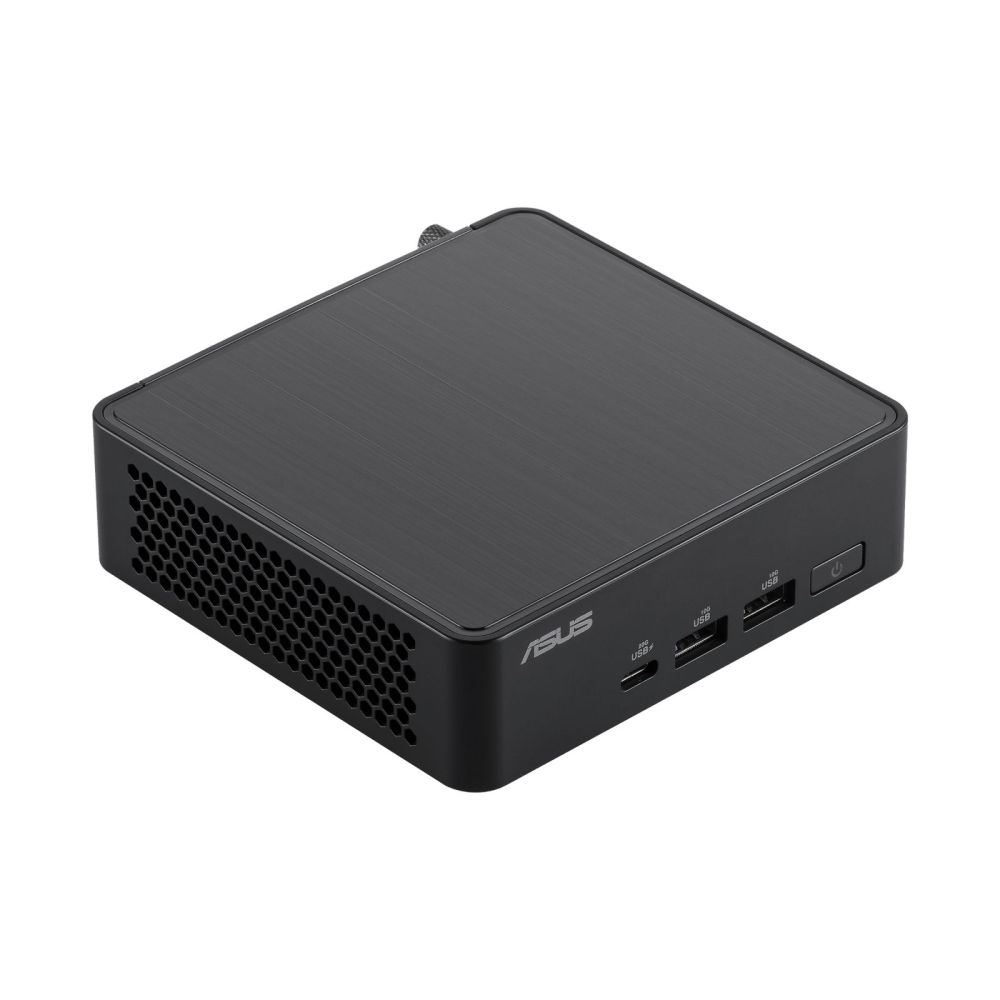

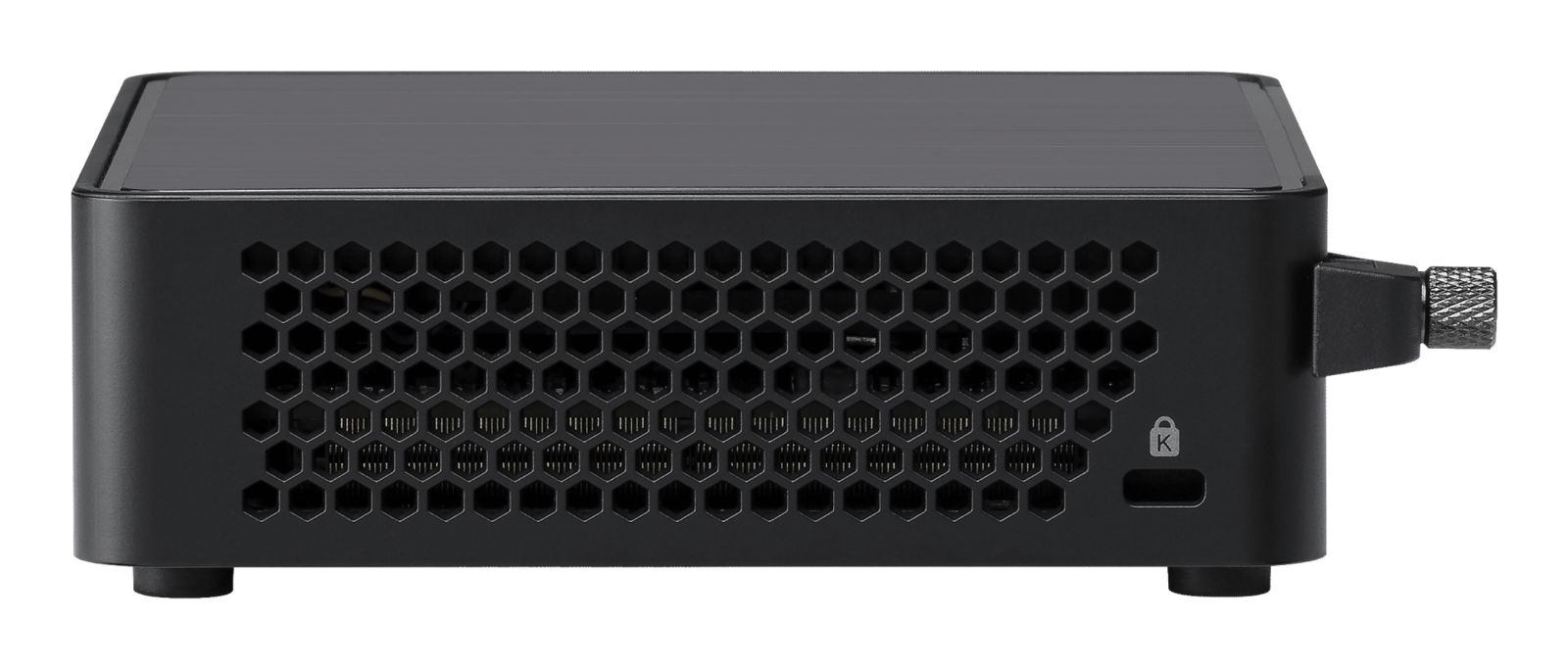

Asus NUC Barebone NUC14RVKI3 Revel Canyon Revel Canyon i3NUC Kit slim EU-Cord Raptor Lake RF content_copy

14th Generation Intel® Core 3 100U, 6 Processor Cores, 25W TDP, up to 4.7 GHz
Up to Quad Extended Displays:
Dual HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port

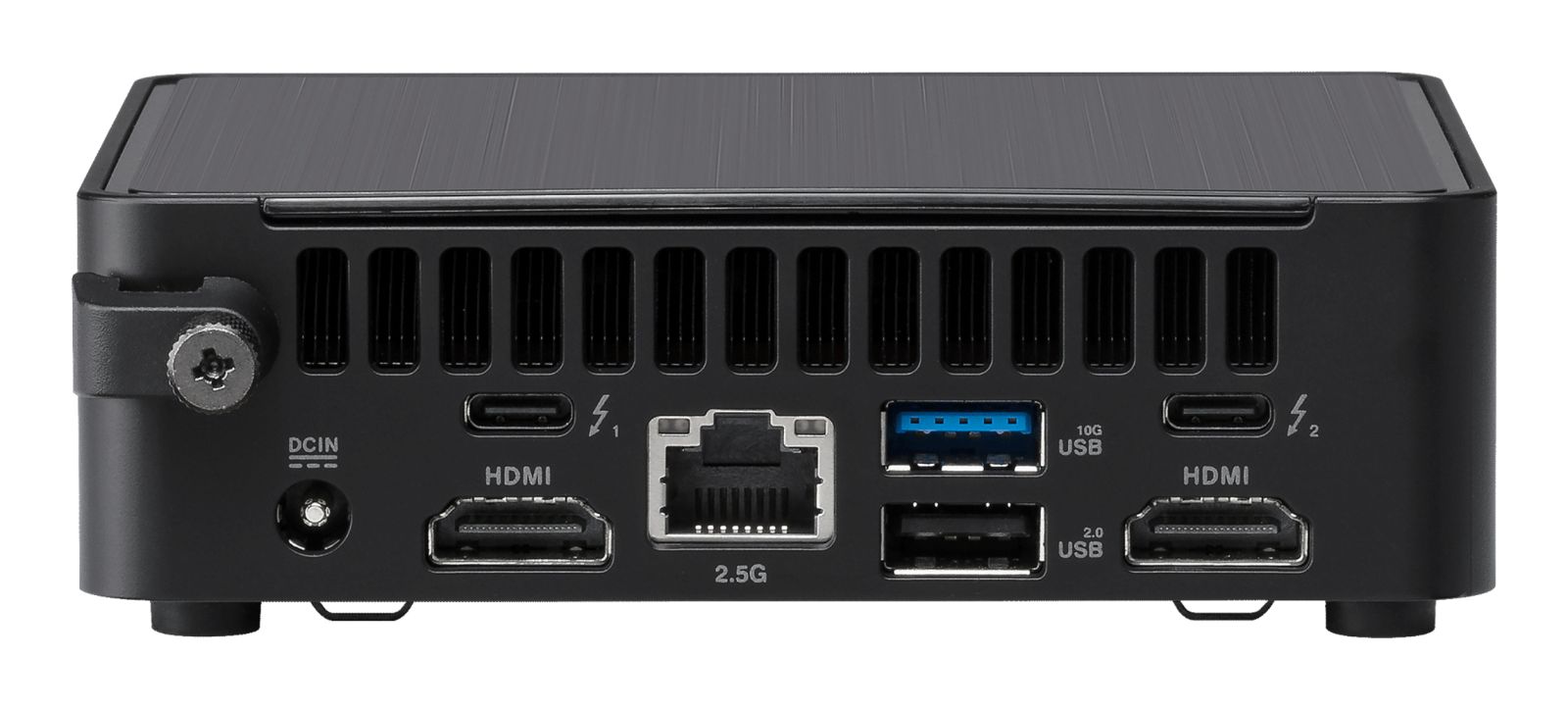

Dual Thunderbolt 4 ports (incl. DP 2.1 and USB4) via back panel type C connectors
M.2 22x80 key M slot for PCIe x4 Gen4 NVMe SSD
M.2 22x42 key M slot for PCIe x4 Gen4 expansion
Intel® i226 10/100/1000/2500 Mbps RJ45 Ethernet i226-V
Intel® Wi-Fi 6E AX211, supporting 802.11ax and Bluetooth 5.3 w/internal antennas
Dual-channel up to DDR5-5600 SODIMM slots, 1.1V, 96GB max.
Intel® Platform Trust Technology (fTPM 2.0)

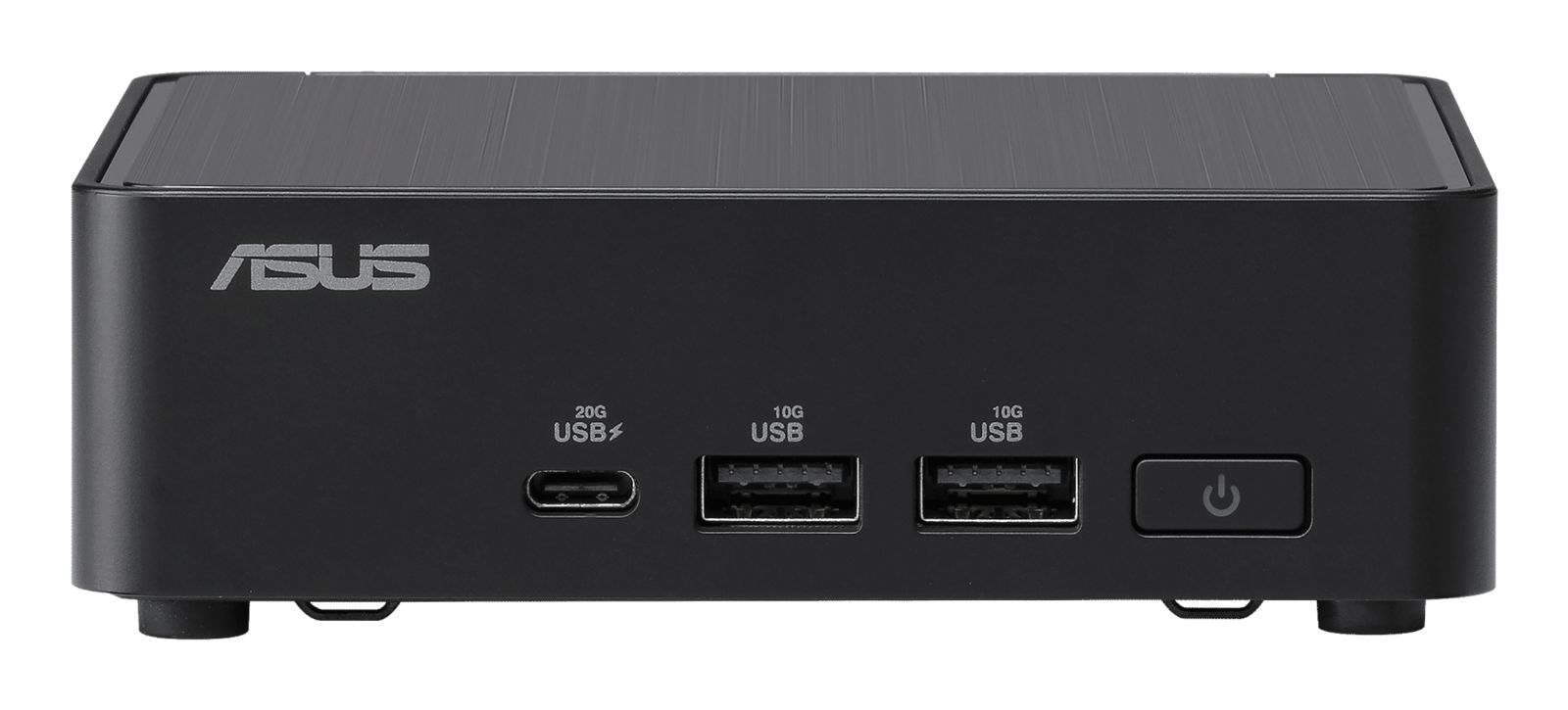

1x front USB 3.2 Gen2x2 type C port (20gbps)
2x front and 1x rear USB 3.2 Gen2 type A ports
1x rear type A and 2x internal USB 2.0 headers
All USB ports with individual USB power control
Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports
Front panel header (with Vcc5/1A, 5Vsby2A, 3.3Vsby/1A)
Qualified for 24x7 operation
Delayed AC start, Auto CMOS reset, DC transient voltage suppression
Display emulation (headless display, virtual display, persistent displays) via HDMI ports
12 – 20VDC ±5% DC input on rear jack, internal 2x2 power connector, with OVP/UVP
TDP settings for Core i5/i7 CPUs down-configurable to 20W
Power supply adapter (90W/19VDC for Core i3) with geo-specific AC cord (IEC C5)
VESA mounting plate included
Dimensions: 117 x 112 x 37 mm
Compatible with various Linux distros

Audio
Built-in speaker(s)
Design
Chassis type	UCFF
Product colour	Black
Cooling type	Active
Cable lock slot type	Kensington
Product type	Mini PC barebone
Cable lock slot
VESA mounting
Graphics
Graphics card family	Intel
On-board graphics card model	Intel® Graphics
On-board graphics card
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	96 GB
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Internal memory installed
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth version	5.3
Ethernet LAN
Wi-Fi
Bluetooth
Packaging content
Power cord included
Quick start guide
Performance
Number of processors supported	1
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB4 Gen 2x2 ports quantity	1
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
DC-in jack
Power
Power supply type	External AC adapter
Power supply	90 W
Processor
Processor manufacturer	Intel
Processor family	Intel Core 3
Processor generation	Intel Core (Series 1)
Processor model	100U
Processor cores	6
Processor threads	8
Performance cores	2
Efficient cores	4
Performance-core boost frequency	4.7 GHz
Efficient-core boost frequency	3.3 GHz
Processor cache	10 MB
Thermal Design Power (TDP)	15 W
Built-in processor
Software
Windows operating systems supported	Windows 11
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Storage drives installed
NVMe
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Weight	480 g

---
