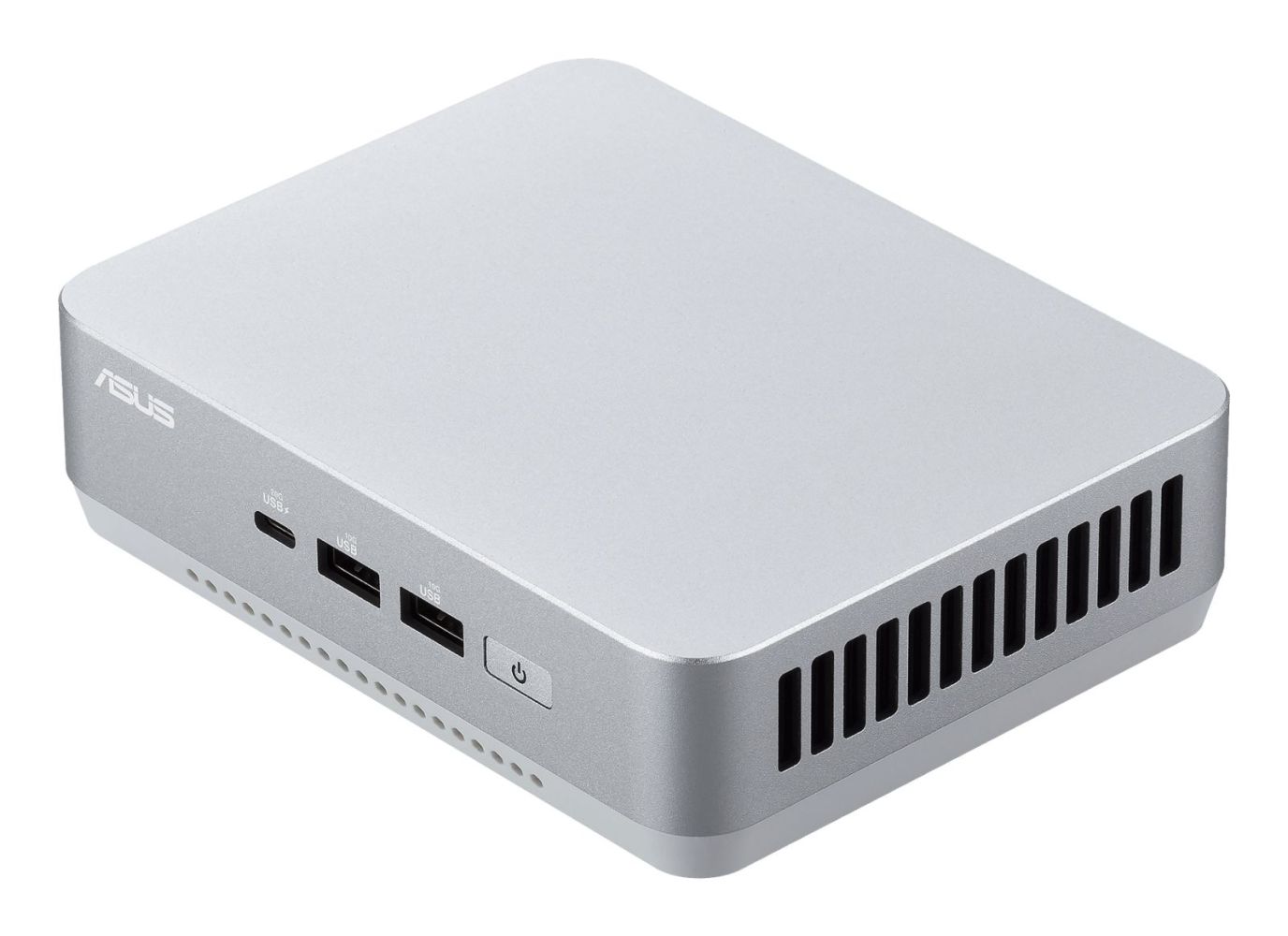

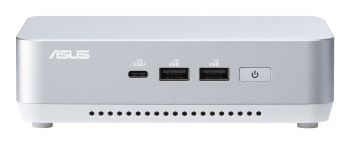

Asus NUC Barebone RNUC14RVSU5 Revel Canyon Revel Canyon U5 NUC Kit Arc Graphics Meteor Lake-H
|
481,94 EUR |
|
|
( 573,51 EUR incl. VAT ) ≈ £407.24 | ≈ $538.81 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 03. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 369696 |
| Mfg Part No: | 90AR0051-M00040 |
| UPC/EAN: | 4711387496657 |
| Weight: | 1.387 kg |
Product information for ASUS 90AR0051-M00040:
14th Generation Intel® Core Ultra 5 125H, Intel® Arc Graphics,
up to 4.50 GHz, 14 Cores, 18 Threads
Dual HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port

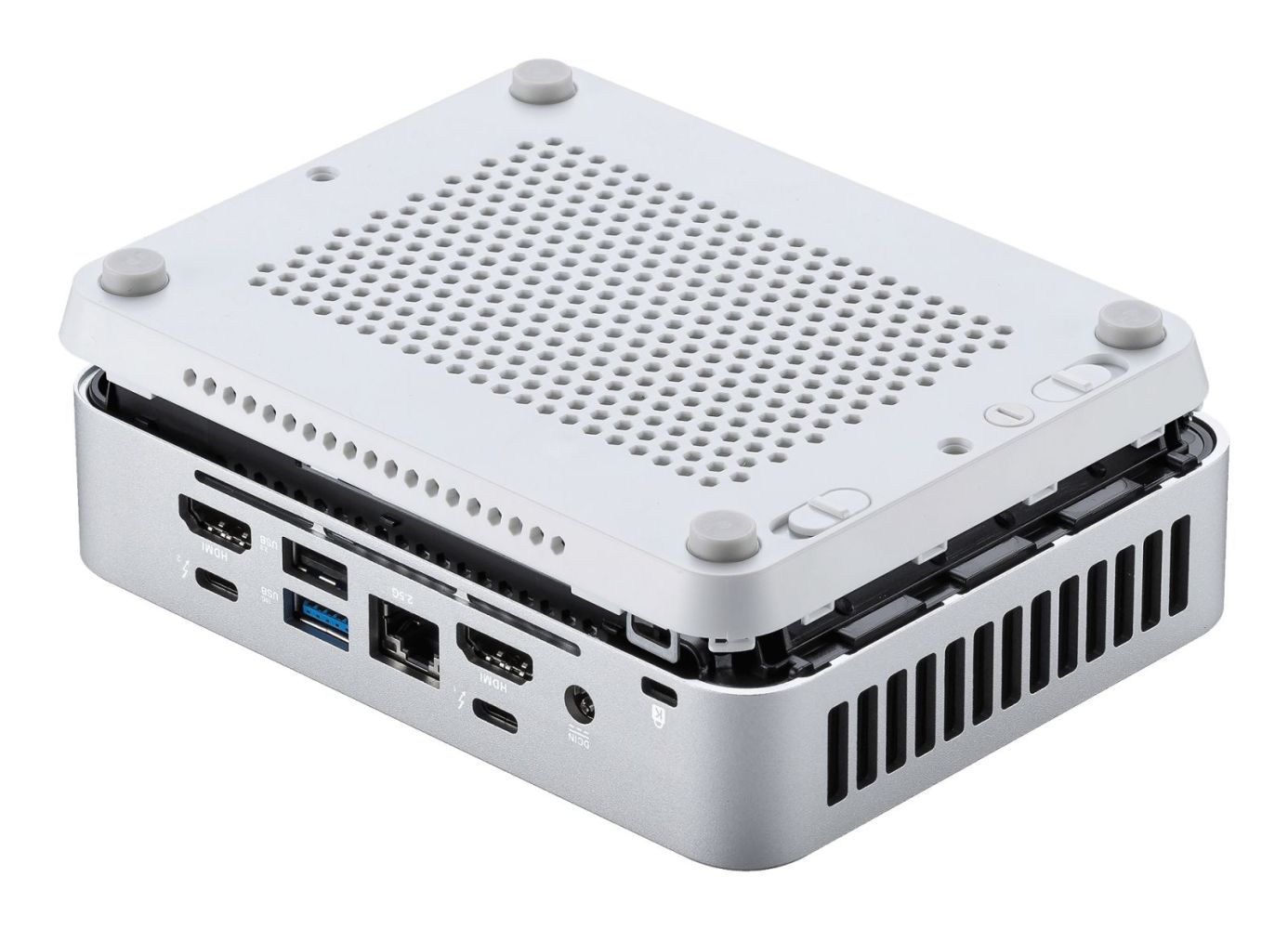

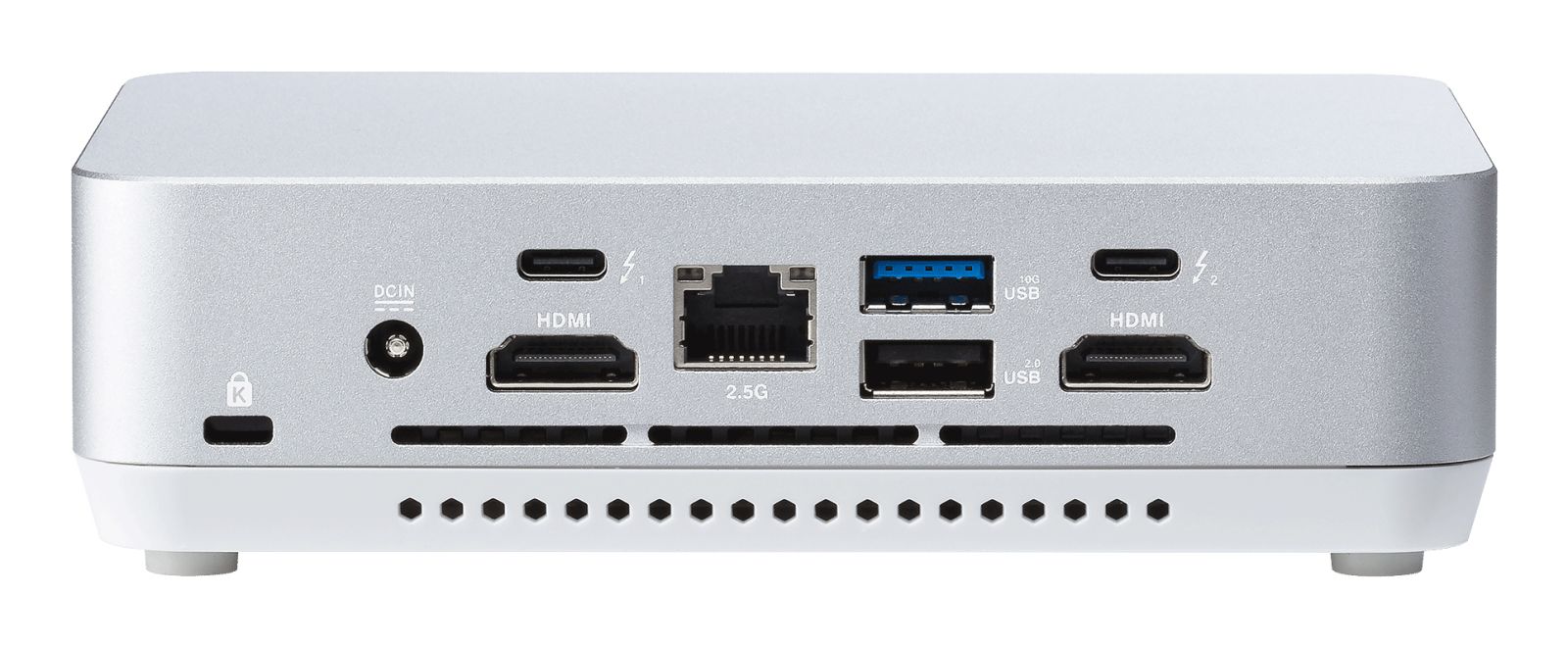

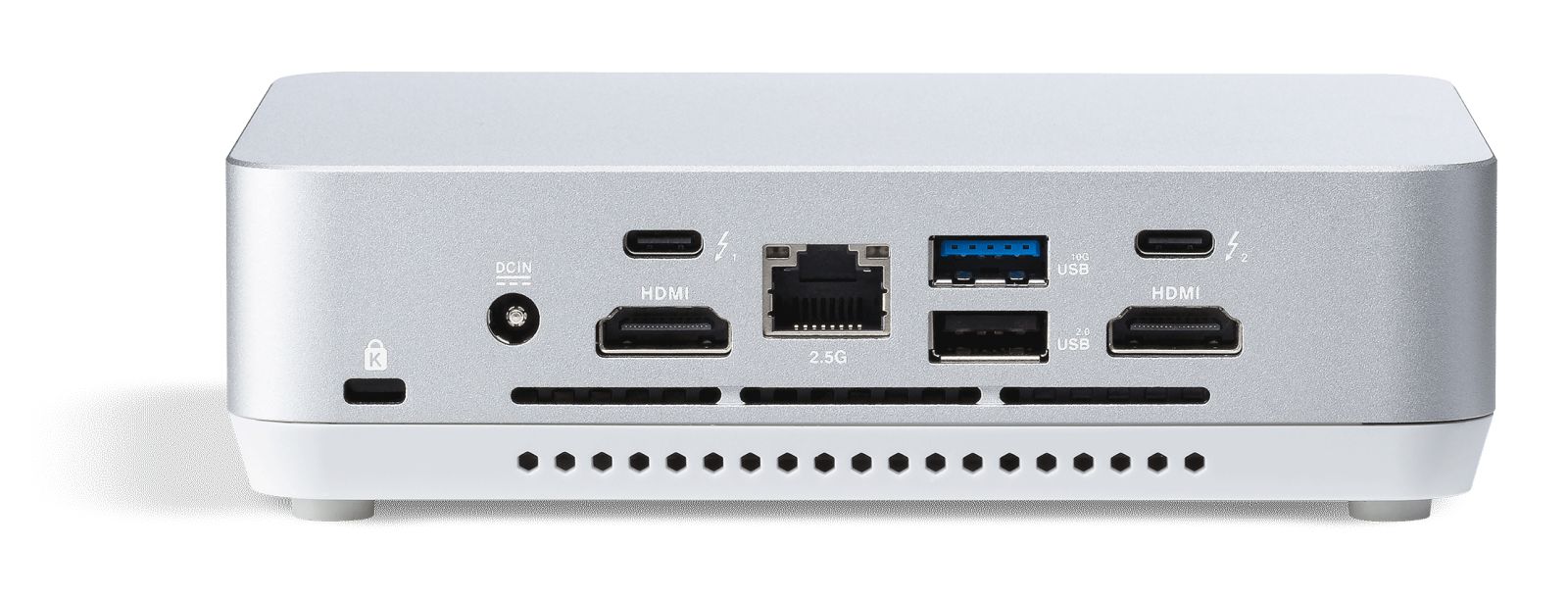

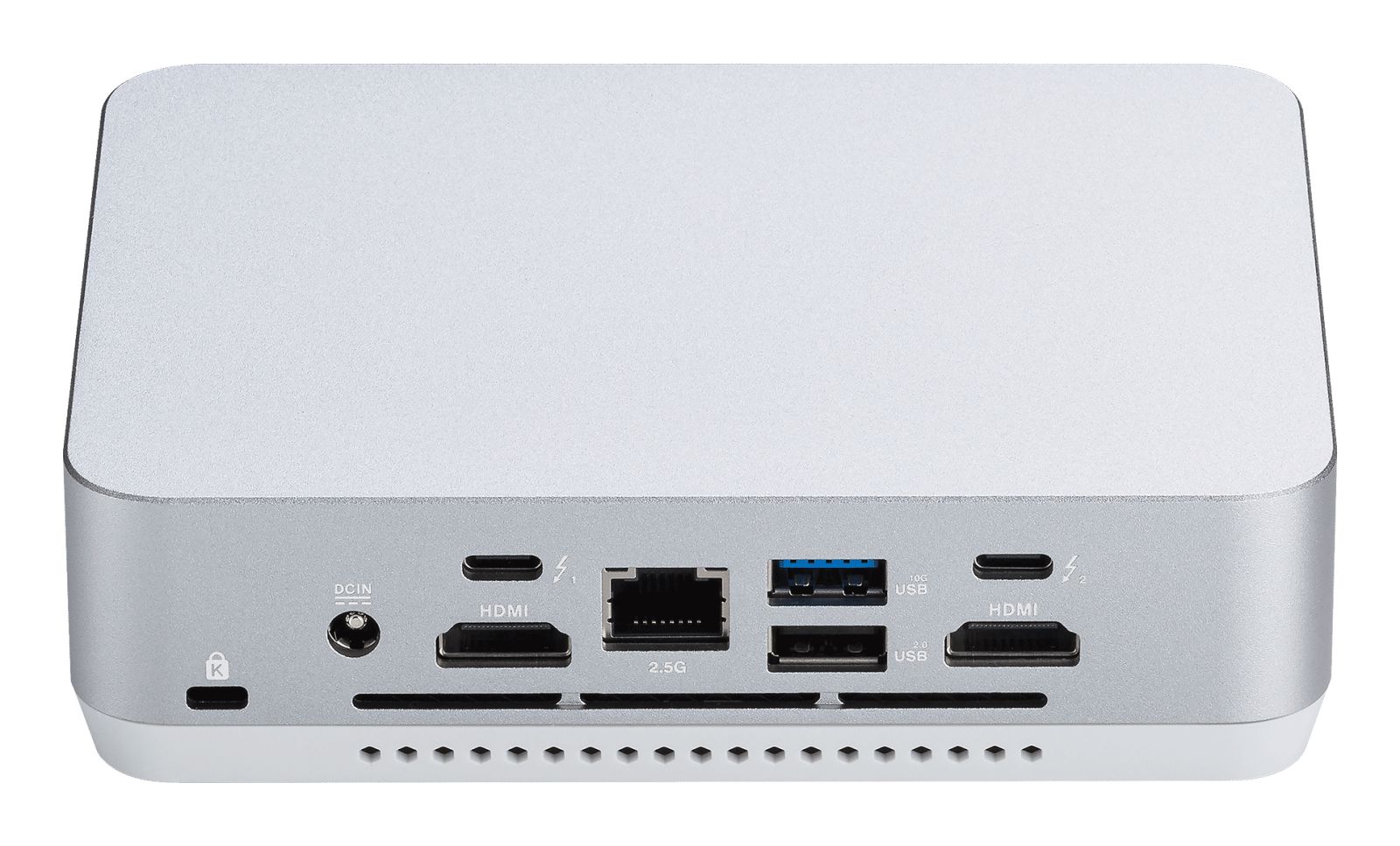

Dual Thunderbolt 4 ports (incl. DP 2.1 and USB4) via back panel type C connectors
M.2 22x80 key M slot for PCIe x4 Gen4, support 128GB~4TB NVMe SSD
M.2 22x42 key M slot for PCIe x4 Gen4, supports 128GB~2TB NVMe SSD
Intel® i226 10/100/1000/2500 Mbps RJ45 Ethernet
Intel® Wi-Fi 6E AX211 (vPro & non-vPro), supporting 802.11ax and Bluetooth 5.3 w/internal antennas
2x DDR5-5600 SO-DIMMs, 1.1V, Dual-Channel, max. 96 GB
Intel® Platform Trust Technology (fTPM 2.0)

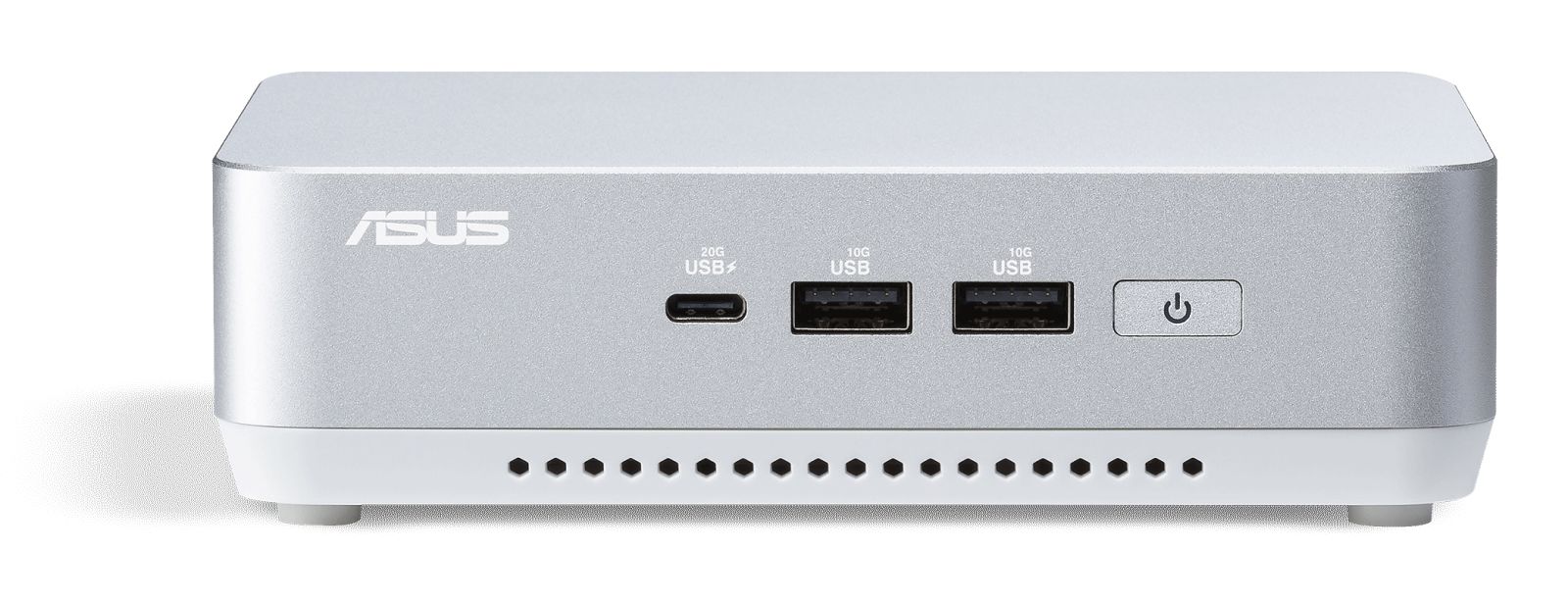

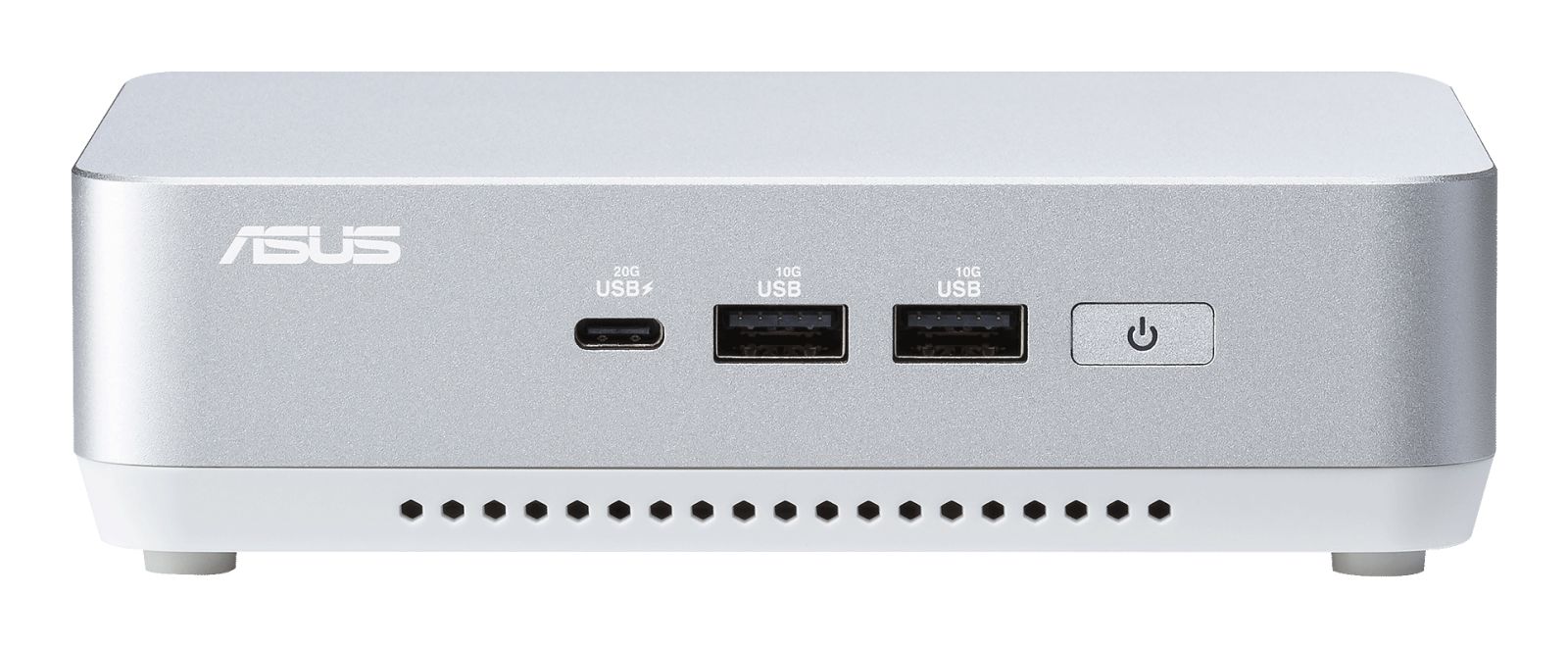

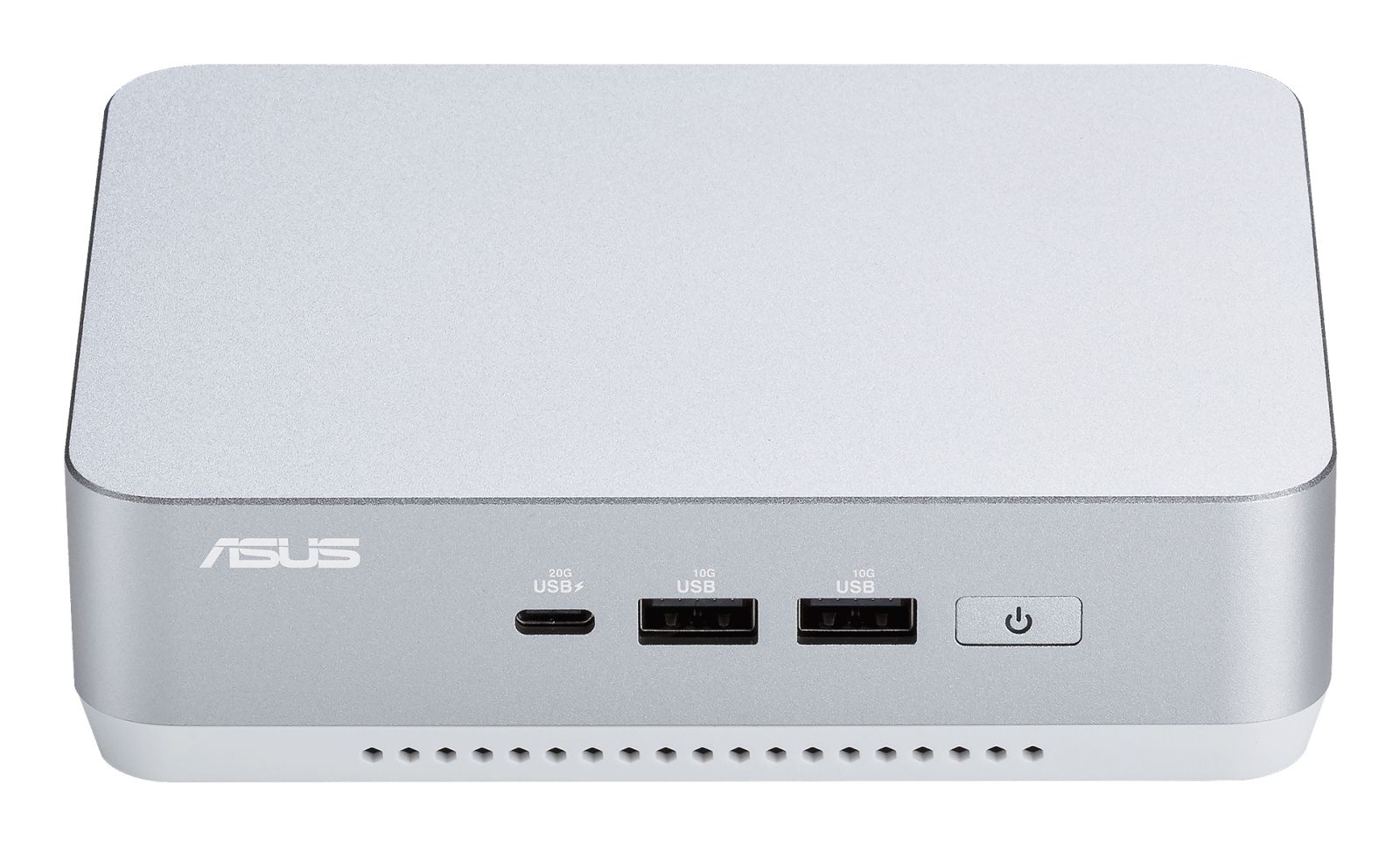

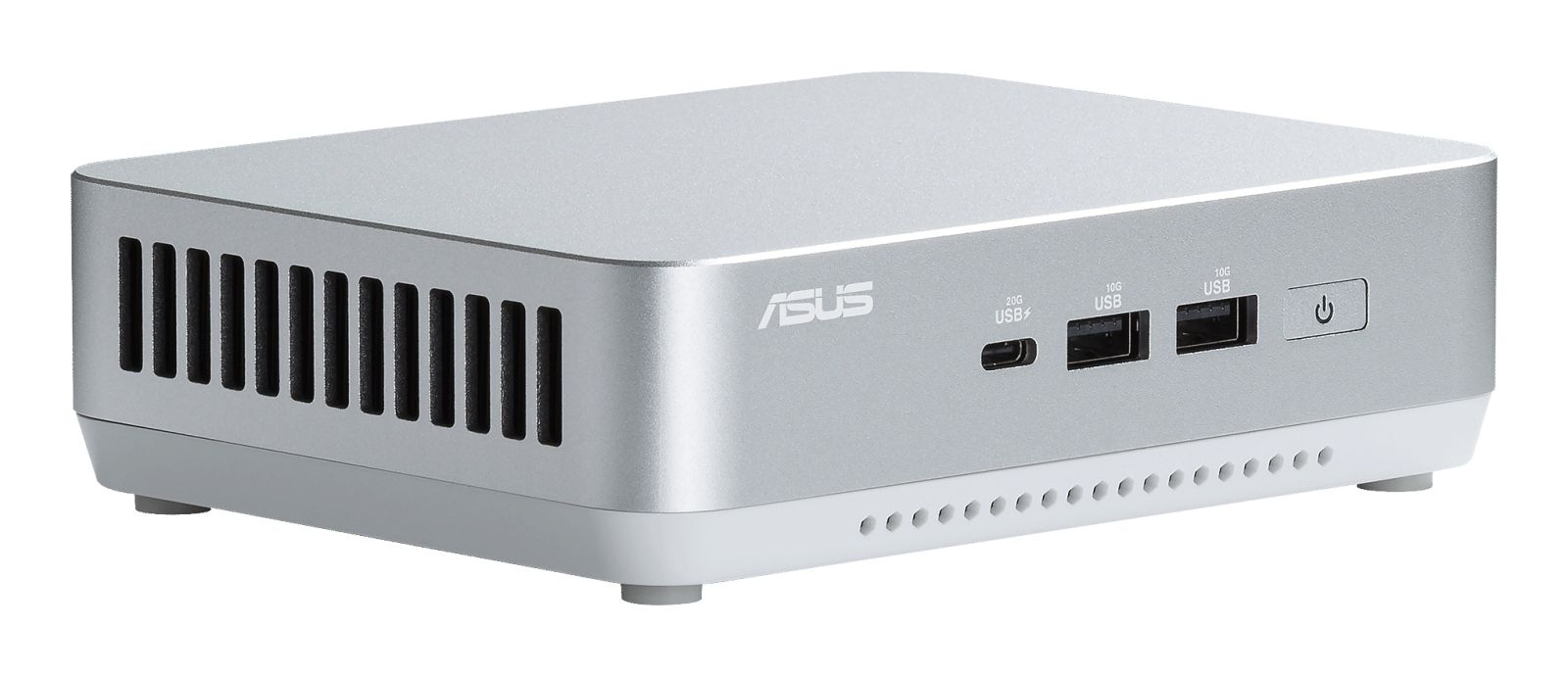

1x front USB 3.2 Gen2x2 type C port (20gbps)
2x front and 1x rear USB 3.2 Gen2 type A ports
1x rear type A
All USB ports with individual USB power control
Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports
Qualified for 24x7 operation
Dimensions: 144 x 112 x 41 mm (500g)
up to 4.50 GHz, 14 Cores, 18 Threads
Dual HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port
Dual Thunderbolt 4 ports (incl. DP 2.1 and USB4) via back panel type C connectors
M.2 22x80 key M slot for PCIe x4 Gen4, support 128GB~4TB NVMe SSD
M.2 22x42 key M slot for PCIe x4 Gen4, supports 128GB~2TB NVMe SSD
Intel® i226 10/100/1000/2500 Mbps RJ45 Ethernet
Intel® Wi-Fi 6E AX211 (vPro & non-vPro), supporting 802.11ax and Bluetooth 5.3 w/internal antennas
2x DDR5-5600 SO-DIMMs, 1.1V, Dual-Channel, max. 96 GB
Intel® Platform Trust Technology (fTPM 2.0)
1x front USB 3.2 Gen2x2 type C port (20gbps)
2x front and 1x rear USB 3.2 Gen2 type A ports
1x rear type A
All USB ports with individual USB power control
Up to 7.1 multichannel (or 8-channel) digital audio on HDMI and DP type C ports
Qualified for 24x7 operation
Dimensions: 144 x 112 x 41 mm (500g)
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Chassis type | UCFF |
| Product colour | White |
| Cooling type | Active |
| Product type | Mini PC barebone |
| On/off switch | |
| VESA mounting | |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card | |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Internal memory installed | |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging content | |
| AC adapter included | |
| Quick start guide | |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB4 Gen 2x2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 18 MB |
| Thermal Design Power (TDP) | 28 W |
| Built-in processor | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| Storage drives installed | |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 112 mm |
| Height | 41 mm |
| Weight | 800 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
