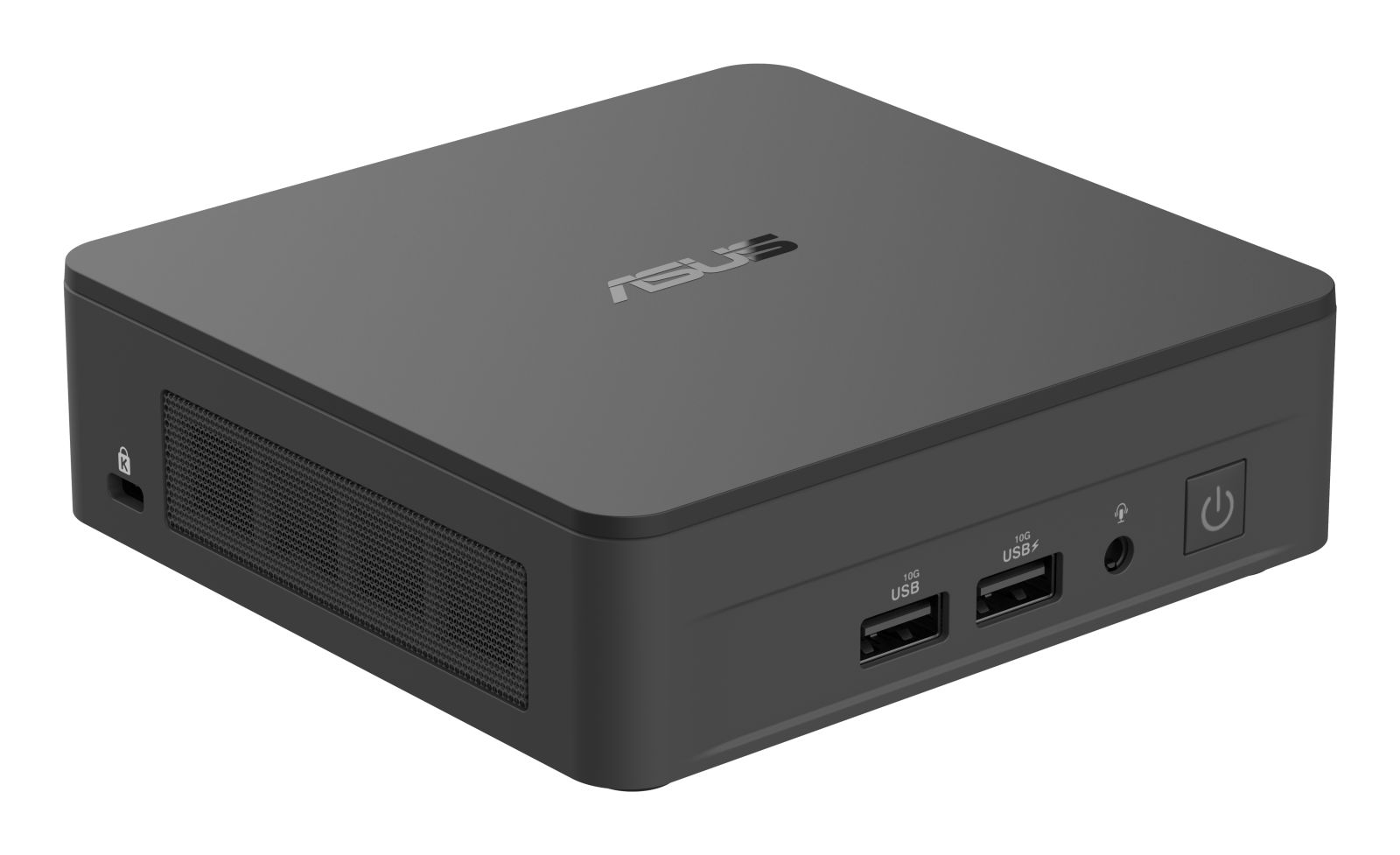

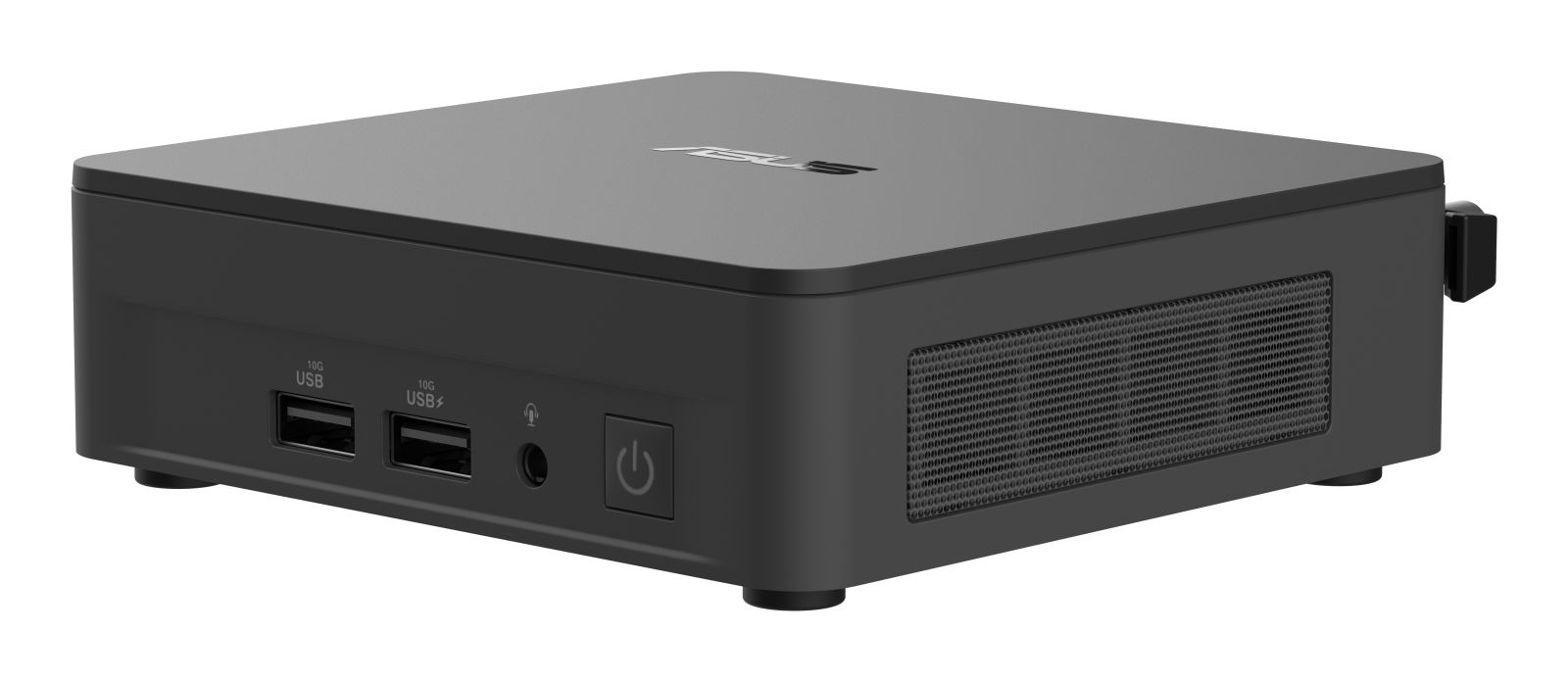

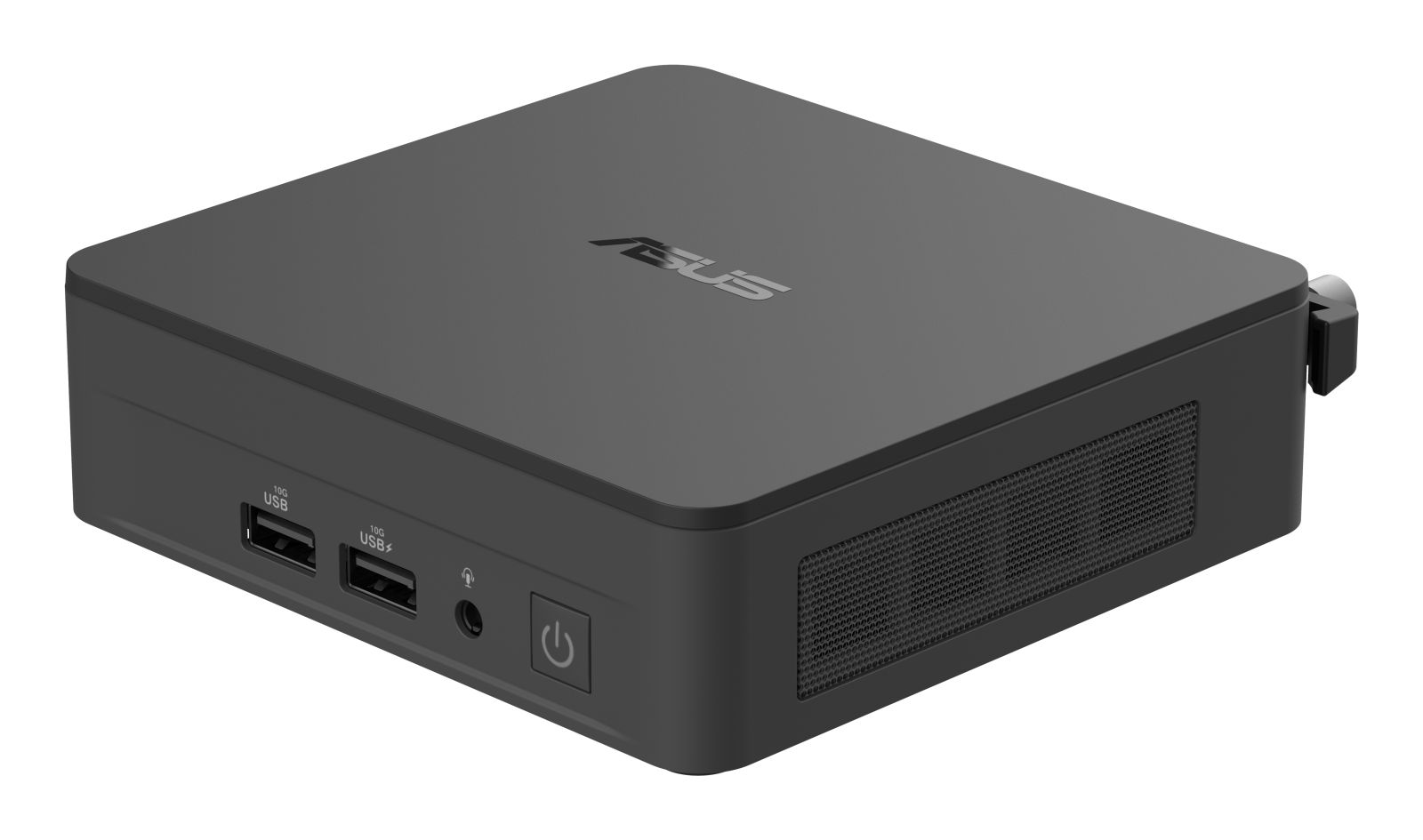

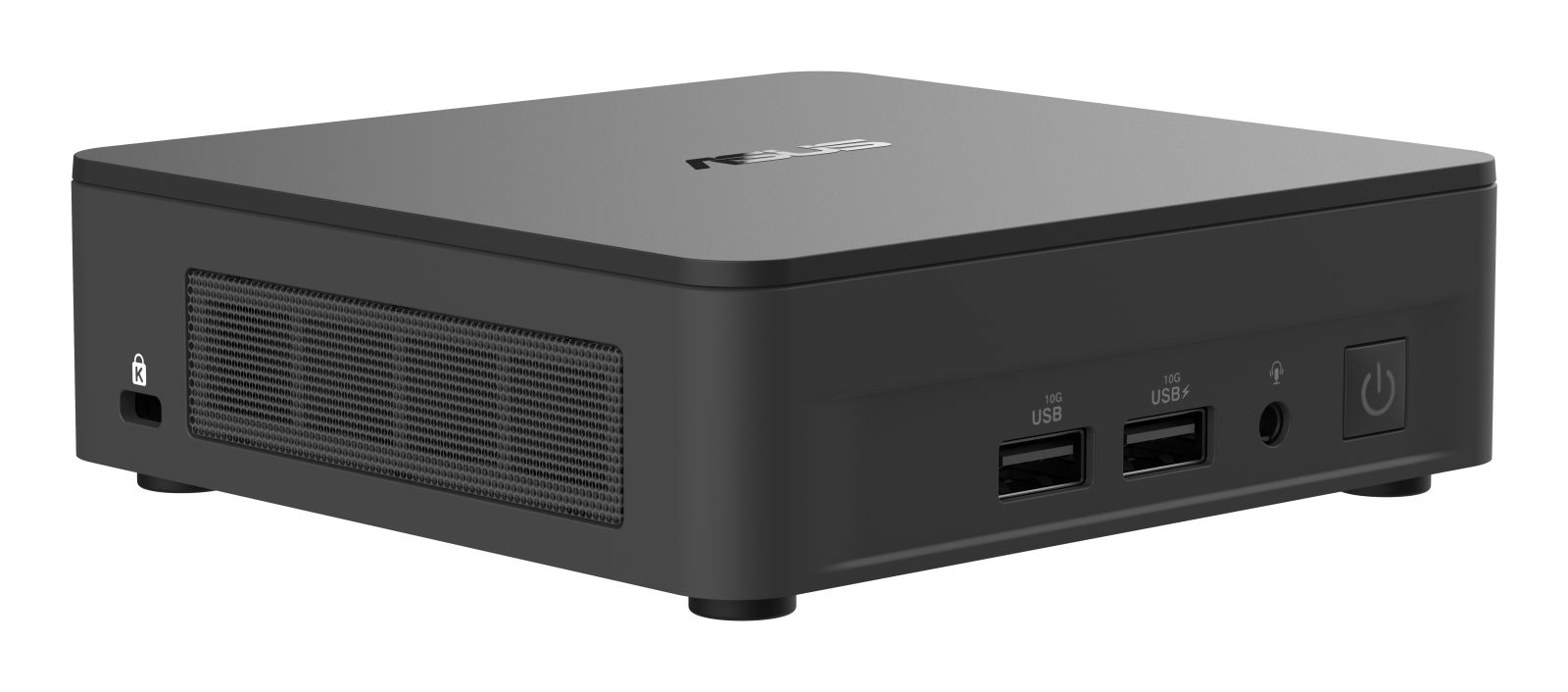

Asus NUC Barebone NUC13ANKI5 Arena Canyon Arena Canyon i5NUC Kit Slim incl. EU-Powercord
|
431,57 EUR 431,57 EUR |
|
|
( 513,57 EUR incl. VAT ) ≈ £364.68 | ≈ $482.50 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 312713 |
| Mfg Part No: | 90AR0031-M00090 |
| UPC/EAN: | 4711387502259 |
| Weight: | 1 kg |
Product information for ASUS 90AR0031-M00090:
Intel® Iris® Xe Graphics
12 Processor Cores (4P+8E), 16 threads, 12MB Smart Cache, 35W TDP
Up to Quad Extended Displays:

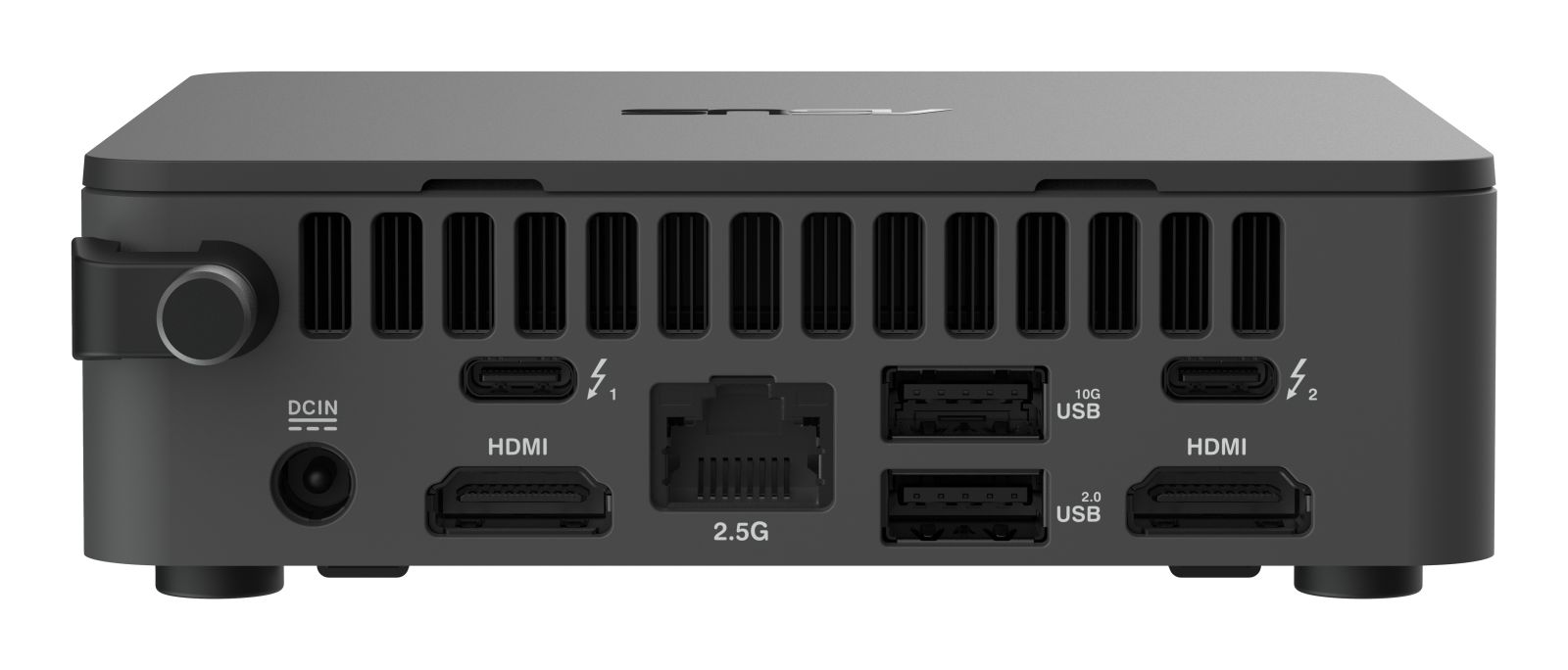

Dual HDMI 2.1 TMDS Compatible (4K@60Hz), with built-in CEC per port
Dual Thunderbolt™ 4 ports (incl. DP 2.1 and USB4) via back panel type C connectors
Intel® i226 10/100/1000/2500 Mbps RJ45 Ethernet (i226-LM on vPro SKUs, i226-V on non-vPro SKUs)
Intel® Wi-Fi 6E (vPro & non-vPro) on M.2 slot, supporting 802.11ax and Bluetooth 5.3
2x DDR4-3200 SO-DIMMs, 1.2V, Dual-Channel, max. 64 GB

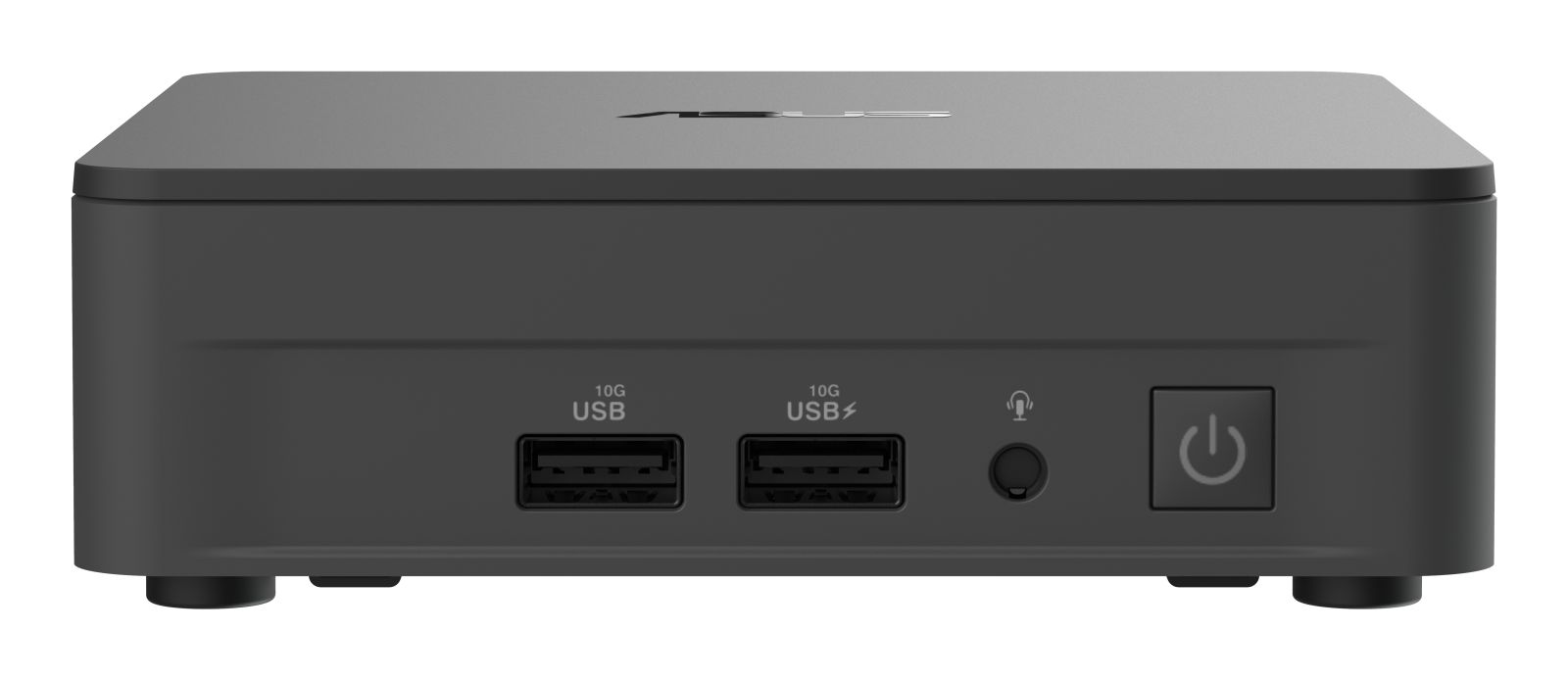

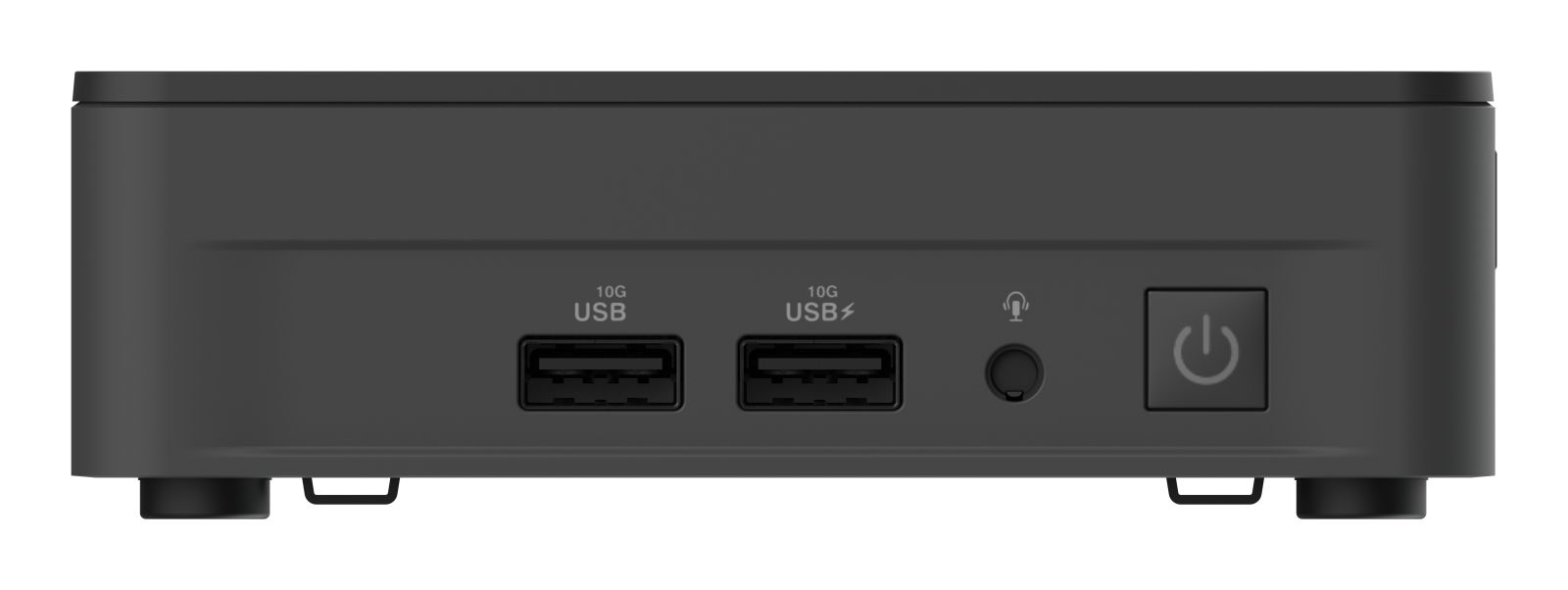

2x front and 1x rear USB 3.2 Gen2 type A ports
1x rear type A and 2x internal USB 2.0 headers
Qualified for 24x7 operation (24-7 qualified SSD strictly required)
Dimensions chassis: 117 x 112 x 37 mm
Compatible with various Linux distros
| Audio | |
| Built-in speaker(s) | |
| Design | |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| Product type | Mini PC barebone |
| On/off switch | |
| LED indicators | |
| VESA mounting | |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Graphics | |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| On-board graphics card | |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2400,2666,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Internal memory installed | |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging content | |
| Power cord included | |
| Performance | |
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Combo headphone/mic port | |
| DC-in jack | |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-1340P |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor boost frequency | 4.6 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Built-in processor | |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Number of storage drives supported | 2 |
| Storage drives installed | |
| NVMe | |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 36.8 mm |
| Weight | 510 g |
Questions & answers
What is the delivery time of Asus NUC Barebone NUC13ANKI5 Arena Canyon Arena Canyon i5NUC Kit Slim incl. EU-Powercord?
The article Asus NUC Barebone NUC13ANKI5 Arena Canyon Arena Canyon i5NUC Kit Slim incl. EU-Powercord is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ASUS 90AR0031-M00090 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Asus NUC Barebone NUC13ANKI5 Arena Canyon Arena Canyon i5NUC Kit Slim incl. EU-Powercord always at the best possible price. We can give you a discount of 2% on Asus NUC Barebone NUC13ANKI5 Arena Canyon Arena Canyon i5NUC Kit Slim incl. EU-Powercord if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
