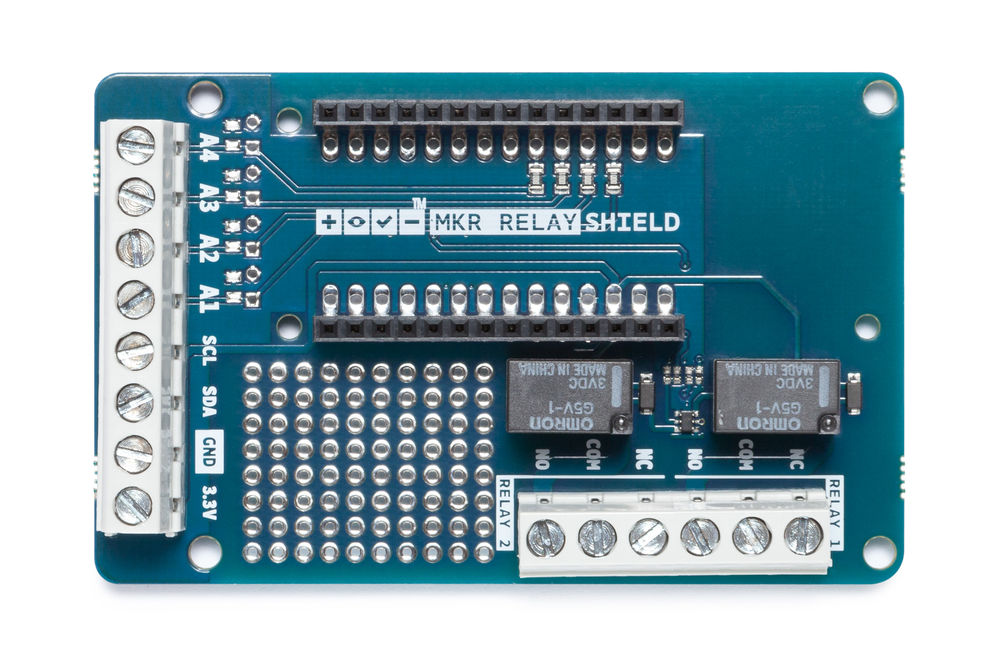

Arduino® Shield MKR Relay Proto (Relay)
|
17,25 EUR |
|
|
( 20,53 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 899831 |
|---|---|
| Mfg Part No: | TSX00003 |
| UPC/EAN: | 8137470205276 |
| Weight: | 0.09 kg |
Product information for ARDUINO TSX00003:
Relay!
The MKR Relay Proto Shield allows you to easily control relays with your MKR board. The Shield offers two on-board relays and a small prototyping area if you want to add another component to your project.
Arduino® MKR Relay Proto
The MKR Relay Proto Shield allows you to easily add relays to your MKR board based project. The shield provides two relays called RELAY1 and RELAY2, controlled by pin 1 and pin 2 respectively. The shield also allows for easy connection via screw terminals to A1 to A4.
Technical specificationsOperating voltage 3.3V (supplied from the host board) Two relays with NO, COM and NC connections Works with battery powered board 8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output 6 positions screw terminal blocks (NO, COM, NC for each relay) Carry current: 2 A Max. operating voltage: 24 VAC, 50 VDC Max. operating current: 1 A Max. switching capacity: 62.50 VA, 30W Proto area
The MKR Relay Proto Shield allows you to easily control relays with your MKR board. The Shield offers two on-board relays and a small prototyping area if you want to add another component to your project.
Arduino® MKR Relay Proto
The MKR Relay Proto Shield allows you to easily add relays to your MKR board based project. The shield provides two relays called RELAY1 and RELAY2, controlled by pin 1 and pin 2 respectively. The shield also allows for easy connection via screw terminals to A1 to A4.
Technical specificationsOperating voltage 3.3V (supplied from the host board) Two relays with NO, COM and NC connections Works with battery powered board 8 positions screw terminal blocks for easy connections with A1 to A4 Analog input, SCL SDA for I2C, GND and 3.3V output 6 positions screw terminal blocks (NO, COM, NC for each relay) Carry current: 2 A Max. operating voltage: 24 VAC, 50 VDC Max. operating current: 1 A Max. switching capacity: 62.50 VA, 30W Proto area
Questions & answers
What is the delivery time of Arduino® Shield MKR Relay Proto (Relay)?
The article Arduino® Shield MKR Relay Proto (Relay) is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ARDUINO TSX00003 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Arduino® Shield MKR Relay Proto (Relay) always at the best possible price. We can give you a discount of 2% on Arduino® Shield MKR Relay Proto (Relay) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
