Arduino® Shield 4 Relays
|
24,00 EUR |
|
|
( 28,56 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Lieske Part No.: | 1289092 |
|---|---|
| Mfg Part No: | A000110 |
| UPC/EAN: | Arduino Shields |
| Weight: | 5 kg |
Product information for ARDUINO A000110:
Your Arduino will be expanded by 4 relays!
The Arduino 4 Relays Shield allows your Arduino to drive high power loads.

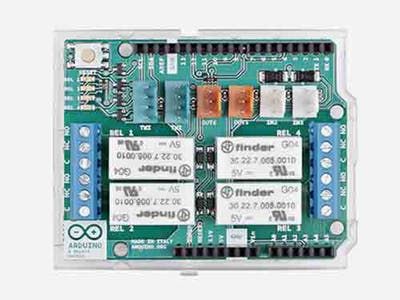

Arduino® Shield 4 Relays
The Arduino 4 Relays Shield is a solution for operating high power loads that cannot be controlled via Arduino's digital IOs due to the controller's current and voltage limitations. The shield has four relays, each relay has two polar changeover contacts (NO and NC) to increase the current limit of each output, the two changeover contacts were connected in parallel. Four LEDs indicate the on/off status of each relay.
Technical specifications
FeaturesThinker Kit interface 2x TWI, 2x OUT, 2x IN Interfaces with Arduino Board DIO Relays 4 (60W) GeneralOperating Voltage 5 V Current needs 140 mA (with all releases on, about 35 mA each) PCB Size 53 x 68.5 mm Weight 0.044 Kg product code A000110
The Arduino 4 Relays Shield allows your Arduino to drive high power loads.
Arduino® Shield 4 Relays
The Arduino 4 Relays Shield is a solution for operating high power loads that cannot be controlled via Arduino's digital IOs due to the controller's current and voltage limitations. The shield has four relays, each relay has two polar changeover contacts (NO and NC) to increase the current limit of each output, the two changeover contacts were connected in parallel. Four LEDs indicate the on/off status of each relay.
Technical specifications
FeaturesThinker Kit interface 2x TWI, 2x OUT, 2x IN Interfaces with Arduino Board DIO Relays 4 (60W) GeneralOperating Voltage 5 V Current needs 140 mA (with all releases on, about 35 mA each) PCB Size 53 x 68.5 mm Weight 0.044 Kg product code A000110
Questions & answers
What is the delivery time of Arduino® Shield 4 Relays?
The article Arduino® Shield 4 Relays is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ARDUINO A000110 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Arduino® Shield 4 Relays always at the best possible price. We can give you a discount of 2% on Arduino® Shield 4 Relays if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
