Arctic ACFAN00130A Fan 120×120×25 P12 Silent

Your rating:
Average rating
product review for Arctic ACFAN00130A Fan 120×120×25 P12 Silent
( 4.4 / 5 ) 14 ratings
Arctic ACFAN00130A
This image may differ from the desired article.
Arctic ACFAN00130AArctic ACFAN00130AArctic ACFAN00130AArctic ACFAN00130AArctic ACFAN00130AArctic ACFAN00130A
-26% 3,19 EUR 4,34 EUR
( 3,80 EUR incl. VAT )
≈ £2.67  |  ≈ $3.51
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >100 pieces
1x Arctic ACFAN00130A Fan 120×120×25 P12 Silent
Datasheet:file_download Download
Lieske Part No.:1376391
Mfg Part No: ACFAN00130A
UPC/EAN: 4895213701365
Weight:0.2 kg

Product information for Arctic ACFAN00130A:

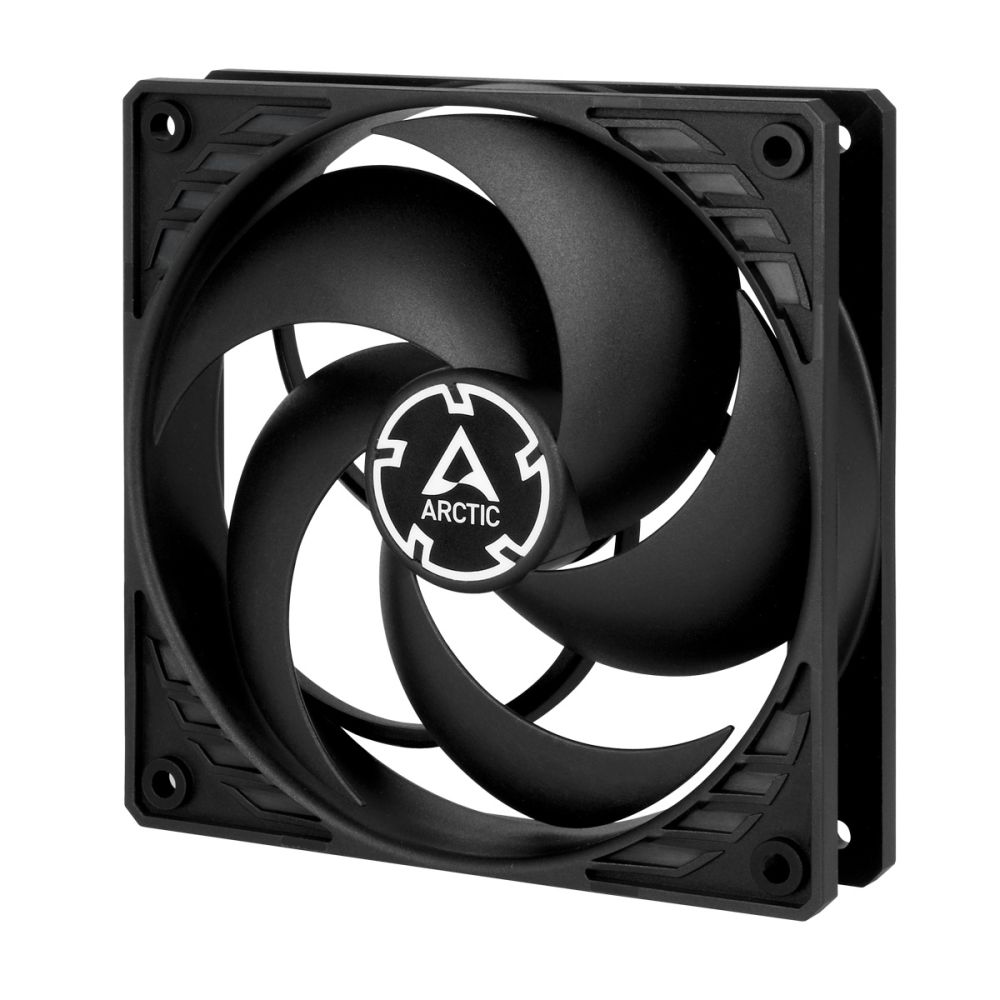

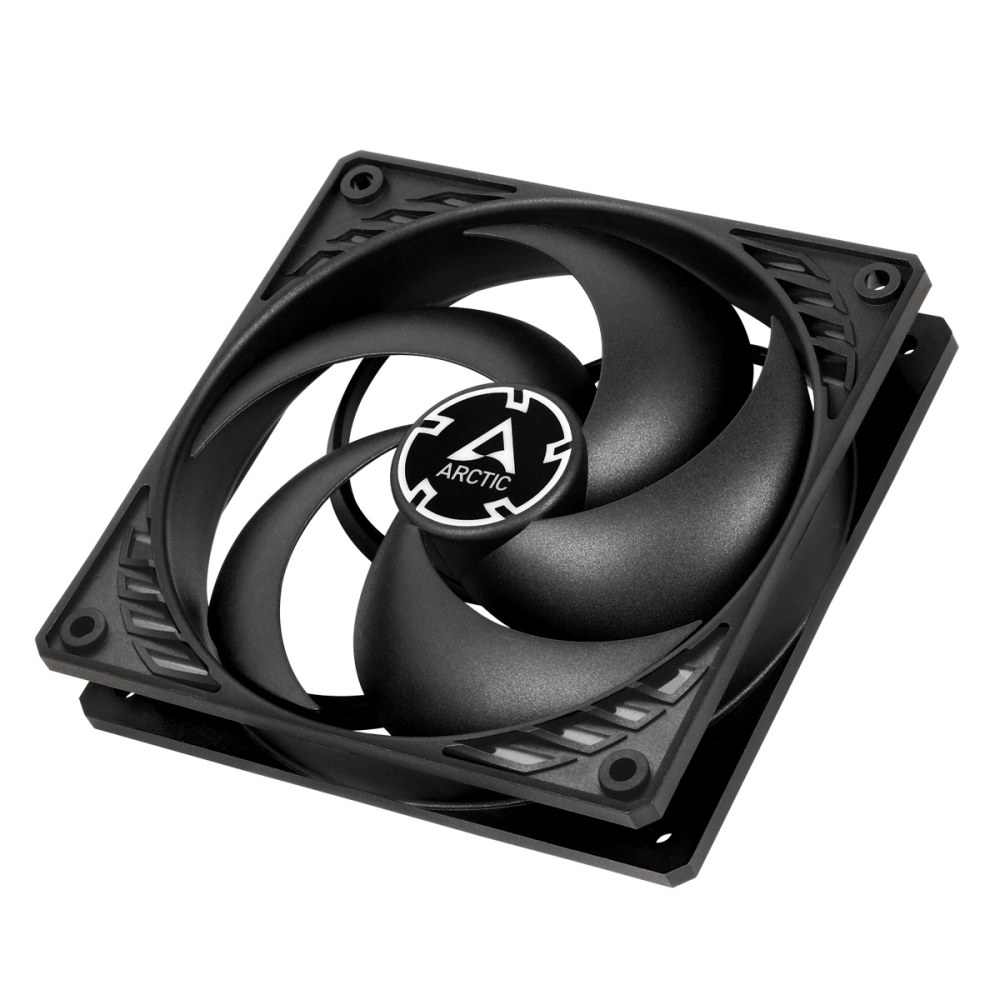

The Arctic P12 Silent is a 12 cm case fan specifically designed for applications with high air resistance. It is particularly suitable for mounting on heatsinks, radiators, and at (partially) covered case inlets, where high static pressure is required. The fan features a newly designed fan structure optimized for efficient airflow and stable air flow under increased resistance. The motor was developed in Germany, achieving particularly low noise emission. Operation is at 12 V with a rated current of 0.09 A. The fan reaches a maximum rotational speed of 1050 RPM, generating an airflow of 40.95 m³/h (equivalent to 24.1 cfm). The noise level is 0.08 Sone, making it a particularly quiet fan. The bearing system uses Fluid Dynamic Bearing (FDB), which, through a special alloy and lubricant combination, enables low friction, reduced heat generation, and extended service life.

Applications

The P12 Silent is ideal for applications where airflow must pass through narrow or obstructed openings, such as perforated panels, filters, or in enclosed case configurations. It is also suitable for push- or pull-configuration setups, and can be installed at the front or rear of a case to optimize cooling performance. The high static pressure capability of 0.5 mm H2O at 1050 RPM ensures efficient operation even under demanding conditions.

Features and Equipment in Detail

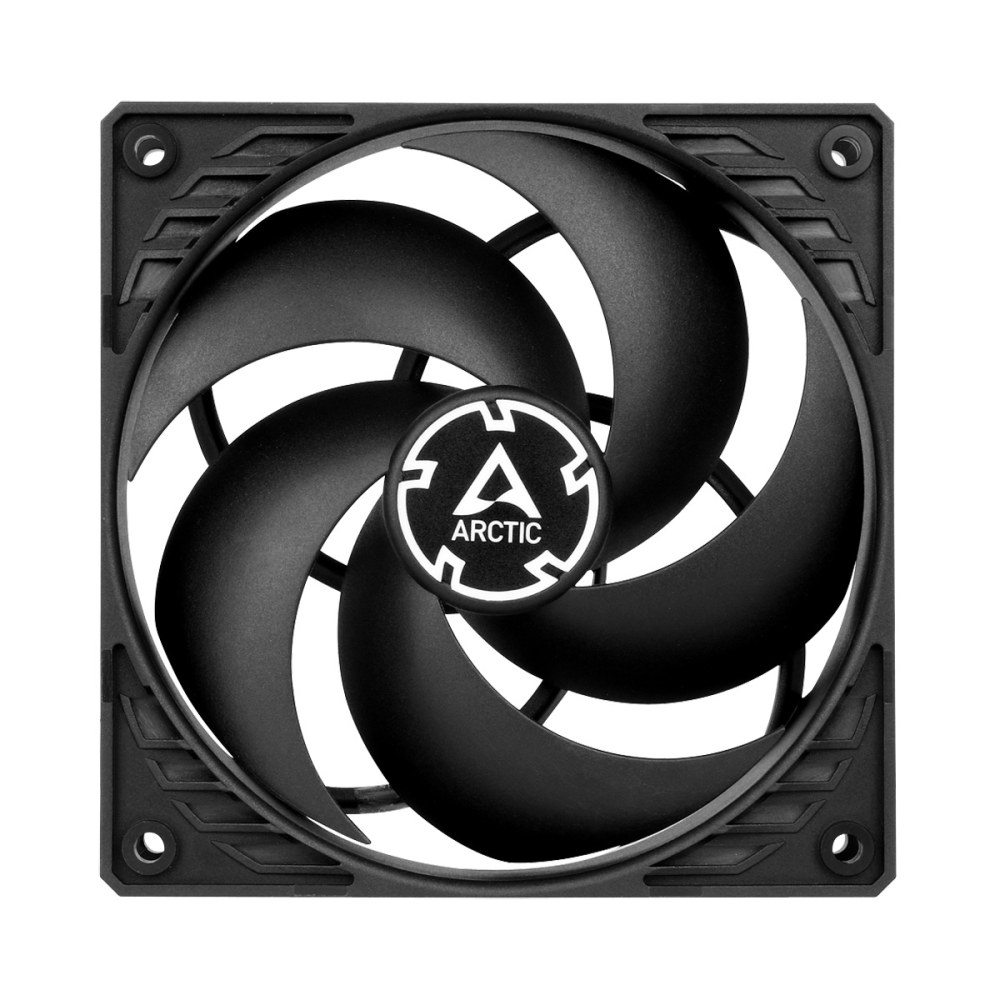

The fan has five fan blades designed to ensure even and focused airflow. The fan is black in color, allowing for seamless integration into most computer cases. Connection is via a 3-pole connector, commonly used in computer cases and motherboards. The cable length is 0.4 m, sufficient to connect the fan to most available connectors. The fan dimensions are 120 mm (width) × 120 mm (height) × 25 mm (depth), fitting standard 120 mm mounting positions. The fan weighs 139 g.

Technology Explained Simply

The technology of the P12 Silent is based on a Fluid Dynamic Bearing (FDB), which uses a special lubricant capsule and a Teflon plate to ensure low friction and long service life. The motor and bearing combination, developed in Germany, minimizes noise generation, especially at low speeds, where the motor is the primary noise source. Optimization for static pressure means the fan operates efficiently even under high air resistance, making it particularly suitable for heatsinks and radiators.

Compatibility and Accessories

The fan is designed for installation in computer cases and can be mounted at various locations such as front, rear, or side openings. The delivery includes four screws for securing the fan to the mounting points inside the case.

Installation and Mounting

Mounting is done using the included screws at the designated mounting points in the computer case. The cable length of 0.4 m allows for flexible positioning. The 3-pole connector is compatible with most motherboards and case connectors.

Operational Advantages

Operation of the P12 Silent is characterized by its low noise emission and high efficiency under high air resistance. The service life is extended by the Fluid Dynamic Bearing, ensuring reliable and maintenance-free use. Optimization for static pressure ensures the fan remains effective in complex cooling configurations without loss of cooling performance.

Design
Product colourBlack
Number of fans1 fan(s)
Number of fan blades5
Fan connector3-pin
Display typeNot applicable
Illumination LEDNo
Logistics data
Harmonized System (HS) code84733080
Other features
Country of originChina
Packaging content
Package typeBox
Number of screws4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter12 cm
Supported processor socketsNot supported
Compatible processor seriesNot supported
Rotational speed (max)1050 RPM
Noise level0.08 sone
Maximum airflow24.1 cfm
Airflow40.95 m³/h
Bearing typeFluid Dynamic Bearing (FDB)
Power
Voltage12 V
Starting voltage4.8 V
Rated current0.09 A
Weight & dimensions
Width120 mm
Depth25 mm
Height120 mm
Weight139 g
Cable length0.4 m
Package width123 mm
Package depth123 mm
Package height27 mm
Package weight170 g


Product data sheet
Datasheet for Arctic ACFAN00130A, EAN: 4895213701365

Questions & answers

What is the delivery time of Arctic ACFAN00130A Fan 120×120×25 P12 Silent ?

The article Arctic ACFAN00130A Fan 120×120×25 P12 Silent is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Arctic ACFAN00130A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Arctic ACFAN00130A Fan 120×120×25 P12 Silent always at the best possible price. We can give you a discount of 2% on Arctic ACFAN00130A Fan 120×120×25 P12 Silent if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
