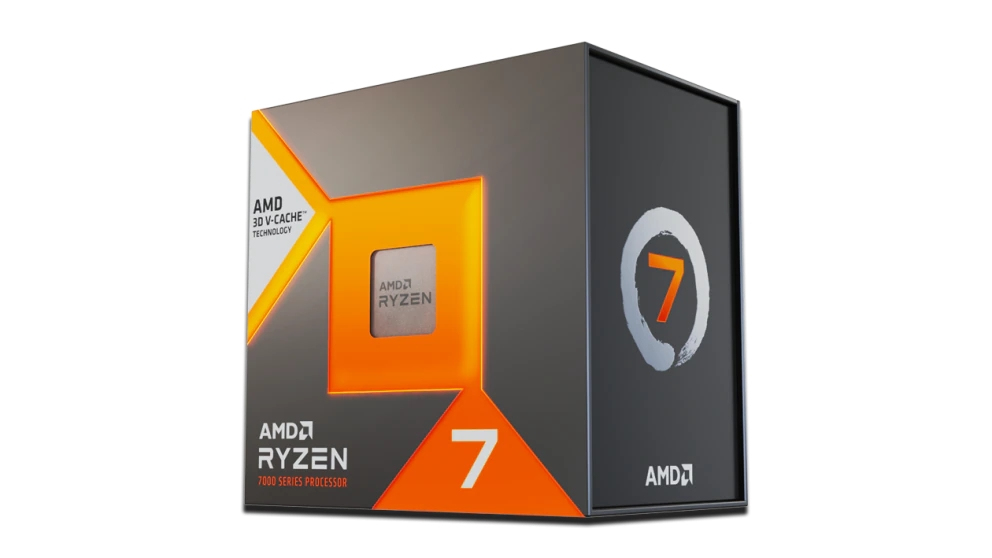

CPU AMD RYZEN 7 7800X3D / AM5 / WOF AMD RYZEN 7 7800X3D (8/16x 4.2 GHz) AM5 104 MB 120 W content_copy

The AMD Ryzen 7 7800X3D is a high-performance processor for the AM5 socket, specifically designed for use in desktop computers. It features eight cores and sixteen threads, making it suitable for demanding tasks such as multitasking, content creation, and gaming. The base clock speed is 4.2 GHz, with a maximum turbo frequency reaching up to 5.0 GHz, providing additional performance during short-term load peaks.

Processor cores and threads

The processor features eight physical cores and supports 16 threads via Hyper-Threading technology. This architecture enables parallel processing of multiple tasks, enhancing overall performance in complex applications such as video editing, 3D rendering, or virtual machines. The high number of threads ensures smooth system responsiveness, especially in multitasking scenarios.

3D V-Cache technology and cache size

A key feature of the Ryzen 7 7800X3D is AMD’s 3D V-Cache technology, which integrates an additional cache layer above the processor core. This technology reduces access time to frequently used data and particularly enhances gaming performance. The total cache size is 104 MB, with the L3 cache measuring 96 MB, providing faster data processing. The 3D V-Cache technology is specifically optimized for applications with high memory access, such as modern computer games.

Manufacturing process and power consumption

The processor is manufactured using the 5nm FinFET process, enabling high transistor density and thus more efficient performance output. The maximum power consumption (TDP) is 120 watts, which is typical for a high-end processor and requires sufficient cooling. The combination of advanced manufacturing technology and high clock speed ensures balanced performance density.

Socket compatibility and system requirements

The processor is designed for the AM5 socket, used in modern AMD motherboards of the AM5 series. Compatibility is therefore limited to motherboards supporting this socket. Use with a motherboard featuring the AM4 socket is not possible, as it represents a different socket standard.

Operation in the system

In operation, the Ryzen 7 7800X3D delivers high computing performance while maintaining efficiency. The high turbo frequency ensures fast response times during short-term load peaks, while the 3D V-Cache technology minimizes cache access times. Its use in gaming PCs or workstations with high CPU performance demands is therefore particularly beneficial. Installation requires mounting the processor onto a compatible motherboard with AM5 socket, followed by installing an appropriate heatsink.

Accessories and alternatives

The choice of heatsink depends on desired performance, noise level, and available space within the housing. Compatible motherboards include all models supporting the AM5 socket.

Advantages in operation

The Ryzen 7 7800X3D offers excellent performance in games and demanding applications, thanks to the 3D V-Cache technology and high clock speed. The 8 cores and 16 threads enable efficient multitasking processing. Use with the AM5 socket ensures compatibility with modern motherboards. The boxed version offers flexibility in selecting the heatsink, allowing the user to optimally meet system requirements.

General
Number of cores	8 Cores
Thread count	16 Threads
Base frequency	4,2 GHz
Turbo frequency	5,0 GHz
Cache size	104 MB
L3 cache	96 MB
Manufacturing process	5nm FinFET
TDP	120 W
Socket	AM5
Type of delivery	Boxed
Cooler	None

---
