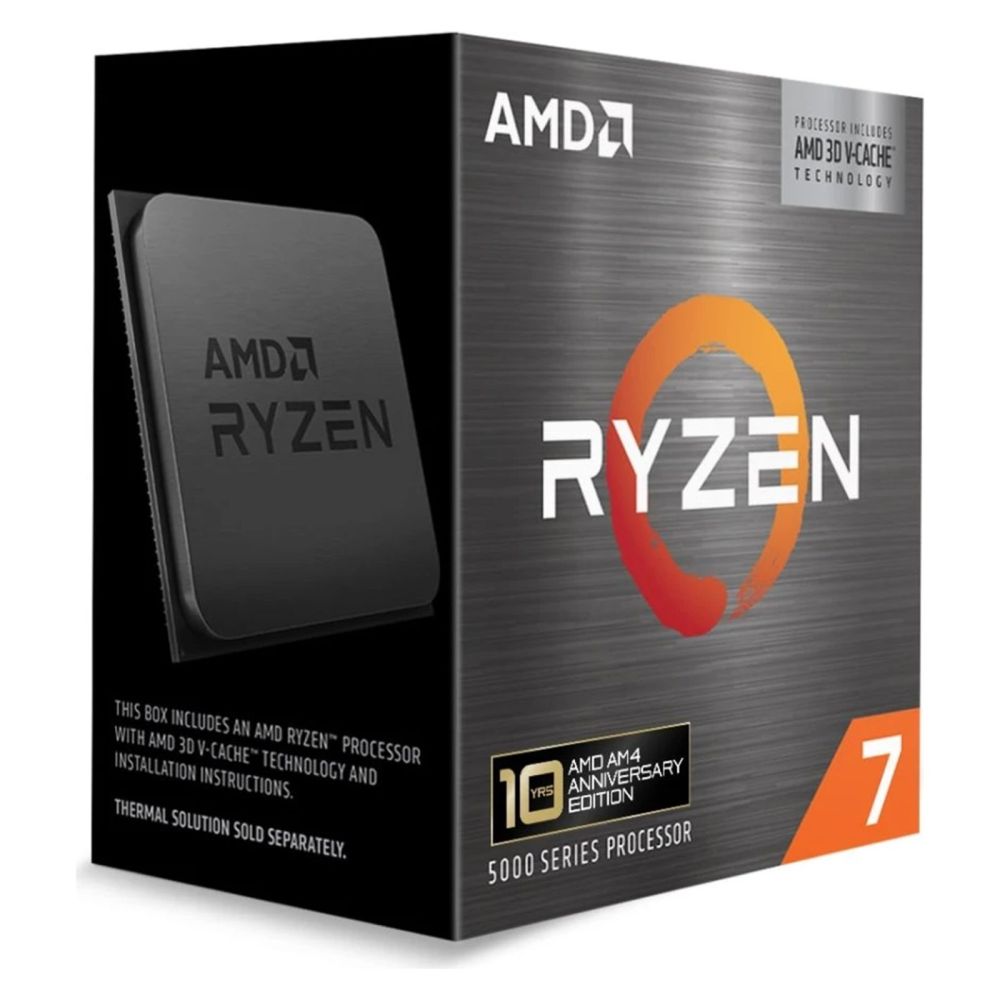

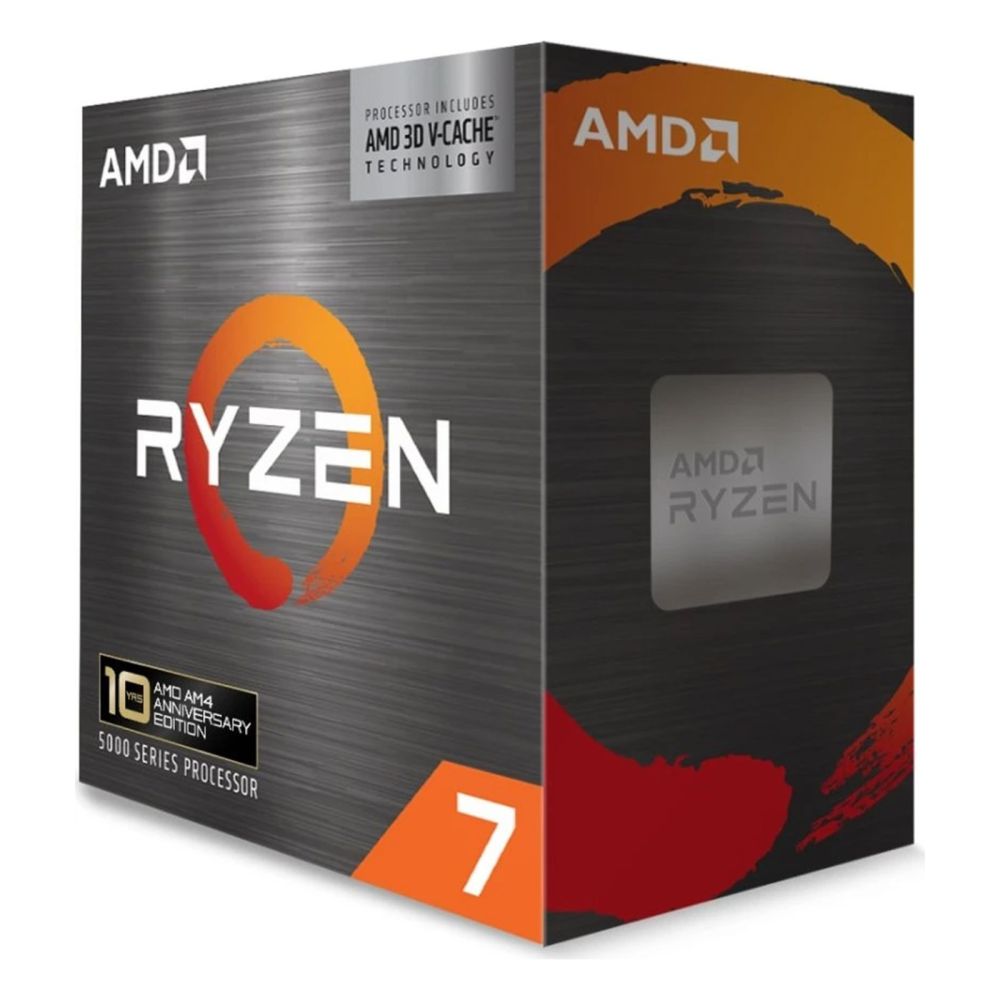

CPU AMD Ryzen 7 5800X3D AM4 WOF BOX 8/16x 3.4 GHz 100MB 105W 100-100000651POF content_copy

The product is a desktop processor from AMD, model Ryzen 7 5800X3D, with manufacturer number 100-100000651POF. It is designed for use in PC systems with AM4 socket and targets users requiring high computing performance for demanding gaming, content creation, and other compute-intensive applications. The processor is based on the Zen-3 architecture and features 3D V-Cache™ technology, which enhances performance in specific applications, particularly gaming. The 3D V-Cache™ technology enables a larger cache memory size directly on the processor, reducing access times for frequently used data and increasing overall performance.

Applications
This processor is suitable for high-performance gaming PCs and enthusiast systems requiring high clock speeds and large cache memory size. It is especially well-suited for applications benefiting from high memory bandwidth and fast access to frequently used data, such as modern video games, video editing software, or 3D rendering tools. The architecture is designed for efficient use of system resources, achieving a good balance between speed and power consumption.

Features and Specifications in Detail
The processor has 8 cores and 16 threads, enabling high parallel processing capability. The base frequency is 3.4 GHz, with a turbo frequency reaching up to 4.5 GHz, depending on load and cooling conditions. The total cache size is 96 MB, with the 3D V-Cache™ technology providing a significant portion of this capacity. The large cache size supports fast data processing, especially in applications accessing frequently recurring data sets. The TDP (Thermal Design Power) is 105 W, indicating the maximum thermal power consumption of the processor under load and relevant for cooling system sizing.

Technology Explained Simply
The 3D V-Cache™ technology integrates additional cache memory directly onto the processor chip, reducing access times for frequently used data. This leads to improved performance, especially in gaming, as many games rely heavily on fast data retrieval from cache. The Zen-3 architecture optimizes the efficiency of the processor cores, achieving higher performance per watt. The high turbo frequency of up to 4.5 GHz allows dynamic adjustment of clock speed according to current load, delivering maximum performance during short load peaks.

Compatibility and Accessories
The processor is compatible with motherboards featuring the AM4 socket. It is important that the motherboard provides the required BIOS support for the processor, as not all AM4 motherboards are automatically compatible with all processors of this generation. A suitable cooler is required, as the processor has a TDP of 105 W. The product is delivered in the box version, meaning the processor is supplied without an integrated cooler. Therefore, a separate cooler must be purchased and installed additionally.

Installation and Mounting
Installation involves placing the processor into the AM4 socket on the motherboard. Correct alignment must be ensured, indicated by a marking (e.g., a small cutout or corner) on both the processor and the socket. After insertion, the socket latch is secured. Subsequently, the cooler is mounted onto the processor, following the cooler’s mounting instructions. The use of appropriate thermal compound is recommended to ensure optimal heat dissipation.

Operational Advantages
The processor delivers high computing performance, especially in applications benefiting from large cache size. The 3D V-Cache™ technology enhances performance in gaming and other applications requiring fast memory access. The high turbo frequency enables dynamic performance boost during short load spikes. The architecture is designed for efficient use of system resources, achieving a good balance between performance and power consumption. Compatibility with AM4 socket allows use in existing systems, provided the motherboard has the required BIOS support.

General
Socket	AM4
Cores	8
Threads	16
Base frequency	3,4 GHz
Turbo frequency	4,5 GHz
Cache	96 MB
TDP	105 W
Architecture	Zen-3
Technology	3D V-Cache™
Type of delivery	Box

---
