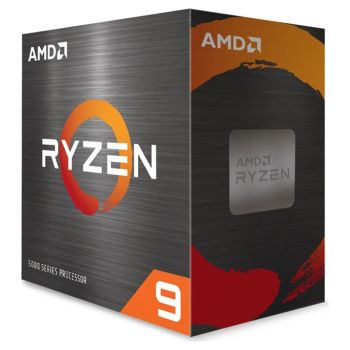

Ryzen 9 5950X 3.4 GHz AMD4 (100-100000059WOF) content_copy

The AMD Ryzen™ 9 5950X is a desktop processor from the Ryzen-5000 series, designed for use in high-performance PCs. It is built for the AM4 socket and features 16 processor cores and 32 threads, making it particularly suitable for demanding tasks such as multitasking, video editing, 3D rendering, or professional software development. The processor is delivered without an integrated cooler, so the user must separately select and install an appropriate cooling solution. The base clock speed is 3.4 GHz, while the boost clock speed can reach up to 4.9 GHz, depending on load and cooling conditions. This enables dynamic performance adjustment to deliver maximum computing power when needed.

Applications
The Ryzen 9 5950X is primarily designed for professional workstations and powerful gaming PCs. Due to its high core count and support for DDR4 memory up to 3200 MT/s, it is especially suited for applications requiring parallel processing and fast data access. Support for PCIe 4.0 provides high bandwidth for graphics cards and fast storage devices, further enhancing overall system performance. The maximum operating temperature is 90 °C, which is within specifications when proper cooling and load conditions are maintained.

Features and Specifications in Detail
The processor includes an L2 cache of 8 MB and an L3 cache of 64 MB, reducing data access times and improving efficiency during complex calculations. The TDP (Thermal Design Power) is 105 W, defining the thermal load and required cooling performance. The processor is manufactured using the TSMC 7-nm FinFET process, enabling high transistor density and energy efficiency. Support for DDR4 memory up to 3200 MT/s ensures sufficient bandwidth for modern applications.

Technical Explanation
The boost clock speed of up to 4.9 GHz is activated dynamically when the processor receives adequate cooling and power supply and when the workload demands it. This means the processor maintains its base clock speed of 3.4 GHz during normal use but temporarily increases to higher frequencies under heavy load. The L3 cache of 64 MB acts as a fast intermediate memory for frequently used data, improving system responsiveness. The TDP of 105 W defines the maximum heat output that the cooling module must dissipate to ensure stable operating temperatures.

Compatibility and Accessories
The processor is designed for the AM4 socket, enabling compatibility with motherboards from various manufacturers (e.g., ASUS, MSI, Gigabyte) that support this socket. It is important that the motherboard also has the required BIOS version and support for the Ryzen-5000 series. Since the processor is delivered without a cooler, a suitable air or liquid cooling solution must be purchased separately. Using an inadequate cooling module may lead to thermal throttling or system crashes.

Installation and Mounting
Installation involves placing the processor into the AM4 socket on the motherboard, ensuring correct alignment (usually indicated by a mark on both the processor and socket). After installation, the cooler is mounted, following the manufacturer’s installation guide. Power supply and cabling are handled through the motherboard and power supply connections. Proper cooling is essential to ensure optimal performance and longevity of the processor.

Operational Advantages
The Ryzen 9 5950X offers excellent multitasking performance thanks to its 16 cores and 32 threads, which is particularly beneficial for parallel processes or when running multiple applications simultaneously. The large cache size and support for fast DDR4 memory ensure smooth system responsiveness. PCIe 4.0 support enables fast data transfer to graphics cards and SSDs, further boosting overall system performance. The use of the 7-nm FinFET process ensures good energy efficiency while delivering high performance.
