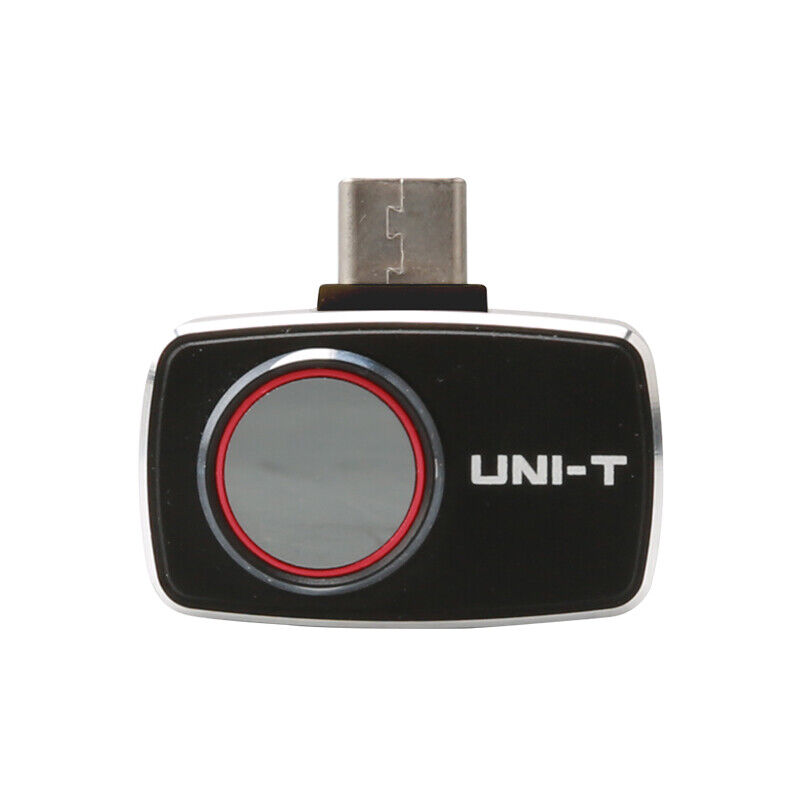

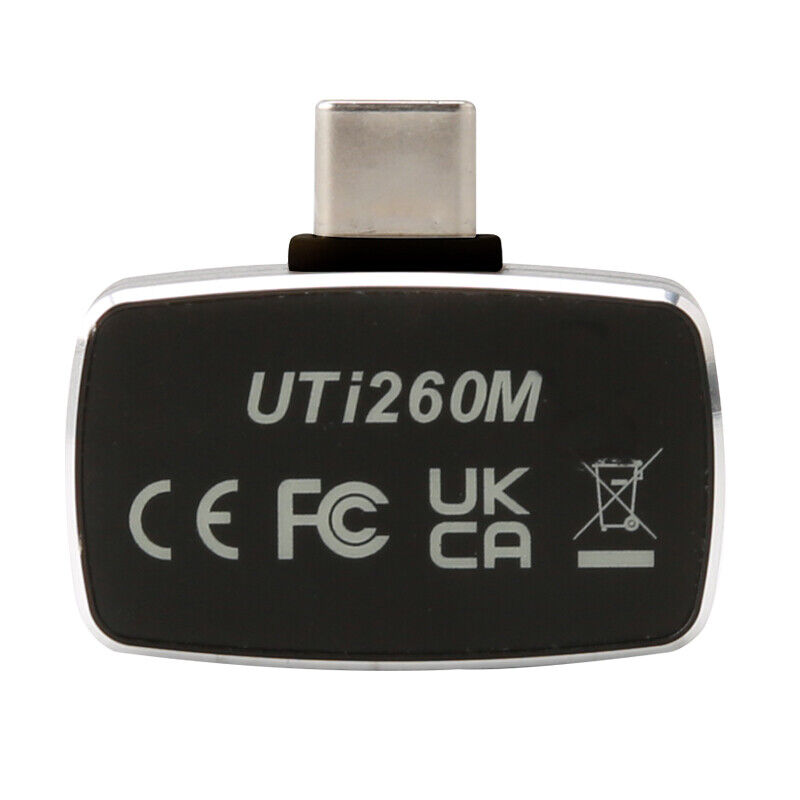

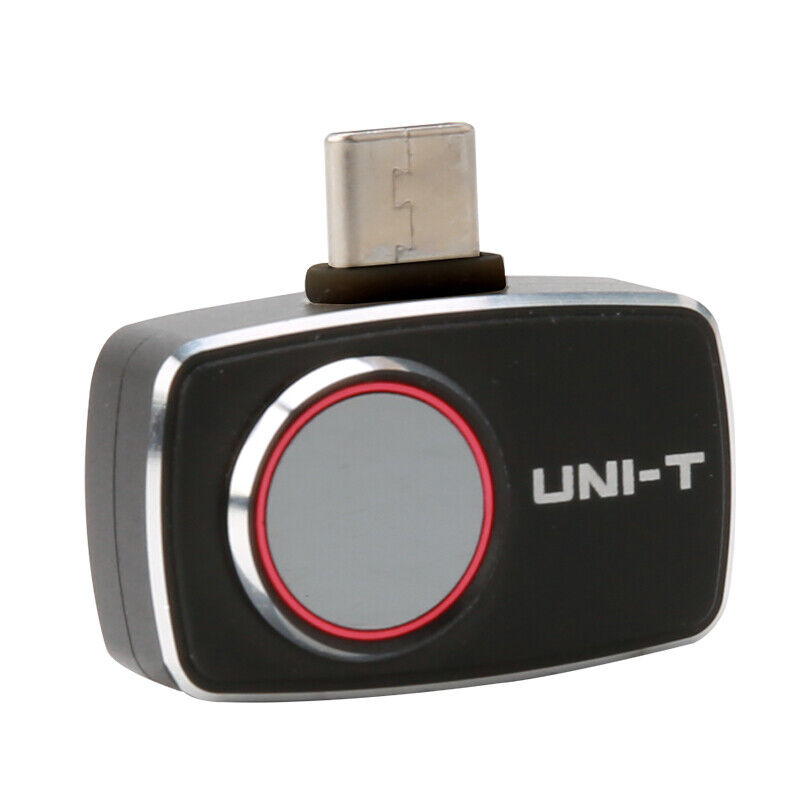

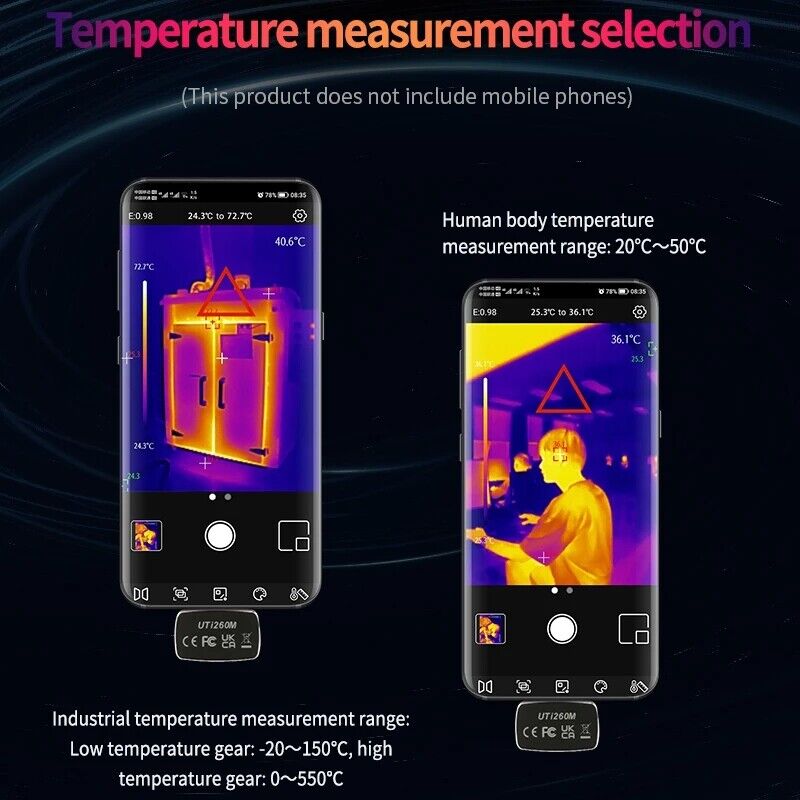

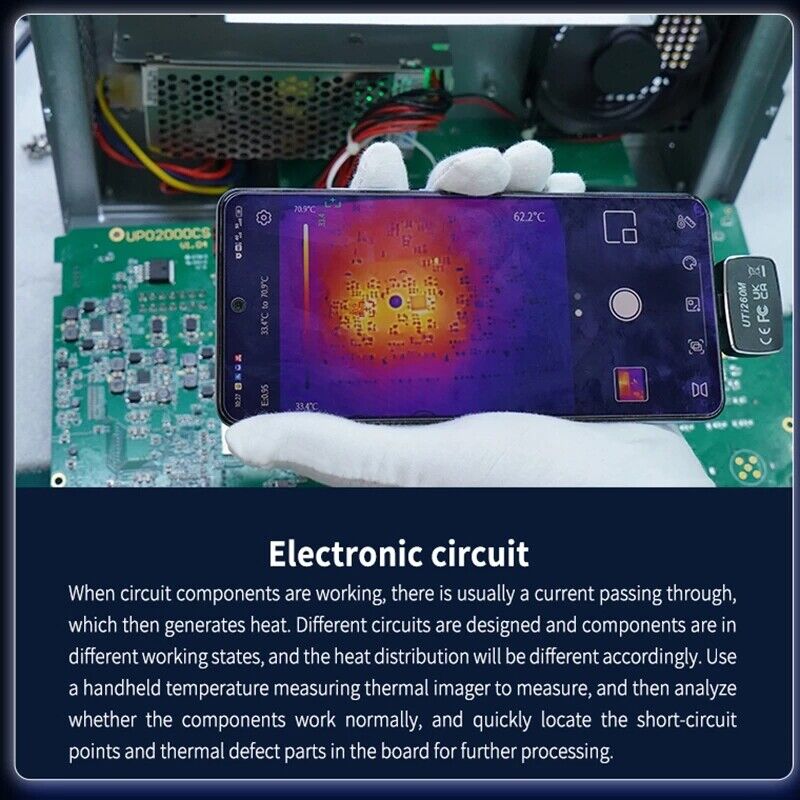

UNI-T UTi260M Mobile Phone Thermal Imager Thermal Camera for Android Type-C Note: UTi260M can only be used on Android system, in addition, Samsung Galaxy S22 Ultra/Samsung A70 /Google Pixel 4A/ HUAWEI P30 Pro cannot use UTi260M! ! ! ! ! Please buy carefully! ! ! ! ! UTi260M Smartphone Thermal Camera Module for Android UTi260M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.UTi260M is with wide temperature measurement range -20? ~ 550?.It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc. Features : 1.IR resolution: 256×192(49152) 2.Temperature measurement range: -20?to 550? / -4? to 1022 - 3.Measurement modes: Industry, EST(Elevated Skin Temperature) 4.Temperature scale: Low gain: -20?~150?, High gain: 0?~550? 5.Auto alarm for high/low temperature 6.Auto tracking for hot spot/cold spot 7.On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6 8.Image capture 9.Video recording 10.Image modes: Thermal, Fusion,

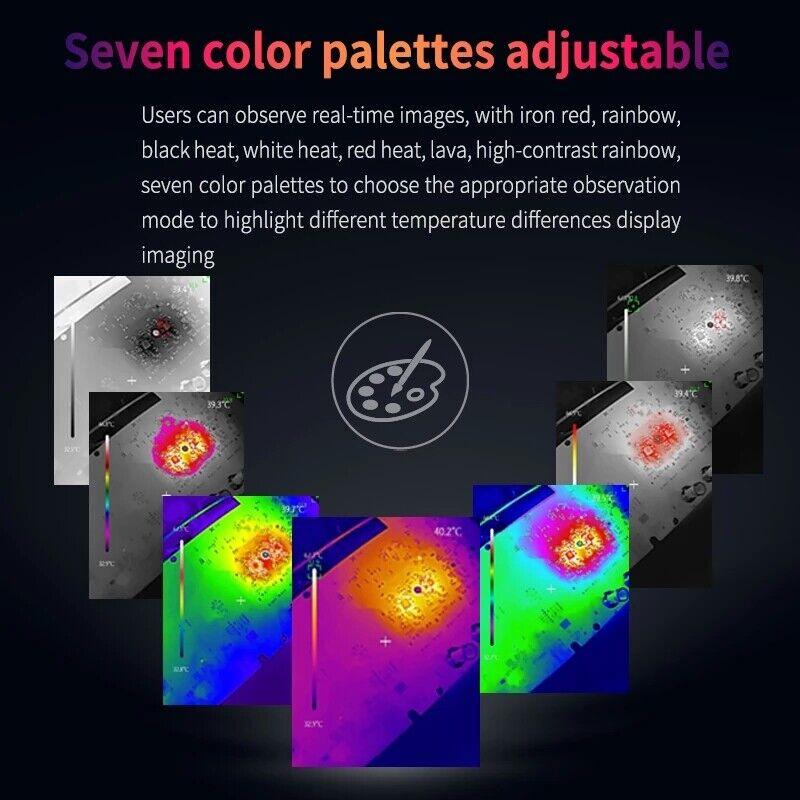

PIP 11.Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC) 12.Phone: Android (USB Type-C interface) 13.1m extension cable 14.2m drop proof Product Specifications of UTi260M Technical Data IR resolution (Pixels) 256×192 Field of view(FOV) 56.0°×42.2° Thermal sensitivity(NETD) ≤50mK @25? Spatial resolution(IFOV) 3.8mrad Frame rate 25Hz Focus Focus free Lens focal length 3.2mm Temperature measurement range -20? ~ 550? Temperature scale Low gain: -20?~150? High gain: 0?~550? Measurement modes Industry, EST(Elevated Skin Temperature) Accuracy Industry: ±2° or ±2% whichever is greater (0?~550?) EST: ±0.5° (30?~40?) Emissivity 0.01~1.00 adjustable (0.95 default) Functions Color palettes 7(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) Image modes Thermal,Fusion,PIP On screen analyzer Points/ Lines / Rectangles Auto alarm for high/low temperature √ Video recording √ General Characteristics USB Type-C Drop proof 1m Image/Video storage format JPEG Certificates CE,FCC Product net weight 12g Product size 33mm×28.2mm×11.3mm
Questions & answers
What is the delivery time of ALLNET infrared camera UNI-T UTI260M Type-C?
The article ALLNET infrared camera UNI-T UTI260M Type-C is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 25 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Allnet UTI260 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET infrared camera UNI-T UTI260M Type-C always at the best possible price. We can give you a discount of 2% on
ALLNET infrared camera UNI-T UTI260M Type-C if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of ALLNET infrared camera UNI-T UTI260M Type-C we can offer you a price of 201,28 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
