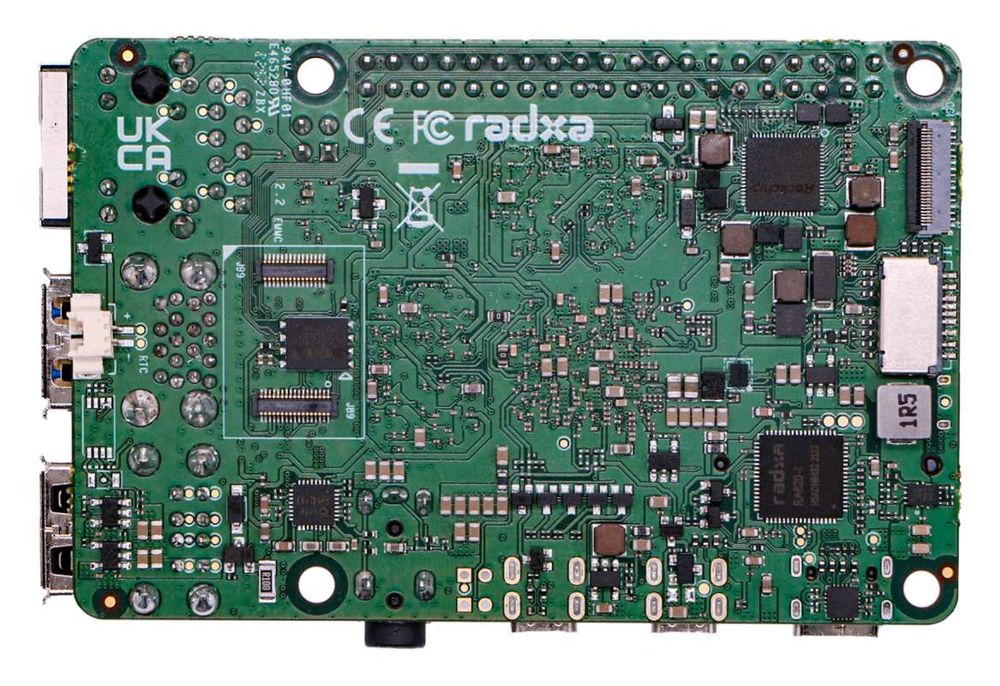

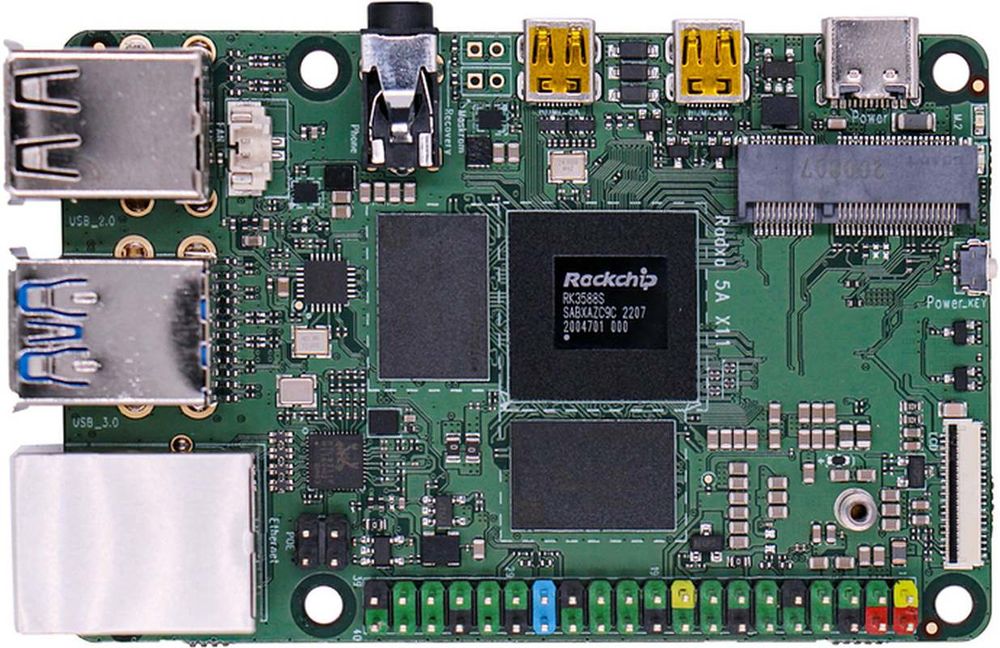

Radxa ROCK 5A RK3588 16GB LPDDR4 content_copy

Rockchip RK3588 64bit octa core ARM based SBC RADXAs neueste SBC-Generation auf der Basis des Rockchip RK3588 in einem kompakten Formfaktor, der mit einer breiten Palette an klassenführenden Funktionen, Merkmalen und Erweiterungsoptionen ausgestattet ist. Sie sind in verschiedenen LPDDR4x RAM-Speicheroptionen (4, 8 und 16 GB) erhältlich. Rock5 Model A product details RK3588S 64bit octa core processor Quad Cortex®-A76 @ 2.2~2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm® DynamIQ™ confguration GPU Arm Mali™ G610MC4 GPU supporting: – OpenGL® ES1.1, ES2.0, and ES3.2 – OpenCL® 1.1, 1.2 and 2.2 – Vulkan® 1.1 and 1.2 – Embedded high performance 2D image acceleration module NPU Supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing power is up to 6TOPs Memory LPDDR4 64bits LPDDR4x RAM with 4, 8 or 16GB SPI Flash 32MB SPI flash soldered Display HDMI and MIPI DSI Triple display support via two HDMI, and one MIPI DSI H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps H.264/H.265 multivideo decoder up to 8K@30fps Interfaces · 1x USB Type-C™ port for power supporting USB PD 2.0 and QC 2.0 · 1x Micro SD Card · 2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution) · 2x USB2 Type A HOST ports · 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port · 1x Gigabit Ethernet port (supports PoE with add-on PoE HAT) · 1x M.2 E Key with PCIe 2.1 one-lane, SATA, USB 2.0 support · 1x eMMC module connector for eMMC 5.1 support · 1x Camera port (1x four-lane MIPI CSI or 2x two-lane MIPI CSI) · 1x LCD Display port (four-lane MIPI DSI) · Miscellaneous – 1x RTC battery connector – 1x PWM fan connector – 1x Power button – 1x Recovery pin, 1x Maskrom pin – 1x Power LED, 1x User LED ·40 pin 0.1” (2.54mm) header supporting a wide range of interface options: – Up to 5 x UART(2x with ?ow control) – Up to 3 x SPI bus – Up to 6 x I2C bus – Up to 1 x PCM/I2S – Up to 2 x SPDIF – Up to 7 x PWM – Up to 1 x CAN – Up to 1 x ADC – Up to 27 x GPIO – 2 x 5V DC power in/out – 2 x 3.3V power out - Software · ArmV8 Instruction Set · Debian/Ubuntu Linux support · Android 12 support · OpenFyde OS(Chromium OS fork) support · RKNPU2 NPU software stack · Hardware access/control library for Linux/Android USB 3.0 HOST x3 1x USB-C 2x USB-A Network LAN 1GbE LAN with PoE support *additional HAT is required for powering via PoE WIFI via optional WIFI module Others RTC battery connector for time backup USB Type-C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port ROCK 5A has been designed to operate between 0°C to 50°C Size 85mm x 56mm
