ALLNET Switzerland Powerline 500Mbit Bridge RJ45 + 300Mbit WiFi AP ALL1682511v2

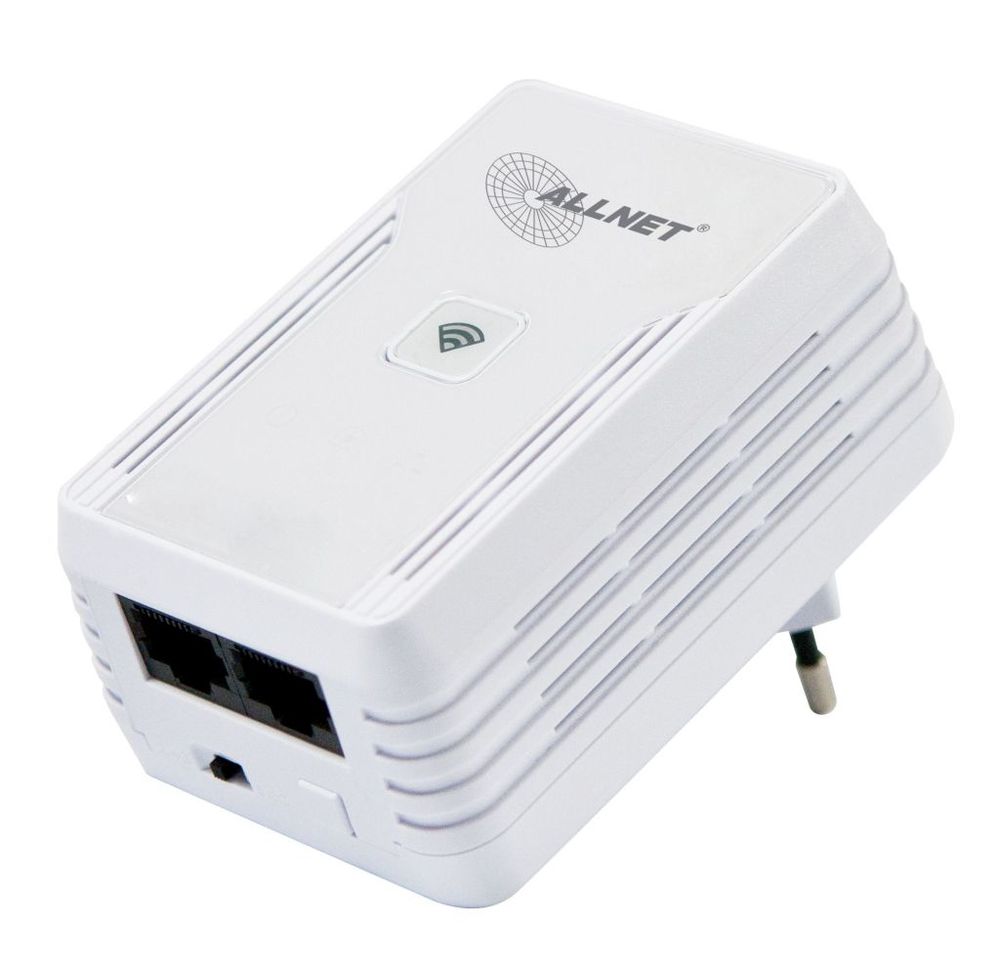

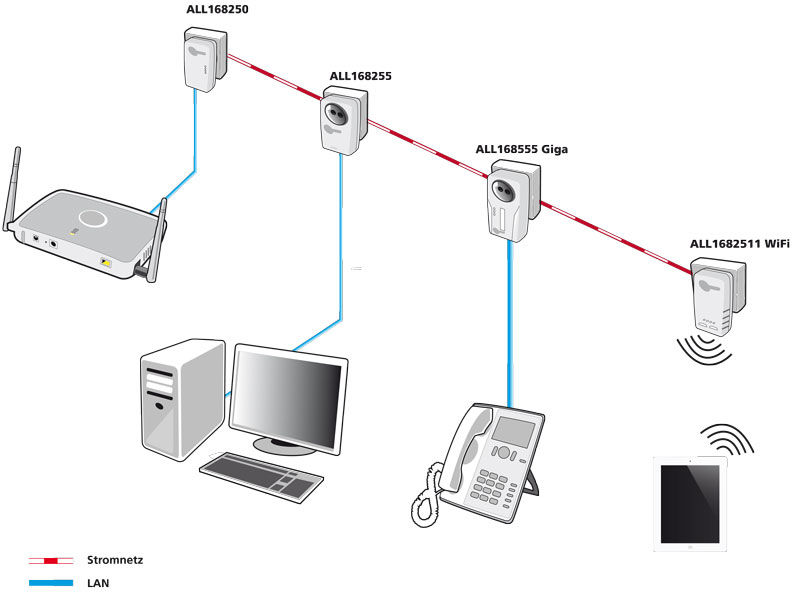

500 Mbit Powerline with WLAN N Access Point Highlights: 500 Mbps Homeplug AV 300 Mbps Wireless N Access Point 2.4 GHz or 5 GHz selectable Wireless ON/OFF button WPS function 2nd LAN port The ALLNET ALL1682511v2 is a 500 Mbps Homeplug AV Wireless N Adapter that combines powerline and wireless LAN in one device. It establishes the network connection to other Homeplug AV adapters via the 230V house power network and at the same time communicates with wireless devices such as laptops, smartphones and tablets via its 300 Mbps wireless LAN interface (IEEE802.11b/g/n or IEEE802.11a/n selectable).

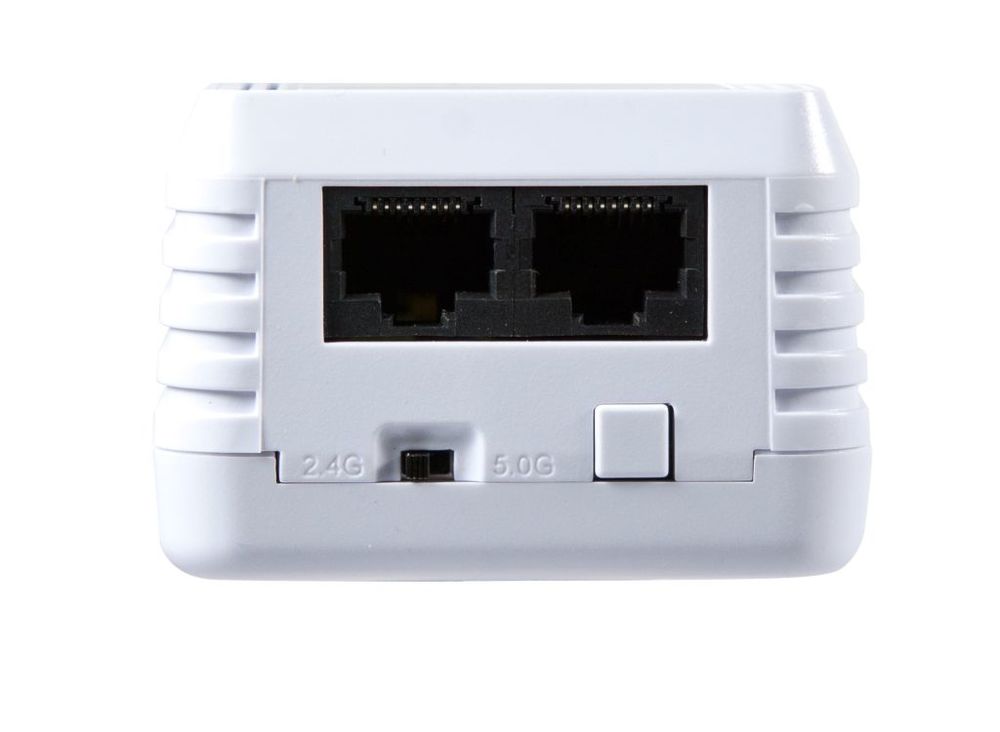

In addition, the ALL1682511v2 Homeplug AV Wireless N Adapter has two RJ45 network ports for connecting wired network devices. The highest encryption standards for wireless LAN and powerline, which can be activated at the push of a button, ensure tap-proof data exchange across all interfaces.
Quality of Service (QoS) for HomePlug offers the necessary bandwidth for modern multimedia applications such as Broadband TV (IPTV), higher data rate broadband sharing, online gaming, VoIP calls, audio-video transmission over the network and IP camera connectivity .
With an average power consumption of less than 7 watts, the ALL1682511v2 Homeplug AV Wireless N adapter meets all the requirements that modern Green IT products have to meet today.
The integrated wireless ON/OFF button of the ALL1682511v2 also allows you to switch off the WLAN part at the push of a button when it is not needed. This further reduces power consumption.
The compact design, no larger than a normal plug-in power supply, enables inconspicuous installation without covering neighboring power sockets.
Technical data: Element Specification Chipset Powerline: Atheros AR7420+1540 Chipset Wireless: Atheros AR9344 Standards: Powerline -

HomePlug AV

Wireless -> IEEE 802.11b/g/n
Ethernet -> IEEE 802.3, Auto MDI/MDIX
IEEE 1901/HomePlug AV Compliant
Co-existence with HomePlug 1.0 Nodes maximize efficiency and throughput Integrated Quality of Service (QoS) Enhancements Hardware Packet Classifiers for ToS, CoS and IP Port Number Supports IGMP managed multicast session Modulation type Powerline: OFDM 1024/256/64/16/8 QAM, QPSK, BPSK, ROBO Modulation type wireless: CCK,BPSK,DQPSK, QPSK, QAM Powerline connection: EURO power plug Network connection: 2x RJ45 10/100Mbit encryption Powerline: 128bit AES encryption with key management
Compliant to EuP requirements Gross data rate Powerline: up to 500Mbps Gross data rate Wireless: up to 300Mbps, 2Tx2R Frequency band Powerline: 2~28 MHz Frequency band Wireless: 2.4 GHz / 5Ghz switchable Access- Powerline method: TDMA and priority-based CSMA/CA channel access Access method Wireless: CSMA/CA,EDCA Quality of Service: 4 levels Priority-based CSMA/CA channel access schemes
(can be activated via Simple Connect Button) Encryption Wireless: WEP 64/128/152bit WPA, WPA-PSK WPA2, WPA2-PSK LED indicators: Power LED (PWR) PowerLine Link/ACT Status LED (PL-LKACT) Ethernet Link/ACT Status LED (ETH-LKACT) WPS on/Off Status LED Power supply: 100~240 VAC, 50/60 Hz Power consumption: Operation 3.6W Watt, Standby max. 0.5 Watt Operating systems for operation: all TCP/IP operating systems Operating systems for Configuration software: Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit Housing: Plastic housing Environment: Operating temperature: 0 ~ 45 °C
Operating humidity: 10% ~ 90% (non-condensing)
Storage temperature: -20 ~ 60 °C
Humidity Storage: 5% ~ 90% (non-condensing) Marking: CE, Dimensions: 82 x 62 x 42 mm (height x width x depth) Weight: 140 grams (adapter only) Packaging contents: 1 piece ALLNET ALL1682511v2 1 piece RJ45 Patch cable 1.8m 1 piece CD-ROM with manual < software
