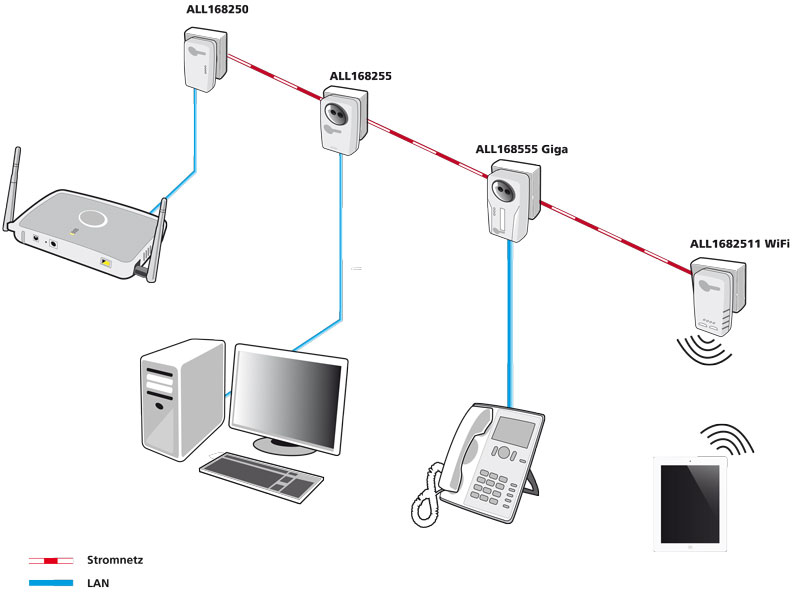

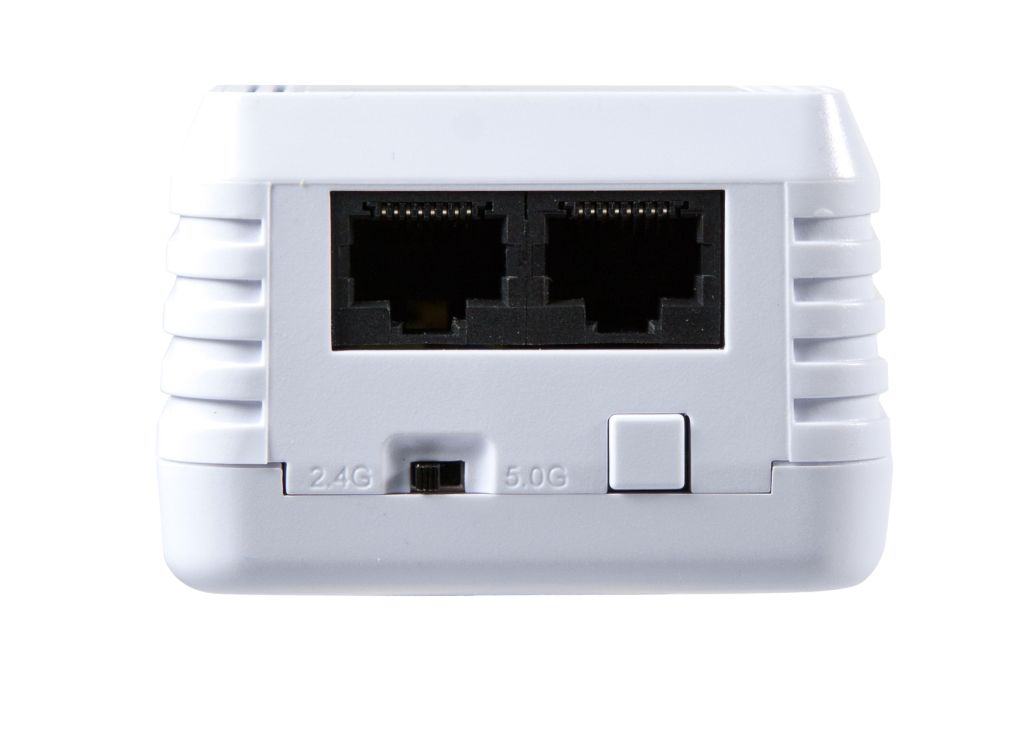

500 Mbit Powerline with WiFi N Access Point Highlights: 500 Mbps HomePlug AV 300Mbps Wireless N Access Point 2.4 Ghz or 5 Ghz selectable wireless & quot, ON / OFF & quot, button WPS function 2nd LAN PortDer Lieske Electronics ALL1682511v2 is a 500 Mbps Homeplug AV Wireless N adapter, powerline and Wireless LAN in one device. It establishes the network connection to other HomePlug AV adapters via the 230V household power supply and communicates simultaneously over its 300 Mbps Wireless LAN (IEEE802.11b / g / n or IEEE802.11a / n selectable) with wireless devices such as laptops, smartphones and tablets. In addition, the ALL1682511v2 HomePlug AV Wireless N adapter has two RJ45 network ports to connect wired network devices. Highest encryption standards for wireless LAN and powerline, which can be activated by pressing a button, provide for secure data exchange across all Schnittstellen.Quality of Service (QoS) for HomePlug provides the necessary bandwidth for modern multimedia applications such as broadband TV (IPTV), higher data rate broadband sharing, online gaming, VoIP calls, audio-video transmission over the network and IP Camera Konnektivität.Mit an average power consumption of less than 7 watts meets the ALL1682511v2 HomePlug AV Wireless N adapter all the requirements, the modern Green IT Products today meet müssen.Die integrated wireless & quot, ON / OFF & quot, the ALL1682511v2 button also allows to disable the wireless part by pressing a button when it is not needed. This reduces power consumption zusätzlich.Die compact design, no larger than a normal power supply, enables discreet installation without having adjacent power outlets are covered thereby. Specifications: Item Specification Chipset Powerline: Atheros AR7420 + 1540 chipset Wireless: Atheros AR9344 standards: Powerline -> HomePlug AV Wireless -> IEEE 802.11b / g / n Ethernet -> IEEE 802.3, Auto MDI / MDIX IEEE 1901 / HomePlug AV Compliant Co- existence with HomePlug 1.0 Nodes Compliant to EuP requirements gross data rate Powerline: Up to 500Mbps gross data rate wireless: up to 300Mbps, 2Tx2R Frequency Band Power Line: 2 ~ 28MHz frequency band Wireless: switchable 2.4GHz / 5GHz Access Method Powerline: TDMA and priority based CSMA / CA channel access Access Method Wireless: CSMA / CA, EDCA Quality of Service: 4 Levels Priority-based CSMA / CA channel access schemes maximize efficiency and throughput Integrated Quality of Service (QoS) Enhancements Hardware Packet Classifier for ToS, CoS and IP Port Number Supports IGMP managed multicast session modulation Powerline: OFDM 1024/256/64/16/8 QAM, QPSK, BPSK, ROBO modulation Wireless: CCK, BPSK, DQPSK, QPSK, QAM Powerline connection EURO-plug Network connection: 2x RJ45 10 / 100Mbps encryption Powerline: 128bit AES encryption with key management (switched on Simple Connect button) encryption Wireless: WEP 64/128 / 152bit WPA, WPA-PSK WPA2, WPA2-PSK LED displays : Power LED (PWR) Power Line Link / ACT Status LED (PL-LKACT) Ethernet Link / ACT Status LED (ETH LKACT) WPS On / Off status LED Power supply: 100 ~ 240 VAC, 50/60 Hz Power consumption: Operation 3, 6W Watts, max. 0.5 Watt Operating Systems for operation: all TCP / IP operating systems Operating systems Configuration software: Windows & reg, XP32bit, Windows & reg, Vista32 / 64bit, Windows ®, 7 32 / 64bit Housing: plastic housing Environment: Operating temperature: 0 ~ 45 ° C Humidity Operating: 10 % ~ 90% (non-condensing) Storage temperature: -20 ~ 60 ° C Humidity Storage: 5% ~ 90% (non-condensing) Marking: CE, Dimensions: 82 x 62 x 42 mm (height x width x depth) Weight: 140 grams (only adapter) Package Contents: 1 piece Lieske Electronics ALL1682511v2 1 RJ45 Patch Cable 1.8m 1 piece CD-ROM with manual and software
Product data sheet
Questions & answers
What is the delivery time of ALLNET ALL1682511v2 / 500Mbit Powerline + 300Mbit Accesspoin?
The article ALLNET ALL1682511v2 / 500Mbit Powerline + 300Mbit Accesspoin is currently
in stock
According to our experience the article is ready for dispatch within 1 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of ALLNET ALL1682511v2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET ALL1682511v2 / 500Mbit Powerline + 300Mbit Accesspoin always at the best possible price. We can give you a discount of 2% on
ALLNET ALL1682511v2 / 500Mbit Powerline + 300Mbit Accesspoin if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of ALLNET ALL1682511v2 / 500Mbit Powerline + 300Mbit Accesspoin we can offer you a price of 24,25 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
