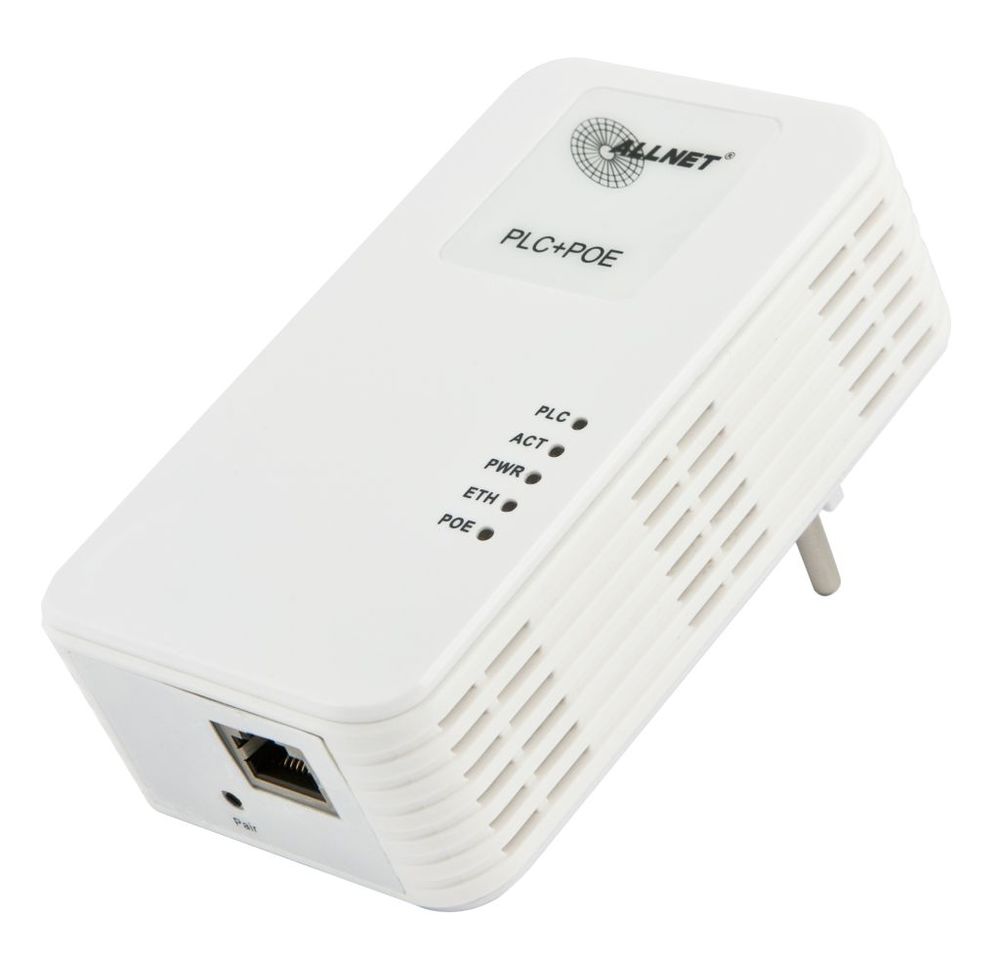

ALLNET Switzerland Powerline 1200Mbit Bridge RJ45 HomePlugV2 SmartLink with PoE AT ALL1681203

Highlights:

New HomePlug AV2 standard Up to 1200 Mbps Powerline data transfer rate via Powerline Compatible with other HomePlug AV technologies MIMO support 1 Gigabit Ethernet ports Secure communication and protection of your data at the touch of a button Easy installation integrated PoE injector according to IEEE802.3at with max. 30W for IP -Cameras / PoE lamps / PoE PD switches e.g. ALL-SG8205PD With the ALL1681203 adapter, the first ALLNET powerline adapter according to the HomePlug AV2 standard with Smartlink 1200 Mbps and MIMO support comes onto the market.
The ALLNET ALL1681203 uses the latest Qualcomm Atheros QCA7500 / QCA8334 chipset. It has Gigabit Ethernet RJ45 interfaces and is compatible with the powerline standards IEEE1901/Homeplug AV and GreenPHY. This enables easy use with existing Powerline devices from other manufacturers.
High data rates and Quality of Service (QoS) enable the use of HD multimedia applications and support high-speed digital multimedia home networks throughout the home, including IPTV services, simultaneous HD video and audio distribution, voice over IP calls, Online gaming, high speed internet, to realize.
The ALL1681203 offers a simple Plug Element specification Chipset: Qualcomm QCA7500 + QCA8334 Standards: • IEEE 1901, IEEE 1905.1 and HomePlug AV Compliant
• HomePlug AV2 Compliant
• AV2 30MHz and 67MHz MIMO profiles
• AV2 30MHz and 67MHz SISO profiles
• Power Save mode
• Co - existence with HomePlug 1.0/Turbo Nodes
• Compliant to ErP 2013 directive
• IEEE 802.3 10/100/1000 Ethernet(1200Mbps) Gross data rate Powerline: up to 1200Mbps Frequency band: 2MHz to 68MHz Access method Powerline: Priority-based CSMA/CA channel acess Quality of Service: Priority-based CSMA/CA channel access schemes maximize efficiency and throughput Integrated Quality of Service (QoS) Enhancements Supports IGMP managed multicast session Modulation type:
OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK , ROBO, and Mini-ROBO modulation scheme Powerline connection: Type F earthing contact plug (DE), switch mode 85VAC to 265VAC Network connection: 1x RJ45 10/100/1000Mbit IGMP: Support IGMP managed multicast sessions IGMP snooping with multicast to multiple unicast support IGMP/MLD address filtering Power over Ethernet: Data PIN's: 1.2 nodes/clients: up to 15 devices Encryption: 128-bit AES encryption with key management
(activated via Simple Connect Button) LED displays: Power LED
PowerLine Link/ACT status LED
1x Ethernet Link/ACT status LED Power supply: Type F protective contact plug (DE), Type C/E (FR), switch mode 85VAC to 265VAC Power consumption: operation 32W watt
Standby max. 3 watts without PoE Operating systems for operation: all TCP/IP operating systems Operating systems for configuration software:
Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit
Housing: Plastic housing Environment: Temperature Operation: 0 ~ 70 °C
Humidity Operation: 10% ~ 90% (non-condensing)
Temperature Storage: -10 ~ 70 °C
Humidity Storage: 10% ~ 95% (non-condensing) Marking: CE, ROHS Dimensions: 115mm x 65mm x 30mm (Height x Width x Depth ) Weight: 300 grams (adapter only)
Packaging contents: 1 piece ALLNET ALL1681203
1 piece RJ45 patch cable 1.8m
1 piece CD-ROM with manual < software
