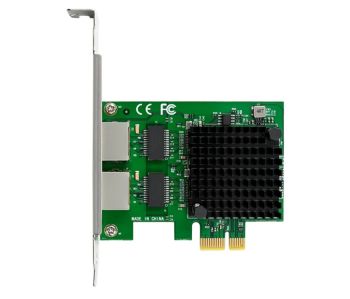

Highlights: 2Port RJ45 2.5G Network card Intel I226 Chipset PCI-E x4 lane 5GT/s Dual Port RJ45 Cooper 10/100/1000/2.5GBASE-T (TX) Data-Rate Brackets: Full-Height and Low Profile Brackets included PCI Express Intel I226 multi-gigabit Ethernet adapter Supporting mobile, desktop, workstation, value-server, or embedded space-constrained designs. The Intel Ethernet Network Adapter I226-T2 is ideally suited forpersonal computers and workstations used for enterprise, gaming, and home networks. Based on the Intel Ethernet Controller I226, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. These systems require more bandwidth than ever before. he I226-T2 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption. Packed with performance optimization capabilities, the I226-T2 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility. Features • Compliant with PCI Express specification Revision 3.1 (5GT/s) • MDI (Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s • Complies with dual port 2.5GbE RJ45 port (copper) • Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE application ( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 ) • IEEE802.3 Auto-negotiator • IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames • Automatic cross-over detection function (MDI/MDI-X) • IEEE 1588 Protocol and 802.1AS implementation • Supporting Time Sensitive Networking (TSN) Capabilities • Support IEEE 802.3az (EEE) • Full Wake-On-Lan support • TCP/UDP, IPv4 checksum offloads (Rx/Tx) • Transmit Segmentation offloading (TSO) (IPv4, IPv6) • Support for packets up to 9.5KB Jumbo Frames Technical Details: Essentials Product Collection Intel 2.5GbE Network Adapter Controller Processors Intel I226 Bus Type / Bus Width PCI Express 3.1, 5GT/s, x4 Lane Connections 2 × RJ45 Copper Data Rate Supported Speeds 2500 / 1000 / 100 / 10 Mbps Cabling Type Supports cable lengths up to 100 meters using CAT5e, CAT6 or CAT6A. Bracket Full-height bracket pre-installed. Low-profile bracket included. Dimensions 83 × 67 mm (PCIe board) Technical Specifications Network Interfaces Integrated MAC + BASE-T PHY MDI (Copper) IEEE 802.3 Ethernet interface Supports 2500BASE-T, 1000BASE-T, 100BASE-TX and 10BASE-T Compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3bz General Manageability IEEE 802.3 Auto-Negotiation IEEE 802.3x / IEEE 802.3z Flow Control Software-controllable Rx thresholds and Tx pause frames 4 Tx and 4 Rx queues per device IPv4 / IPv6 checksum offload TCP, UDP and SCTP checksum offload Interrupt Levels INTA, MSI, MSI-X System Requirements Operating Systems
Windows 10 (64-bit) Windows 11 (64-bit) Windows Server 2019 Windows Server 2022 Expansion Slot Available PCI Express x4, x8 or x16 slot Environment & Certification Power Consumption Max. XX W Storage Humidity Up to 90% non-condensing at 35°C Storage Temperature -40°C to +70°C (-40°F to +158°F) Operating Temperature 0°C to +55°C (32°F to +131°F) LED Indicators LINK (solid) / ACTIVITY (blinking) Green = 2.5Gbps Yellow = 1Gbps Off = 100Mbps or 10Mbps Certifications CE, FCC, RoHS
Questions & answers
What is the delivery time of ALLNET PCIe 2.5G X4 Dual Port 2.5 Gigabit Server Adapter- Copper RJ45 - ALL0144v2-2-2.5G-TX?
The article ALLNET PCIe 2.5G X4 Dual Port 2.5 Gigabit Server Adapter- Copper RJ45 - ALL0144v2-2-2.5G-TX is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 25 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Allnet ALL0144v2-2-2.5G-TX to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET PCIe 2.5G X4 Dual Port 2.5 Gigabit Server Adapter- Copper RJ45 - ALL0144v2-2-2.5G-TX always at the best possible price. We can give you a discount of 2% on
ALLNET PCIe 2.5G X4 Dual Port 2.5 Gigabit Server Adapter- Copper RJ45 - ALL0144v2-2-2.5G-TX if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of ALLNET PCIe 2.5G X4 Dual Port 2.5 Gigabit Server Adapter- Copper RJ45 - ALL0144v2-2-2.5G-TX we can offer you a price of 46,45 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
