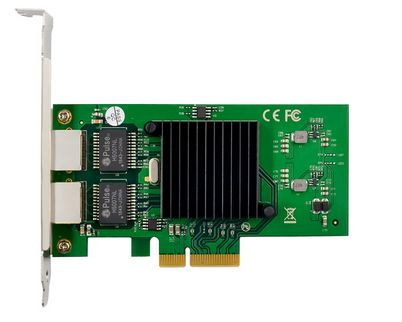

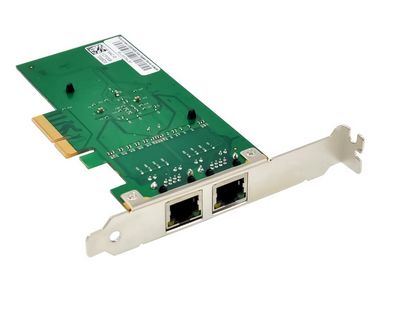

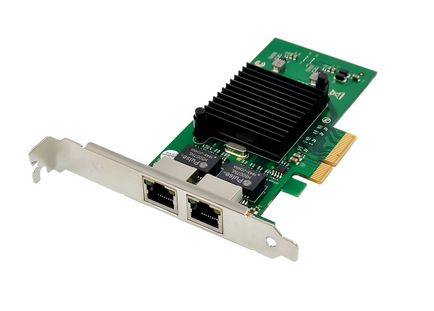

Hightlights: Chipset: Intel JL82576EB PCIExpress host interface specification v2.0 with 2.5GT/s BUS width PCIExpress lanes: x4 MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASET, 100BASETX, and 10BASET applications (802.3, 802.3u, and 802.3ab) SerializerDeserializer (SERDES) to support 1000BaseSX/X/LX (optical fiber) for Gigabit backplane applications. Layer 2 functions: IEEE 802.3x Flow Control IEEE 802.1q VLAN Supports Receiveside scaling (RSS) Supports IPv 4, IPv 6 protocols Supports Jumbo Frames up to 9.5K Supports UDP.TCP and IP Checksum offloading Statistics for management and RMON Support for virtual machines device queues Queues per port: 16 TX queues and 16 RX queues FullSpectrum Security Next Generation VMDq Support (8VMs) Interrupt throttling control to limit maximum interrupt rate and improve CPU usage The PCIe* v2.0 (2.5GT/s) Intel 82576 GbE Network adapter is a single, compact, low power component that offers two fully integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports. The 82576 enables two port implementation in a relatively small area and can be used for server system configurations such as rack mounted or pedestal servers, where the 82576 can be used as addon NIC or LAN on Motherboard (LOM) design. Another system configuration is blade servers, where it can be used as LOM. The 82576 can also be used in embedded applications such as switch addon cards and network appliances. Technical Details: Essentials Product Collection Intel GbE Ethernet Server Adapter Controller Processors Intel JL82576EB Bus Type/Bus Width PCI Express* 2.0 (2.5 GT/s) x4-lane, operable in x4, x8 and x16 slot Connections 2 x RJ45 Copper Data Rate Supported 10/100/1000 Mbps (Copper) Cable Distances Copper: up to 100 m Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation Bracket Full-height bracket installed. Low-profile bracket included in package Dimension 113 mm x 69 mm (PCIe Board) Technical Specifications IEEE standard/Network topology MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab) Interrupt Levels INTA, INTB, INTC, INTD, MSI, MSI-X System Requirements Windows Client
Windows 10/ 8.1/ 8/ 7 Windows Server 2008 R2/ 2012/ 2012 R2/ 2016/ 2019 Linux RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 Environment & Certification Storage Humidity Maximum 90% non-condensing relative humidity at 35 °C Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) Connect Speed LED Indicators Not illuminated=10 Mb/s green=100 Mb/s amber=1 Gb/s (Copper) Marks CE FCC RoHS
Questions & answers
What is the delivery time of Allnet ALL0133v2-2-GB-TX PCIe 1G X4 Dual Port Gigabit Server Adapter Copper RJ45 ?
The article Allnet ALL0133v2-2-GB-TX PCIe 1G X4 Dual Port Gigabit Server Adapter Copper RJ45 is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 25 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Allnet ALL0133v2-2-GB-TX to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allnet ALL0133v2-2-GB-TX PCIe 1G X4 Dual Port Gigabit Server Adapter Copper RJ45 always at the best possible price. We can give you a discount of 2% on
Allnet ALL0133v2-2-GB-TX PCIe 1G X4 Dual Port Gigabit Server Adapter Copper RJ45 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Allnet ALL0133v2-2-GB-TX PCIe 1G X4 Dual Port Gigabit Server Adapter Copper RJ45 we can offer you a price of 34,54 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
