Allnet ALL-S0002124 48,3 cm ( 19 inch )cabinet, accessory Socket, B800 / T1000mm, light gray, for SNB series content_copy

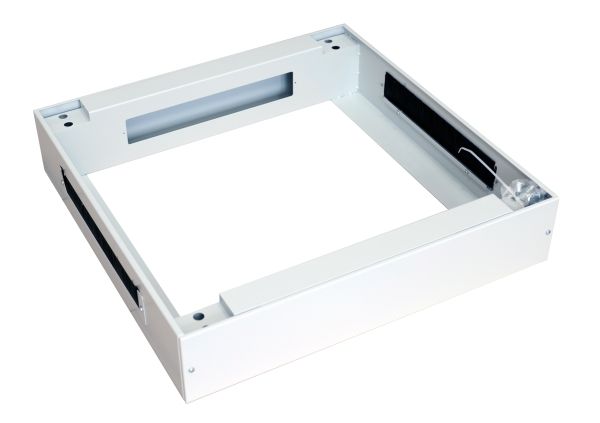

The product ALL-S0002124 from Allnet is a 19-inch plinth accessory, specifically designed for the SNB series of enclosures. It serves as a stable base for securing and aligning the enclosure body to the floor, ensuring a safe and level installation. The plinth is finished in Light Grey, matching the RAL7035 colour tone, and features a height of 150 mm, a width of 800 mm, and a depth of 1000 mm. These dimensions allow for a precise fit within existing enclosure configurations of the SNB series.

Applications

The plinth is intended for use in IT and network infrastructures, particularly in data centres, server rooms, or during the installation of network and communication technology. It is mounted beneath 19-inch enclosures to enhance their stability and ensure even load distribution on the floor. The design is intended for indoor use, with the colour scheme enabling visual harmony with other components in the enclosure environment.

Functions and Features in Detail

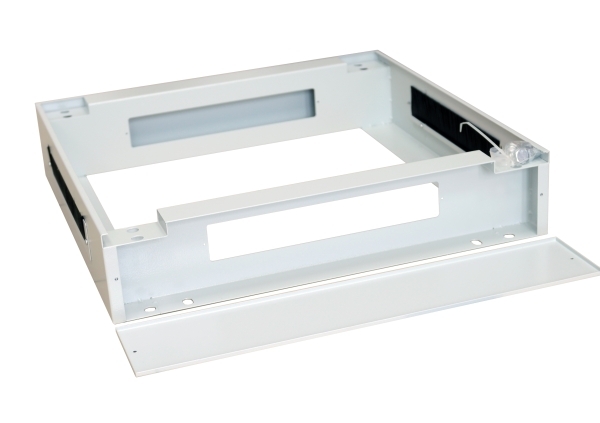

A key feature of the plinth is the integrated cable entry from all four sides. This enables flexible and structured cabling, simplifying the installation and maintenance of network cables, power lines, or other connections. At the front and rear, cable entry is achieved by removing the integrated trim panels, ensuring clean and accessible cable routing. On the side panels, a brush strip is installed, allowing flexible cable routing without damaging the cables. The brush strip also prevents dust and small particles from entering the enclosure while maintaining continuous cable guidance.

Technology Explained Simply

The plinth is made from robust material suitable for technical environments. The height of 150 mm provides sufficient clearance from the floor, allowing good air circulation beneath the enclosure, which benefits cooling of installed devices. The dimensions of 800 mm width and 1000 mm depth correspond to standard sizes for 19-inch enclosures in the SNB series, enabling direct mounting without additional modifications. The Light Grey finish (similar to RAL7035) ensures a uniform visual appearance, integrating well into professional IT environments.

Compatibility and Accessories

The plinth ALL-S0002124 is specifically developed for the SNB series from Allnet and matches the dimensions of these enclosure models. It is not intended for other enclosure series or manufacturers, as the dimensions and mounting points are specifically tailored to the SNB series. Combination with other accessories such as floor plates, enclosure feet, or cable management systems is possible, provided they are also designed for the SNB series. The cable entry components are universally usable and support a wide range of cable types, including network cables, power cables, and data lines.

Installation and Mounting

Installation is performed by securing the plinth beneath the enclosure body, using the designated mounting points and holes. The installation does not require special tools, although the use of a screwdriver or screw clamp is recommended to ensure secure fastening. Cables can be routed during installation or later through the designated openings and brush strips. The trim panels at the front and rear can be easily removed to enable cable routing.

Operational Advantages

Using the plinth improves the stability of the enclosure and reduces the risk of tilting or shifting, especially with heavy or fully loaded enclosures. The integrated cable entry ensures orderly and clean cabling, simplifying maintenance and fault diagnosis. The brush strips on the sides protect cables from mechanical damage and prevent dust ingress. The Light Grey finish supports a professional and uniform appearance of the IT infrastructure.

Technical data
Colours	Light grey
19" rack accessories	Base

---
