Allnet ALL-S0002117 48,3 cm ( 19 inch )cabinet, cable management tray accessory Perpendicular, for 42U SNB series, Lich content_copy

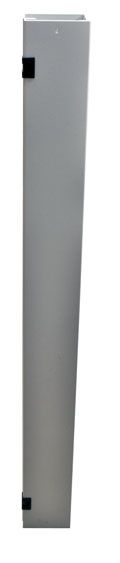

The product is a vertical cable management shaft from the brand Allnet, specifically designed for 19-inch enclosures of the SNB series with a width of 800 mm. It is intended for structured routing and installation of cables within the enclosure to ensure orderly cabling and optimal air circulation. The unit is 1860 mm in height, equivalent to 42 U, and features a width of 100 mm and a depth of 75 mm. The colour is light grey, similar to RAL7035, and the housing is made of solid metal, ensuring high mechanical stability and durability.

Cable management in server and network environments

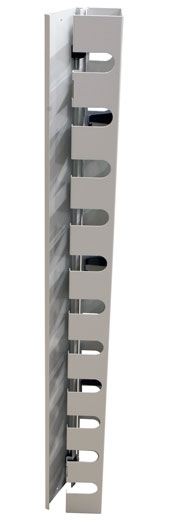

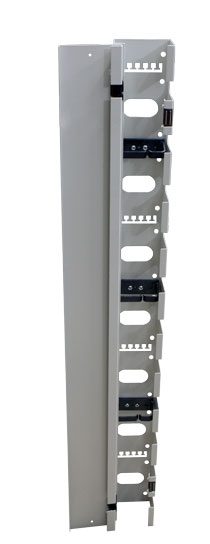

The cable management shaft is an integrated accessory for 19-inch technology and serves for the efficient routing of network cables, power cables, or other lines within the enclosure. It enables a clear separation between devices and cables, facilitating maintenance and installation of components. The vertical design ensures that cables can be routed along the entire height of the enclosure without crossing over devices or other cables. This reduces the risk of tangling and improves clarity within the enclosure.

Functions and equipment in detail

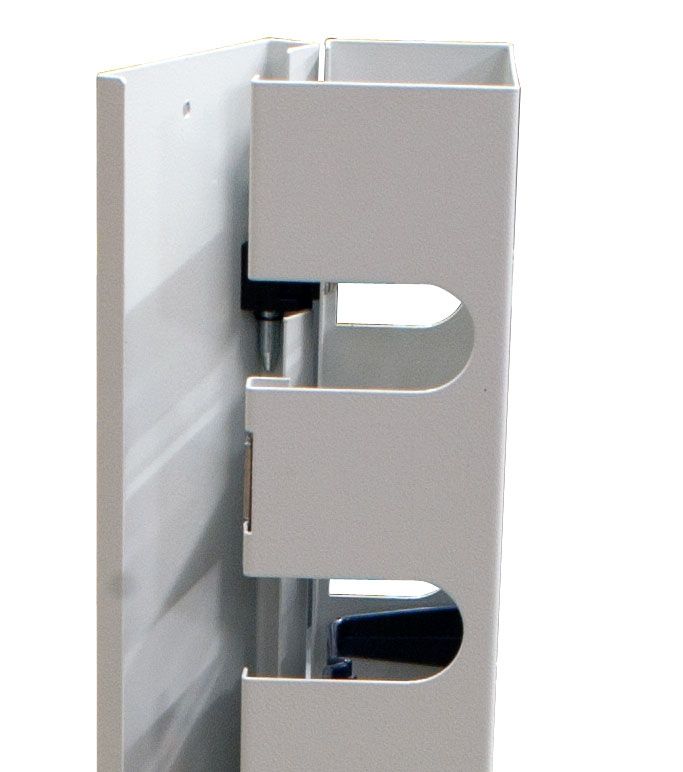

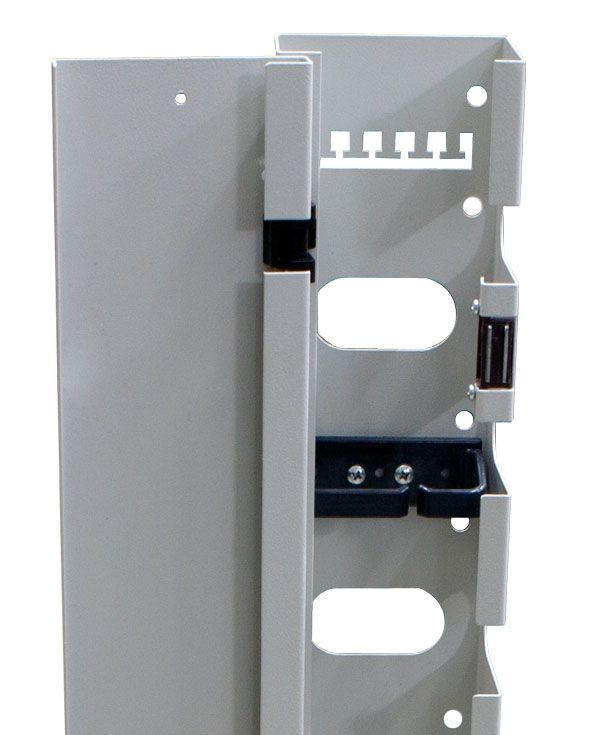

The shaft features a lid secured by a hinge and magnetic latch. This lid allows secure access to the cables without having to open the entire cable management system. The magnetic latch ensures that the lid closes automatically and is protected against unintentional opening. The use of solid metal as material ensures high mechanical strength and resistance to mechanical stresses that may occur during operation of server and network enclosures.

Technology explained simply
The dimensions of 1860 mm height, 100 mm width, and 75 mm depth are aligned with standard dimensions for 19-inch enclosures. The height of 42 U corresponds to the usual maximum size for server and network enclosures, allowing the cable management shaft to utilize the full available height. The width of 100 mm provides sufficient space for multiple cables without the shaft becoming too wide, which could impair space conditions within the enclosure. The depth of 75 mm is sufficient to securely accommodate cables without them protruding from the shaft.

Compatibility and accessories
The cable management shaft is exclusively intended for enclosures of the SNB series with a width of 800 mm. It is not suitable for other enclosure widths or other enclosure models. Compatibility is limited to the specific dimensions and mounting specifications of the SNB series.

Mounting and installation
Mounting is carried out in the designated mounting openings of SNB series enclosures. No additional mounting accessories are required, as the shaft is directly installed into the enclosure structure. The exact mounting instructions are not described in the datasheet; however, installation is typically simple and quick due to standard dimensions and designated mounting points.

Advantages in operation
The use of the cable management shaft improves clarity and structure within server and network enclosures. Cables are organized and easily accessible, facilitating maintenance and troubleshooting. The use of solid metal ensures high mechanical stability and durability, allowing the shaft to be used even in demanding environments. The magnetic latch on the lid ensures secure and convenient handling without requiring additional locking mechanisms. The light grey colour, similar to RAL7035, matches the standard colour scheme of server and network enclosures aesthetically.

Technical data
Colours	Light grey
19" rack accessories	Vertical cable duct
Height units	42 HE

---
