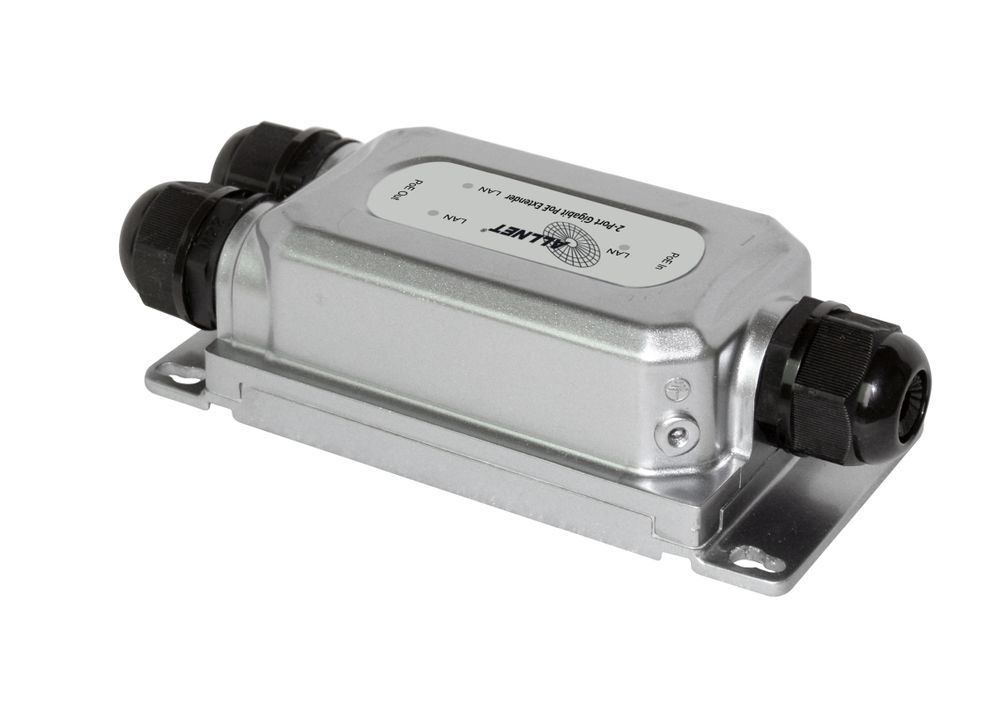

ALLNET PoE Extender Repeater Outdoor IP67 IEEE802.3BT IN - AT Out, ALL-PR2013O-30W

Highlights: Outdoor IP67 Gigabit Extender Repeater 1x 10/100/1000M PoE (IEEE802.3bt POE+) INPUT 2x10/100/1000M PoE (IEEE802.3af /at POE+) OUTPUT Extended operating temperature: -20°C to +60°C The new one ALL-PR2013O-30W is a small 2-port PoE switch or PoE repeater and extends the PoE signal by 100 meters each. This length is usually the maximum distance for the PoE supply of power and data. With the help of the repeater, up to 300 meters of PoE can be achieved if a new device is installed every 100 meters. This is only possible because it is an active device and the signal is continually reprocessed. The repeater is fed with IEEE802.3bt and outputs IEEE802.3af/at PoE up to 70 watts. Thanks to the certification for protection class IP67, the product is suitable for outdoor use as it is dustproof and protected against strong splashes of water and brief immersion. In order to give a better idea for the concept of an outdoor repeater, you will find some application scenarios here: Power and data supply for an outdoor IP camera and an access point at the same time Connection of two IP cameras with simultaneous power supply Possibility of an emergency IP telephone outside the company building Bridging one Longer distance between two buildings A BT power supply is required!!! e.g. 188381 Technical Details: Model ALL-PR2013O-30W Standard IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3af IEEE802.3at IEEE802.3bt Port PoE in port:1 x 10/100/1000Mbps RJ45 port
PoE out port : 2 x 10/100/1000Mbps RJ45 port Network Media(Cable) 10BASE-T: UTP category 3.4, 5 cable (=100m)
100BASE-TX: UTP category 5.5e cable (=100m)
1000BASE-TX: UTP category5e cable (=100m) LED LAN PoE standard IEEE802.3af/at/bt Dimensions (L*W*H) 150*73*44MM RJ45 PoE PoE in port: PoE PIN 1/2 = (+) PIN 3/6 = (-) or PIN 4/5 (+) and PIN 7/8 = (-)
PoE out port: PINS 1/2 = (+) and PINS 3/6 = (-) PoE port 2 Power Supply PoE PD port input 95W Max PoE Power Output Per port 48-55V DC Max.30W IEEE802.3at Operating Temperature -20°C ~ 60 °C Storage Temperature -40 °C ~ 80 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5 % ~ 90% non-condensing Surge Protection Differential mode±4KV, Common mode±6KV MTBF >50000 hour Electrostatic standard Contact 6KV,air 8KV Weather Rating IP67 Vandal Proof IK10 Marks CE
