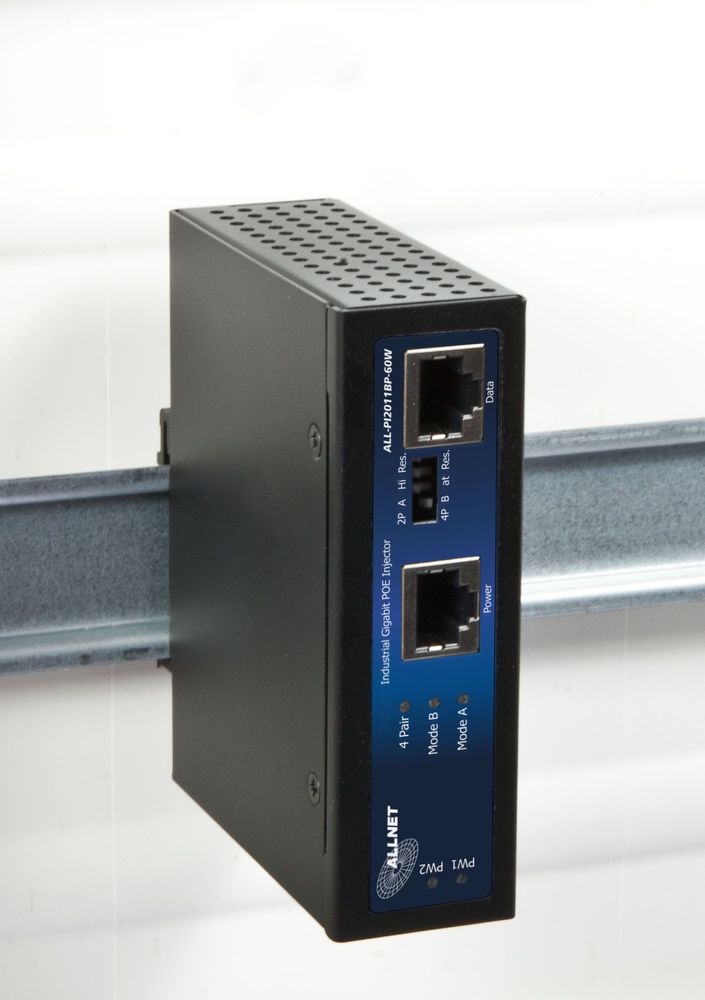

ALLNET ALL-PI2011BP-60W / PoE Injector Industrial 1G TX -> 1G TX PoE 60W HUT/DIN Power Booster

ALLNET ALL-PI2011BP-60W / PoE Injector Industrial 1G TX -> 1G TX PoE 60W HUT/DIN "Power Booster\dlashHighlights: 60 watts, selectable between Mode A and Mode B
Industrial Gigabit POE Injector with Power Booster
Integrated Power Booster which realizes the input voltage from 24V to up to 55V with max. 60W
1x 10/100/1000M TX PSE (802.3af/at POE+) TX
1x 10/100/1000M TX
Extended operating temperature: -40°C to +75°C
The high power PoE injector has a power booster" that converts the low input voltage of 24/48/56V DC into up to 55V DC, thus providing up to 72 watts to the connected devices. In addition to increasing the input voltage, the "ColdDesign Technology also enables a reduction in the waste heat generated. The injector increases the input voltage from 24V up to 55V to meet the voltage requirements of the IEEE802.3af/at PoE standard. The integrated 4-PIN DIP switch allows you to choose between Mode A and Mode B, for PoE-compliant 30 watts or up to 36 watts for high power. You can also choose between 2 pairs or 4 pairs to achieve a power of 30/36 or 60/72 watts. The injector has been extensively tested for use in a wide range of security, transportation and telecommunications applications.
Technical data:
IEEE standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af for POE
IEEE802.3at for POE+
Network Connector :
1xRJ-45 10/100/1000BaseT(X ) Data
1xRJ-45 10/100/1000BaseT(X) PSE with POE Output power
Network Cable
UTP/STP Cat.5e or above Cable
EIA/TIA-568 10-ohm (100m)
Protocol
CSMA/CD
LED
PW1(power 1) Green: ON- power good, OFF-power failed
PW2(power 2) Green: ON- power good, OFF-power failed
Mode A: ON- End Span PD detected
Mode B: ON – Mid Span PD detected
4 Pair: ON – 60W PSE in active mode.
OFF – 30W PSE in active mode.
POE Pin Assignment
Default: Mode A (End Span) V+, V+, V-, V- for pin 1, 2, 3, 6
DIP switch setting can be changed to Mode B, V+, V+, V-, V- for pin 4, 5, 7, 8
DIP Switch
To select 2 pair (30/36Watts) or 4 pair (60/72Watts)
To select Mode A, or Mode B
To select standard IEEE802.3at 30watts or high power POE 36Watts
Reverse polarity protection
Present
Overload current protection
Present
Power Supply
2 Redundant power source
24V-56V VDC Power Input,
Power Consumption
1 W@24/48 VDC full load, Without POE
POE power
Maximum POE power 72watts at 24/48VDC input
Removable Terminal Block
Provide 4 pin terminal block
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG)?-24/14-22
Stranded wire(AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
Operating Temperature
-40 °~75° fully tested.
Operating Humidity
5% to 95% (Non-condensing)
Storage Temperature
-40°~85°
MTBF (mean time between failure)
510,304 hrs ( MIL-HDBK-217F) at 25°C
Housing
Rugged Metal, IP30 Protection
Case Dimension (LXWXD )mm
103.5mmx32mmx81.5mm (LxWxD)
Installation mounting
DIN Rail mounting and Wall Mounting
Certifications:
EN55022/24
ITE equipment
EN55011
Industrial, Scientific and Medical (ISM) equipment
Safety
IEC EN60950-1
EMC/EMS
CE, FCC, VCCI
EMI
FCC Part 15 Subpart B Class A,
CE EN 55022 Class A
EN 50155 / EN 60068-2-6
Vibration
EN 50155 / EN 60068-2-27
Shock
EN 50155 / EN 60068-2-32
Free Fall
