ALLNET NX5Pro MiniPC video server/client with Linux and Networkoptix 8GB/64GB ALL-NX5Pro-864

The most powerful mini PC based on ARM Rockchip RK3588 with 4/8/16GB DDR4 RAM and 32/64/128/256GB hard drive, HDMI 2.1, WLAN AX 2.4/5GHz, 4K, USB 3.1 Our new Linux mini PC with Networkoptix server is a small, very powerful mini PC with an RK3588 chipset. The RK3588 is currently the most powerful ARM processor from Rockchip and is on the level of an Intel Core i5 and up to 10x faster than an RK3399.

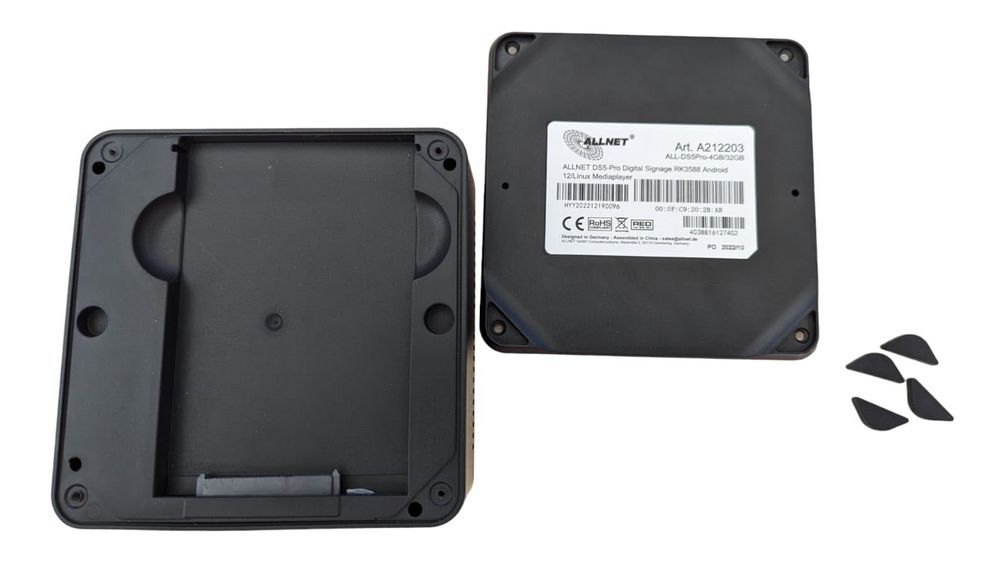

The device can either be used as a Networkoptix client and can display up to 4K/8K resolution with suitable displays or as a Networkoptix server to record and manage up to 30-40 cameras (min 8GB RAM). The different memory sizes for RAM of 4/8/16GB and permanent storage of 32/64/128/256 GB and the option of installing a 2.5 inch SSD/HDD hard drive make the device one of the best mini video servers on the market. The Networkoptix server is pre-installed and only needs to be connected to the network and configured using a Windows/Linux client. The hard drive is installed above the floor. To do this, the screws under the rubber feet must be loosened. The HDD/SSD hard drive can be max. 7mm thick.
The MiniPC can also be used as a PC with Linux to control home automation, etc.
The minimum power consumption of around 20 watts is very low compared to an Intel Core i5 with more than 60 watts.
Models:
NX5Pro-4GB/32GB
NX5Pro-8GB/64GB
Package contents:
1 x 12V Power Supply
1 x HDMI® Cable
1 x User Manual + Color Box
1 x RK3588 Player
1 x Remote Control
Dimensions: 116x116x45mm
Comparison with RK3399 CPU:Processor Rockchip RK3588 Rockchip RK3399 Market (main) Single-board computer Single-board computer ISA ARMv8-A (64-bit) ARMv8-A (64-bit) Microarchitecture Cortex-A76, Cortex-A55 Cortex-A72, Cortex-A53 Family RK3500 RK3300 Part number(s), S-Spec RK3588 RK3399(K), RK3399 K Release date Q4 2021 Q1 2016 Lithography 8 nm LP 28 nm HKMG Cores 8 6 Threads 8 6 Base frequency 1.8 GHz 1.5 GHz Turbo frequency 2.4 GHz 2.0 GHz Energy cores 4x ARM Cortex-A55 @ 1.8 GHz 4x ARM Cortex-A53 @ 1.5 GHz High performance cores 4x ARM Cortex-A76 @ 2.4 GHz 2x ARM Cortex-A72 @ 2.0 GHz Cache memory 3 MB 1,512 MB Max memory capacity 32 GB 4 GB Memory types LPDDR4, LPDDR4X, LPDDR5 LPDDR3-1866,
LPDDR4 SDRAM Max PCIe lanes 4 4 TDP 12 W 7 W GPU integrated graphics ARM Mali-G610 MP4 ARM Mali-T860 MP4 GPU execution units 4 4 GPU shading units 64 64 GPU clock 600 MHz 600 MHz GPU FP32 floating point 610.6 GFLOPS 81.6 GFLOPS Socket SoC SoC Drystone MIPS 131,342 DMIPS 32,600 DMIPS AI accelerator AI Accelerator, NPU 3.0 - AI computing operations per seconds 6 TOPS - Crypto engine - AES 128/192/256, DES/3DES, SHA1/SHA256/MD5,
PRNG, TRNG Security - Trustzone Max display resolution 8K@60fps 4K@60fps Video decoding H.265/H.264 8K@60fps, 4K@120fps H.265/H.264 4K@60fps Video encoding H.265/H.264 8K@30fps H.264 1080p@30fps Max camera ISP 24 MP + 24 MP - Max video capture Dual MIPI-CSI - Modem 1000Mbps RJ45 Ethernet 10/100/1000M Ethernet Connectivity USB 2.0, USB 3.1 Type-C, HDMI 2.1, PCIe 3.0 HDMI 2.0, USB 2.0, USB 3.0 Wi-Fi Wi-Fi 2.4GHz/5GHz - Bluetooth Bluetooth 4.2 - Audio PDM I2S, PCM, SPDIF PassMark CPU Mark 6.124 1.378 (Android 64-bit)
Geekbench 4 single core 2.423 1,144 (Android 64-bit)
Geekbench 4 multi-core 8,162 2,776 (Android)
Geekbench 5 single core 508 269 (Android)
Geekbench 5 multi-core 2,235 615 (SGEMM)
GFLOPS performance 72.1 GFLOPS 23.9 GFLOPS (Multi-core / watt performance)
Performance / watt ratio 680 pts / W 397 pts / W
